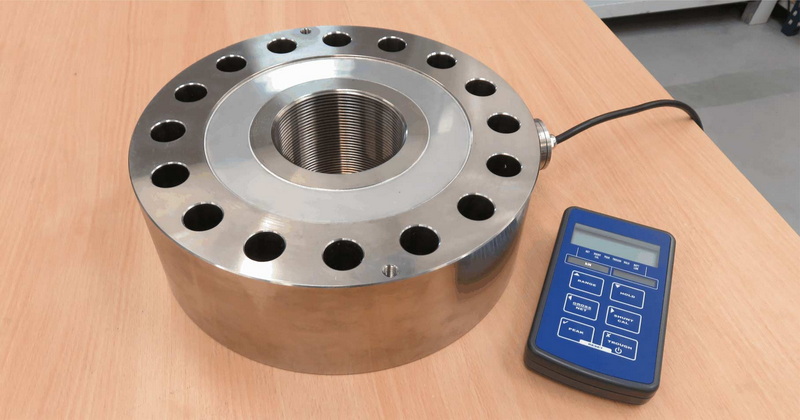

Before diving into noise reduction techniques, it is crucial to understand what load cells are and how they function. A load cell is a transducer that converts a force into an electrical signal. The most common type of load cell is the strain gauge load cell, which uses the principle of strain gauges to measure deformation caused by applied loads.
1. Strain Gauge Load Cells: These are the most widely used load cells. They consist of a metal element that deforms under load, causing a change in resistance in the strain gauges attached to it.
2. Hydraulic Load Cells: These use fluid pressure to measure weight. They are often used in heavy-duty applications.
3. Pneumatic Load Cells: These measure weight by the pressure of air in a chamber. They are less common but useful in specific applications.
4. Capacitive Load Cells: These measure changes in capacitance caused by the deformation of a dielectric material under load.
Noise in load cells can originate from various sources, including:
1. Electrical Noise: This can come from nearby electrical equipment, power lines, or even the load cell's own circuitry. Electrical noise can significantly affect the accuracy of the readings.
2. Mechanical Vibrations: External vibrations from machinery or environmental factors can introduce noise into the load cell measurements.
3. Temperature Fluctuations: Changes in temperature can affect the resistance of the strain gauges, leading to drift in the readings.
4. Signal Interference: This can occur due to poor wiring practices or inadequate shielding of the signal cables.
5. Environmental Factors: Humidity, dust, and other environmental conditions can also impact the performance of load cells.
Reducing noise in load cell measurements involves a combination of design considerations, installation practices, and signal processing techniques. Here are some effective methods:
The installation of load cells plays a crucial role in minimizing noise. Here are some best practices:

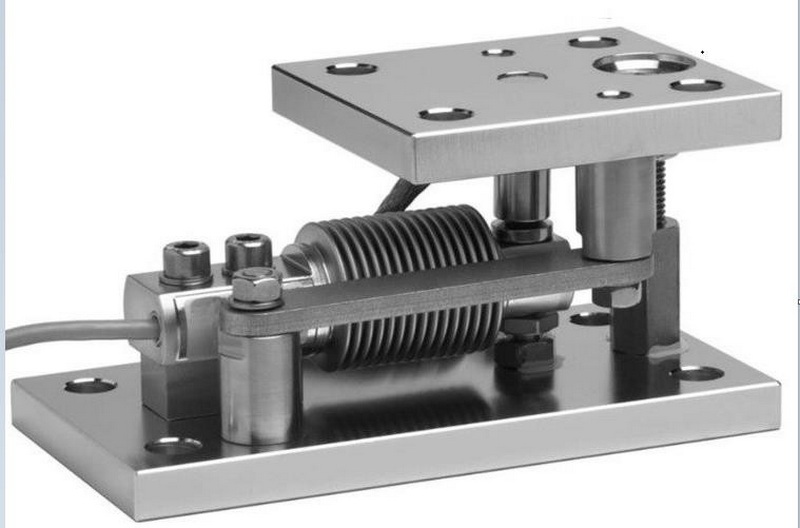

- Use Vibration Isolation: Install load cells on vibration-dampening mounts to reduce the impact of mechanical vibrations. This is particularly important in environments where heavy machinery operates, as vibrations can easily transfer to the load cell and affect its readings.
- Secure Wiring: Ensure that all wiring is secure and routed away from sources of electrical noise. Use twisted pair cables to minimize electromagnetic interference. Twisted pair cables help cancel out noise that may be induced in the wires, providing a cleaner signal to the load cell.
- Grounding: Proper grounding of the load cell and associated equipment can help reduce electrical noise. Ensure that the grounding is done according to industry standards. A good grounding system can significantly reduce the risk of noise affecting the load cell's performance.
Signal conditioning is essential for improving the quality of the signal from the load cell. This can include:
- Amplification: Use high-quality amplifiers to boost the signal from the load cell. Ensure that the amplifier has a low noise figure to avoid introducing additional noise. The choice of amplifier can greatly influence the overall noise performance of the system.
- Filtering: Implement low-pass filters to eliminate high-frequency noise. This can be done using analog filters or digital signal processing techniques. Filters can be designed to target specific frequency ranges, allowing for the removal of unwanted noise while preserving the desired signal.
- Analog-to-Digital Conversion: Use high-resolution ADCs to convert the analog signal from the load cell to a digital format. Higher resolution can help in distinguishing the actual signal from noise. The resolution of the ADC should match the precision requirements of the application.
Controlling the environment in which the load cell operates can significantly reduce noise:
- Temperature Control: Maintain a stable temperature around the load cell to minimize thermal drift. Use temperature compensation techniques if necessary. Temperature fluctuations can cause the load cell to produce varying outputs, leading to inaccuracies.
- Humidity Control: Protect load cells from excessive humidity, which can affect their performance. Use enclosures or protective coatings as needed. Humidity can lead to corrosion or other forms of degradation that impact the load cell's functionality.
- Dust and Contaminant Protection: Ensure that load cells are protected from dust and other contaminants that can interfere with their operation. Sealing load cells in protective housings can help maintain their performance over time.
Regular calibration and maintenance of load cells are essential for ensuring accurate measurements:
- Routine Calibration: Perform regular calibration of load cells to ensure they are providing accurate readings. This can help identify any drift or changes in performance. Calibration should be done using certified weights to ensure accuracy.
- Visual Inspections: Conduct visual inspections to check for any signs of wear, damage, or contamination that could affect performance. Regular inspections can help catch potential issues before they lead to significant problems.
- Software Calibration: Use software tools to calibrate and compensate for any known sources of noise or drift in the system. Software calibration can be particularly useful in applications where environmental conditions change frequently.
For applications requiring high precision, consider advanced techniques:
- Differential Measurement: Use differential load cells to measure the difference between two loads, which can help cancel out common noise sources. This technique is particularly useful in applications where the load is subject to fluctuations.
- Digital Filtering: Implement digital filtering techniques in the software to process the load cell signals and reduce noise. Digital filters can be designed to adapt to changing noise conditions, providing a more robust solution.
- Machine Learning Algorithms: Explore the use of machine learning algorithms to predict and filter out noise based on historical data. These algorithms can learn from past measurements to improve the accuracy of future readings.
Reducing noise in load cell measurements is crucial for ensuring accurate and reliable data. By understanding the sources of noise and implementing effective noise reduction techniques, users can significantly improve the performance of load cells in various applications. Proper installation, signal conditioning, environmental control, regular maintenance, and advanced techniques are all essential components of a comprehensive noise reduction strategy.
By following these guidelines, engineers and technicians can enhance the accuracy of their load cell systems, leading to better performance and more reliable measurements.
Common sources of noise in load cells include electrical noise from nearby equipment, mechanical vibrations, temperature fluctuations, signal interference from poor wiring, and environmental factors such as humidity and dust.
To minimize electrical noise, ensure proper grounding of the load cell and associated equipment, use twisted pair cables for wiring, and keep signal cables away from sources of electrical interference.
Signal conditioning involves processing the signal from the load cell to improve its quality. It is important because it helps amplify the signal, filter out noise, and convert the analog signal to a digital format, ensuring accurate measurements.
Load cells should be calibrated regularly, typically at least once a year or more frequently if they are used in critical applications or subjected to harsh environmental conditions.
Yes, machine learning algorithms can be used to analyze historical data and predict noise patterns, allowing for more effective filtering and improved accuracy in load cell measurements.
