Before diving into the removal process, it's important to understand what a load cell is and how it functions. A load cell is a transducer that converts a force into an electrical signal. In the context of a feed wagon, load cells are used to measure the weight of the feed being transported. They are typically installed in the wagon's frame and are connected to a display unit that shows the weight.
There are several types of load cells, including:
- Strain Gauge Load Cells: These are the most common type, using strain gauges to measure deformation.
- Hydraulic Load Cells: These use fluid pressure to measure weight.
- Pneumatic Load Cells: These measure weight based on air pressure.
For the Auggie feed wagon, strain gauge load cells are typically used due to their accuracy and reliability.
Before you begin the removal process, gather the following tools and materials:
- Wrenches (appropriate sizes for the bolts)
- Screwdrivers (flathead and Phillips)
- Pliers
- Safety gloves
- Safety goggles
- Replacement load cell (if needed)
- Cleaning cloth
Before starting any work on the feed wagon, ensure that the wagon is empty and parked on a flat, stable surface. Engage the parking brake to prevent any movement. Wear safety gloves and goggles to protect yourself from any sharp edges or debris.

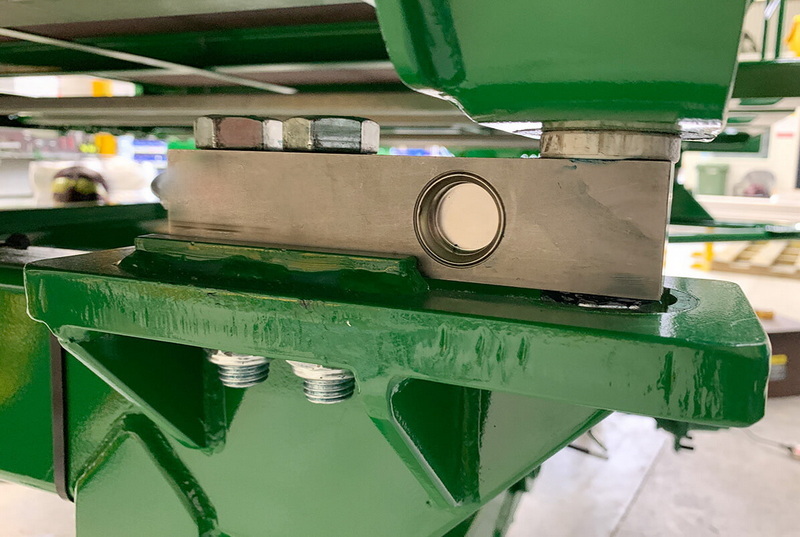

The load cell is typically located beneath the feed wagon, attached to the frame. Depending on the model, it may be housed in a protective casing. Inspect the area to familiarize yourself with the load cell's position and the surrounding components.
Before removing the load cell, you need to disconnect any electrical connections. Locate the wiring harness connected to the load cell. Carefully unplug the connectors, ensuring that you do not damage the wires. If the connectors are tight, use pliers to gently wiggle them free.
Using the appropriate wrench, remove the bolts securing the load cell to the frame of the feed wagon. Keep these bolts in a safe place, as you will need them if you are installing a new load cell. If the bolts are rusted or difficult to remove, apply penetrating oil and let it sit for a few minutes before attempting to unscrew them again.
Once the bolts are removed, gently pull the load cell away from its mounting position. Be cautious, as there may be additional components attached to the load cell that could be damaged if pulled too forcefully. If the load cell is stuck, check for any remaining connections or obstructions.
After removing the load cell, inspect it for any signs of damage or wear. Look for cracks, corrosion, or other issues that may affect its performance. If you are replacing the load cell, ensure that the new one matches the specifications of the old one.
Before installing a new load cell, clean the mounting area to remove any dirt or debris. Use a cleaning cloth to wipe down the surfaces, ensuring a good fit for the new load cell.
If you are replacing the load cell, position the new load cell in the same location as the old one. Align it with the mounting holes and secure it with the bolts you previously removed. Tighten the bolts evenly to ensure a secure fit.
Reconnect the wiring harness to the new load cell. Ensure that the connections are secure and that there are no exposed wires. If necessary, use electrical tape to insulate any exposed areas.
After installation, it's crucial to test the load cell to ensure it is functioning correctly. Fill the feed wagon with a known weight of feed and check the display unit to see if the weight is accurately measured. If the readings are off, double-check your connections and the installation.
To ensure the longevity and accuracy of your load cells, follow these maintenance tips:
- Regular Inspections: Periodically check the load cells for signs of wear or damage.
- Keep Clean: Ensure that the area around the load cells is clean and free from debris.
- Avoid Overloading: Do not exceed the weight capacity of the load cells, as this can cause damage.
- Calibrate Regularly: Schedule regular calibrations to maintain accuracy.
Load cells can experience various issues that may affect their performance. Here are some common problems and their solutions:
If the load cell is providing inaccurate readings, it may need recalibration. Ensure that the load cell is properly zeroed before use. If recalibration does not resolve the issue, inspect the load cell for physical damage or wear.
Electrical failures can occur due to damaged wiring or connectors. Inspect all electrical connections for signs of wear or corrosion. Replace any damaged components to restore functionality.
Load cells can be damaged by excessive force or impact. Regularly inspect the load cell for signs of physical damage, such as cracks or dents. If damage is found, replace the load cell immediately to prevent further issues.
Environmental conditions, such as moisture or extreme temperatures, can affect load cell performance. Ensure that the load cell is protected from harsh conditions, and consider using weatherproof models if necessary.
Exceeding the load cell's weight capacity can lead to permanent damage. Always adhere to the manufacturer's specifications regarding weight limits to avoid overloading.
Removing a load cell from an Auggie feed wagon is a straightforward process if you follow the steps outlined in this article. By understanding the components involved and taking the necessary precautions, you can successfully complete the task. Whether you are replacing a faulty load cell or performing routine maintenance, these guidelines will help you ensure that your feed wagon operates efficiently.
It is recommended to inspect load cells at least once a year, or more frequently if they are used in harsh conditions or subjected to heavy loads.
If your load cell is providing inconsistent readings, first check for any loose connections or physical damage. If everything appears normal, recalibrate the load cell.
You can replace a load cell yourself if you have the necessary tools and follow the proper procedures. However, if you are unsure or uncomfortable with the process, it may be best to hire a professional.
Signs that a load cell may need to be replaced include physical damage, corrosion, inaccurate readings, and failure to calibrate properly.
To ensure the longevity of your load cells, perform regular inspections, keep them clean, avoid overloading, and calibrate them regularly.
