A load cell is a transducer that converts a force into an electrical signal. This signal can then be measured and displayed, allowing for precise weight measurements. Load cells are widely used in various industries, including manufacturing, transportation, and healthcare. They play a crucial role in ensuring that products are weighed accurately, which is essential for quality control and compliance with regulations.

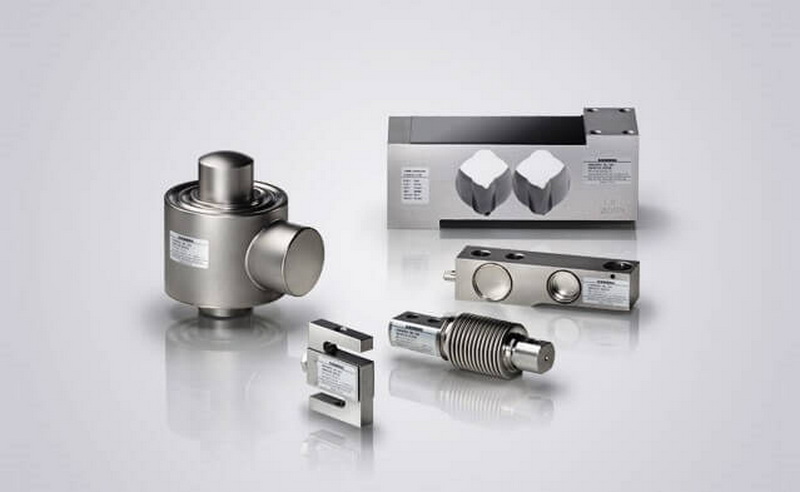

There are several types of load cells, each designed for specific applications. Understanding these types will help you choose the right one for your needs.
These are the most common type of load cells. They work by measuring the deformation of a material when a load is applied. Strain gauge load cells are known for their accuracy and reliability. They are often used in applications where precision is critical, such as in laboratory settings or high-accuracy scales.
These load cells use hydraulic fluid to measure force. When a load is applied, the fluid pressure changes, which can be measured. Hydraulic load cells are often used in heavy-duty applications, such as weighing large vehicles or industrial equipment. They are known for their robustness and ability to handle extreme loads.
Similar to hydraulic load cells, pneumatic load cells use air pressure to measure force. They are typically used in applications where electrical signals may be hazardous, such as in explosive environments. Pneumatic load cells are less common but are essential in specific industries.

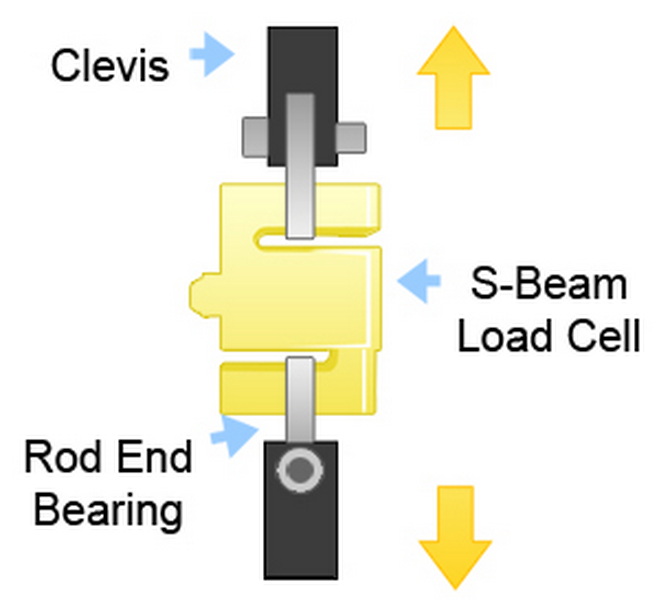

These load cells are shaped like an "S" and are used for tension and compression applications. They are versatile and can be used in various settings, including industrial and laboratory environments. S-beam load cells are particularly useful for applications that require both tension and compression measurements.
These are designed for use in platform scales and are ideal for applications where space is limited. They can measure loads applied at a single point, making them suitable for small-scale weighing applications. Single point load cells are commonly found in retail scales and medical weighing devices.
When selecting a load cell, several factors should be taken into account to ensure optimal performance.
The load cell's capacity refers to the maximum load it can measure. It is essential to choose a load cell with a capacity that exceeds the maximum expected load to prevent damage and ensure accuracy. For example, if you expect to weigh items up to 500 kg, selecting a load cell with a capacity of at least 600 kg is advisable to provide a safety margin.
Accuracy is a critical factor in load cell selection. Different load cells have varying levels of accuracy, typically expressed as a percentage of the full-scale output. Consider the required accuracy for your application and choose accordingly. For high-precision applications, such as laboratory measurements, a load cell with an accuracy of ±0.1% may be necessary.
The environment in which the load cell will be used can significantly impact its performance. Factors such as temperature, humidity, and exposure to chemicals should be considered. Some load cells are designed for harsh environments and offer protection against moisture and dust. For instance, if the load cell will be used in a wet environment, selecting a load cell with an IP67 rating (waterproof and dustproof) is essential.
The installation process can vary depending on the type of load cell. Ensure that the load cell you choose is compatible with your existing setup and that you have the necessary mounting hardware. Proper installation is crucial for accurate measurements, so follow the manufacturer's guidelines carefully.
Load cells can produce different types of output signals, including analog and digital. Determine which type of signal is compatible with your measurement system. Analog signals are often used in traditional weighing systems, while digital signals are common in modern electronic scales.
Calibration is essential for ensuring accurate measurements. Some load cells come pre-calibrated, while others may require calibration after installation. Consider the ease of calibration when selecting a load cell. Regular calibration is necessary to maintain accuracy over time, especially in applications where precision is critical.
Load cells are used in a wide range of applications, including:
Load cells are commonly used in scales for weighing products in manufacturing and distribution. They ensure that products are weighed accurately, which is essential for quality control and compliance with regulations.
Load cells are used in medical equipment, such as patient scales and infusion pumps, to ensure accurate measurements. In healthcare, precision is vital, and load cells help maintain the integrity of medical devices.
Load cells are used in automotive testing to measure forces during crash tests and other evaluations. They provide critical data that helps engineers improve vehicle safety and performance.
Load cells are used in aerospace applications for measuring forces during testing and development. They play a crucial role in ensuring the safety and reliability of aircraft.
In research settings, load cells are used to measure forces in various experiments. They provide accurate data that researchers rely on to draw conclusions and develop new technologies.
To ensure you select the right load cell for your application, follow these best practices:
Clearly outline the requirements of your application, including load capacity, accuracy, and environmental conditions. This will help narrow down your options and make the selection process more manageable.
If you are unsure about which load cell to choose, consult with manufacturers or industry experts who can provide guidance based on your specific needs. They can offer insights into the latest technologies and help you make an informed decision.
If possible, test the load cell in your application before making a final decision. This will help you assess its performance and compatibility. Many manufacturers offer demo units or trial periods for this purpose.
Think about potential future applications and whether the load cell can accommodate changes in load capacity or environmental conditions. Selecting a load cell with a higher capacity than currently needed can provide flexibility for future growth.
Always review the specifications provided by the manufacturer to ensure the load cell meets your requirements. Look for certifications and compliance with industry standards, as these can indicate the quality and reliability of the product.
Selecting the right load cell is a critical step in ensuring accurate measurements in various applications. By understanding the different types of load cells, considering essential factors, and following best practices, you can make an informed decision that meets your needs.
In summary, take the time to evaluate your requirements, consult with experts, and test load cells when possible. With the right load cell, you can achieve reliable and accurate measurements that enhance your operations.
Strain gauge load cells measure deformation in a material to determine force, while hydraulic load cells use fluid pressure changes to measure force. Strain gauge load cells are typically more accurate and suitable for a wider range of applications, whereas hydraulic load cells are better for heavy-duty applications.
Load cells should be calibrated regularly to maintain accuracy. The frequency of calibration depends on the application and usage conditions. For critical applications, calibration may be required monthly, while less critical applications may only need calibration annually.
Yes, load cells can be used in outdoor environments, but it is essential to select a load cell with appropriate environmental ratings, such as IP67 or IP68, to ensure protection against moisture and dust.
Several factors can affect the accuracy of a load cell, including temperature fluctuations, mechanical stress, installation errors, and the load cell's design. Proper installation and regular calibration can help mitigate these issues.
Yes, there are load cells designed for specific industries, such as medical, automotive, and aerospace. These load cells often have specialized features to meet the unique requirements of each industry, such as enhanced accuracy, environmental protection, or compliance with industry standards.
