Selecting the right load cell for your project is crucial for ensuring accurate measurements and reliable performance. Load cells are essential components in various applications, from industrial weighing systems to medical devices. This article will guide you through the process of choosing the right load cell, covering key factors to consider, types of load cells, installation tips, and more.
A load cell is a transducer that converts a force into an electrical signal. This signal can then be measured and recorded, allowing for precise weight or force measurements. Load cells are widely used in various industries, including manufacturing, transportation, and healthcare.

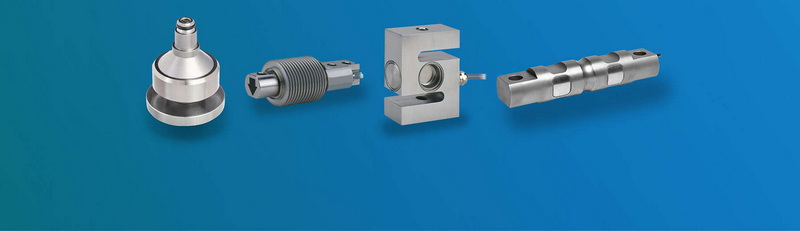

There are several types of load cells, each designed for specific applications. Understanding these types will help you select the right one for your project.
These are the most common type of load cells. They use strain gauges to measure the deformation of a material under load. Strain gauge load cells are known for their accuracy and reliability.
These load cells use hydraulic fluid to measure force. They are often used in heavy-duty applications, such as weighing trucks and containers.
Similar to hydraulic load cells, pneumatic load cells use air pressure to measure force. They are typically used in applications where high accuracy is required.

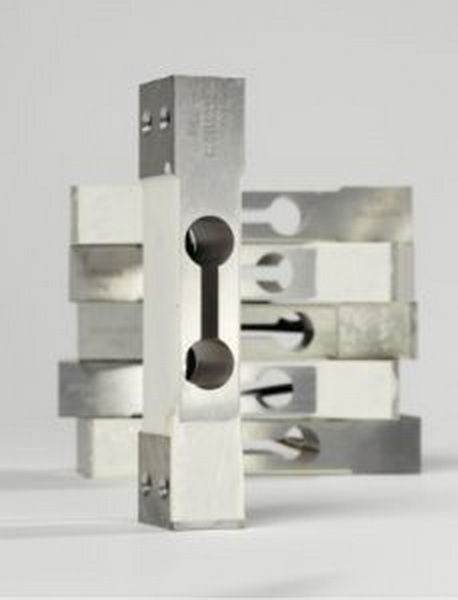

These load cells measure the bending of a beam under load. They are often used in platform scales and other weighing applications.
These load cells are shaped like an "S" and are used for tension and compression applications. They are versatile and can be used in various setups.
When selecting a load cell, several factors should be taken into account:
Determine the maximum load that the load cell will need to measure. Load cells come in various capacities, so choose one that can handle your project's requirements.
Consider the level of accuracy needed for your application. Different load cells offer varying degrees of precision, so select one that meets your specifications.
Assess the environment in which the load cell will be used. Factors such as temperature, humidity, and exposure to chemicals can affect performance. Choose a load cell that is suitable for your specific conditions.
Ensure that the load cell can be easily mounted in your application. Different load cells have different mounting configurations, so select one that fits your setup.
Load cells can produce different types of output signals, such as analog or digital. Choose a load cell that is compatible with your data acquisition system.
Consider how the load cell will be calibrated. Some load cells come pre-calibrated, while others may require calibration after installation.
Proper installation is crucial for the accurate performance of load cells. Here are some tips to ensure a successful installation:
Always refer to the manufacturer's installation instructions. This will help you avoid common pitfalls and ensure optimal performance.

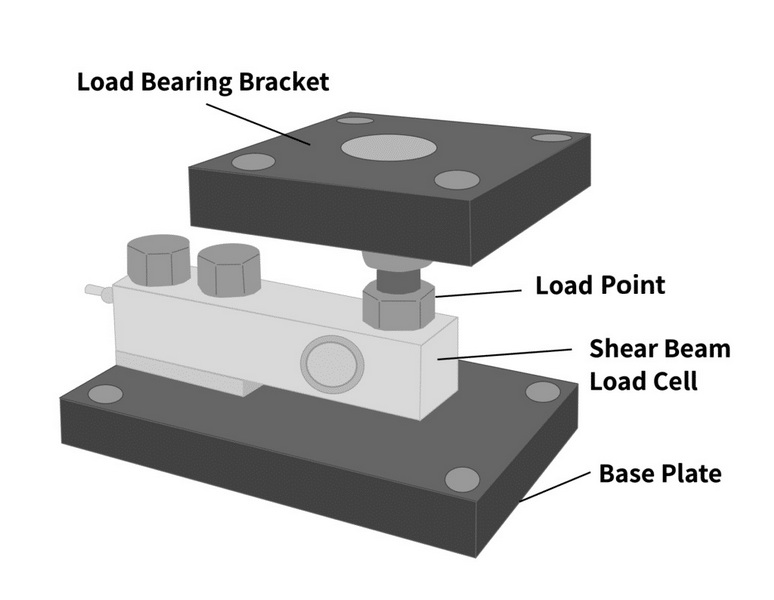

Ensure that you use the correct mounting hardware for your load cell. This includes bolts, washers, and brackets that are compatible with the load cell's specifications.
Never exceed the load cell's rated capacity. Overloading can damage the load cell and lead to inaccurate measurements.
Ensure that the load cell is properly aligned with the load it will measure. Misalignment can cause errors in measurement.
If the load cell will be exposed to harsh conditions, consider using protective enclosures or covers to shield it from damage.
Load cells are used in a wide range of applications, including:
Load cells are commonly used in industrial scales for weighing products and materials.
Load cells are used in medical equipment, such as patient scales and force measurement devices.
Load cells are used in automotive testing to measure forces during crash tests and other evaluations.
Load cells are used in aerospace for measuring forces during testing and development.
In research settings, load cells are used to measure forces in experiments, helping scientists and engineers gather data for analysis.
When selecting a load cell, it's also important to consider advanced features that may enhance performance and usability.
Digital load cells offer built-in signal processing, which can improve accuracy and reduce noise. They often come with integrated communication protocols, making them easier to interface with modern data acquisition systems.
Wireless load cells eliminate the need for cables, providing greater flexibility in installation. They are particularly useful in applications where mobility is essential, such as in portable weighing systems.
For applications requiring the measurement of multiple loads simultaneously, multi-channel load cells can be an excellent choice. They allow for the monitoring of several points of force, which is beneficial in complex systems.
Some load cells come with built-in temperature compensation features, ensuring that measurements remain accurate even when environmental conditions fluctuate. This is particularly important in industrial settings where temperature variations are common.
In some cases, off-the-shelf load cells may not meet specific project requirements. Custom load cells can be designed to fit unique applications, ensuring optimal performance.
Selecting the right load cell for your project involves careful consideration of various factors, including capacity, accuracy, environment, and installation requirements. By understanding the different types of load cells and their applications, you can make an informed decision that meets your project's needs.
In summary, take the time to evaluate your specific requirements and consult with manufacturers or experts if needed. A well-chosen load cell will enhance the accuracy and reliability of your measurements, ultimately contributing to the success of your project.
Tension load cells are designed to measure pulling forces, while compression load cells measure pushing forces. The choice between the two depends on the application and the type of force being measured.
Calibration typically involves applying known weights to the load cell and adjusting the output signal to match the expected values. It is essential to follow the manufacturer's guidelines for calibration procedures.
Yes, but it is crucial to select load cells that are rated for outdoor use. Look for features such as weatherproof enclosures and materials that can withstand environmental conditions.
The lifespan of a load cell can vary based on usage and environmental conditions. Generally, a well-maintained load cell can last for many years, often exceeding a decade.
To choose the right load cell capacity, consider the maximum load you expect to measure, including any potential overloads. It is advisable to select a load cell with a capacity that exceeds your maximum expected load to ensure accuracy and longevity.
