Load cells are crucial components in various industries, from manufacturing to agriculture, used for precise weight and force measurements. Understanding how to properly set up a load cell is essential for accurate readings and longevity of the equipment. This guide will walk you through the process of setting up a load cell, covering everything from selection to installation and troubleshooting.
Before diving into the setup process, it's important to understand some key concepts related to load cells:
1. Load cell types
2. Capacity and sensitivity
3. Mounting techniques
4. Wiring and connections
5. Calibration methods
Choosing the appropriate load cell for your application is the first step in the setup process. Consider the following factors:
- Type of load (compression, tension, or both)
- Expected weight range
- Environmental conditions
- Accuracy requirements
- Budget constraints
For example, if you're measuring compression forces in an industrial setting, a rugged compression load cell might be the best choice.
Before installing the load cell, ensure you have all necessary components and tools:
- Load cell
- Mounting hardware
- Wiring and connectors
- Indicator or data acquisition system
- Calibration weights
- Tools (wrenches, screwdrivers, multimeter)
It's crucial to read the manufacturer's instructions thoroughly before proceeding with the installation.

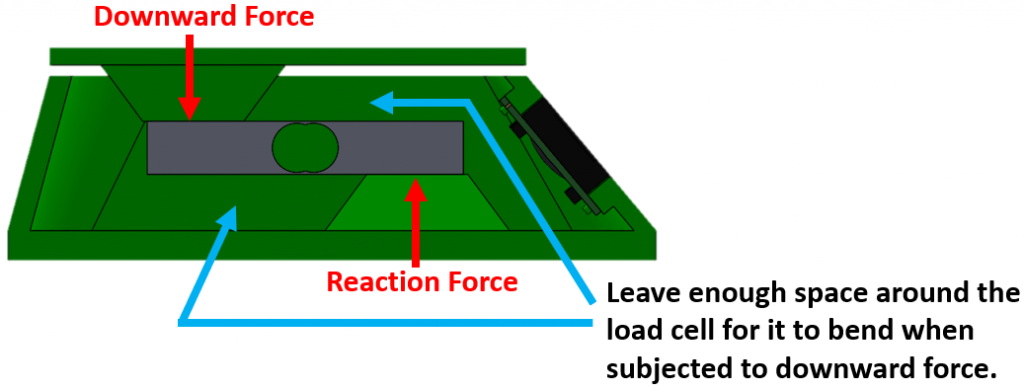

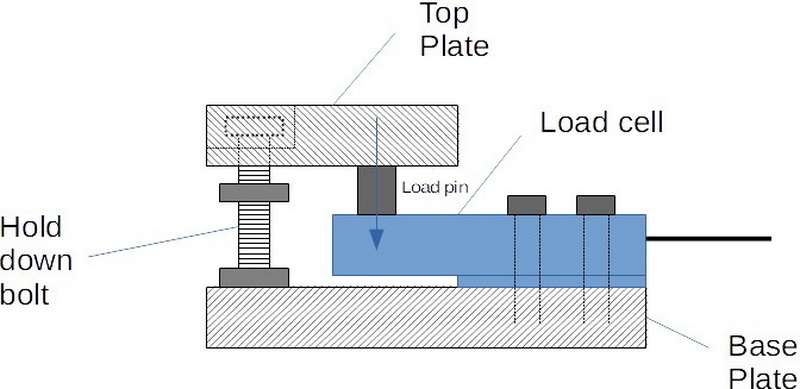

Proper mounting is critical for accurate measurements. Follow these steps:
1. Choose a stable, level surface for mounting.
2. Clean the mounting area thoroughly.
3. Align the load cell according to the manufacturer's specifications.
4. Secure the load cell using appropriate hardware.
5. Ensure there's no preload on the cell before final tightening.
Remember, misalignment can lead to inaccurate readings and potential damage to the load cell.
Proper wiring is essential for accurate signal transmission. Most load cells use a four-wire or six-wire configuration:
1. Identify the wire colors and their functions (excitation +/-, signal +/-, sense +/- for 6-wire configurations).
2. Connect the wires to the corresponding terminals on your indicator or data acquisition system.
3. Use shielded cables to minimize electromagnetic interference.
4. Ensure all connections are secure and protected from moisture.
For a visual guide on load cell wiring, check out this helpful video:
Calibration ensures your load cell provides accurate measurements. Follow these steps:
1. Zero the system with no load applied.
2. Apply known weights across the cell's range.
3. Record the output for each weight.
4. Use these values to create a calibration curve or enter them into your indicator.
5. Verify calibration by testing with different weights.
Regular recalibration is necessary to maintain accuracy over time.
Even with careful setup, issues can arise. Here are some common problems and solutions:
1. Inconsistent readings: Check for loose connections or environmental factors affecting the cell.
2. Drift: Ensure proper temperature compensation and check for creep in the system.
3. Overload: Verify that the applied load doesn't exceed the cell's capacity.
4. Non-linearity: Recalibrate the system or check for mechanical interference.
To ensure long-term accuracy and reliability:
- Regularly inspect the load cell and mounting hardware for signs of wear or damage.
- Keep the load cell clean and free from debris.
- Protect the cell from excessive moisture, heat, and vibration.
- Perform periodic calibration checks.
- Document all maintenance and calibration activities.
As technology advances, load cells are being integrated into more sophisticated systems:
- IoT-enabled load cells for remote monitoring
- Multi-axis load cells for complex force measurements
- High-speed data acquisition for dynamic load analysis
These applications often require specialized setup procedures, so consult with experts when implementing advanced systems.
Setting up a load cell correctly is crucial for accurate weight and force measurements. By following this guide, you can ensure your load cell system is installed properly, calibrated accurately, and maintained for optimal performance.
Remember that each application may have unique requirements, so always consult the manufacturer's guidelines and seek professional assistance when needed.
A1: The frequency of calibration depends on usage and environmental factors. As a general rule, calibrate your load cell at least once a year or more frequently if used in harsh conditions or for critical measurements.
A2: Yes, but you need to choose a load cell with appropriate environmental protection ratings (IP67 or IP68 for water resistance). Additionally, consider temperature compensation features for outdoor use.
A3: A 4-wire load cell has two excitation wires and two signal wires. A 6-wire load cell adds two sense wires that compensate for voltage drops in long cable runs, providing more accurate readings over greater distances.
A4: Signs of overload include non-linear readings, permanent offset in the zero point, or physical deformation of the cell. Always stay within the rated capacity of your load cell to prevent damage.
A5: In most cases, it's not recommended to repair a damaged load cell. The precision required for accurate measurements means that even small repairs can affect performance. It's usually best to replace a damaged load cell with a new one.
