A load cell is a transducer that converts a force into an electrical signal. In the context of a thrust stand, it measures the thrust produced by a rocket engine or other propulsion systems. Load cells come in various types, including strain gauge, hydraulic, and pneumatic load cells, but strain gauge load cells are the most commonly used in thrust measurement due to their accuracy and reliability.
1. Strain Gauge Load Cells: These are the most common type used in thrust measurement. They work by measuring the deformation (strain) of a material when a force is applied. The amount of deformation is proportional to the force applied, allowing for precise measurements.
2. Hydraulic Load Cells: These use fluid pressure to measure force. They are less common in thrust applications but can be useful in specific scenarios where high forces are involved.
3. Pneumatic Load Cells: Similar to hydraulic load cells, these use air pressure to measure force. They are typically used in applications where electrical signals may be hazardous.

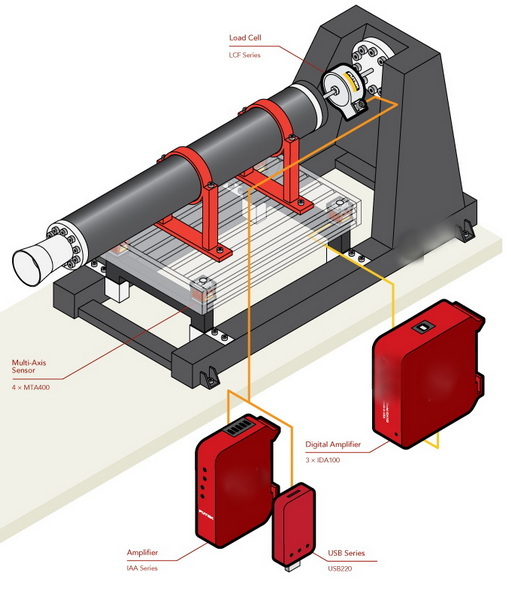

Before setting up your load cell, it's essential to understand the components of a thrust stand:
- Load Cell: The primary sensor that measures thrust.
- Mounting Frame: A sturdy structure that holds the load cell and the engine being tested.
- Data Acquisition System: This system collects and processes the signals from the load cell.
- Power Supply: Provides the necessary power for the load cell and data acquisition system.
- Software: Used to analyze the data collected from the load cell.
Before you begin, ensure you have all the necessary materials:
- Load cell
- Mounting frame
- Data acquisition system
- Power supply
- Connecting cables
- Software for data analysis
- Tools for assembly (screwdrivers, wrenches, etc.)
The mounting frame is critical for ensuring that the load cell can accurately measure thrust. It should be sturdy enough to withstand the forces generated during testing. Here's how to assemble it:
1. Choose a Suitable Location: Select a flat, stable surface for your thrust stand. Ensure there is enough space for the engine and any additional equipment.
2. Construct the Frame: Use metal or heavy-duty plastic to build the frame. It should have a base that can support the load cell and the engine. The frame should also have a vertical support to hold the load cell in place.
3. Secure the Load Cell: Attach the load cell to the frame using bolts or screws. Ensure it is aligned properly to measure thrust accurately.
Once the frame is ready, it's time to install the load cell:

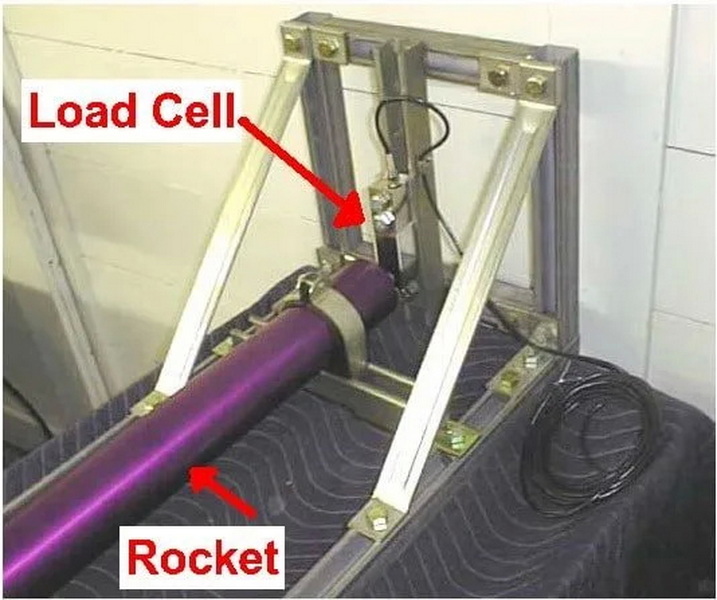

1. Position the Load Cell: Place the load cell in the designated area on the mounting frame. It should be positioned so that the thrust force will be applied directly along its axis.
2. Connect the Load Cell: Use the provided cables to connect the load cell to the data acquisition system. Ensure that the connections are secure and that the polarity is correct.
3. Calibrate the Load Cell: Calibration is essential for accurate measurements. Follow the manufacturer's instructions to calibrate the load cell. This usually involves applying known weights and adjusting the system to ensure accurate readings.
The data acquisition system collects and processes the signals from the load cell. Here's how to set it up:
1. Connect the Load Cell: Connect the load cell to the data acquisition system using the appropriate cables.
2. Power the System: Ensure that the data acquisition system is powered on and functioning correctly.
3. Install Software: Install any necessary software on your computer to analyze the data collected from the load cell. This software will allow you to visualize the thrust measurements and analyze the performance of the engine.
Before conducting actual tests, it's essential to perform a few preliminary checks:
1. Check Connections: Ensure that all connections are secure and that there are no loose wires.
2. Run a Test Measurement: With the load cell calibrated, run a test measurement without an engine to ensure that the system is functioning correctly. The load cell should read zero when no force is applied.
3. Simulate Thrust: If possible, simulate thrust by applying known weights to the load cell. This will help verify that the system is accurately measuring force.
Once everything is set up and tested, you can begin conducting thrust tests:
1. Install the Engine: Securely mount the engine to the thrust stand, ensuring that it is aligned with the load cell.
2. Prepare for Testing: Ensure that all safety precautions are in place. This includes having fire extinguishers on hand and ensuring that the testing area is clear of personnel.
3. Start the Engine: Begin the thrust test by igniting the engine. Monitor the data acquisition system for real-time thrust measurements.
4. Record Data: Use the software to record the thrust data during the test. This data will be invaluable for analyzing the performance of the engine.
5. Analyze Results: After the test, analyze the data collected. Look for trends in thrust output, stability, and any anomalies that may indicate issues with the engine or setup.
Safety is paramount when working with thrust stands and load cells. Here are some key safety tips:
- Always wear appropriate safety gear, including goggles and gloves.
- Ensure that the testing area is secure and that only authorized personnel are present.
- Have fire extinguishers and first aid kits readily available.
- Follow all manufacturer guidelines for the load cell and engine being tested.
Once you have collected thrust data, the next step is to analyze it effectively. Here are some techniques to consider:
1. Graphical Representation: Plotting thrust against time can help visualize the performance of the engine. Look for peaks and troughs in the data, which may indicate changes in thrust output.
2. Statistical Analysis: Use statistical methods to analyze the data. Calculate the mean, median, and standard deviation of thrust measurements to understand the variability in performance.
3. Comparative Analysis: If you have multiple tests, compare the results to identify trends or improvements in engine performance over time.
4. Error Analysis: Identify any potential sources of error in your measurements. This could include misalignment of the load cell, fluctuations in power supply, or environmental factors such as temperature and humidity.
Examining case studies can provide valuable insights into the thrust testing process. For example, a study on small rocket engines may reveal how different fuel types affect thrust output. By analyzing the data from various tests, you can draw conclusions about the optimal conditions for engine performance.
The field of load cell technology is continually evolving. Recent advancements include:
- Wireless Load Cells: These eliminate the need for cumbersome cables, making setup easier and reducing the risk of connection issues during tests.
- Smart Load Cells: Equipped with built-in data processing capabilities, these load cells can provide real-time feedback and analysis, streamlining the testing process.
- Miniaturization: Smaller load cells are being developed for use in compact applications, allowing for more versatile testing setups.
Setting up a load cell for a thrust stand is a detailed process that requires careful planning and execution. By following the steps outlined in this article, you can ensure that your thrust stand is set up correctly and ready for accurate thrust measurements. Remember to prioritize safety throughout the process and to analyze your data thoroughly after each test.
With the right setup, you can gain valuable insights into the performance of your propulsion systems, leading to better designs and more successful launches.
A load cell measures the thrust produced by a propulsion system, converting the force into an electrical signal for analysis.
Calibration involves applying known weights to the load cell and adjusting the system to ensure accurate readings according to the manufacturer's instructions.
Always wear safety gear, ensure the testing area is secure, have fire extinguishers on hand, and follow all manufacturer guidelines.
Yes, load cells can be used for various force measurements in different applications, including weighing systems and industrial machinery.
A data acquisition system collects and processes signals from the load cell, allowing for real-time monitoring, data recording, and analysis of thrust measurements.
