A load cell is a transducer that converts a force into an electrical signal. The most common types of load cells include:
- Strain Gauge Load Cells: These are the most widely used load cells, utilizing strain gauges to measure deformation. They are known for their accuracy and reliability, making them suitable for various applications, from industrial scales to medical devices.
- Hydraulic Load Cells: These use fluid pressure to measure weight and are often used in heavy-duty applications, such as truck scales and industrial weighing systems. They can handle large loads and are less affected by temperature changes.
- Pneumatic Load Cells: These operate on air pressure and are suitable for specific applications where hydraulic systems are impractical. They are often used in environments where electrical equipment cannot be used due to explosion risks.
When specifying a load cell, several key specifications must be considered:
1. Capacity: The maximum load the load cell can measure. It's essential to choose a load cell with a capacity that exceeds the expected maximum load to prevent damage. For example, if you expect a maximum load of 1000 kg, selecting a load cell with a capacity of 1200 kg or more is advisable.
2. Accuracy: This refers to the load cell's ability to provide precise measurements. Look for load cells with a high accuracy rating, typically expressed as a percentage of the full scale. For critical applications, an accuracy of ±0.1% or better is often required.
3. Sensitivity: This is the smallest change in load that the load cell can detect. Higher sensitivity is crucial for applications requiring precise measurements, such as laboratory experiments or quality control processes.
4. Temperature Range: Load cells can be affected by temperature changes. Ensure the load cell can operate effectively within the temperature range of your application. Some load cells are designed for extreme temperatures, while others may require additional protection.
5. Output Signal: Load cells can produce different types of output signals, including analog (voltage or current) and digital. Choose the output type that is compatible with your measurement system. For instance, if your system uses a digital interface, a load cell with a digital output is necessary.
6. Material and Construction: The material of the load cell affects its durability and suitability for specific environments. Common materials include aluminum, stainless steel, and alloy steel. Stainless steel load cells are often preferred for their corrosion resistance in harsh environments.

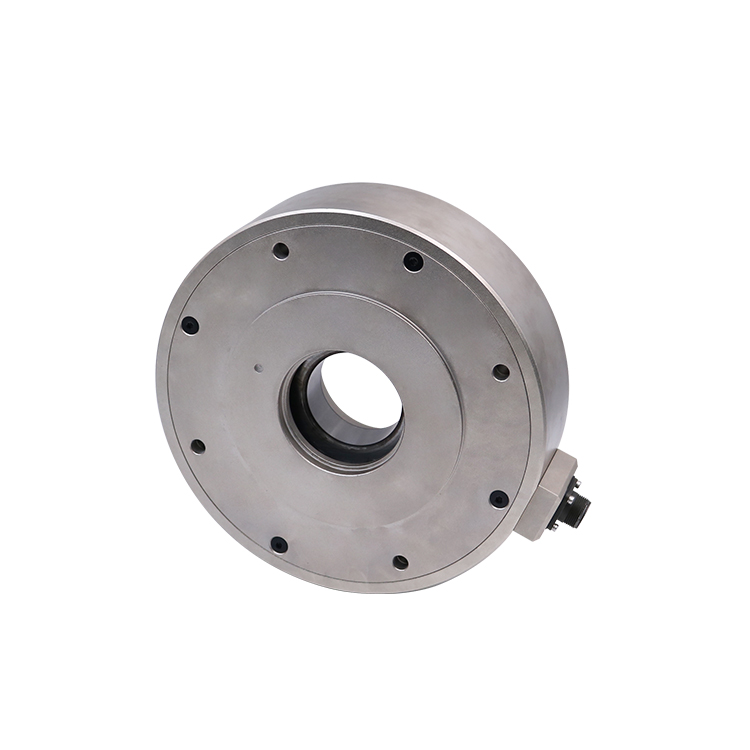

7. Mounting Options: Consider how the load cell will be mounted in your application. Different load cells have various mounting configurations, such as through-hole, flange, or threaded. Ensure that the mounting method aligns with your design requirements.
To select the right load cell, follow these steps:
1. Define Your Application: Understand the specific requirements of your application, including the type of load (static or dynamic), the environment (indoor or outdoor), and any special conditions (e.g., exposure to chemicals or moisture). For example, a load cell used in a food processing plant must be resistant to cleaning chemicals.
2. Calculate the Required Capacity: Determine the maximum load you expect the load cell to measure. It's advisable to select a load cell with a capacity that exceeds this value by at least 20% to ensure safety and longevity. This extra capacity helps accommodate unexpected overloads.
3. Evaluate Accuracy and Sensitivity Needs: Assess how precise your measurements need to be. For applications requiring high precision, choose a load cell with a low percentage of error and high sensitivity. For instance, in a laboratory setting, a load cell with an accuracy of ±0.01% may be necessary.
4. Consider Environmental Factors: If your application involves extreme temperatures, humidity, or exposure to corrosive substances, select a load cell designed for those conditions. For example, a load cell used in a marine environment should be made of materials resistant to saltwater corrosion.
5. Choose the Right Output Signal: Ensure the load cell's output signal is compatible with your data acquisition system. If you're using a digital system, a load cell with a digital output may be necessary. Additionally, consider the signal conditioning requirements for your application.
6. Review Mounting Options: Ensure the load cell can be easily integrated into your existing setup. Check the mounting options and dimensions to confirm compatibility. Proper mounting is crucial for accurate measurements and load distribution.

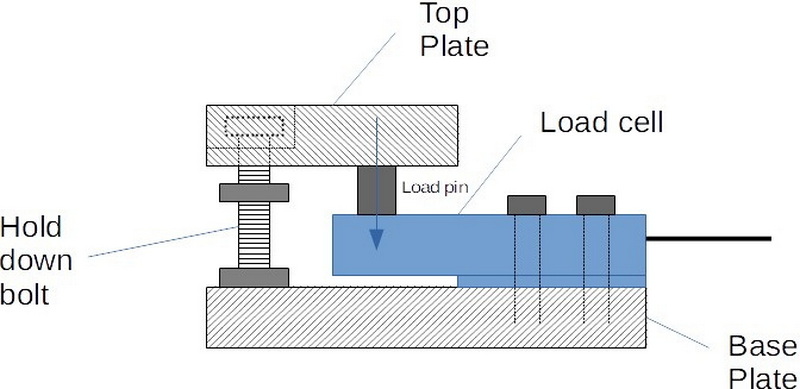

Proper installation is crucial for the accurate performance of load cells. Here are some tips to ensure a successful installation:
1. Follow Manufacturer Guidelines: Always refer to the manufacturer's installation instructions for specific guidance on mounting and wiring. Each load cell may have unique requirements that must be followed for optimal performance.
2. Ensure Proper Alignment: Misalignment can lead to inaccurate measurements. Use alignment tools to ensure the load cell is correctly positioned. A misaligned load cell can introduce errors in the readings, affecting the overall accuracy.
3. Use Appropriate Mounting Hardware: Select the right bolts, nuts, and washers to secure the load cell. Ensure they are rated for the load cell's capacity. Using inadequate hardware can lead to failure during operation.
4. Calibrate After Installation: Once installed, calibrate the load cell to ensure accurate measurements. This process involves applying known weights and adjusting the output accordingly. Regular calibration is essential for maintaining accuracy over time.
5. Protect from Environmental Factors: If the load cell is exposed to harsh conditions, consider using protective enclosures or coatings to prevent damage. For example, a load cell used in a dusty environment may require a protective cover to keep contaminants out.
Even with proper installation, load cells can experience issues. Here are some common problems and their solutions:
1. Inaccurate Readings: If the load cell provides inconsistent or incorrect readings, check for misalignment, loose connections, or mechanical interference. Ensure that the load cell is not subjected to side loads, which can affect accuracy.
2. Drift in Measurements: If the load cell's readings drift over time, it may require recalibration. Environmental factors, such as temperature changes, can also affect readings. Regular maintenance and recalibration can help mitigate this issue.
3. Physical Damage: Inspect the load cell for any signs of physical damage, such as cracks or dents. If damaged, the load cell may need to be replaced. Regular inspections can help identify potential issues before they lead to failure.
4. Electrical Issues: Check the wiring and connections for any signs of wear or damage. Ensure that the load cell is properly grounded to prevent electrical interference. Faulty wiring can lead to erratic readings and system failures.
5. Signal Noise: If the output signal is noisy, consider using shielding or twisted pair cables to reduce interference. Proper grounding and shielding techniques can significantly improve signal quality.
Load cells are used in a wide range of applications across various industries. Here are some common uses:
- Industrial Weighing: Load cells are commonly used in industrial scales for weighing products, materials, and equipment. They provide accurate measurements essential for inventory management and quality control.
- Medical Devices: In the medical field, load cells are used in devices such as patient scales and infusion pumps. Their precision is critical for ensuring patient safety and effective treatment.
- Automotive Testing: Load cells are employed in automotive testing to measure forces during crash tests and component testing. They help engineers evaluate the performance and safety of vehicles.
- Aerospace Applications: In the aerospace industry, load cells are used to measure forces on aircraft components during testing. Their accuracy is vital for ensuring the safety and reliability of aircraft.
- Construction and Civil Engineering: Load cells are used in construction to monitor the weight of materials and equipment. They help ensure that structures are built safely and within regulatory limits.
Specifying a load cell involves understanding its key specifications, selecting the right type for your application, and ensuring proper installation and maintenance. By following the guidelines outlined in this article, you can ensure that your load cell performs accurately and reliably, providing the measurements you need for your operations.
Strain gauge load cells measure deformation using strain gauges, making them suitable for a wide range of applications. Hydraulic load cells, on the other hand, use fluid pressure to measure weight and are often used in heavy-duty applications. Strain gauge load cells are generally more accurate, while hydraulic load cells can handle larger loads.
Calibration frequency depends on the application and the environment in which the load cell operates. For critical applications, it is recommended to calibrate the load cell at least once a year. However, if the load cell is subjected to heavy use or harsh conditions, more frequent calibration may be necessary.
Yes, but you must select a load cell made from materials resistant to corrosion, such as stainless steel. Additionally, consider using protective coatings or enclosures to further shield the load cell from corrosive substances.
First, check for misalignment, loose connections, or mechanical interference. Ensure that the load cell is properly mounted and not subjected to side loads. If the issue persists, recalibrate the load cell and inspect it for physical damage.
Yes, there are load cells specifically designed to operate in high-temperature environments. These load cells are constructed with materials that can withstand extreme temperatures and often have special features to maintain accuracy under such conditions.
