How To Test A 6 Wire Load Cell?

Content Menu

How to Test a 6 Wire Load Cell

Understanding Load Cells

>> Types of Load Cells

Tools Required for Testing

Step-by-Step Testing Process

>> Step 1: Safety First

>> Step 2: Identify the Wires

>> Step 3: Measure Resistance

>> Step 4: Apply Voltage

>> Step 5: Measure Output Voltage

>> Step 6: Calculate Sensitivity

>> Step 7: Check for Linearity

>> Step 8: Temperature Compensation Check

>> Step 9: Final Inspection

Common Troubleshooting Tips

Conclusion

Frequently Asked Questions

>> 1. What is the difference between a 4 wire and a 6 wire load cell?

>> 2. How often should I test my load cell?

>> 3. Can I use a 4 wire load cell instead of a 6 wire load cell?

>> 4. What should I do if my load cell is not providing accurate readings?

>> 5. Is it necessary to use a digital multimeter for testing load cells?

How to Test a 6 Wire Load Cell

Testing a 6 wire load cell is an essential skill for anyone working with weighing systems, industrial scales, or any application that requires precise weight measurements. Load cells are transducers that convert force or weight into an electrical signal, and understanding how to test them ensures that they function correctly and provide accurate readings. In this article, we will explore the steps involved in testing a 6 wire load cell, the tools required, and some common troubleshooting tips.

Understanding Load Cells

Before diving into the testing process, it’s important to understand what a load cell is and how it works. A load cell typically consists of a metal element that deforms under load. This deformation changes the resistance of the strain gauges attached to the element, which is then converted into an electrical signal.

Types of Load Cells

Load cells come in various types, including:

◆ Compression Load Cells: These are designed to measure weight by compressing under load.

◆ Tension Load Cells: These measure weight by being pulled.

◆ Bending Beam Load Cells: These are commonly used in scales and measure weight by bending.

The 6 wire load cell is a specific type that includes two additional wires for temperature compensation, which helps improve accuracy. This feature is particularly important in environments where temperature fluctuations can affect the performance of the load cell.

check 6 wire load cell1

Tools Required for Testing

To test a 6 wire load cell, you will need the following tools:

1. Digital Multimeter: This is essential for measuring resistance and voltage.

2. Wiring Diagram: A diagram specific to your load cell model will help you understand the connections.

3. Power Supply: A stable power source is necessary for applying voltage to the load cell.

4. Weights: Calibration weights will help you test the load cell under known conditions.

Step-by-Step Testing Process

Step 1: Safety First

Before starting any testing, ensure that you are working in a safe environment. Disconnect any power sources and ensure that the area is clear of any hazards. Safety goggles and gloves are recommended to protect against any accidental electrical shocks or injuries.

Step 2: Identify the Wires

A 6 wire load cell typically has the following wires:

◆ Excitation Positive (E+)

◆ Excitation Negative (E-)

◆ Signal Positive (S+)

◆ Signal Negative (S-)

◆ Temperature Compensation Positive (TC+)

◆ Temperature Compensation Negative (TC-)

Refer to the wiring diagram to identify each wire correctly. Proper identification is crucial to avoid damaging the load cell during testing.

Step 3: Measure Resistance

Using a digital multimeter, measure the resistance between the following pairs of wires:

◆ E+ and E-

◆ S+ and S-

◆ TC+ and TC-

The resistance values should be within the specifications provided by the manufacturer. If the values are significantly off, the load cell may be damaged. This step is critical as it helps to identify any internal faults before applying power.

Step 4: Apply Voltage

Connect the excitation wires (E+ and E-) to a stable power supply. Ensure that the voltage applied matches the specifications of the load cell, typically around 5 to 15 volts. It is important to use a regulated power supply to prevent voltage spikes that could damage the load cell.

Step 5: Measure Output Voltage

With the load cell powered, measure the output voltage between S+ and S-. This voltage should change when a known weight is applied to the load cell.

1. Start with no weight and note the output voltage.

2. Gradually add known weights and record the output voltage for each weight.

This step allows you to establish a baseline for the load cell's performance and helps in identifying any discrepancies in its readings.

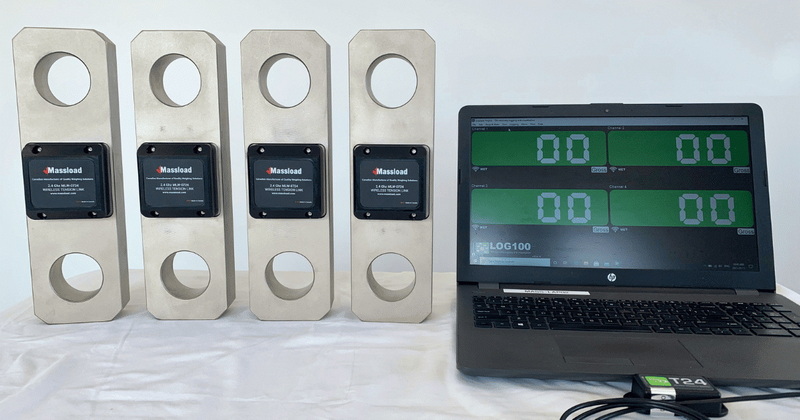

use a wireless load cell1

Step 6: Calculate Sensitivity

To determine the sensitivity of the load cell, use the formula:

Sensitivity=Change in Output VoltageChange in WeightSensitivity=Change in WeightChange in Output Voltage

This will give you an idea of how responsive the load cell is to changes in weight. A higher sensitivity indicates that the load cell can detect smaller changes in weight, which is crucial for applications requiring high precision.

Step 7: Check for Linearity

Linearity is crucial for accurate measurements. To check for linearity, plot the output voltage against the applied weight. The relationship should be linear; if it is not, the load cell may require calibration or replacement.

1. Create a graph with the applied weights on the x-axis and the corresponding output voltages on the y-axis.

2. Analyze the graph to see if it forms a straight line.

If the output does not follow a linear pattern, it may indicate that the load cell is not functioning properly or that it has been improperly calibrated.

Step 8: Temperature Compensation Check

Since the 6 wire load cell includes temperature compensation, it’s important to check if the output remains stable under varying temperatures.

1. Allow the load cell to sit in a controlled environment for a few hours.

2. Measure the output voltage at different temperatures and ensure it remains consistent.

This step is particularly important in industrial settings where temperature fluctuations can occur frequently. A load cell that does not compensate for temperature changes may provide inaccurate readings.

Step 9: Final Inspection

After testing, visually inspect the load cell for any signs of damage, such as cracks or corrosion. Ensure that all connections are secure and that there are no frayed wires. A thorough inspection can help prevent future issues and ensure the longevity of the load cell.

Common Troubleshooting Tips

If you encounter issues during testing, consider the following troubleshooting tips:

◆ No Output Voltage: Check the power supply connections and ensure that the load cell is receiving the correct voltage. If the connections are secure and the voltage is correct, the load cell may be faulty.

◆ Inconsistent Readings: This may indicate a faulty load cell or poor connections. Recheck all wiring and connections. Sometimes, simply reseating the connections can resolve the issue.

◆ Output Voltage Does Not Change with Weight: This could be due to a damaged strain gauge or internal wiring issues. Inspect the load cell for physical damage. If no visible damage is found, further testing may be required to diagnose the problem.

Conclusion

Testing a 6 wire load cell is a straightforward process that requires careful attention to detail and the right tools. By following the steps outlined in this article, you can ensure that your load cell is functioning correctly and providing accurate measurements. Regular testing and maintenance of load cells are essential for any application that relies on precise weight measurements.

wire a load cell_1

Frequently Asked Questions

1. What is the difference between a 4 wire and a 6 wire load cell?

A 4 wire load cell has four wires for excitation and signal, while a 6 wire load cell includes two additional wires for temperature compensation. The extra wires in a 6 wire load cell help improve accuracy by compensating for temperature variations.

2. How often should I test my load cell?

It is recommended to test your load cell at least once a year or whenever you notice discrepancies in weight measurements. Regular testing helps ensure that the load cell remains accurate and reliable.

3. Can I use a 4 wire load cell instead of a 6 wire load cell?

While it is possible to use a 4 wire load cell in some applications, a 6 wire load cell is generally preferred for its improved accuracy and temperature compensation features. If precision is critical, it is best to use a 6 wire load cell.

4. What should I do if my load cell is not providing accurate readings?

If your load cell is not providing accurate readings, first check the wiring and connections for any issues. If everything appears to be in order, perform a resistance check and measure the output voltage with known weights. If the problem persists, the load cell may need to be calibrated or replaced.

5. Is it necessary to use a digital multimeter for testing load cells?

Yes, a digital multimeter is essential for accurately measuring resistance and voltage in load cells. It allows you to diagnose issues and ensure that the load cell is functioning correctly. Using a multimeter helps prevent potential damage to the load cell during testing.
