Testing a digital load cell is a crucial process in ensuring the accuracy and reliability of weight measurements in various applications. Load cells are widely used in industries such as manufacturing, transportation, and healthcare, where precise weight measurements are essential. This article will guide you through the steps to effectively test a digital load cell, including the necessary tools, procedures, and troubleshooting tips.
A load cell is a transducer that converts a force or weight into an electrical signal. Digital load cells provide a digital output, which can be easily interfaced with digital displays and data acquisition systems. They are known for their accuracy, stability, and ease of use.

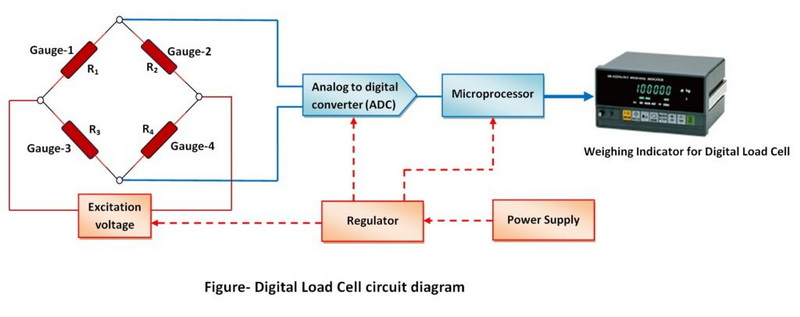

A digital load cell typically consists of the following components:
- Sensing Element: This is the part that deforms under load and generates a signal proportional to the weight applied.
- Signal Conditioning Circuit: This circuit amplifies and converts the analog signal from the sensing element into a digital signal.
- Microcontroller: This component processes the digital signal and communicates with external devices.
- Output Interface: This allows the load cell to connect to displays, computers, or other systems.
To test a digital load cell, you will need the following tools:
1. Digital Multimeter: This tool is essential for measuring voltage and resistance.
2. Calibration Weights: These weights will be used to apply known loads to the load cell.
3. Power Supply: A stable power supply is necessary to power the load cell during testing.
4. Data Acquisition System: If available, this system can help in recording and analyzing the output from the load cell.
5. Connecting Wires: Ensure you have appropriate wires to connect the load cell to the multimeter and power supply.
1. Disconnect the Load Cell: Ensure that the load cell is disconnected from any system or device before testing.
2. Inspect the Load Cell: Check for any visible damage, such as cracks or corrosion, which could affect performance.

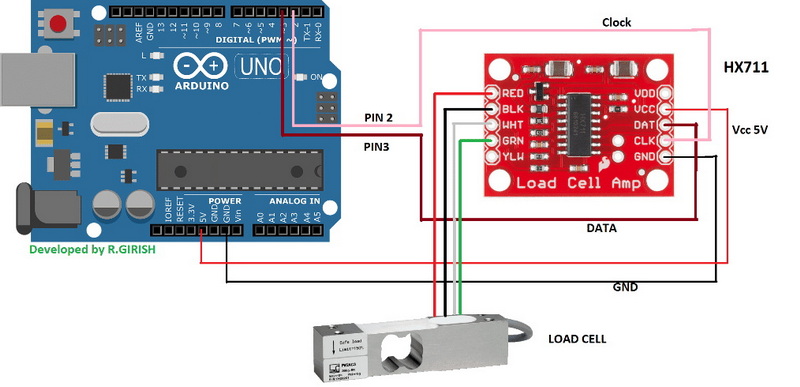

3. Connect the Load Cell: Use the connecting wires to connect the load cell to the digital multimeter and power supply. Ensure that the connections are secure.
1. Apply Power: Turn on the power supply to the load cell. Ensure that the voltage matches the specifications of the load cell.
2. Check the Output: With no load applied, measure the output voltage using the digital multimeter. This should be close to zero. If there is a significant voltage reading, the load cell may be faulty.
1. Zero the Load Cell: Before applying any weights, ensure that the load cell is zeroed. This can usually be done through a calibration function on the connected display or data acquisition system.
2. Apply Known Weights: Gradually apply known weights to the load cell. Start with the smallest weight and increase it incrementally.
3. Record the Output: For each weight applied, record the output voltage or digital reading from the load cell. This data will help in determining the accuracy of the load cell.
1. Create a Calibration Curve: Plot the recorded output against the known weights to create a calibration curve. This curve should ideally be linear.
2. Check for Linearity: Assess the linearity of the output. If the output deviates significantly from a straight line, the load cell may require calibration or replacement.
3. Calculate Sensitivity: Sensitivity can be calculated by dividing the change in output voltage by the change in weight applied. This value should match the specifications provided by the manufacturer.
If the load cell does not perform as expected, consider the following troubleshooting steps:
- Check Connections: Ensure that all connections are secure and free from corrosion.
- Inspect for Damage: Look for any physical damage to the load cell or its components.
- Verify Power Supply: Ensure that the power supply is providing the correct voltage and is stable.
- Recalibrate: If the load cell is not providing accurate readings, it may need to be recalibrated according to the manufacturer's instructions.
Regular testing of digital load cells is essential for maintaining their accuracy and reliability. Over time, load cells can drift from their calibrated settings due to factors such as mechanical stress, temperature changes, and environmental conditions. By implementing a routine testing schedule, you can identify any discrepancies early and take corrective action before they lead to significant errors in weight measurement.
1. Keep the Load Cell Clean: Dust and debris can affect the performance of the load cell. Regularly clean the load cell with a soft cloth and avoid using harsh chemicals.
2. Avoid Overloading: Ensure that the load cell is not subjected to loads beyond its rated capacity, as this can cause permanent damage.
3. Store Properly: When not in use, store the load cell in a protective case to prevent physical damage.
4. Monitor Environmental Conditions: Be aware of the temperature and humidity levels in the area where the load cell is used, as extreme conditions can affect performance.
Testing a digital load cell is a straightforward process that requires careful attention to detail. By following the steps outlined in this article, you can ensure that your load cell is functioning correctly and providing accurate measurements. Regular testing and calibration are essential for maintaining the reliability of load cells in any application.
A digital load cell is a type of load cell that converts mechanical force or weight into a digital signal. It is equipped with a microcontroller that processes the signal and provides a digital output, making it easier to interface with digital displays and data acquisition systems.
It is recommended to test your load cell at least once a year, or more frequently if it is used in critical applications or subjected to harsh conditions. Regular testing helps ensure accuracy and reliability.
Signs of a faulty load cell include inconsistent readings, significant drift from zero, physical damage, or failure to respond to applied weights. If you notice any of these issues, it is important to test and possibly recalibrate or replace the load cell.
Yes, many digital load cells come with calibration instructions that allow users to perform calibration themselves. However, for critical applications, it may be advisable to have a professional perform the calibration to ensure accuracy.
If your load cell is not providing accurate readings, first check all connections and ensure the power supply is stable. If everything appears normal, perform a recalibration. If issues persist, consider consulting the manufacturer or a professional technician for further assistance.
