Load cells are crucial components in various industries, from manufacturing and logistics to aerospace and healthcare. These precision instruments convert force into measurable electrical output, enabling accurate weight and force measurements. However, to ensure reliable performance, it's essential to know how to test a load cell properly. This comprehensive guide will explore load cell testing methods, equipment, troubleshooting techniques, applications, and relevant standards.

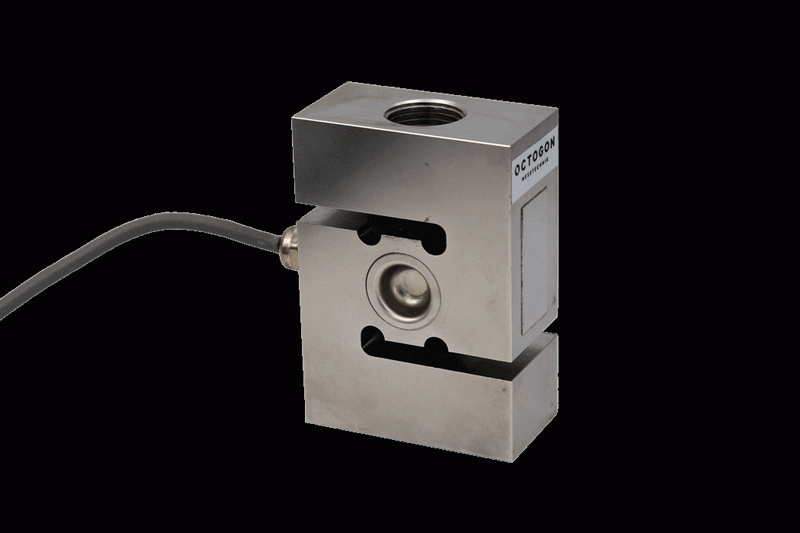

Before delving into testing procedures, it's important to understand what load cells are and how they function. Load cells are transducers that convert mechanical force into electrical signals. They typically consist of strain gauges arranged in a Wheatstone bridge configuration, which allows for precise measurement of applied force or weight.

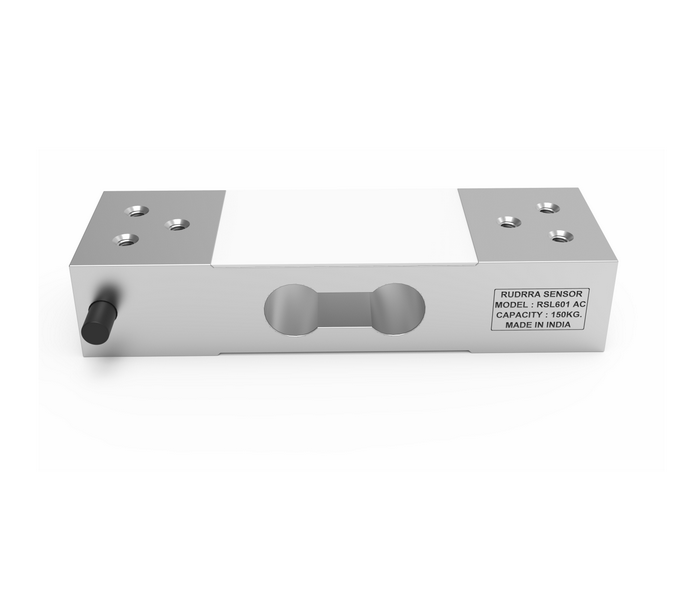

There are several types of load cells, each designed for specific applications:
1. Strain gauge load cells
2. Hydraulic load cells
3. Pneumatic load cells
4. Capacitive load cells
5. Piezoelectric load cells
Among these, strain gauge load cells are the most common due to their versatility and accuracy.

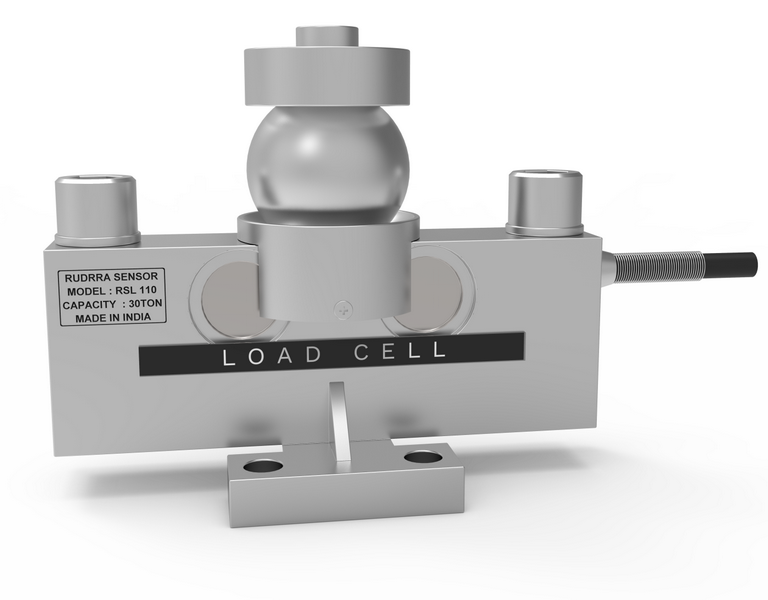

Testing load cells is crucial to ensure their accuracy, reliability, and longevity. Here are some essential methods for testing load cells:
Before conducting any electrical or performance tests, a thorough visual inspection is necessary. Look for signs of physical damage, corrosion, or wear. Check the cable connections and ensure that the load cell is properly mounted and aligned.
A resistance test helps verify the integrity of the internal circuitry. Using a digital multimeter, measure the resistance between the input terminals and the output terminals. Compare the readings with the manufacturer's specifications to ensure they fall within the acceptable range.
This test checks for any electrical leakage between the load cell's circuit and its body. Apply a high voltage (typically 50V DC) between the load cell's body and its terminals, then measure the resistance. A good load cell should have an insulation resistance of at least 5000 MΩ.
The zero balance test assesses the load cell's output when no load is applied. Connect the load cell to a precision indicator or data acquisition system, and measure the output signal at zero load. The reading should be within the manufacturer's specified range, typically ±1% of the rated output.
The span test evaluates the load cell's response to applied loads. Apply known weights across the load cell's range and record the output at each point. Compare these readings to the expected values to determine the load cell's accuracy and linearity.
Creep refers to the change in load cell output over time when subjected to a constant load. To perform a creep test, apply a load (usually 90-100% of the rated capacity) and monitor the output over a specified period (typically 30 minutes). The change in output should not exceed the manufacturer's specified creep tolerance.
Load cells can be sensitive to temperature changes. To test this, place the load cell in an environmental chamber and measure its output at different temperatures within its operating range. This test helps determine the temperature coefficient of sensitivity and the temperature coefficient of zero.

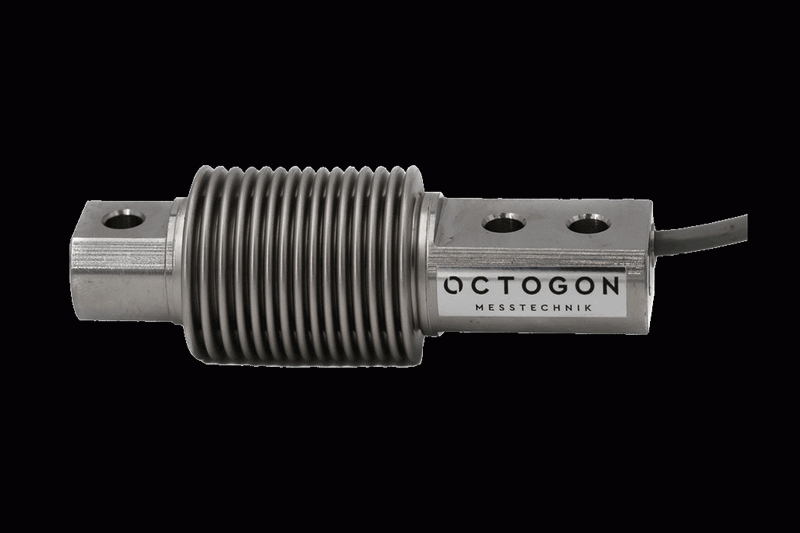

Proper equipment is essential for accurate load cell testing. Here are some key tools and instruments used in the process:
1. Digital Multimeter: A high-quality digital multimeter is indispensable for resistance and voltage measurements.
2. Precision Indicator: This device displays the load cell's output with high resolution and accuracy.
3. Data Acquisition System: For more advanced testing, a data acquisition system can log and analyze load cell outputs over time.
4. Calibrated Test Weights: A set of certified weights is necessary for span testing and calibration.
5. Environmental Chamber: This controlled environment is used for temperature effect testing.
6. Load Frame: A sturdy frame capable of applying controlled forces is essential for compression and tension testing.
7. Signal Conditioner: This device amplifies and filters the load cell's output signal for improved measurement accuracy.
Even with proper testing and maintenance, load cells can sometimes experience issues. Here are some common problems and troubleshooting steps:
If the load cell's zero point is shifting over time, check for:
- Temperature fluctuations
- Loose mounting hardware
- Debris accumulation
- Moisture ingress
When the load cell's output is not proportional to the applied load across its range, consider:
- Overloading history
- Improper mounting
- Damaged strain gauges
If the load cell shows different outputs for the same load when approached from different directions, look for:
- Mechanical deformation
- Improper load application
- Faulty bonding of strain gauges
When experiencing unstable or fluctuating readings, investigate:
- Improper grounding
- Electromagnetic interference
- Damaged cables or connections
If the load cell's output is lower than expected for a given load, check for:
- Overloading damage
- Fatigue due to cyclic loading
- Chemical contamination
Load cell testing is crucial in various industries and applications:
1. Industrial Weighing: Ensuring accuracy in manufacturing, logistics, and inventory management.
2. Aerospace: Verifying load cells used in aircraft weight and balance systems.
3. Automotive: Testing load cells in vehicle dynamics and crash test equipment.
4. Healthcare: Calibrating load cells in medical devices and patient monitoring systems.
5. Construction: Validating load cells used in structural testing and monitoring.
6. Agriculture: Ensuring accuracy in grain silos, livestock scales, and harvesting equipment.
7. Energy Sector: Testing load cells used in oil and gas exploration, wind turbine monitoring, and power plant operations.
8. Research and Development: Verifying load cells used in material testing and scientific experiments.
Adherence to industry standards is crucial for ensuring the reliability and interoperability of load cells. Some important standards include:
1. OIML R60: International standard for metrological regulation of load cells.
2. NTEP (National Type Evaluation Program): U.S. standard for commercial weighing equipment.
3. ISO 376: Standard for calibration of force-measuring instruments.
4. EN 45501: European standard for non-automatic weighing instruments.
5. IEC 61326-1: Standard for electrical equipment for measurement, control, and laboratory use.
Certification to these standards often involves rigorous testing procedures, including those outlined in this article, as well as additional environmental and durability tests.
Testing load cells is a critical process that ensures the accuracy, reliability, and longevity of these essential measurement devices. By following proper testing methods, using appropriate equipment, and adhering to industry standards, you can maintain the performance of load cells across a wide range of applications. Regular testing and calibration, combined with proper troubleshooting techniques, will help maximize the lifespan and effectiveness of your load cell systems.
A1: The frequency of load cell testing depends on various factors, including usage intensity, environmental conditions, and industry regulations. Generally, it's recommended to perform a basic check at least once a month and a comprehensive test annually. However, in critical applications or harsh environments, more frequent testing may be necessary.
A2: While specialized equipment provides the most accurate results, you can perform basic tests using a digital multimeter and known weights. However, for precise calibration and compliance with standards, professional testing equipment is usually required.
A3: Testing involves verifying that a load cell is functioning correctly and within specified parameters. Calibration, on the other hand, is the process of adjusting the load cell or its associated instrumentation to ensure accurate measurements across its range. Calibration typically includes testing procedures but goes a step further in making necessary adjustments.
A4: Environmental factors such as temperature, humidity, and vibration can significantly impact load cell performance. Temperature changes can cause zero drift and sensitivity variations. High humidity can lead to moisture ingress and corrosion. Vibrations can introduce noise in the signal and potentially damage the load cell over time. It's important to consider these factors when selecting, installing, and testing load cells.
A5: If a load cell fails a test, first verify that the testing procedure was carried out correctly and that all equipment is functioning properly. If the issue persists, try cleaning the load cell and checking all connections. For more serious issues, consult the manufacturer's documentation or contact their technical support. In some cases, the load cell may need to be repaired or replaced by a qualified technician.
