Load cells are crucial components in various weighing systems, from industrial scales to precision laboratory equipment. Ensuring their proper functionality is essential for accurate measurements. This comprehensive guide will walk you through the process of testing load cells using a multimeter, a versatile tool that can help diagnose issues and verify proper operation.

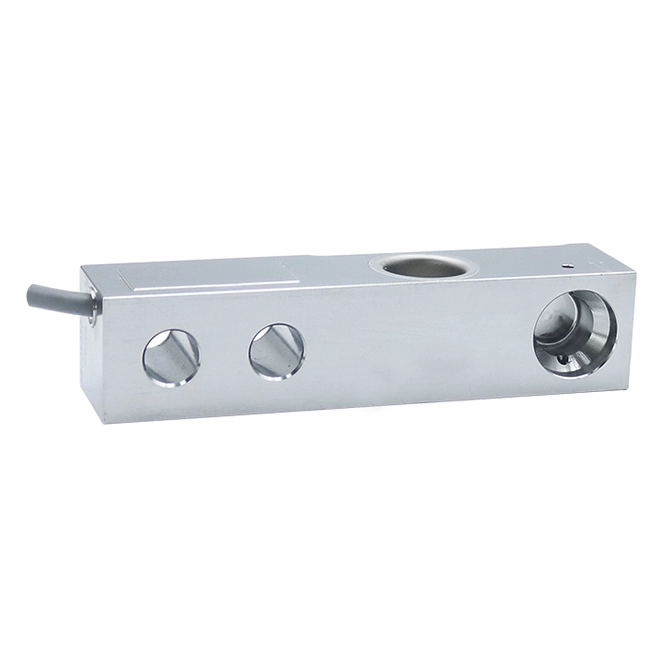

Before diving into testing procedures, it's important to understand what a load cell is and how it works. A load cell is a transducer that converts force into a measurable electrical output. Most modern load cells use strain gauges to detect the minute deformations caused by applied force, which are then translated into electrical signals.
To effectively test a load cell, you'll need the following tools:
1. Digital multimeter
2. Power supply (if not using an integrated system)
3. Test weights or known loads
4. Load cell datasheet or specifications
When selecting a multimeter for load cell testing, ensure it has:
- High resolution (at least 3 1/2 digits, preferably 4 1/2 or higher)
- Millivolt (mV) measurement capability
- Resistance measurement function
- Ideally, a data logging feature for extended tests
Before using your multimeter, perform a visual inspection of the load cell:
- Check for physical damage or deformation
- Examine cables and connections for wear or corrosion
- Ensure the load cell is properly mounted and aligned

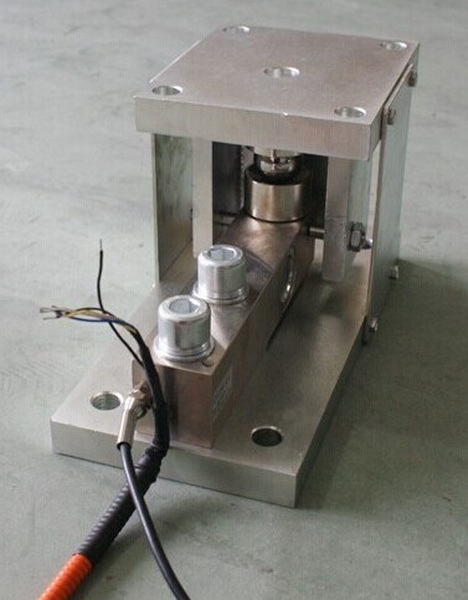

The first electrical test is to measure the resistance of the load cell:
1. Disconnect the load cell from any power source or instrumentation.
2. Set your multimeter to measure resistance (Ohms).

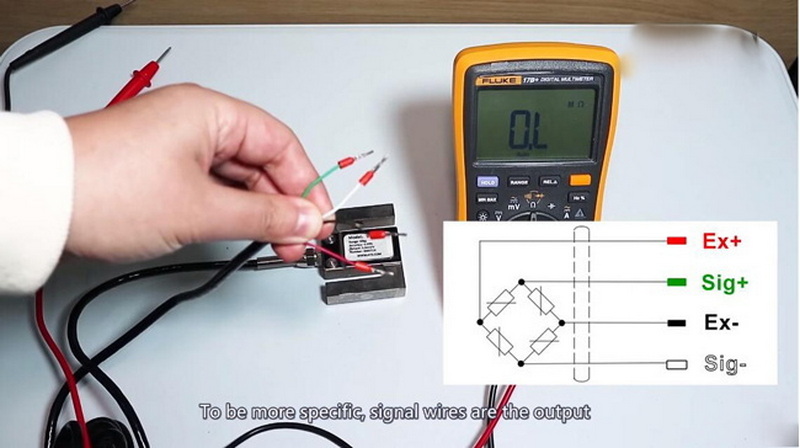

3. Measure between the excitation leads (usually red and black).
4. Compare the reading to the manufacturer's specifications.
Typical resistance values range from 350Ω to 1000Ω, but always refer to your specific load cell's datasheet.
This test checks for potential short circuits:
1. Set the multimeter to its highest resistance range.
2. Measure between each wire and the load cell body.
3. The reading should be very high (typically >5000MΩ) or show "OL" (overload).

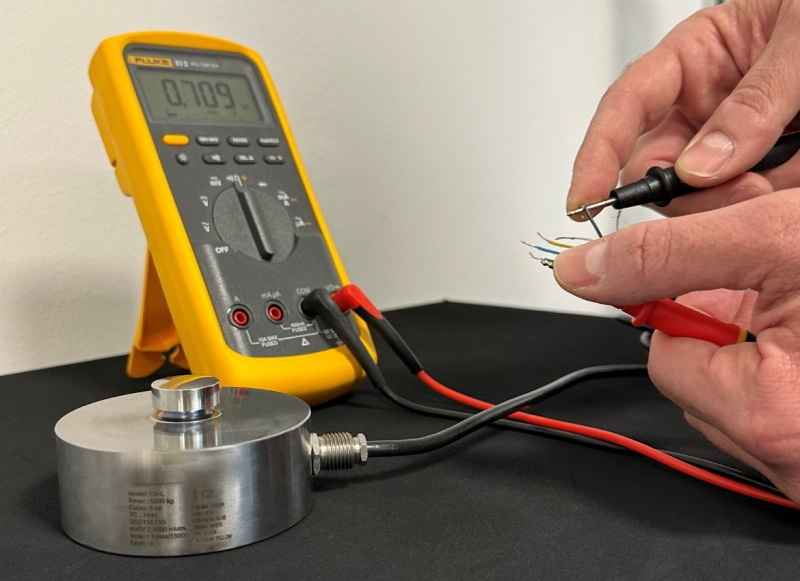

The zero balance test verifies the load cell's output at rest:
1. Connect the excitation voltage as specified in the datasheet.
2. Set the multimeter to measure millivolts (mV).
3. Measure the output signal with no load applied.
4. The reading should be very close to 0mV (typically within ±0.1% of rated output).
The span test checks the load cell's response to applied force:
1. Keep the setup from the zero balance test.
2. Apply a known weight (ideally the rated capacity).
3. Measure the output signal.
4. Calculate the sensitivity using the formula: Sensitivity (mV/V) = (Output Signal) / (Excitation Voltage * Applied Load / Rated Capacity)Compare this to the rated sensitivity in the datasheet.
A creep test evaluates the load cell's stability over time:
1. Apply a load (typically 90-100% of rated capacity).
2. Record the output at regular intervals (e.g., every minute for 30 minutes).
3. Calculate the creep: (Maximum Change in Output) / (Rated Output) * 100%
This test assesses how temperature changes affect the load cell:
1. Place the load cell in a temperature-controlled environment.
2. Measure the zero balance and span at different temperatures.
3. Calculate the temperature coefficient for zero and span.
Understanding your test results is crucial for diagnosing issues:
- Resistance out of spec: Possible damage to strain gauges
- Poor insulation resistance: Potential moisture ingress or cable damage
- High zero balance: Mechanical damage or overloading history
- Incorrect span: Calibration issues or load cell damage
- Excessive creep: Age-related deterioration or overload damage
When your tests reveal problems, consider these common issues and solutions:
1. No output signal:
- Check connections
- Verify excitation voltage
- Test for open circuits
2. Unstable readings:
- Look for loose connections
- Check for electromagnetic interference
- Verify proper grounding
3. Non-linear output:
- Inspect for mechanical binding
- Check for off-center loading
- Evaluate for possible overload damage
Regular calibration ensures ongoing accuracy:
1. Multi-point calibration:
- Apply known weights at 0%, 25%, 50%, 75%, and 100% of capacity
- Record readings and create a calibration curve
2. Shunt calibration:
- Use a precision resistor to simulate a known load
- Adjust the system based on the simulated output
To ensure long-term performance:
- Conduct regular inspections and tests
- Keep load cells clean and dry
- Avoid shock loads and overloading
- Maintain stable environmental conditions
- Recalibrate at manufacturer-recommended intervals
Load cell testing extends beyond basic functionality checks:
- Quality control in manufacturing
- Failure analysis in industrial settings
- Research and development of new weighing technologies
- Legal metrology and trade certification
As technology advances, so do load cells and testing methods:
- Integration of IoT for remote monitoring and diagnostics
- AI-powered predictive maintenance
- High-precision digital load cells with built-in diagnostics
- Wireless load cells for easier installation and testing
Testing load cells with a multimeter is a critical skill for anyone working with weighing systems. By following this comprehensive guide, you can ensure the accuracy and reliability of your load cells, troubleshoot issues effectively, and maintain optimal performance of your weighing equipment.
Remember that while multimeter testing is powerful, it's just one part of a complete load cell maintenance program. Regular calibration, proper installation, and adherence to manufacturer guidelines are all essential for long-term success.
A1: The frequency of load cell testing depends on various factors, including usage, environment, and criticality of the application. As a general rule, perform basic tests monthly and comprehensive tests annually. However, always follow manufacturer recommendations and industry standards for your specific application.
A2: Some basic tests, like measuring excitation voltage and output signal, can be performed while the load cell is installed. However, for thorough testing and troubleshooting, it's often best to isolate the load cell from the system to eliminate other variables.
A3: If a load cell fails a test, first verify that your testing procedure is correct and that your multimeter is properly calibrated. If the issue persists, consult the manufacturer's documentation for troubleshooting steps. In many cases, professional repair or replacement may be necessary to ensure accuracy and safety.
A4: When done correctly, testing with a multimeter is safe. However, always ensure you're using the proper settings and connections to avoid damaging the load cell or the multimeter. Never apply voltage to the signal leads, and be cautious not to exceed the load cell's rated capacity during testing.
A5: Yes, environmental factors can significantly impact load cell performance and test results. Temperature fluctuations, humidity, vibration, and electromagnetic interference can all affect readings. When testing, try to control these variables as much as possible, and consider their potential impact when interpreting results.
