Steering torque sensors are crucial components in modern vehicles, particularly those equipped with electric power steering (EPS) systems. These sensors measure the amount of torque applied to the steering wheel, allowing the vehicle's electronic control unit (ECU) to adjust steering assistance accordingly. This article will guide you through the process of testing a steering torque sensor, including necessary tools, procedures, and troubleshooting tips.
Before diving into testing methods, it's essential to understand what a steering torque sensor does. The sensor detects the force exerted by the driver on the steering wheel and communicates this information to the ECU. The ECU then determines how much assistance the electric motor should provide, enhancing driving comfort and safety.
- Magnetoresistive Sensors: Utilize magnetic fields to measure torque changes.
- Strain Gauge Sensors: Measure deformation caused by torque application.
- Optical Sensors: Use light signals to detect angular displacement.
To effectively test a steering torque sensor, you will need the following tools:
- Multimeter: For measuring resistance and voltage.
- Torque Sensor Tester: A specialized device that can simulate torque conditions.
- OBD-II Scanner: To read error codes and monitor sensor data in real-time.
- Basic Hand Tools: Such as screwdrivers and wrenches for disassembly if necessary.
Begin with a thorough visual inspection of the sensor and its connections:
- Check for any visible damage or wear on the sensor.
- Ensure that all electrical connections are secure and free from corrosion.
Using a multimeter, you can test the electrical properties of the torque sensor:
- Resistance Check: Measure the resistance between the terminals of the sensor.
- If resistance values are outside the specified range, the sensor may be faulty.

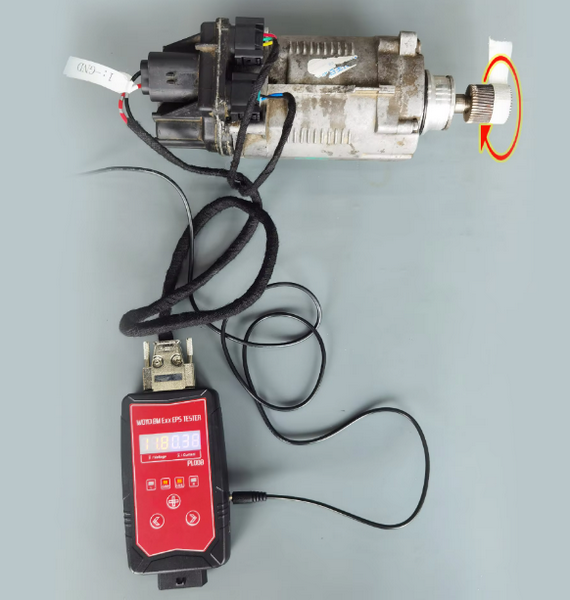

If you have access to a torque sensor tester:
- Connect the tester to the sensor according to the manufacturer's instructions.
- Follow prompts on the tester to calibrate and check for proper functionality.
This device can simulate various torque conditions to ensure that your sensor responds accurately.
Using an OBD-II scanner, check for any diagnostic trouble codes (DTCs):
- Connect the scanner to your vehicle's OBD-II port.
- Perform a system scan to identify any codes related to steering torque or related systems.
Common DTCs include:
- C1515/15: Torque sensor zero point adjustment not initialized.
- C1534/34: Malfunction in EPS ECU.
Conduct a functional test while monitoring data through an OBD-II scanner:
- Start your vehicle and turn the steering wheel slowly from lock to lock.
- Observe real-time data for torque readings; they should correspond with your input.
If your tests indicate that the steering torque sensor is malfunctioning, consider these common issues:
- Calibration Issues: If there's a difference in steering effort between left and right turns, recalibrate the sensor using an intelligent tester.
- Faulty Wiring: Inspect wiring harnesses for damage or loose connections that could affect signal transmission.
- Mechanical Problems: Ensure that there are no mechanical issues with the steering column or rack that could impact sensor performance.
Testing a steering torque sensor is vital for maintaining optimal vehicle performance and safety. By following this comprehensive guide, you can diagnose potential issues effectively. Regular checks can prevent more severe problems down the line, ensuring a safe driving experience.
Common symptoms include inconsistent steering feel, warning lights on the dashboard (such as EPS or traction control), and difficulty in turning the steering wheel.
It is advisable to test your steering torque sensor during regular vehicle maintenance checks or if you notice any abnormal behavior in your steering system.
While it is possible to drive with a faulty sensor, it is not recommended as it can lead to unsafe driving conditions and potential accidents.
You will need a multimeter, a torque sensor tester, an OBD-II scanner, and basic hand tools for disassembly if necessary.
Recalibration typically involves using an intelligent tester connected to your vehicle's diagnostic port; follow specific prompts based on your vehicle's service manual.
