Load cells are crucial components in various industries, from manufacturing and logistics to agriculture and healthcare. These precision instruments measure force and weight, providing essential data for quality control, safety, and operational efficiency. However, like any sophisticated equipment, load cells can encounter issues that affect their performance. This comprehensive guide will walk you through the process of troubleshooting load cells, helping you maintain accuracy and reliability in your measurements.
Before diving into troubleshooting techniques, it's essential to understand what load cells are and how they function. Load cells are transducers that convert mechanical force into electrical signals. They typically use strain gauges to measure the deformation of a structural member under applied force, translating this deformation into a measurable electrical output.
There are several types of load cells, each designed for specific applications:
1. Strain gauge load cells
2. Hydraulic load cells
3. Pneumatic load cells
4. Capacitive load cells
5. Piezoelectric load cells
Understanding the type of load cell you're working with is crucial for effective troubleshooting, as different types may have unique characteristics and potential issues.
Load cells can experience various issues that affect their performance. Identifying these problems is the first step in effective troubleshooting. Here are some common load cell problems you might encounter:
Zero balance drift occurs when the load cell's output signal changes over time, even when no load is applied. This can lead to inaccurate measurements and is often caused by temperature fluctuations, mechanical stress, or aging of the load cell components.
Nonlinearity is a deviation from the ideal linear relationship between the applied load and the output signal. This can result in measurement errors, especially at different points along the load cell's range.
Hysteresis is the difference in load cell output for the same applied load, depending on whether the load is increasing or decreasing. This can lead to inconsistent measurements and is often caused by material properties or mechanical design issues.
Creep refers to the change in load cell output over time when under a constant load. This can result in measurement drift and is typically caused by material properties or environmental factors.
Load cells can be sensitive to temperature changes, which can affect their accuracy. Temperature-induced errors can manifest as changes in zero balance, sensitivity, or linearity.
Wiring problems, electromagnetic interference, or damage to the load cell's electrical components can all lead to measurement errors or complete failure.
Physical damage to the load cell, such as overloading, shock, or vibration, can significantly impact its performance and accuracy.
Now that we've identified common problems, let's explore various troubleshooting techniques to diagnose and resolve load cell issues.
Always start with a thorough visual inspection of the load cell and its surrounding environment. Look for:
- Signs of physical damage or corrosion
- Loose or damaged wiring connections
- Proper mounting and alignment
- Environmental factors that could affect performance (e.g., moisture, vibration)

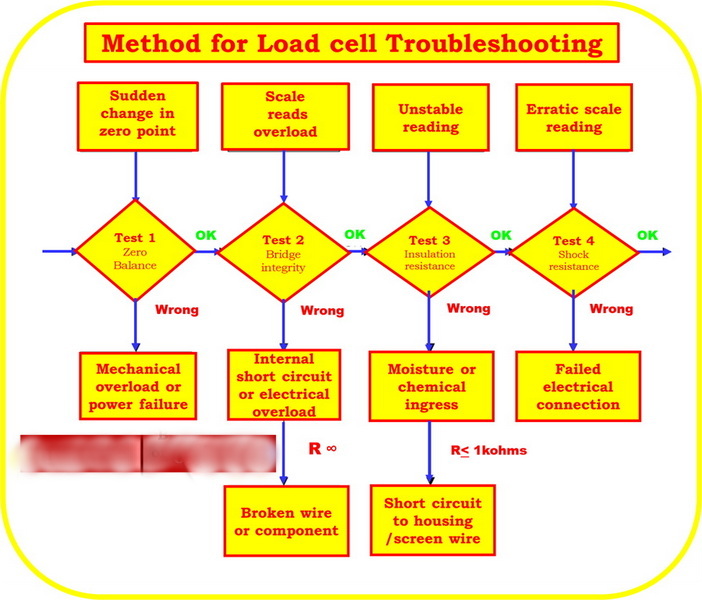

Electrical tests can help identify issues with the load cell's circuitry and output. Here are some key tests to perform:

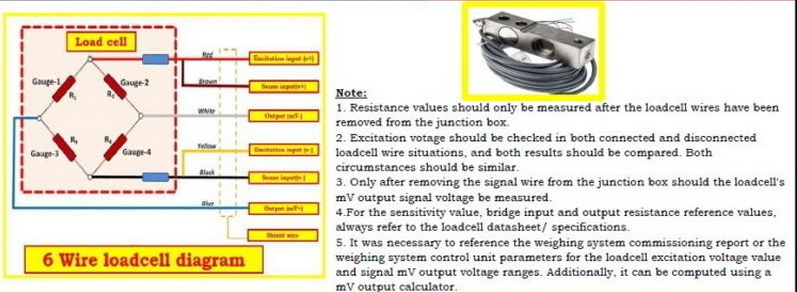

1. **Resistance Check**: Measure the input and output resistance of the load cell using a multimeter. Compare the results with the manufacturer's specifications.
2. **Insulation Resistance Test**: Check the insulation between the load cell's body and its wiring using a megohmmeter. This can help identify potential short circuits or moisture ingress.
3. **Bridge Balance Test**: Measure the output of the load cell with no load applied. A significant deviation from zero may indicate a problem with the bridge circuit.
4. **Shunt Calibration**: Apply a known electrical input to simulate a load and verify the load cell's response.
Performing load tests can help verify the load cell's accuracy and identify issues such as nonlinearity or hysteresis:
1. **Zero Balance Check**: Measure the output with no load applied and compare it to the specified zero balance.
2. **Linearity Test**: Apply various known loads across the cell's range and compare the output to the expected values.
3. **Repeatability Test**: Apply the same load multiple times and check for consistent output.
4. **Hysteresis Test**: Measure the output while increasing and decreasing the load to check for hysteresis effects.
Environmental factors can significantly impact load cell performance. Consider the following tests:
1. **Temperature Cycling**: Subject the load cell to various temperatures within its operating range and monitor its output.
2. **Humidity Testing**: Expose the load cell to different humidity levels to check for moisture-related issues.
3. **Vibration and Shock Testing**: Simulate real-world conditions to ensure the load cell can withstand expected environmental stresses.
Regular calibration is essential for maintaining load cell accuracy. Here are some common calibration methods:
This method involves applying known weights to the load cell and adjusting its output accordingly. It's one of the most accurate calibration methods but can be time-consuming for high-capacity load cells.
Hydraulic calibration uses a hydraulic press to apply force to the load cell. This method is useful for high-capacity load cells where dead weight calibration may be impractical.
This method uses a reference strain gauge to calibrate the load cell. It's particularly useful for in-situ calibration of large structures.
Shunt calibration simulates a load by connecting a resistor across one arm of the load cell's bridge circuit. While not as accurate as other methods, it's useful for quick checks and verifications.
Proper maintenance can prevent many load cell issues and extend the life of your equipment. Here are some essential maintenance tips:
1. **Regular Cleaning**: Keep the load cell and surrounding area clean and free from debris.
2. **Moisture Protection**: Use appropriate seals and enclosures to protect the load cell from moisture ingress.
3. **Proper Handling**: Avoid shock loads and overloading, which can damage the load cell.
4. **Wiring Care**: Regularly inspect and maintain wiring connections to prevent electrical issues.
5. **Environmental Control**: When possible, control the temperature and humidity in the load cell's environment.
6. **Scheduled Calibration**: Implement a regular calibration schedule based on usage and environmental factors.
7. **Documentation**: Keep detailed records of maintenance, calibration, and any issues encountered.
For more complex issues, consider these advanced troubleshooting techniques:
Use oscilloscopes or data acquisition systems to analyze the load cell's output signal in real-time. This can help identify intermittent issues or subtle signal abnormalities.
For custom or high-precision applications, FEA can help identify potential stress concentrations or design issues that may affect load cell performance.
When recurring issues are encountered, perform a thorough root cause analysis to identify and address the underlying problems rather than just treating symptoms.
Once you've troubleshot and resolved any issues, consider these strategies to optimize load cell performance:
1. **Proper Mounting**: Ensure the load cell is mounted correctly, with even load distribution and minimal off-axis loading.
2. **Environmental Controls**: Implement temperature and humidity controls to minimize environmental effects on the load cell.
3. **Signal Conditioning**: Use high-quality signal conditioning equipment to improve signal-to-noise ratio and overall measurement accuracy.
4. **Digital Filtering**: Implement appropriate digital filtering techniques to reduce noise and improve measurement stability.
5. **Regular Calibration**: Maintain a consistent calibration schedule to ensure ongoing accuracy.
6. **Training**: Provide thorough training to operators and maintenance personnel to ensure proper handling and use of load cells.
Troubleshooting load cells requires a systematic approach, combining visual inspection, electrical testing, and performance analysis. By understanding common issues and applying appropriate troubleshooting techniques, you can maintain the accuracy and reliability of your load cell systems.
Remember that regular maintenance, calibration, and proper handling are key to preventing issues and optimizing performance.
A1: The calibration frequency depends on various factors, including usage, environmental conditions, and accuracy requirements. As a general rule, most load cells should be calibrated at least annually. However, in critical applications or harsh environments, more frequent calibration may be necessary. Always consult the manufacturer's recommendations and industry standards for your specific application.
A2: Zero drift can be caused by several factors, including temperature changes, mechanical stress, aging of components, and environmental factors like humidity. Regular calibration and proper environmental controls can help minimize zero drift.
A3: To protect load cells from electrical interference:
- Use shielded cables and proper grounding techniques
- Keep load cell wiring separate from power cables
- Use signal conditioning equipment with good noise rejection capabilities
- Consider using digital load cells for improved noise immunity in challenging environments
A4: If a load cell has been overloaded:
1. Immediately remove the excess load
2. Visually inspect the load cell for any signs of physical damage
3. Perform a zero balance check and a linearity test
4. If any abnormalities are detected, recalibrate the load cell
5. If issues persist, the load cell may need to be replaced
A5: To improve load cell accuracy:
1. Ensure proper installation and mounting
2. Implement regular calibration and maintenance schedules
3. Control environmental factors like temperature and humidity
4. Use high-quality signal conditioning and data acquisition equipment
5. Apply appropriate digital filtering techniques
6. Consider using multiple load cells for better load distribution in large-scale applications
By following these troubleshooting guidelines and best practices, you can ensure that your load cells continue to provide accurate and reliable measurements, supporting the efficiency and quality of your operations.
