A button load cell is a type of load cell that is shaped like a button, allowing it to be used in tight spaces where traditional load cells may not fit. These sensors are typically made from high-strength materials and are designed to withstand significant loads while providing accurate measurements. They work on the principle of strain gauges, which change resistance when subjected to force. Button load cells are particularly useful in applications where space is limited, and precise force measurement is critical.
1. Strain Gauge: The core component that detects the deformation caused by applied force. Strain gauges are typically bonded to the load cell's body and are responsible for converting mechanical deformation into an electrical signal.
2. Body: The outer casing that protects the internal components and provides structural integrity. The body is usually made from materials like stainless steel or aluminum, which offer durability and resistance to environmental factors.
3. Wiring: Connects the load cell to a measurement device or data acquisition system. Proper wiring is essential for accurate signal transmission and to prevent interference from external sources.
4. Mounting Surface: The area where the load cell is installed, which should be flat and stable. The mounting surface must be designed to handle the expected loads without deformation.
Ensure that the surface where the button load cell will be installed is clean, flat, and free of any debris. This is crucial for accurate measurements. Any irregularities in the surface can lead to incorrect readings and affect the performance of the load cell.

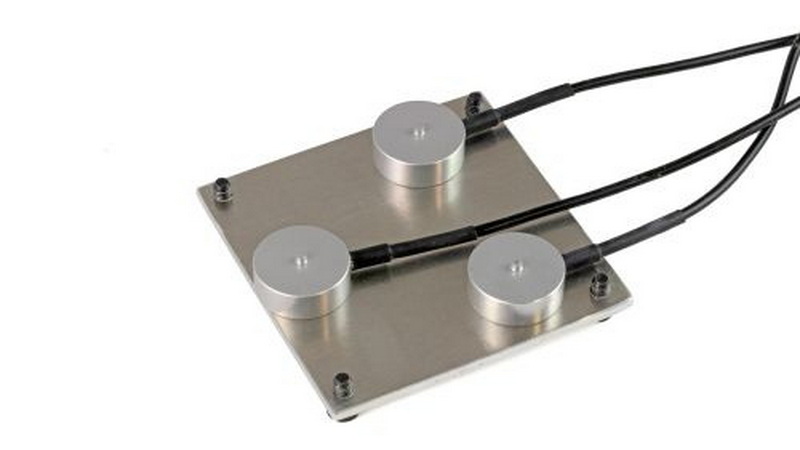

Place the button load cell in the desired location. It should be aligned properly to ensure that the force is applied directly along the axis of the load cell. Misalignment can cause measurement errors and potentially damage the load cell.
Use appropriate fasteners to secure the load cell to the mounting surface. Ensure that it is tightly fastened to prevent any movement during operation. Loose connections can lead to fluctuations in readings and affect the overall accuracy of the system.
Connect the load cell to the measurement device. This typically involves connecting the wires from the load cell to a signal conditioner or data acquisition system. Follow the manufacturer's wiring diagram to ensure correct connections. Proper shielding and grounding of the wiring can help minimize electrical noise and improve measurement accuracy.
Calibration is essential to ensure that the load cell provides accurate measurements. Here's how to calibrate a button load cell:
You will need a known weight (calibration weight) and a digital scale or data acquisition system to read the output from the load cell. Ensure that the calibration weight is within the load cell's specified range to avoid damage.
Place the known weight on the load cell. Ensure that the weight is applied slowly and evenly to avoid shock loading, which can damage the load cell. It is important to allow the load cell to stabilize before taking readings.
Observe the output from the load cell on the digital scale or data acquisition system. Note the reading corresponding to the known weight. This step is crucial for determining the accuracy of the load cell.
If the reading does not match the known weight, adjust the calibration settings on your measurement device according to the manufacturer's instructions. Repeat the process until the output matches the known weight accurately. It may be necessary to perform multiple calibration points to ensure linearity across the load cell's range.
Button load cells are versatile and can be used in various applications, including:
In manufacturing, button load cells are used to monitor the force applied during assembly processes. This ensures that components are assembled with the correct amount of force, preventing damage and ensuring quality. For example, in automotive assembly lines, button load cells can be used to measure the torque applied to bolts, ensuring that they are tightened to the manufacturer's specifications.
In the medical field, button load cells are used in devices such as hospital beds and patient monitoring systems. They help in measuring the weight of patients and monitoring changes in weight over time. Accurate weight measurements are critical for dosing medications and assessing patient health.
Button load cells are used in aerospace applications to measure forces during testing of components and systems. They provide critical data that helps engineers ensure the safety and reliability of aircraft. For instance, during stress testing of aircraft wings, button load cells can measure the forces exerted on the structure to ensure it meets safety standards.
In robotics, button load cells are used to provide feedback on the force exerted by robotic arms. This information is crucial for tasks that require precision, such as assembly or surgery. By integrating button load cells into robotic systems, engineers can enhance the robots' ability to perform delicate tasks without damaging components.
- Compact Size: Their small footprint allows them to be used in applications where space is limited. This makes them ideal for portable devices and tight installations.
- High Accuracy: Button load cells provide precise measurements, making them suitable for critical applications. Their design minimizes errors caused by misalignment or external forces.
- Durability: Made from robust materials, they can withstand harsh environments and heavy loads. This durability ensures a long lifespan and reliable performance in demanding conditions.
- Ease of Installation: Their design allows for straightforward installation and integration into existing systems. This reduces downtime and simplifies the setup process.
To ensure the longevity and accuracy of button load cells, regular maintenance is essential. Here are some maintenance tips:
1. Regular Inspections: Periodically check the load cell for signs of wear, damage, or misalignment. Early detection of issues can prevent costly repairs and downtime.
2. Cleaning: Keep the load cell and its mounting surface clean. Dust and debris can affect performance and lead to inaccurate readings.
3. Recalibration: Schedule regular recalibration to ensure ongoing accuracy. Environmental changes and wear can affect the load cell's performance over time.
4. Proper Handling: Avoid dropping or subjecting the load cell to shock loads. Handle with care during installation and maintenance to prevent damage.
5. Environmental Considerations: Protect the load cell from extreme temperatures, moisture, and corrosive substances. Using protective enclosures can help extend the life of the load cell.
Using a button load cell involves understanding its components, proper installation, and calibration to ensure accurate measurements. With their compact size and versatility, button load cells are invaluable in various industries, from manufacturing to healthcare. By following the guidelines outlined in this article, you can effectively utilize button load cells in your applications.
When selecting a button load cell, consider factors such as load capacity, accuracy, environmental conditions, and the required mounting configuration. It's also important to ensure compatibility with your measurement system.
To troubleshoot inconsistent readings, check the wiring connections for any loose or damaged wires, ensure the load cell is properly mounted and aligned, and verify that the calibration is up to date. Environmental factors such as temperature and humidity can also affect readings.
Yes, button load cells can be used in outdoor applications, but it is essential to choose models that are rated for environmental protection. Look for load cells with IP ratings that indicate resistance to moisture and dust.
The frequency of calibration depends on the application and the load cell's usage. As a general guideline, calibrate at least once a year or more frequently if the load cell is used in critical applications or subjected to harsh conditions.
The primary difference is the shape and size. Button load cells are compact and designed for tight spaces, while traditional load cells may be larger and used in applications where space is not a constraint. Both types serve the same fundamental purpose of measuring force or weight.
