Compression load cells are essential devices used in various industries for measuring force or weight. They are particularly useful in applications where the load is applied in a vertical direction, such as weighing scales, material testing, and industrial automation. Understanding how to use a compression load cell effectively can enhance accuracy and efficiency in your operations. This article will guide you through the principles of compression load cells, their applications, installation procedures, and best practices for usage.

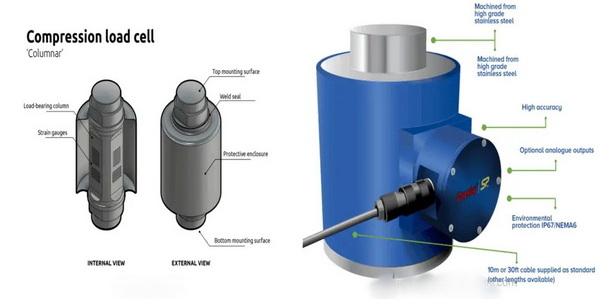

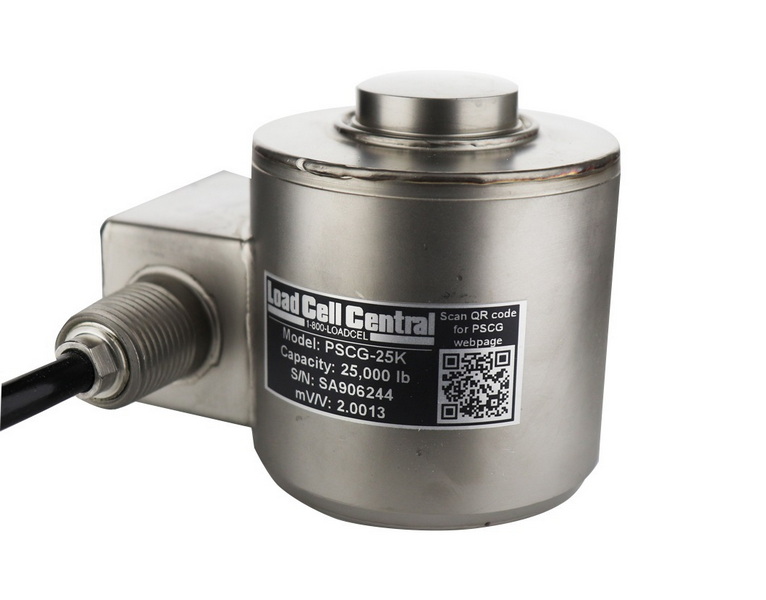

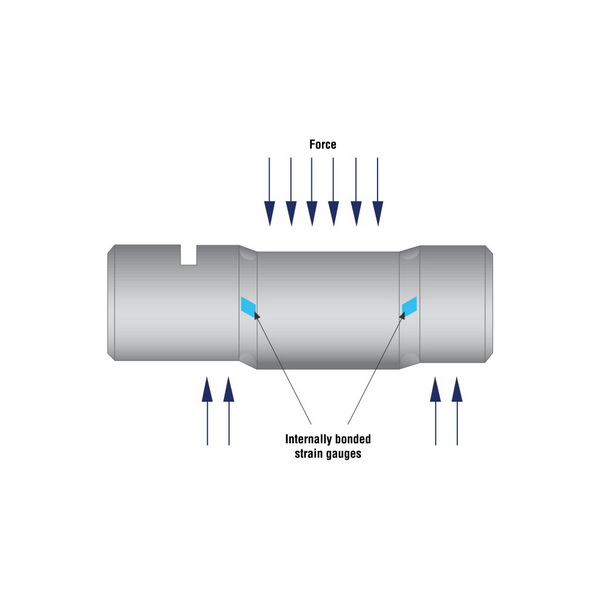

A compression load cell is a type of transducer that converts a compressive force into an electrical signal. This signal can then be measured and displayed on a digital readout or used in a control system. The load cell typically consists of a metal cylinder or block with strain gauges attached to it. When a load is applied, the material deforms slightly, and the strain gauges measure this deformation, allowing for precise weight or force measurement.
1. Strain Gauges: These are the primary sensing elements that detect deformation. They are usually bonded to the load cell's surface and change resistance when the load is applied.
2. Body: The body of the load cell is made from high-strength materials, such as stainless steel, to withstand heavy loads and harsh environments.
3. Electrical Connections: Load cells have electrical connections that transmit the signal generated by the strain gauges to a display or control system.
4. Calibration Mechanism: Many load cells come with built-in calibration features to ensure accurate measurements.
Compression load cells are widely used in various fields, including:
- Industrial Weighing: Used in scales for weighing products in manufacturing and shipping.
- Material Testing: Employed in laboratories to test the strength of materials under compressive loads.
- Automotive Testing: Used to measure forces in crash tests and component testing.
- Construction: Applied in monitoring structural loads and ensuring safety in construction projects.

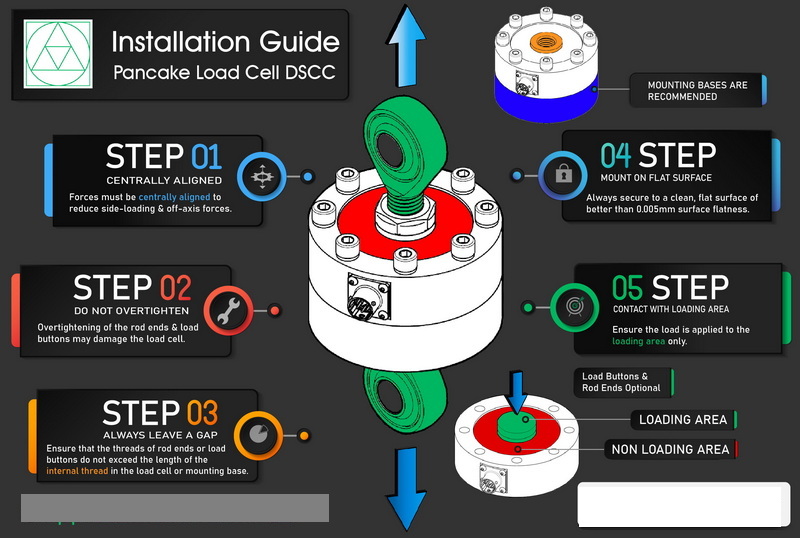

Proper installation is crucial for the accurate functioning of a compression load cell. Here are the steps to follow:
Ensure that the installation area is clean and free from debris. The surface where the load cell will be mounted should be flat and stable to prevent any misalignment.
1. Align the Load Cell: Position the load cell vertically, ensuring that it is aligned with the load application point.
2. Secure the Load Cell: Use bolts or screws to secure the load cell to the mounting surface. Ensure that it is tightly fastened to prevent any movement during operation.
3. Check for Level: Use a level to ensure that the load cell is perfectly vertical. Any tilt can lead to inaccurate readings.
1. Identify the Wires: Refer to the load cell's manual to identify the correct wiring configuration. Typically, there will be four wires: two for the excitation voltage and two for the output signal.
2. Make Connections: Connect the wires to the appropriate terminals on the display or control system. Ensure that the connections are secure to prevent signal loss.
3. Test the Connections: Before applying any load, test the connections to ensure that the load cell is functioning correctly.
Calibration is essential to ensure accurate measurements. Follow these steps:
1. Zero the Load Cell: With no load applied, set the display to zero. This step ensures that any subsequent measurements are accurate.
2. Apply Known Weights: Gradually apply known weights to the load cell and record the readings. Adjust the calibration settings on the display until the readings match the known weights.
3. Repeat the Process: It is advisable to repeat the calibration process several times to ensure consistency and accuracy.
To maximize the performance and lifespan of your compression load cell, consider the following best practices:
Perform regular inspections and maintenance on the load cell to ensure it remains in good working condition. Check for any signs of wear or damage, and replace components as necessary.
Each load cell has a specified maximum load capacity. Exceeding this limit can damage the load cell and lead to inaccurate readings. Always ensure that the load applied does not exceed the manufacturer's specifications.
If the load cell is used in harsh environments, consider using protective enclosures to shield it from moisture, dust, and extreme temperatures.
Ensure that the load cell is mounted correctly to avoid misalignment. Misalignment can lead to inaccurate measurements and potential damage to the load cell.
Always refer to the manufacturer's guidelines for installation, calibration, and maintenance. Each load cell may have specific requirements that should be followed for optimal performance.
Even with proper installation and maintenance, issues may arise. Here are some common problems and their solutions:
Cause: This may be due to misalignment or loose connections.
Solution: Check the alignment of the load cell and ensure all connections are secure.
Cause: This indicates that the load applied exceeds the load cell's capacity.
Solution: Reduce the load to within the specified limits.
Cause: This could be due to faulty wiring or a damaged load cell.
Solution: Inspect the wiring for any damage and replace the load cell if necessary.
Compression load cells are not only limited to basic weighing applications; they can also be integrated into more complex systems. For instance, in automated production lines, load cells can be used to monitor the weight of products in real-time, allowing for immediate adjustments to the production process. This integration can lead to significant improvements in efficiency and quality control.
Many modern load cells can be connected to advanced control systems that allow for data logging and analysis. This capability enables businesses to track performance over time, identify trends, and make data-driven decisions. For example, if a particular product consistently weighs more than expected, it may indicate a problem in the production process that needs to be addressed.
In research and development settings, compression load cells are invaluable for testing new materials and products. Engineers can apply controlled forces to materials and measure their responses, providing critical data that informs design decisions. This application is particularly important in industries such as aerospace and automotive, where material performance is crucial.
As technology advances, so too does the field of load cell technology. Here are some trends to watch for in the coming years:
Wireless load cells are becoming increasingly popular due to their ease of installation and flexibility. Without the need for extensive wiring, these load cells can be placed in hard-to-reach areas, making them ideal for various applications.
Smart load cells equipped with sensors and IoT capabilities are on the rise. These devices can provide real-time data and alerts, allowing for proactive maintenance and improved operational efficiency.
Ongoing research is focused on improving the accuracy and sensitivity of load cells. Innovations in materials and design are leading to load cells that can measure even the smallest changes in force, making them suitable for high-precision applications.
Using a compression load cell effectively requires understanding its components, installation procedures, and best practices. By following the guidelines outlined in this article, you can ensure accurate measurements and enhance the efficiency of your operations. Regular maintenance and adherence to manufacturer specifications will further extend the lifespan of your load cell, making it a valuable asset in your industrial applications.
Compression load cells measure forces applied in a compressive manner, while tension load cells measure forces applied in a tensile manner. Each type is designed for specific applications based on the direction of the load.
You can verify calibration by applying known weights and checking if the load cell's readings match the expected values. If there is a discrepancy, recalibration may be necessary.
Yes, but it is essential to ensure that the load cell is protected from environmental factors such as moisture and extreme temperatures. Using a weatherproof enclosure can help.
Check for misalignment, loose connections, or any physical damage to the load cell. Ensuring proper installation and maintenance can often resolve these issues.
Regular maintenance should be performed at least once a year, or more frequently if the load cell is used in harsh conditions or critical applications. Regular checks can help identify potential issues before they become significant problems.
