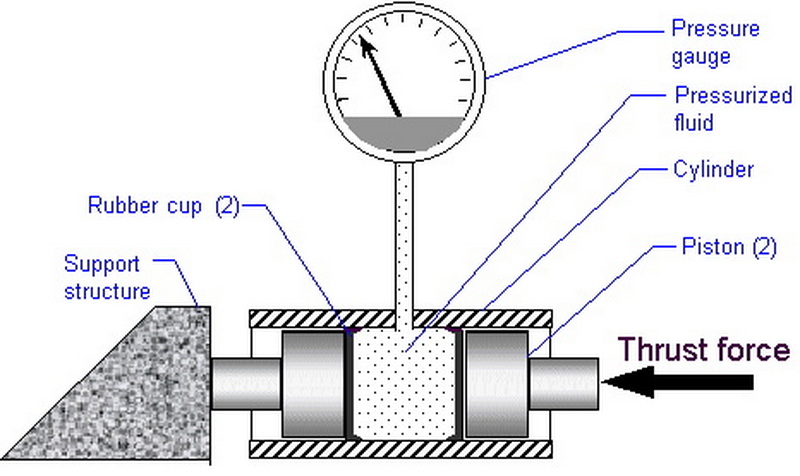

A load cell is a transducer that converts a force into an electrical signal. The most common type of load cell is the strain gauge load cell, which uses the principle of strain gauges to measure the deformation of a material under load. When a load is applied, the strain gauge deforms, changing its electrical resistance. This change can be measured and converted into a weight reading.
Load cells are widely used in various applications, including industrial weighing systems, medical devices, and even in consumer products like digital scales. Their ability to provide accurate and reliable measurements makes them indispensable in many fields.
1. Compression Load Cells: These load cells are designed to measure compressive forces. They are often used in applications where the load is applied vertically. Compression load cells are typically robust and can handle heavy loads, making them ideal for industrial applications.
2. Tension Load Cells: These are used to measure tensile forces. They are commonly found in applications like hanging scales, where the load is suspended from the load cell. Tension load cells are designed to withstand pulling forces and are often used in cranes and hoists.
3. S-Type Load Cells: These load cells can measure both tension and compression. They are versatile and can be used in various applications, including weighing scales and force measurement systems. Their S-shape design allows for easy installation in different orientations.
4. Bending Beam Load Cells: These load cells are designed to measure bending forces and are often used in industrial applications. They are typically used in scales that require a low profile and can be integrated into various systems.
Load cells operate based on the principle of strain gauges. When a load is applied to the load cell, it deforms slightly. This deformation causes a change in the resistance of the strain gauges attached to the load cell. The change in resistance is proportional to the amount of force applied. This electrical signal is then amplified and converted into a readable format, such as weight.
To effectively use a load cell, you need several components:
- Load Cell: The primary sensor that measures force.
- Amplifier: Often, the signal from the load cell is too weak to be read directly. An amplifier, such as the HX711, is used to boost the signal.
- Microcontroller: A microcontroller, like an Arduino, processes the amplified signal and converts it into a usable format.
- Display: A display unit shows the weight measurement.
To get started with a load cell, you will need the following materials:
- Load cell (e.g., SparkFun load cell)
- HX711 amplifier
- Arduino or compatible microcontroller
- Jumper wires
- Breadboard (optional)
- Power supply
1. Identify the Wires: Load cells typically have four or six wires. The most common configuration includes:
- Red: Excitation (+)
- Black: Excitation (-)
- Green: Signal (+)
- White: Signal (-)
2. Connect to HX711: Connect the load cell wires to the HX711 amplifier as follows:
- Red to E+
- Black to E-
- Green to A+
- White to A-
3. Connect HX711 to Arduino: Connect the HX711 to the Arduino:
- VCC to 5V
- GND to GND
- DT (Data) to a digital pin (e.g., D2)
- SCK (Clock) to another digital pin (e.g., D3)
Calibration is crucial for accurate measurements. To calibrate your load cell:
1. Tare the Scale: Ensure the scale reads zero with no load.
2. Apply a Known Weight: Place a known weight on the load cell.
3. Adjust the Calibration Factor: Modify the calibration factor in your code until the output matches the known weight.
If you place a 1 kg weight on the load cell and the output reads 0.95 kg, you need to adjust the calibration factor in your code until the output matches 1 kg. This process may require several iterations to achieve the desired accuracy.
Load cells are used in various applications, including:
- Weighing Scales: Load cells are the backbone of digital weighing scales, providing accurate weight measurements. They are used in both commercial and residential scales, ensuring that users receive precise readings.
- Industrial Automation: In manufacturing, load cells are used to monitor the weight of materials and products on assembly lines. This helps in quality control and ensures that products meet specified weight requirements.
- Force Measurement: Load cells can measure forces in testing applications, such as tensile testing of materials. Engineers use load cells to determine the strength and durability of materials under various conditions.
- Medical Equipment: Load cells are used in hospital beds and other medical devices to monitor patient weight. This information is crucial for patient care and treatment plans.
- Agricultural Applications: Load cells are also used in agriculture for weighing produce and livestock. Accurate weight measurements help farmers manage their operations more effectively.
When working with load cells, you may encounter some common issues:
1. Inconsistent Readings: Ensure that the load cell is properly calibrated and that there are no mechanical issues affecting the load cell. Environmental factors, such as temperature and humidity, can also impact readings.
2. No Output: Check all connections and ensure that the HX711 is powered correctly. A loose connection can prevent the system from functioning properly.
3. Drifting Readings: This can occur due to temperature changes or electrical noise. Ensure that the load cell is in a stable environment and consider using shielding to reduce noise.
4. Overloading: Exceeding the load cell's rated capacity can damage the sensor. Always ensure that the load applied does not exceed the specifications provided by the manufacturer.
5. Calibration Drift: Over time, the calibration of a load cell may drift due to wear and tear. Regularly check and recalibrate the load cell to maintain accuracy.
As you become more familiar with load cells, you may want to explore advanced techniques to enhance their functionality:
In some applications, you may need to use multiple load cells to measure weight across a larger area or to improve accuracy. This is common in industrial scales where large items are weighed. By using multiple load cells, you can distribute the load evenly and obtain a more accurate measurement.
Integrating a data logging system with your load cell setup can provide valuable insights over time. By recording weight measurements, you can analyze trends, monitor changes, and make informed decisions based on the data collected.
For applications where mobility is essential, consider using wireless load cell systems. These systems transmit data wirelessly to a receiver, allowing for remote monitoring and data collection. This is particularly useful in environments where physical connections may be impractical.
Incorporating load cells into Internet of Things (IoT) systems can enhance their functionality. By connecting load cells to the internet, you can monitor weight measurements in real-time, receive alerts for specific conditions, and integrate the data with other smart devices.
Using a load cell can greatly enhance your ability to measure weight and force accurately. By following the steps outlined in this guide, you can successfully set up and use a load cell with SparkFun components. Whether you are building a digital scale, conducting experiments, or integrating load cells into industrial applications, understanding how to use them effectively is essential.
- The maximum load capacity of a load cell varies depending on its design and application. Common capacities range from a few grams to several tons.
- You can verify calibration by placing known weights on the load cell and checking if the readings match the expected values. If they do not, you will need to adjust the calibration factor.
- Yes, but you should ensure that the load cell is protected from environmental factors such as moisture, dust, and extreme temperatures. Using a weatherproof enclosure can help.
- A load cell is a specific type of force sensor designed to measure weight or force. While all load cells are force sensors, not all force sensors are load cells, as they may use different technologies and principles.
- To improve accuracy, ensure proper calibration, minimize environmental influences, use high-quality components, and consider implementing data filtering techniques to reduce noise in the readings.
