In the world of electronics and DIY projects, load cells are essential components for measuring weight and force. When combined with an Arduino, they can be used to create various applications, from simple weighing scales to complex force measurement systems. This article will guide you through the process of using a load cell with Arduino, covering everything from the basics of load cells to the step-by-step implementation of a weighing scale project.
A load cell is a type of transducer that converts a force or weight into an electrical signal. The most common type of load cell is the strain gauge load cell, which uses the principle of strain gauges to measure deformation. When a load is applied to the load cell, it deforms slightly, causing a change in resistance in the strain gauges. This change in resistance is then converted into an electrical signal that can be measured and processed.
1. Compression Load Cells: These load cells measure the force applied in a compressive manner. They are often used in applications where the load is applied vertically.
2. Tension Load Cells: These load cells measure the force applied in a tensile manner. They are used in applications where the load is pulled.
3. Shear Beam Load Cells: These load cells measure the force applied in a shear direction. They are commonly used in industrial applications.
4. Bending Beam Load Cells: These load cells measure the bending of a beam under load. They are often used in weighing scales.
To set up a load cell with Arduino, you will need the following components:
◆ Load Cell: A strain gauge load cell suitable for your application.
◆ HX711 Amplifier: This is a precision 24-bit analog-to-digital converter (ADC) that is commonly used with load cells to amplify the small signals produced by the load cell.
◆ Arduino Board: Any Arduino board, such as Arduino Uno, Mega, or Nano, will work.
◆ Breadboard and Jumper Wires: For making connections between components.
◆ Power Supply: Depending on your load cell and Arduino setup, you may need an external power supply.

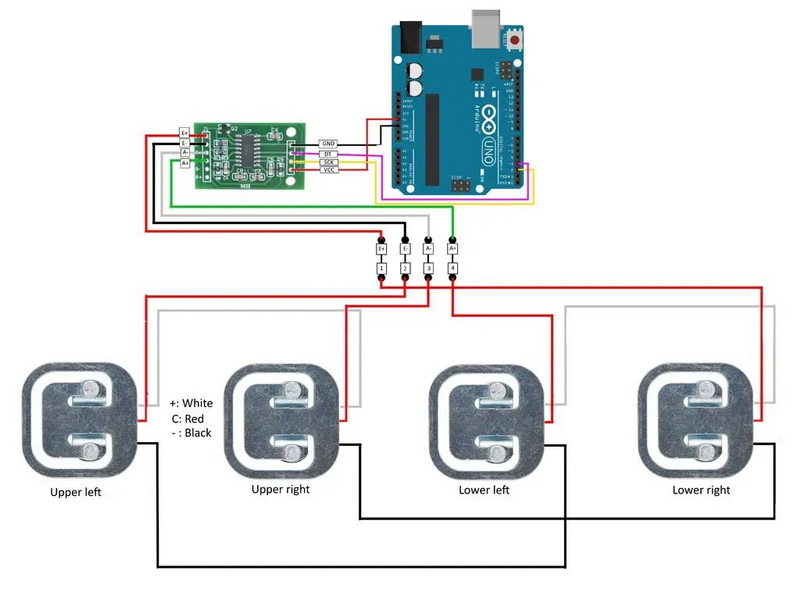

The load cell typically has four wires: red, black, white, and green. The wiring is as follows:
◆ Red Wire: Connect to E+ (Excitation Positive) on the HX711.
◆ Black Wire: Connect to E- (Excitation Negative) on the HX711.
◆ White Wire: Connect to A- (Signal Negative) on the HX711.
◆ Green Wire: Connect to A+ (Signal Positive) on the HX711.

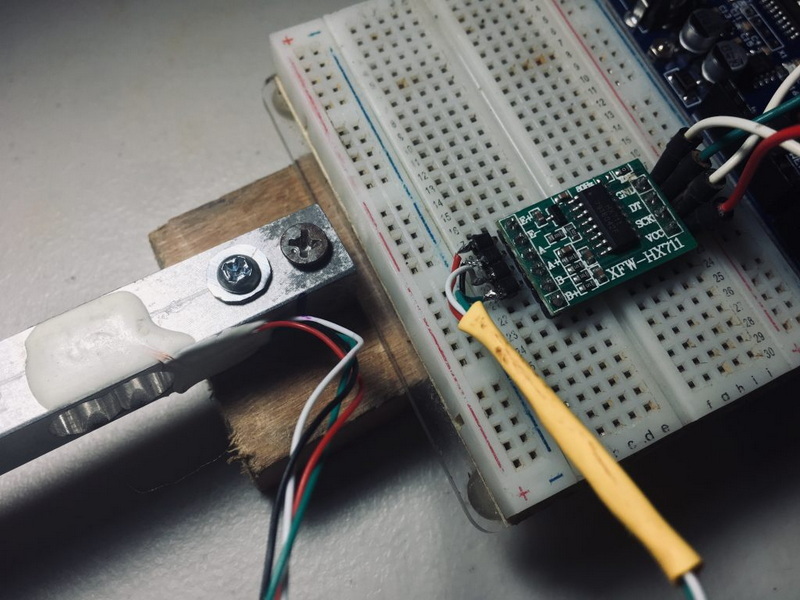

Next, connect the HX711 to the Arduino. The typical connections are:
◆ VCC: Connect to the 5V pin on the Arduino.
◆ GND: Connect to the GND pin on the Arduino.
◆ DT (Data): Connect to a digital pin on the Arduino (e.g., pin 2).
◆ SCK (Clock): Connect to another digital pin on the Arduino (e.g., pin 3).
To communicate with the HX711, you will need to install the HX711 library. You can do this through the Arduino IDE:
1. Open the Arduino IDE.
2. Go to Sketch > Include Library > Manage Libraries.
3. In the Library Manager, search for "HX711" and install the library by Bogdan Necula.
1. Connect your Arduino to your computer using a USB cable.
2. Select the correct board and port in the Arduino IDE.
3. Click on the upload button to upload the code to your Arduino.
Once the code is uploaded, open the Serial Monitor in the Arduino IDE (set the baud rate to 9600). You should see the weight displayed in grams. Place a known weight on the load cell to test its accuracy.
To ensure accurate measurements, you will need to calibrate your load cell. Calibration involves setting a known weight and adjusting the scale factor in your code. Here’s how to do it:
1. Place a known weight on the load cell.
2. Note the reading displayed in the Serial Monitor.
3. Calculate the scale factor using the formula:
Scale Factor=Known WeightReading from Load CellScale Factor=Reading from Load CellKnown Weight
4. Update the scale factor in your code using scale.set_scale(scale_factor);.
Load cells can be used in various applications, including:
1. Weighing Scales: Create digital weighing scales for kitchen or industrial use.
2. Force Measurement: Measure the force applied in various experiments or applications.
3. Load Monitoring: Monitor the load on structures or vehicles.
4. Robotics: Use load cells in robotic applications to measure weight distribution.
5. Industrial Automation: Integrate load cells into automated systems for quality control and process monitoring.
1. Inaccurate Readings: Ensure that the load cell is properly calibrated and that there are no mechanical interferences. Check for any physical obstructions that may affect the load cell's performance.
2. No Output: Check all connections and ensure that the HX711 is powered correctly. Verify that the Arduino is receiving power and that the correct pins are being used.
3. Fluctuating Readings: This may be caused by electrical noise. Ensure that the wiring is secure and consider using shielded cables. Additionally, try to minimize the distance between the load cell and the HX711 to reduce interference.
4. Overloading: If the load cell is subjected to weights beyond its rated capacity, it may become damaged. Always ensure that the load applied does not exceed the specifications of the load cell.
5. Software Issues: If the readings are inconsistent, check the code for any errors. Ensure that the HX711 library is correctly installed and that the pins are defined properly in the code.
Once you have mastered the basics of using a load cell with Arduino, you can explore more advanced projects. Here are a few ideas:

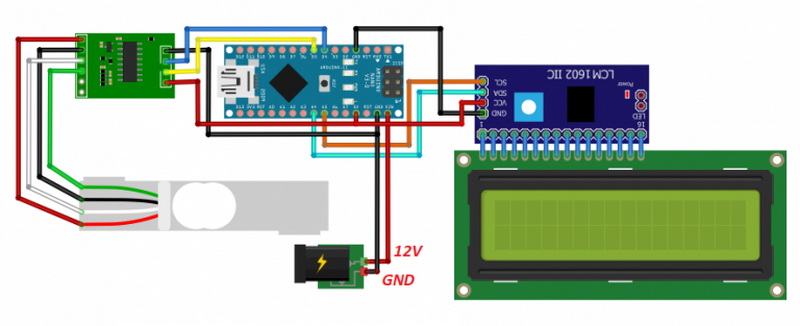

1. Smart Weighing Scale: Integrate a display module (like an LCD or OLED) to show the weight in real-time. You can also add features like tare functionality and unit conversion (grams to pounds).
2. Data Logging System: Use an SD card module to log weight data over time. This can be useful for monitoring weight changes in various applications, such as tracking food consumption or monitoring inventory.
3. Wireless Weight Measurement: Implement a wireless communication module (like an ESP8266 or Bluetooth module) to send weight data to a smartphone or computer for remote monitoring.
4. Automated Feeding System: Combine a load cell with a motorized feeder to create an automated feeding system for pets or livestock. The system can dispense a specific amount of food based on weight measurements.
5. Force Measurement in Robotics: Use load cells in robotic arms to measure the force exerted during tasks. This can help in programming the robot to handle delicate objects without damaging them.
Using a load cell with Arduino opens up a world of possibilities for measuring weight and force in various applications. By following the steps outlined in this article, you can successfully set up a load cell and create your own weighing scale or force measurement system. With some creativity, you can expand this project into more complex applications, making it a valuable addition to your electronics toolkit.
The maximum weight a load cell can measure depends on its specifications. Load cells come in various capacities, ranging from a few grams to several tons. Always check the datasheet of the load cell you are using to determine its maximum load.
To calibrate your load cell, place a known weight on it and note the reading displayed on the Arduino. Calculate the scale factor using the formula: Scale Factor = Known Weight / Reading from Load Cell. Update the scale factor in your code accordingly.
Yes, you can use multiple load cells with one Arduino, but you will need to use multiple HX711 modules, as each HX711 can only handle one load cell. You can connect multiple HX711 modules to different pins on the Arduino and read them separately in your code.
If your load cell is not giving any readings, check all connections to ensure they are secure. Verify that the HX711 is powered correctly and that the Arduino is functioning. Additionally, ensure that the load cell is not overloaded or damaged.
Yes, load cells can be used to measure force. By applying a force to the load cell, it will produce a corresponding weight reading. This can be useful in various applications, such as testing materials or measuring the force exerted by a mechanical system.
