Pancake load cells are specialized sensors designed to measure force, weight, or pressure in various applications. Their unique design allows them to provide accurate measurements in a compact form factor, making them ideal for both industrial and laboratory settings. In this article, we will explore the functionality, installation, and applications of pancake load cells, along with practical tips for their effective use.

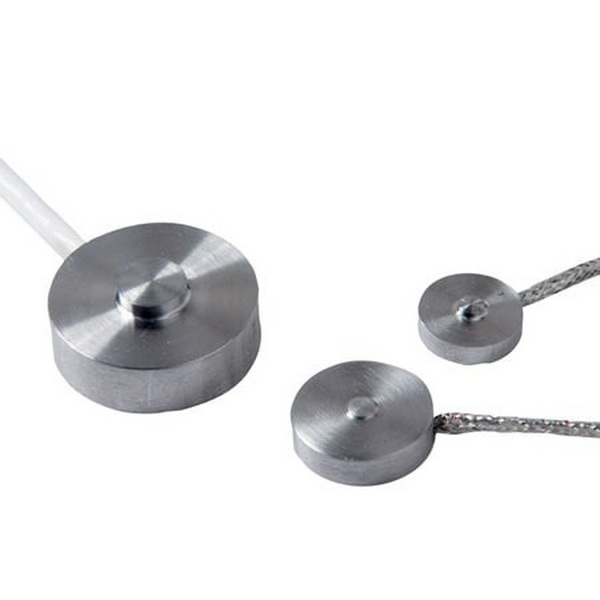

Pancake load cells are named for their flat, disc-like shape, resembling a pancake. This design allows for low-profile installations, making them suitable for applications where space is limited. They are typically made from high-strength materials such as aluminum or stainless steel, ensuring durability and resistance to environmental factors.
Pancake load cells operate based on the principle of strain gauges. When a force is applied to the load cell, it deforms slightly, causing a change in resistance in the strain gauges attached to it. This change in resistance is then converted into an electrical signal, which can be measured and interpreted by a connected device, such as a digital display or a data acquisition system.
1. High Accuracy: Pancake load cells are known for their precision, making them suitable for applications requiring exact measurements.
2. Low Profile: Their flat design allows for easy integration into various setups without taking up much space.
3. Versatility: They can measure both tension and compression forces, making them adaptable to different applications.
4. Robust Construction: Made from durable materials, pancake load cells can withstand harsh environments and heavy loads.
Pancake load cells are used in a wide range of industries and applications, including:
In manufacturing and processing industries, pancake load cells are often used for weighing materials and products. Their high accuracy ensures that the correct amount of material is used, reducing waste and improving efficiency. For instance, in food processing, precise measurements are crucial for maintaining product quality and consistency.
In laboratories, pancake load cells are utilized for material testing, such as tensile and compressive strength tests. They provide precise measurements of the forces applied to materials, helping engineers and researchers evaluate material properties. This is particularly important in industries like construction and aerospace, where material integrity is critical.
Pancake load cells are commonly used in robotic applications to measure the forces exerted by robotic arms. This information is crucial for ensuring that robots operate safely and effectively, especially in automated assembly lines. By monitoring the forces, engineers can program robots to handle delicate components without causing damage.
In civil engineering, pancake load cells can be employed to monitor the structural integrity of buildings and bridges. By measuring the forces acting on these structures, engineers can assess their safety and make necessary repairs. This proactive approach helps prevent catastrophic failures and extends the lifespan of infrastructure.
In the aerospace industry, pancake load cells are used to test components and systems under various load conditions. Their ability to measure both tension and compression makes them ideal for evaluating the performance of aircraft parts. This testing is essential for ensuring that components can withstand the extreme conditions experienced during flight.
Proper installation is crucial for the accurate performance of pancake load cells. Here are the steps to follow for a successful installation:
Ensure that the surface where the load cell will be mounted is clean, flat, and free of debris. Any irregularities can affect the accuracy of the measurements. It is advisable to use a level to check the surface before proceeding.
Position the pancake load cell in the desired location, ensuring that it is aligned correctly with the load application point. Misalignment can lead to inaccurate readings. Use alignment tools if necessary to achieve precise positioning.
Use appropriate fasteners to secure the load cell in place. Make sure not to overtighten, as this can damage the load cell or affect its performance. A torque wrench can be helpful to apply the correct amount of force.
Connect the load cell to the appropriate signal conditioning equipment or data acquisition system. Follow the manufacturer's wiring diagram to ensure correct connections. Double-check all connections to prevent signal loss or interference.
After installation, calibrate the load cell to ensure accurate measurements. This process involves applying known weights and adjusting the output signal accordingly. Calibration should be performed regularly to maintain accuracy over time.
To maximize the performance of pancake load cells, consider the following tips:
Regularly calibrate your load cells to maintain accuracy. Environmental changes and wear can affect their performance over time. Establish a calibration schedule based on usage frequency and environmental conditions.
Ensure that the load applied does not exceed the load cell's rated capacity. Overloading can lead to permanent damage and inaccurate readings. Always check the specifications before applying loads.
Follow the manufacturer's guidelines for mounting and installation. Using the correct techniques will help ensure that the load cell functions as intended. This includes using the right type of fasteners and ensuring proper alignment.
Be aware of the environmental conditions where the load cell is installed. Extreme temperatures, humidity, and vibrations can affect performance. If necessary, use protective enclosures to shield the load cell from harsh conditions.
Consider using data logging systems to record measurements over time. This can help identify trends and anomalies in the data, providing valuable insights. Data logging can also assist in troubleshooting and performance analysis.
Even with proper installation and usage, issues may arise with pancake load cells. Here are some common problems and their solutions:
Solution: Check for proper alignment and ensure that the load is applied evenly. Also, verify that the load cell is calibrated correctly. If readings fluctuate, inspect the wiring for any loose connections.
Solution: Ensure that the load applied does not exceed the load cell's capacity. If overload occurs, stop using the load cell immediately and inspect for damage. Consider using a load cell with a higher capacity for future applications.
Solution: Use shielded cables and proper grounding techniques to minimize electrical noise that can affect readings. Additionally, keep the load cell and its wiring away from high-voltage equipment.
Solution: Regularly calibrate the load cell and check for environmental factors that may be causing drift, such as temperature fluctuations. Implementing temperature compensation techniques can also help maintain accuracy.
Solution: Inspect the load cell for any signs of physical damage, such as dents or cracks. If damage is found, replace the load cell to ensure accurate measurements.
Pancake load cells are versatile and reliable sensors that play a crucial role in various applications, from industrial weighing to material testing. By understanding their functionality, installation procedures, and best practices for use, you can ensure accurate and effective measurements. Regular maintenance and calibration are essential for optimal performance, and being aware of common issues can help you troubleshoot effectively.
In summary, pancake load cells offer a compact and efficient solution for measuring force and weight in a wide range of settings. Their unique design and high accuracy make them an invaluable tool in many industries.
A pancake load cell is a type of force sensor that measures weight or pressure using a flat, disc-like design. It is known for its high accuracy and low profile, making it suitable for various applications.
To install a pancake load cell, prepare the mounting surface, align the load cell with the load application point, secure it with appropriate fasteners, connect the wiring, and calibrate it for accurate measurements.
Pancake load cells are commonly used in industrial weighing, material testing, robotics, structural monitoring, and aerospace testing due to their versatility and accuracy.
Calibration frequency depends on usage and environmental conditions. It is recommended to calibrate regularly, especially if the load cell is used frequently or in varying conditions.
If your load cell shows inconsistent readings, check for proper alignment, ensure even load application, and verify that the load cell is calibrated correctly. Inspect the wiring for any loose connections as well.
