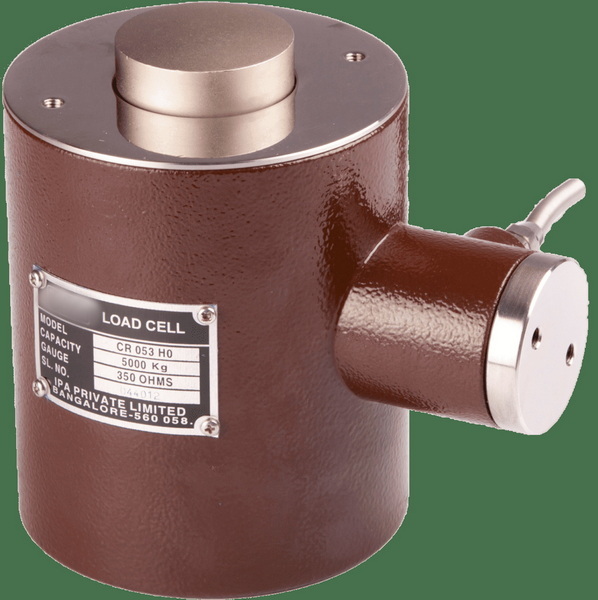

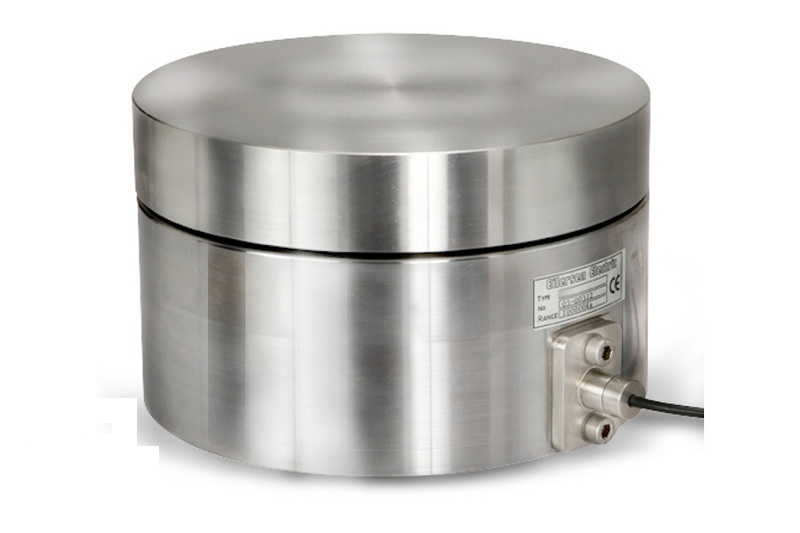

A compression load cell is a type of transducer that converts a force applied to it into an electrical signal. This signal can then be measured and interpreted to determine the weight or force being applied. Compression load cells are designed to withstand high loads and are often used in industrial applications. They are typically made from high-strength materials such as stainless steel, which provides durability and resistance to environmental factors.
Compression load cells operate on the principle of strain gauges. When a load is applied to the load cell, it deforms slightly. This deformation changes the resistance of the strain gauges attached to the load cell. The change in resistance is proportional to the amount of force applied, allowing for accurate measurements. The load cell's output is usually in millivolts, which can be amplified and converted into a readable format by a data acquisition system.
Compression load cells are used in various applications, including:
1. Industrial Weighing: They are commonly used in scales for weighing heavy objects in manufacturing and shipping industries. For instance, they can be found in truck scales, platform scales, and batching systems.
2. Material Testing: Compression load cells are used in laboratories to test the strength of materials by applying controlled forces. This is crucial in industries such as construction and manufacturing, where material integrity is vital.
3. Structural Monitoring: They can monitor the load on structures such as bridges and buildings to ensure safety and integrity. By continuously measuring the load, engineers can assess the structural health and make informed decisions about maintenance.
4. Automotive Testing: Used in crash testing and other automotive applications to measure forces during impact. This data is essential for improving vehicle safety and performance.
5. Aerospace Applications: In the aerospace industry, compression load cells are used to test components and materials under various load conditions, ensuring they meet safety and performance standards.
1. Select the Right Load Cell: Choose a load cell that meets the specifications for your application, including load capacity and environmental conditions. Consider factors such as temperature range, humidity, and potential exposure to chemicals.
2. Prepare the Mounting Surface: Ensure that the surface where the load cell will be mounted is clean, flat, and free of debris. This will help ensure accurate measurements. Any irregularities in the surface can lead to misalignment and inaccurate readings.
3. Position the Load Cell: Place the load cell in the desired location, ensuring that it is aligned with the load direction. Misalignment can lead to inaccurate readings. Use alignment tools if necessary to ensure proper positioning.
4. Secure the Load Cell: Use bolts or screws to secure the load cell to the mounting surface. Ensure that it is tightly fastened to prevent movement during operation. Over-tightening can damage the load cell, so follow the manufacturer's torque specifications.
5. Connect the Wiring: Follow the manufacturer's instructions to connect the load cell to the appropriate power supply and data acquisition system. Ensure that all connections are secure and insulated. Use shielded cables to minimize electrical interference.
6. Test the Installation: Before using the load cell, perform a test to ensure that it is functioning correctly. Apply a known weight and check the readings. If the readings are not as expected, recheck the installation and connections.
Calibration is crucial for ensuring the accuracy of measurements taken with a compression load cell. Here's how to calibrate a load cell:
1. Gather Calibration Weights: Obtain a set of calibration weights that are traceable to national standards. These weights should cover the range of expected loads. Using certified weights ensures the accuracy of the calibration process.
2. Zero the Load Cell: Before applying any weights, ensure that the load cell reads zero. This may involve adjusting the zero setting on the data acquisition system. It is essential to perform this step in a stable environment to avoid fluctuations in readings.
3. Apply Known Weights: Gradually apply known weights to the load cell, starting from the lowest weight and moving to the highest. Record the readings at each weight. This step helps in creating a comprehensive calibration curve.
4. Create a Calibration Curve: Plot the recorded readings against the known weights to create a calibration curve. This curve will help in adjusting the readings for accurate measurements. A linear relationship is typically expected, but non-linear behavior may require more complex adjustments.
5. Adjust Settings: If necessary, adjust the settings on the data acquisition system to match the calibration curve. This may involve scaling or offset adjustments. Ensure that the adjustments are documented for future reference.
6. Re-test: After calibration, re-test the load cell with known weights to ensure accuracy. This final check confirms that the calibration process was successful.
Proper maintenance is essential for ensuring the longevity and accuracy of compression load cells. Here are some maintenance tips:
- Visual Checks: Regularly inspect the load cell for any signs of damage, corrosion, or wear. Look for cracks or deformation in the housing. Early detection of issues can prevent more significant problems down the line.
- Wiring Inspection: Check the wiring for any signs of fraying or damage. Ensure that all connections are secure. Loose or damaged wires can lead to inaccurate readings or complete failure of the load cell.
- Keep It Clean: Regularly clean the load cell to remove dust, dirt, and debris. Use a soft cloth and mild cleaning solution to avoid damaging the sensor. Avoid using high-pressure water jets, as they can force moisture into the load cell.
- Avoid Harsh Chemicals: Do not use harsh chemicals or abrasive materials that could damage the load cell. Always refer to the manufacturer's cleaning recommendations.
- Periodic Calibration: Schedule regular calibration checks to ensure that the load cell remains accurate over time. This is especially important in critical applications where precision is paramount.
- Protect from Extreme Conditions: If the load cell is used in harsh environments, consider using protective enclosures to shield it from moisture, dust, and extreme temperatures. Environmental protection can significantly extend the lifespan of the load cell.
Even with proper installation and maintenance, issues can arise with compression load cells. Here are some common problems and their solutions:
1. Inconsistent Readings: If the load cell provides inconsistent readings, check for loose connections or misalignment. Ensure that the load is applied evenly and that there are no external vibrations affecting the measurement.
2. Zero Drift: If the load cell does not return to zero after unloading, it may require recalibration. Environmental factors such as temperature changes can also cause zero drift, so consider recalibrating under stable conditions.
3. Overloading: If the load cell is subjected to loads beyond its rated capacity, it can become damaged. Always ensure that the load cell is rated for the expected loads and implement safety factors in your design.
4. Electrical Noise: Electrical interference can affect the accuracy of readings. Use shielded cables and proper grounding techniques to minimize noise. Additionally, consider using filters in the data acquisition system.
5. Temperature Effects: Temperature changes can affect the performance of load cells. If the load cell is used in varying temperatures, consider using temperature compensation techniques or selecting a load cell designed for such conditions.
Compression load cells are vital tools in various industries for measuring force and weight. Understanding how to use, install, calibrate, and maintain these devices is essential for ensuring accurate measurements and prolonging their lifespan. By following the guidelines outlined in this article, users can effectively utilize compression load cells in their applications.
Compression load cells measure forces applied in a downward direction, while tension load cells measure forces applied in an upward direction. Each type is designed for specific applications based on the direction of the load.
Calibration frequency depends on the application and usage conditions. For critical applications, it is recommended to calibrate at least once a year or after any significant load changes or environmental shifts.
Yes, but it is essential to select load cells with appropriate environmental ratings. Look for models that are weatherproof or have protective enclosures to prevent damage from moisture and dust.
Check for loose connections, misalignment, or external vibrations. Ensure that the load is applied evenly and that the load cell is not overloaded. If issues persist, consider recalibrating the load cell.
Yes, proper alignment, secure mounting, and correct wiring are crucial for accurate measurements. Follow the manufacturer's installation guidelines to ensure optimal performance.
By understanding the principles and best practices associated with compression load cells, users can enhance their measurement accuracy and reliability in various applications.
