In the world of electronics and programming, the combination of a load cell and a Raspberry Pi opens up a myriad of possibilities for creating innovative projects. Load cells are sensors that measure weight or force, and when paired with a Raspberry Pi, they can be used in various applications, from weighing scales to automated systems. This article will guide you through the process of using a load cell with a Raspberry Pi, covering everything from the necessary components to the coding required to get your project up and running.
A load cell is a transducer that converts a force or weight into an electrical signal. The most common type of load cell is the strain gauge load cell, which uses the principle of strain gauges to measure deformation. When a load is applied, the strain gauge deforms, changing its electrical resistance. This change can be measured and converted into a weight reading.
1. Compression Load Cells: These load cells measure the force applied in a compressive manner. They are often used in applications where the load is applied vertically.
2. Tension Load Cells: These measure the force applied in a tensile manner. They are used in applications where the load is being pulled.
3. Bending Load Cells: These load cells measure the bending of a beam under load. They are commonly used in scales.
To set up a load cell with a Raspberry Pi, you will need the following components:
- Raspberry Pi: Any model will work, but the Raspberry Pi 3 or 4 is recommended for better performance.
- Load Cell: A 1kg or 5kg load cell is suitable for most projects.
- HX711 Amplifier: This is a precision 24-bit analog-to-digital converter (ADC) that is commonly used with load cells.
- Breadboard and Jumper Wires: For making connections.
- Power Supply: To power the Raspberry Pi and the load cell setup.
- Python: The programming language used to interface with the load cell.

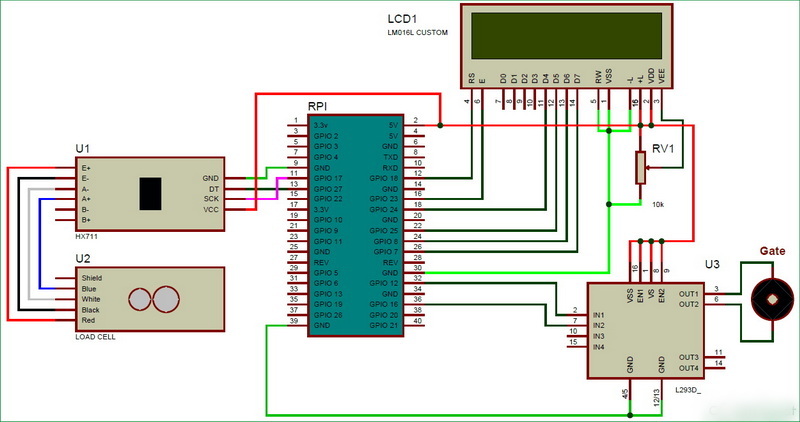

The load cell typically has four wires: red, black, white, and green. The connections are as follows:
- Red Wire: Connect to E+ (Excitation Positive) on the HX711.
- Black Wire: Connect to E- (Excitation Negative) on the HX711.
- White Wire: Connect to A- (Signal Negative) on the HX711.
- Green Wire: Connect to A+ (Signal Positive) on the HX711.
The HX711 has four pins that need to be connected to the Raspberry Pi:
- VCC: Connect to the 5V pin on the Raspberry Pi.
- GND: Connect to a ground pin on the Raspberry Pi.
- DT (Data): Connect to a GPIO pin (e.g., GPIO 5).
- SCK (Clock): Connect to another GPIO pin (e.g., GPIO 6).
Calibration is essential to ensure accurate weight measurements. To calibrate your load cell, you will need a known weight. Follow these steps:
1. Place the known weight on the load cell.
2. Modify the `set_reference_unit` value in your code until the output matches the known weight.
3. Once calibrated, you can use this reference unit for accurate measurements.
For more precise calibration, consider the following techniques:
- Multiple Weights: Use several known weights to create a calibration curve. This can help improve accuracy across a range of weights.
- Temperature Compensation: Load cells can be sensitive to temperature changes. If your application requires high precision, consider implementing temperature compensation in your code.
One of the most common applications of load cells is in weighing scales. By integrating a load cell with a Raspberry Pi, you can create a digital scale that displays weight readings on an LCD or sends data to a web server. This can be particularly useful in retail environments or for personal use at home.
Load cells can be used to measure force in various applications, such as testing materials or measuring the force exerted by a machine. This is particularly useful in industrial settings where monitoring force is critical for safety and quality control.
In automated systems, load cells can be used to monitor weight changes and trigger actions based on specific thresholds. For example, in a conveyor system, a load cell can detect when a package is present and activate the next step in the process. This can streamline operations and reduce the need for manual intervention.
Load cells can be integrated into robotic systems to provide feedback on weight distribution, helping to balance loads and improve stability. This is especially important in applications where robots are required to lift or transport heavy objects.
In agriculture, load cells can be used to monitor the weight of crops or livestock. This data can be used to optimize feeding schedules, monitor growth rates, and improve overall farm management. By integrating load cells with IoT devices, farmers can access real-time data and make informed decisions.
If you are not getting any output from the load cell, check the following:
- Ensure all connections are secure.
- Verify that the HX711 is powered correctly.
- Check the GPIO pin assignments in your code.
Inconsistent readings can be caused by:
- Electrical noise. Ensure that your wiring is neat and away from other electrical components.
- Improper calibration. Recalibrate your load cell with a known weight.
Avoid exceeding the load cell's maximum capacity, as this can damage the sensor. Always use a load cell that is rated for your application.
If you encounter errors in your code, double-check the library installation and ensure that you are using the correct GPIO pins. Additionally, ensure that your Raspberry Pi is running the latest version of the operating system.
Using a load cell with a Raspberry Pi is a rewarding project that can lead to various applications in electronics and automation. By following the steps outlined in this article, you can successfully set up a load cell, write the necessary code, and explore the many possibilities this combination offers. Whether you are building a simple weighing scale or a complex automated system, the integration of load cells and Raspberry Pi will enhance your project's capabilities.
The maximum weight a load cell can measure depends on its specifications. Load cells are available in various capacities, ranging from a few grams to several tons. Always choose a load cell that meets the requirements of your specific application.
Yes, you can use multiple load cells with one Raspberry Pi. However, you will need to use multiple HX711 amplifiers, as each HX711 can only interface with one load cell at a time. You can connect multiple HX711 modules to different GPIO pins on the Raspberry Pi.
To ensure accurate readings, calibrate your load cell using known weights. Additionally, minimize electrical noise by keeping wiring neat and away from other electronic components. Regularly check and recalibrate your load cell as needed.
Python is the most commonly used programming language for interfacing with load cells and Raspberry Pi. However, you can also use other languages such as C or Java, depending on your preference and the libraries available.
Yes, load cells can be used outdoors, but you should ensure that they are protected from environmental factors such as moisture and extreme temperatures. Consider using load cells that are specifically designed for outdoor use or enclose them in a protective housing.
