Load cells are essential components in various industries, serving as the backbone of weight measurement systems. These precision instruments convert force into electrical signals, enabling accurate and reliable weight measurements in applications ranging from industrial scales to aerospace engineering. Understanding how to use load cells effectively is crucial for anyone working in fields that require precise force or weight measurements.
Before delving into the specifics of using load cells, it's important to familiarize yourself with the different types available. Each type has its own strengths and is suited for specific applications.

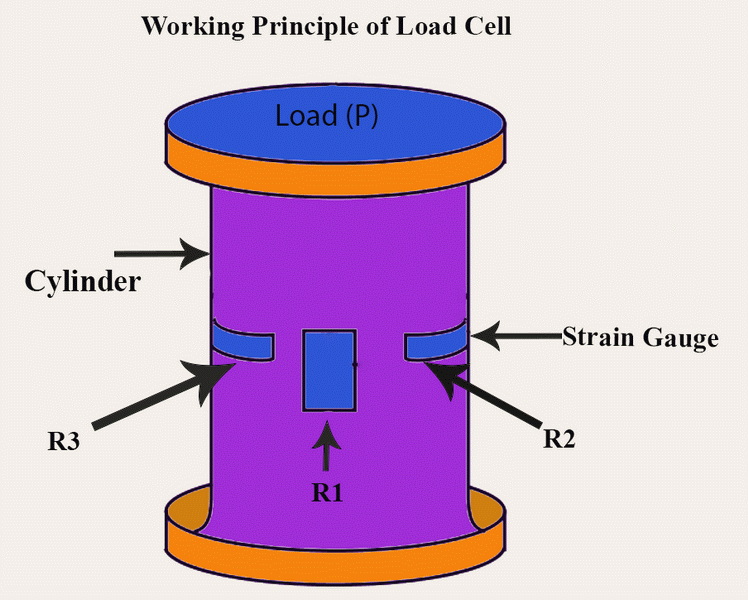

1. Strain Gauge Load Cells: These are the most common type, using electrical resistance changes to measure force.
2. Hydraulic Load Cells: Ideal for harsh environments, these use fluid pressure to measure force.
3. Pneumatic Load Cells: These use air pressure and are suitable for clean environments where hygiene is crucial.
4. Capacitive Load Cells: Known for their high accuracy and stability, these are often used in precision scales.
5. Piezoelectric Load Cells: Excellent for dynamic force measurements, these are commonly used in impact testing.
Load cells find applications in numerous industries due to their versatility and accuracy. Some common applications include:
1. Industrial Weighing: From truck scales to conveyor belt weighing systems, load cells are crucial in industrial settings.
2. Aerospace and Automotive Testing: Load cells help measure forces during structural testing and performance evaluation.
3. Medical Equipment: Precise weight measurement in hospital beds and rehabilitation equipment often relies on load cells.
4. Agriculture: Grain silos and livestock scales use load cells for accurate inventory management.
5. Robotics: Force sensing in robotic arms and grippers often employs load cells.
6. Material Testing: Load cells are essential in machines that test the strength and durability of materials.
Understanding these applications can help you appreciate the importance of proper load cell usage and maintenance.
Proper installation is crucial for ensuring accurate measurements and longevity of your load cell. Here are some key steps to follow:
1. Prepare the Mounting Surface: Ensure the surface is clean, flat, and rigid. Any unevenness can lead to measurement errors.
2. Align the Load Cell: Proper alignment is critical. The load should be applied in the direction specified by the manufacturer.
3. Use Proper Hardware: Use the recommended mounting hardware and torque specifications provided by the manufacturer.
4. Consider Environmental Factors: Protect the load cell from excessive moisture, temperature fluctuations, and vibrations.
5. Allow for Movement: In some applications, you may need to allow for thermal expansion or slight movements to prevent damage.
Correct wiring is essential for accurate load cell operation. Most strain gauge load cells have four or six wires:
- Excitation + (usually red)
- Excitation - (usually black)
- Signal + (usually green)
- Signal - (usually white)
- Sense + and Sense - (if present, usually blue and yellow)
When wiring multiple load cells, it's crucial to maintain consistent color coding and connections. Always refer to the manufacturer's wiring diagram for specific instructions.
Calibration is a critical process that ensures your load cell provides accurate measurements. Here's a basic calibration procedure:
1. Zero Calibration: With no load applied, adjust the system to read zero.
2. Span Calibration: Apply a known weight (ideally close to the maximum capacity) and adjust the system to read the correct value.
3. Linearity Check: Test multiple points across the range to ensure linear response.
4. Repeatability Test: Perform multiple measurements at the same weight to check for consistency.
5. Hysteresis Test: Check for differences in readings when loading and unloading.
Regular calibration is essential to maintain accuracy over time. The frequency of calibration depends on usage and environmental factors.
Load cell amplifiers are crucial components that boost the small electrical signals produced by load cells to levels that can be easily read by measurement systems. Key considerations when choosing and using a load cell amplifier include:
1. Compatibility: Ensure the amplifier is compatible with your load cell type and output.
2. Gain: Choose an amplifier with appropriate gain to match your application's requirements.
3. Excitation Voltage: The amplifier should provide the correct excitation voltage for your load cell.
4. Filtering: Look for amplifiers with built-in filtering to reduce noise and improve signal quality.
5. Output Type: Select an amplifier with the output type (e.g., analog voltage, current, or digital) that matches your data acquisition system.
Collecting and processing data from load cells is a critical step in many applications. Here are some key aspects of load cell data acquisition:
1. Sampling Rate: Choose a data acquisition system with an appropriate sampling rate for your application. Dynamic measurements may require higher sampling rates.
2. Resolution: Ensure your system has sufficient resolution to capture small changes in load cell output.
3. Filtering: Implement digital filtering techniques to reduce noise and improve measurement quality.
4. Calibration: Integrate calibration data into your acquisition system for real-time conversion to engineering units.
5. Data Storage: Consider how you'll store and manage the acquired data, especially for long-term monitoring applications.
6. Integration: Ensure your data acquisition system can integrate with other systems or software for analysis and reporting.
Load cell accuracy is influenced by various factors, including:
1. Nonlinearity: The deviation from a perfectly linear response across the measurement range.
2. Hysteresis: The difference in output when approaching a point from different directions.
3. Temperature Effects: Changes in temperature can affect both zero balance and sensitivity.
4. Creep: The change in load cell output over time under constant load.
5. Eccentric Loading: Applying force away from the load cell's central axis can introduce errors.To maintain high accuracy:
- Choose load cells with specifications that meet or exceed your accuracy requirements.
- Implement proper installation and mounting techniques.
- Conduct regular calibrations and maintain a stable environment.
- Use appropriate signal conditioning and data acquisition systems.
Even with proper installation and maintenance, issues can arise with load cell systems. Here are some common problems and troubleshooting steps:
1. Zero Drift: If the zero point is unstable, check for loose connections, moisture ingress, or temperature fluctuations.
2. Nonlinearity: This could be due to overloading, improper mounting, or damage to the load cell. Verify installation and check for physical damage.
3. Noise in Signal: Check for proper shielding, grounding, and cable routing. Ensure cables are away from sources of electromagnetic interference.
4. Sudden Output Changes: This could indicate physical damage or a loose connection. Inspect the load cell and wiring carefully.
5. Calibration Errors: If calibration is unsuccessful, verify the accuracy of your test weights and ensure the system is stable during calibration.
6. Temperature-Related Issues: If accuracy varies with temperature, consider using load cells with better temperature compensation or controlling the environment more strictly.
Understanding how to use load cells effectively is crucial for achieving accurate and reliable force measurements across a wide range of applications. By considering the various aspects discussed in this guide – from selection and installation to calibration and troubleshooting – you can ensure optimal performance from your load cell systems.
Remember that while this guide provides a comprehensive overview, always refer to manufacturer specifications and guidelines for your specific load cell model and application.
A1: The frequency of calibration depends on several factors, including usage, environmental conditions, and accuracy requirements. As a general rule, industrial load cells should be calibrated at least once a year. However, in critical applications or harsh environments, more frequent calibrations may be necessary. Always follow manufacturer recommendations and industry standards for your specific application.
A2: It is not recommended to use a load cell beyond its rated capacity. Doing so can cause permanent damage to the load cell, leading to inaccurate measurements or complete failure. Always choose a load cell with a capacity that exceeds your maximum expected load by a safety factor, typically 120-150% of the maximum load.
A3: Tension load cells are designed to measure pulling forces, while compression load cells measure pushing forces. The main difference lies in their construction and how the force is applied. Tension load cells typically have threaded ends or eyebolts for attachment, while compression load cells often have flat surfaces for load application. Some load cells are designed for both tension and compression measurements.
A4: Environmental factors can significantly impact load cell performance. Temperature changes can affect zero balance and sensitivity. Humidity can lead to moisture ingress and corrosion. Vibrations can introduce noise in the signal. Electromagnetic interference can disrupt readings. To mitigate these effects, choose load cells with appropriate environmental ratings, implement proper shielding and sealing, and control the environment where possible.
A5: Load cell creep refers to the change in output signal over time when a constant load is applied. It's usually expressed as a percentage of the applied load. To minimize creep:
1. Choose high-quality load cells with low specified creep.
2. Avoid loading the cell near its maximum capacity for extended periods.
3. Ensure proper installation to prevent uneven stress distribution.
4. Maintain a stable temperature environment.
5. For critical applications, consider periodic re-zeroing or using creep compensation in your data acquisition system.
