How To Use Single Point Load Cell?

Content Menu

Introduction

What is a Single Point Load Cell?

>> How Does a Single Point Load Cell Work?

>> Key Features of Single Point Load Cells

Applications of Single Point Load Cells

>> 1. Retail Weighing Scales

>> 2. Industrial Weighing Systems

>> 3. Food Industry

>> 4. Medical Applications

>> 5. Laboratory Equipment

>> 6. Automotive Industry

>> 7. Packaging Industry

Installation of Single Point Load Cells

>> Step 1: Gather Necessary Tools and Materials

>> Step 2: Prepare the Mounting Surface

>> Step 3: Install the Load Cell

>> Step 4: Calibrate the Load Cell

Troubleshooting Common Issues

>> 1. Inconsistent Readings

>> 2. Electrical Issues

>> 3. Environmental Factors

>> 4. Mechanical Damage

>> 5. Overloading

Maintenance of Single Point Load Cells

Conclusion

Frequently Asked Questions

>> 1. What is the difference between single point load cells and multi-point load cells?

>> 2. How do I know if my load cell is calibrated correctly?

>> 3. Can single point load cells be used in outdoor applications?

>> 4. What should I do if my load cell is giving inconsistent readings?

>> 5. How often should I calibrate my load cell?

Introduction

Single point load cells are essential components in various weighing applications, particularly in industrial and commercial settings. They are designed to measure weight accurately, even when the load is not evenly distributed. This article will explore the functionality, installation, and applications of single point load cells, providing a comprehensive guide for users.

What is a Single Point Load Cell?

A single point load cell is a type of load cell that is typically used in platform scales and other weighing systems where the load is applied at a single point. Unlike other load cells that may require multiple sensors to measure weight accurately, single point load cells can provide precise measurements with just one unit. This makes them ideal for applications where space is limited or where a simple weighing solution is needed.

How Does a Single Point Load Cell Work?

Single point load cells operate based on the principle of strain gauges. When a load is applied to the load cell, it deforms slightly. This deformation changes the resistance of the strain gauges attached to the load cell. The change in resistance is then converted into an electrical signal, which can be interpreted as weight.

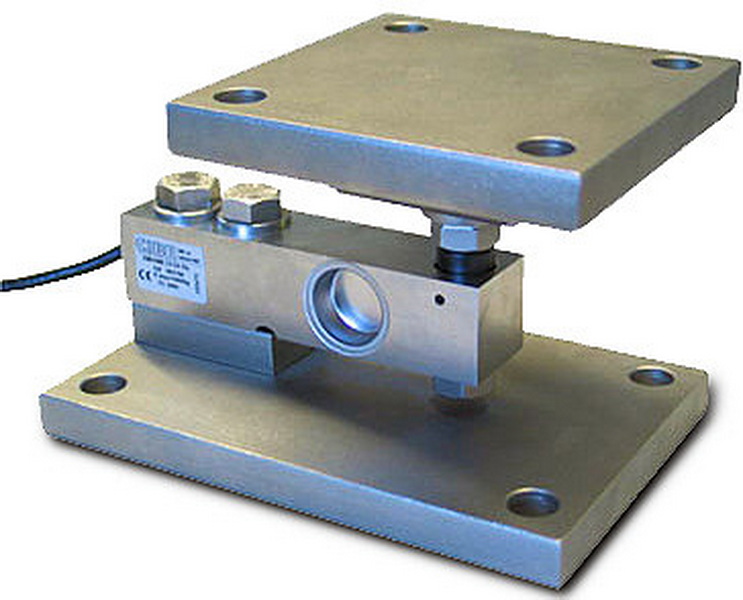

mount single point load cell_1

Key Features of Single Point Load Cells

1. Compact Design: Single point load cells are typically smaller and lighter than other types of load cells, making them easier to integrate into various applications.

2. High Accuracy: These load cells provide high precision measurements, often with an accuracy of ±0.01% or better.

3. Versatility: They can be used in a wide range of applications, from small scales to large industrial weighing systems.

4. Easy Installation: Single point load cells are designed for straightforward installation, often requiring minimal tools and expertise.

5. Cost-Effective: Compared to multi-point load cells, single point load cells are generally more affordable, making them a popular choice for many businesses.

Applications of Single Point Load Cells

Single point load cells are used in various industries and applications, including:

1. Retail Weighing Scales

In retail environments, single point load cells are commonly used in electronic scales for weighing products. Their compact design allows them to fit into small scale housings, providing accurate measurements for customers.

2. Industrial Weighing Systems

In industrial settings, single point load cells are used in platform scales and conveyor systems. They can handle heavy loads and provide accurate measurements, ensuring that products are weighed correctly during production and shipping.

3. Food Industry

The food industry relies on accurate weighing for portion control and inventory management. Single point load cells are used in food processing and packaging systems to ensure that products meet regulatory standards.

4. Medical Applications

In medical settings, single point load cells are used in scales for weighing patients and medical supplies. Their accuracy is crucial for monitoring patient health and ensuring proper dosages of medications.

5. Laboratory Equipment

Laboratories often require precise measurements for experiments and research. Single point load cells are used in analytical balances and other laboratory equipment to provide accurate weight readings.

6. Automotive Industry

In the automotive industry, single point load cells are used in testing applications, such as measuring the weight of components and ensuring that vehicles meet safety standards. They are also used in assembly lines to monitor the weight of parts during production.

7. Packaging Industry

The packaging industry utilizes single point load cells to ensure that products are packaged with the correct weight. This is essential for compliance with regulations and for maintaining customer satisfaction.

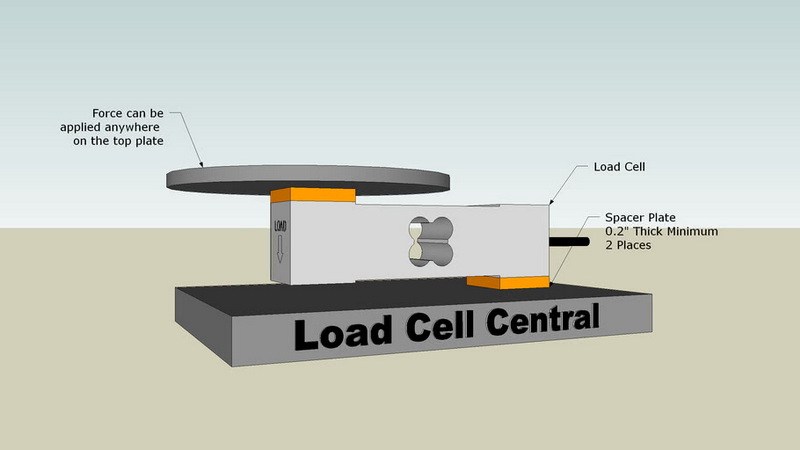

mount single point load cell_3

Installation of Single Point Load Cells

Installing a single point load cell is a straightforward process, but it requires careful attention to detail to ensure accurate measurements. Here are the steps to install a single point load cell:

Step 1: Gather Necessary Tools and Materials

Before starting the installation, gather the following tools and materials:

- Single point load cell

- Mounting hardware (brackets, screws, etc.)

- Electrical wiring

- A multimeter for testing

- A level for ensuring proper alignment

Step 2: Prepare the Mounting Surface

Ensure that the surface where the load cell will be mounted is clean, level, and free of debris. Any unevenness can affect the accuracy of the measurements.

Step 3: Install the Load Cell

1. Position the Load Cell: Place the load cell in the desired location, ensuring that it is aligned with the load application point.

2. Secure the Load Cell: Use the mounting hardware to secure the load cell in place. Make sure it is tightly fastened to prevent any movement during operation.

3. Connect the Wiring: Follow the manufacturer's instructions to connect the electrical wiring to the load cell. Ensure that all connections are secure and properly insulated.

Step 4: Calibrate the Load Cell

After installation, it is essential to calibrate the load cell to ensure accurate measurements. This process typically involves:

1. Applying Known Weights: Use calibrated weights to apply known loads to the load cell.

2. Adjusting the Output: Adjust the output of the load cell to match the known weights. This may involve using a calibration tool or software provided by the manufacturer.

3. Testing the Calibration: After calibration, test the load cell with various weights to ensure it provides accurate readings.

Troubleshooting Common Issues

Even with proper installation and calibration, users may encounter issues with single point load cells. Here are some common problems and their solutions:

1. Inconsistent Readings

If the load cell provides inconsistent readings, check for the following:

- Ensure that the load is applied evenly and directly over the load cell.

- Check for any mechanical interference or obstructions.

- Verify that the load cell is properly calibrated.

2. Electrical Issues

If the load cell is not functioning correctly, check the electrical connections:

- Ensure that all wiring is secure and free of damage.

- Use a multimeter to test the output signal from the load cell.

- Check for any grounding issues that may affect performance.

3. Environmental Factors

Environmental conditions can also impact the performance of load cells:

- Ensure that the load cell is protected from moisture, dust, and extreme temperatures.

- If used outdoors, consider using a weatherproof enclosure.

4. Mechanical Damage

Inspect the load cell for any signs of mechanical damage, such as dents or cracks. If damage is found, the load cell may need to be replaced to ensure accurate measurements.

5. Overloading

Avoid exceeding the load cell's rated capacity, as this can lead to permanent damage. Always check the specifications and ensure that the load applied does not exceed the maximum limit.

Maintenance of Single Point Load Cells

To ensure the longevity and accuracy of single point load cells, regular maintenance is essential. Here are some maintenance tips:

1. Regular Calibration: Schedule regular calibration checks to ensure accuracy over time.

2. Visual Inspections: Periodically inspect the load cell for any signs of wear, damage, or corrosion.

3. Clean the Load Cell: Keep the load cell clean and free of debris. Use a soft cloth and mild cleaning solution to wipe down the exterior.

4. Check Connections: Regularly check electrical connections for any signs of wear or damage.

5. Environmental Protection: If the load cell is used in harsh environments, consider additional protective measures, such as enclosures or covers, to shield it from dust and moisture.

Conclusion

Single point load cells are versatile and reliable components in various weighing applications. Their compact design, high accuracy, and ease of installation make them an excellent choice for many industries. By understanding how to use, install, and maintain single point load cells, users can ensure accurate measurements and efficient operations.

In summary, single point load cells play a crucial role in modern weighing systems, providing precise measurements across various applications. With proper installation and maintenance, these load cells can deliver reliable performance for years to come.

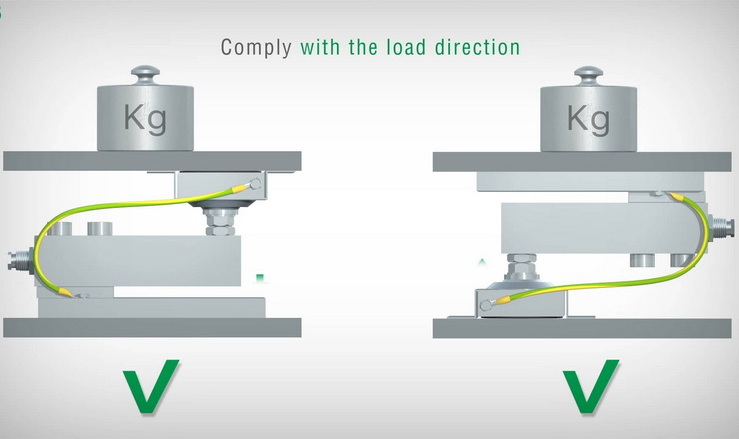

mount single point load cell_2

Frequently Asked Questions

1. What is the difference between single point load cells and multi-point load cells?

Single point load cells are designed to measure weight at a single point, making them ideal for applications like platform scales. Multi-point load cells, on the other hand, use multiple sensors to measure weight across a larger area, which is useful for applications requiring more complex load distribution.

2. How do I know if my load cell is calibrated correctly?

To check if your load cell is calibrated correctly, apply known weights and compare the readings from the load cell to the actual weights. If the readings are consistent and accurate, the load cell is likely calibrated correctly.

3. Can single point load cells be used in outdoor applications?

Yes, single point load cells can be used outdoors, but it is essential to protect them from environmental factors such as moisture, dust, and extreme temperatures. Using weatherproof enclosures can help extend their lifespan in outdoor settings.

4. What should I do if my load cell is giving inconsistent readings?

If your load cell is providing inconsistent readings, check for proper installation, ensure that the load is applied evenly, and verify that the load cell is calibrated correctly. Additionally, inspect for any mechanical damage or electrical issues.

5. How often should I calibrate my load cell?

The frequency of calibration depends on the application and the environment in which the load cell is used. As a general rule, it is advisable to calibrate load cells at least once a year or more frequently if they are subjected to heavy use or harsh conditions.
