A load cell is a transducer that converts a force into an electrical signal. The most common type of load cell is the strain gauge load cell, which uses the principle of strain gauges to measure the deformation of a material under load. Futek is a well-known manufacturer of load cells, offering a variety of models suitable for different applications.
Futek offers several types of load cells, including:

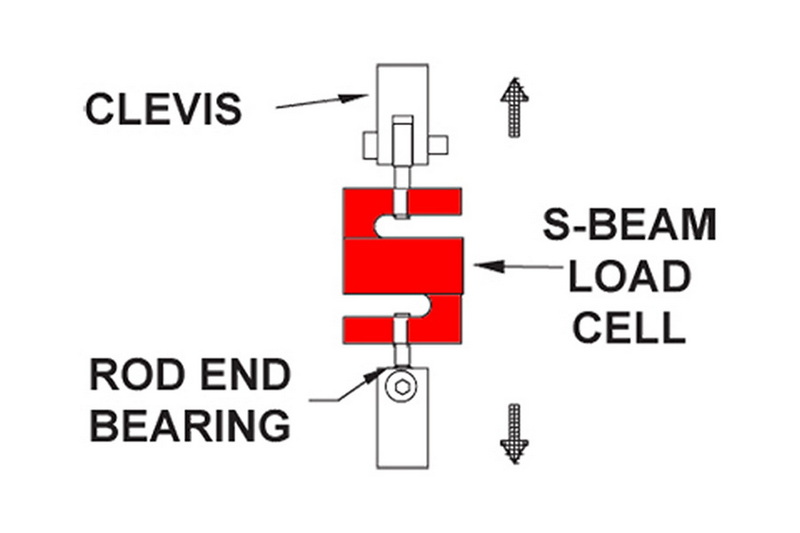

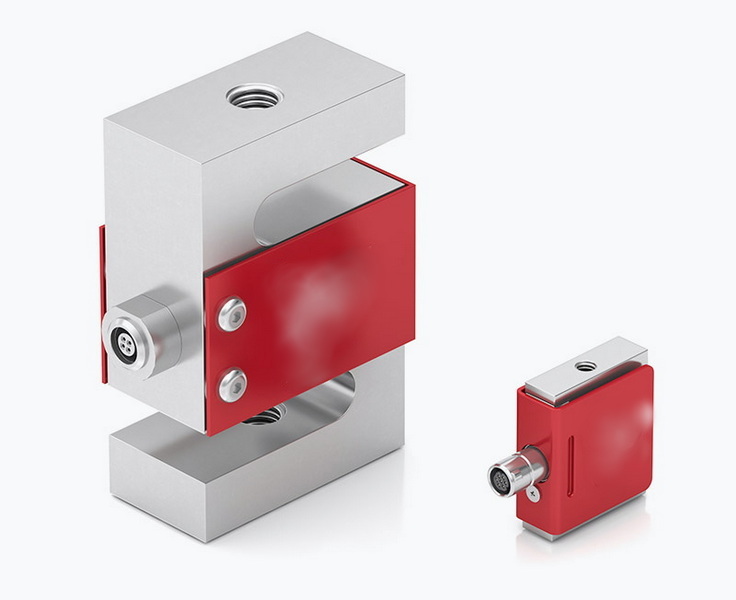

- S-Beam Load Cells: Ideal for tension and compression applications.
- Compression Load Cells: Designed for measuring compressive forces.
- Tension Load Cells: Used for measuring tensile forces.
- Miniature Load Cells: Compact designs for limited spaces.
Each type has its specific use cases, and understanding these can help you choose the right load cell for your application.
Verification of a load cell is essential for several reasons:
1. Accuracy: Ensures that the load cell provides accurate readings, which is critical for applications where precision is paramount.
2. Compliance: Many industries require regular calibration and verification to comply with regulations and standards.
3. Performance Monitoring: Regular verification helps in monitoring the performance of the load cell over time, identifying any drift or degradation in accuracy.
Before you begin the verification process, gather the necessary tools and materials:
- Futek Load Cell: Ensure it is properly installed and connected to a data acquisition system or display.
- Calibration Weights: Use certified weights that are traceable to national standards. The weights should cover the range of loads you expect to measure.

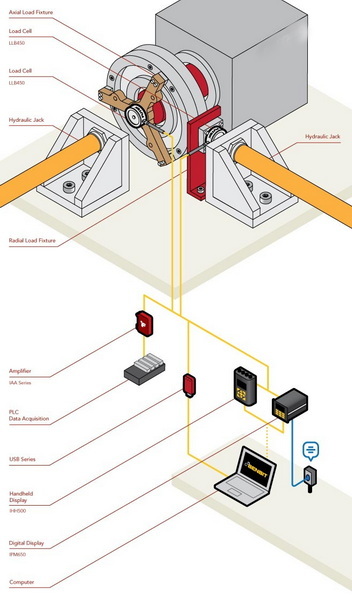

- Data Acquisition System: This can be a digital display or a computer with appropriate software to record the load cell output.
- Environmental Considerations: Ensure that the verification is conducted in a controlled environment, free from vibrations, temperature fluctuations, and other factors that could affect measurements.
1. Install the Load Cell: Ensure that the load cell is installed according to the manufacturer's specifications. This includes proper alignment and securing it to prevent movement during testing.
2. Connect the Load Cell: Connect the load cell to the data acquisition system. Ensure that all connections are secure and that the system is powered on.
3. Zero the Load Cell: Before applying any weights, zero the load cell. This step is crucial to ensure that the readings start from a known baseline.
1. Select Weights: Choose a set of known weights that cover the range of the load cell. For example, if you are testing a load cell rated for 1000 lbs, you might use weights of 100 lbs, 200 lbs, 500 lbs, and 1000 lbs.
2. Apply the First Weight: Place the first weight on the load cell. Allow the reading to stabilize before recording the output.
3. Record the Output: Note the output from the load cell for the applied weight. This output is typically in millivolts or a digital reading, depending on your setup.
4. Repeat for All Weights: Continue this process for each weight, ensuring that you allow sufficient time for the load cell to stabilize before recording the output.
1. Create a Calibration Curve: Plot the recorded outputs against the known weights. This graph will help visualize the relationship between the applied load and the load cell output.
2. Check Linearity: Ideally, the relationship should be linear. If the data points deviate significantly from a straight line, this may indicate a calibration issue.
3. Calculate Sensitivity: Sensitivity is the ratio of the change in output to the change in load. This can be calculated using the slope of the calibration curve.
1. Make Necessary Adjustments: If the load cell is not performing as expected, adjustments may be needed. This could involve recalibrating the load cell or checking for mechanical issues.
2. Re-verify: After making adjustments, repeat the verification process to ensure that the load cell now provides accurate readings.
- Regular Calibration: Schedule regular verification and calibration of your load cells to maintain accuracy over time.
- Environmental Control: Conduct verifications in a controlled environment to minimize external influences on measurements.
- Use Certified Weights: Always use certified weights for verification to ensure traceability and accuracy.
- Document Everything: Keep detailed records of all verification processes, including weights used, outputs recorded, and any adjustments made.
While verifying a load cell, you may encounter several common issues. Here are some troubleshooting tips:
- Inconsistent Readings: If the load cell provides inconsistent readings, check for mechanical issues such as misalignment or loose connections. Ensure that the load is applied evenly and that there are no external vibrations affecting the measurement.
- Drift in Readings: If you notice that the readings drift over time, it may indicate that the load cell needs recalibration. Environmental factors such as temperature changes can also affect readings, so ensure that the testing environment is stable.
- Non-linear Output: If the output is not linear, it may suggest that the load cell is not calibrated correctly. Re-evaluate the calibration process and consider using a different set of weights to verify the linearity.
- Electrical Noise: Electrical interference can affect the output of the load cell. Ensure that the wiring is properly shielded and that the data acquisition system is grounded to minimize noise.
For applications requiring high precision, advanced calibration techniques may be necessary. These can include:
- Multi-Point Calibration: Instead of using a single point for calibration, apply multiple known weights across the load cell's range. This method helps create a more accurate calibration curve and can identify non-linearities.
- Temperature Compensation: Some load cells may require temperature compensation to account for changes in performance due to temperature fluctuations. This can be achieved by using temperature sensors and adjusting the output accordingly.
- Dynamic Calibration: In some cases, dynamic calibration may be necessary, especially for load cells used in applications with varying loads. This involves applying loads in a controlled manner while monitoring the output to ensure accuracy under dynamic conditions.
Verifying a Futek load cell with known weights is a straightforward process that is essential for ensuring accurate measurements. By following the steps outlined in this article, you can effectively verify your load cell and maintain its performance over time. Regular verification not only ensures compliance with industry standards but also enhances the reliability of your measurements.
Verifying a load cell ensures that it provides accurate measurements, which is critical for applications requiring precision. It also helps in compliance with industry standards and regulations.
The frequency of verification depends on the application and industry standards. Generally, it is recommended to verify load cells at least once a year or more frequently if they are used in critical applications.
No, it is essential to use certified weights that are traceable to national standards for accurate verification. Using unverified weights can lead to inaccurate results.
If you experience inconsistent readings, check for mechanical issues such as misalignment or loose connections. Ensure that the load is applied evenly and that there are no external vibrations affecting the measurement.
To improve accuracy, ensure regular calibration, use certified weights, conduct verifications in a controlled environment, and document all processes meticulously. Additionally, consider advanced calibration techniques for high-precision applications.
