A load cell is a transducer that converts mechanical force into electrical signals. Proper wiring is crucial for accurate measurements and reliable performance in weighing applications. This comprehensive guide will walk you through everything you need to know about load cell wiring and installation.
Load cells typically come in three main wiring configurations:
1. 4-Wire Configuration
2. 6-Wire Configuration
3. 8-Wire Configuration
The 4-wire configuration is the most common and includes:
- Excitation + (typically red)
- Excitation - (typically black)
- Signal + (typically green)
- Signal - (typically white)
The 6-wire setup adds sense lines for improved accuracy:
- All wires from 4-wire configuration
- Sense + (typically blue)
- Sense - (typically brown)
- Gather necessary tools
- Identify wire colors and functions
- Ensure clean working environment
- Review manufacturer specifications
- Strip wire ends carefully
- Connect to amplifier/indicator
- Verify connections
- Apply strain relief

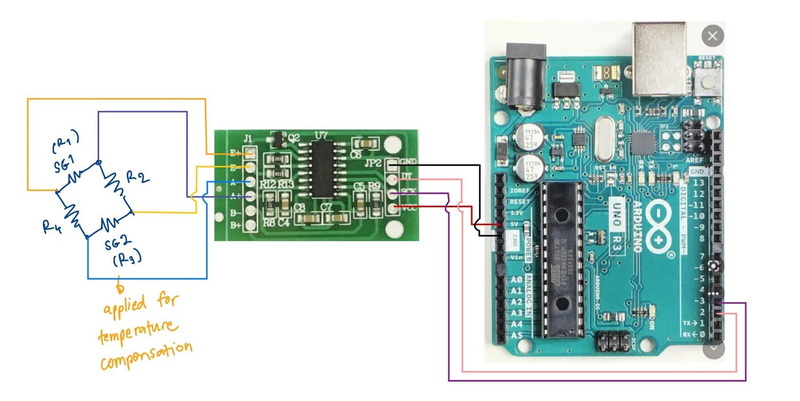

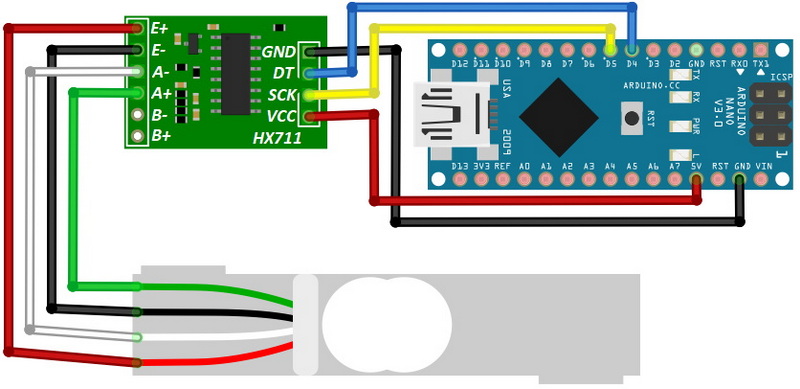

The HX711 is a popular amplifier for load cell applications. Here's how to connect it:
1. Connect E+ to VCC
2. Connect E- to GND
3. Connect S+ to A+
4. Connect S- to A-
Proper calibration is essential for accurate measurements:
1. Zero calibration
2. Span calibration
3. Linearity verification
4. Temperature compensation
1. Unstable Readings
- Check wire connections
- Verify power supply stability
- Inspect for environmental interference
2. Zero Drift
- Review temperature effects
- Check mounting stability
- Verify excitation voltage
3. Non-linear Output
- Inspect load application
- Check for mechanical interference
- Verify calibration settings
1. Electrical Safety
- Use proper insulation
- Maintain ground connections
- Follow voltage specifications
2. Mechanical Protection
- Install strain relief
- Protect cables from damage
- Ensure proper mounting
Regular maintenance ensures long-term reliability:
1. Periodic inspection of connections
2. Cleaning of components
3. Recalibration as needed
4. Documentation of changes
1. Multiple Load Cell Systems
2. Digital Integration
3. Data Logging
4. Remote Monitoring
A1: Unstable readings can be caused by loose connections, electromagnetic interference, or improper grounding. Check all connections, ensure proper shielding, and verify power supply stability.
A2: Calibration frequency depends on usage and environment. Generally, perform calibration checks every 6-12 months or when accuracy seems compromised.
A3: Yes, but use proper shielded cables and ensure connections are secure. Long cable runs may require signal conditioning or amplification.
A4: 6-wire load cells include additional sense lines that compensate for voltage drops in the excitation leads, providing better accuracy over longer cable runs.
A5: Use appropriate cable protection such as conduit, strain relief, and sealed connections. Consider using IP-rated enclosures for electronics.
For visual guidance on load cell wiring, check out these helpful tutorials:
1. HX711 with Four Wire Load Cell Tutorial
2. Load Cell Calibration Guide
3. Troubleshooting Common Issues
This comprehensive guide should help you successfully wire and implement load cells in your applications. Remember to always consult manufacturer specifications and follow proper safety procedures during installation and maintenance.
