Before diving into the wiring process, it's essential to understand what a load cell is and how it works. A load cell is a transducer that converts a force into an electrical signal. It typically consists of a metal element that deforms under load, and strain gauges attached to this element measure the deformation. The most common type of load cell is the strain gauge load cell, which operates on the principle of resistance change due to strain.

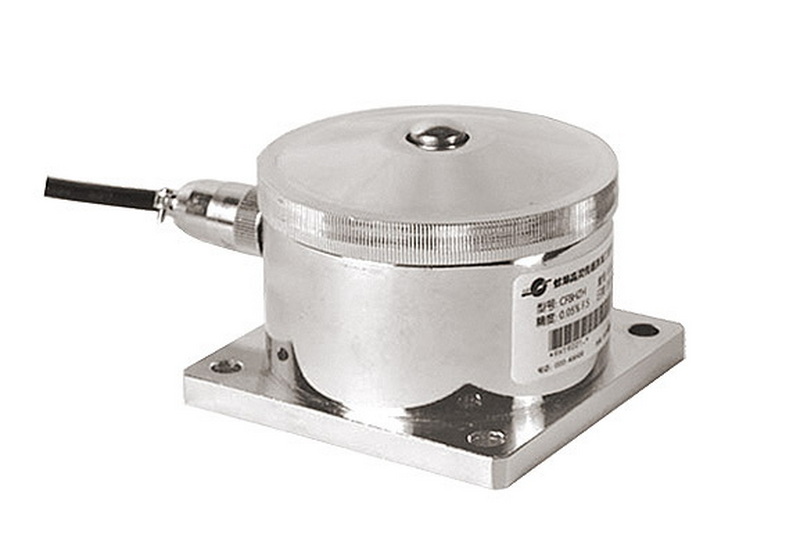

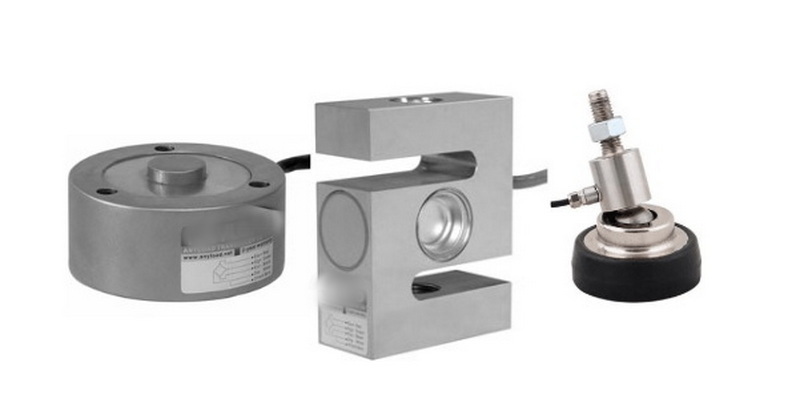

1. Compression Load Cells: These load cells measure the force applied to them in a compressive manner. They are often used in applications such as weighing scales and industrial machinery.
2. Tension Load Cells: These are designed to measure tensile forces, making them suitable for applications like hanging scales and material testing.
3. S Load Cells: These can measure both tension and compression forces, providing versatility in various applications.
4. Shear Beam Load Cells: These are used in applications where space is limited, such as in platform scales and truck scales.
The NI 9237 is a data acquisition module that provides high-accuracy measurements for strain gauges and load cells. It features:
- High Input Impedance: This allows for accurate readings from the load cell, minimizing the impact of the load cell's resistance on the measurement.
- Built-in Signal Conditioning: The module can amplify and filter the signal from the load cell, ensuring that the data collected is clean and reliable.
- Multiple Channels: It can handle multiple load cells simultaneously, making it suitable for complex applications where multiple measurements are needed.
Before starting the wiring process, gather the following materials:
- NI 9237 module
- Load cell (4-wire or 6-wire configuration)
- Wires for connections
- Soldering iron (if necessary)
- Multimeter (for testing connections)
Load cells typically have four or six wires. For a 4-wire load cell, the wires are usually color-coded as follows:
- Red: Excitation positive (E+)
- Black: Excitation negative (E-)
- Green: Signal positive (S+)
- White: Signal negative (S-)
For a 6-wire load cell, you will have two additional wires for better accuracy:
- Additional Red: Excitation positive (E+)
- Additional Black: Excitation negative (E-)
Using the wiring diagram below, connect the load cell wires to the NI 9237 module:
- Connect the Red wire (E+) from the load cell to the EX+ terminal on the NI 9237.
- Connect the Black wire (E-) from the load cell to the EX- terminal on the NI 9237.
- Connect the Green wire (S+) from the load cell to the AI+ terminal on the NI 9237.
- Connect the White wire (S-) from the load cell to the AI- terminal on the NI 9237.
For a 6-wire load cell, connect the additional wires to the same terminals as the 4-wire configuration.
After making the connections, it's crucial to verify that everything is wired correctly. Use a multimeter to check for continuity between the load cell wires and the corresponding terminals on the NI 9237. This step ensures that there are no loose connections or shorts.
Once you have verified the connections, power up the NI 9237 module. Ensure that the module is receiving power and that the load cell is properly connected. You should see an indication on the NI 9237 that it is ready to receive data.
After wiring and powering up the system, the next step is to configure the NI 9237 in your data acquisition software. This typically involves:
- Selecting the correct channel for the load cell.
- Setting the excitation voltage (usually 5V for most load cells).
- Configuring the measurement type (e.g., voltage, current).
- Calibrating the load cell to ensure accurate readings.
To further assist you in the wiring process, here are some additional images and videos:
1. Load Cell Connection Demonstration
This image shows a visual demonstration of connecting wires from a 4-wire load cell.
2. Full Bridge Wiring Connections
A diagram showing the wiring connections of a NI 9237 to a load cell configured in a full bridge arrangement.
3. Load Cell Connections with NI 9237 and NI 9949
Learn how to connect a load cell with the NI 9237 using the NI 9949.
4. How to Measure a Load Cell
This video covers the measurement process using NI LabVIEW software and a USB DAQ device.
Even with careful wiring, you may encounter issues during setup. Here are some common problems and their solutions:
- Solution: Check all connections to ensure they are secure. Verify that the load cell is powered and that the NI 9237 is functioning correctly.
- Solution: Ensure that the load cell is calibrated correctly. Check for any mechanical issues with the load cell itself, such as binding or misalignment.
- Solution: Make sure that the load applied to the load cell does not exceed its rated capacity. Overloading can damage the load cell and lead to inaccurate readings.
When setting up a load cell system, consider environmental factors that may affect performance. Temperature fluctuations can impact the accuracy of measurements. It's advisable to use load cells that are rated for the specific environmental conditions of your application. For instance, if the load cell will be used in a high-humidity environment, ensure it is adequately protected against moisture.
Calibration is a critical step in ensuring the accuracy of your load cell measurements. It involves applying known weights to the load cell and recording the output signal. This process helps create a calibration curve that can be used to convert the output signal into meaningful measurements. Regular calibration is recommended to maintain accuracy over time, especially if the load cell is subjected to varying loads or environmental conditions.
The NI 9237 includes built-in signal conditioning, which is essential for improving the quality of the measurements. Signal conditioning can involve amplification, filtering, and analog-to-digital conversion. Proper signal conditioning helps to eliminate noise and enhances the resolution of the measurements, leading to more accurate data collection.
Using appropriate data acquisition software is vital for effectively managing the data collected from the load cell. Software such as NI LabVIEW allows users to visualize data in real-time, perform analysis, and generate reports. Familiarizing yourself with the software can significantly enhance your ability to interpret the data and make informed decisions based on the measurements.
Wiring the NI 9237 to a load cell is a straightforward process that requires careful attention to detail. By following the steps outlined in this article, you can successfully set up your load cell for accurate measurements. Remember to verify your connections, power up the system, and configure the software correctly for optimal performance.
With the right setup, the NI 9237 can provide precise and reliable data for various applications, from industrial weighing systems to research projects. If you encounter any issues, refer to the troubleshooting section for guidance.
The maximum load capacity for the NI 9237 depends on the load cell used. The NI 9237 itself does not have a load capacity; it is designed to interface with load cells that have specific load ratings. Always check the specifications of your load cell to determine its maximum capacity.
Yes, you can use load cells with different wire configurations. The NI 9237 can accommodate both 4-wire and 6-wire load cells. However, ensure that you connect the wires correctly according to the wiring diagram provided.
Calibration frequency depends on the application and the load cell's usage. For critical applications, it is recommended to calibrate the load cell at least once a year. If the load cell is subjected to heavy use or environmental changes, more frequent calibration may be necessary.
If your load cell readings are unstable, check for loose connections, electrical noise, or mechanical issues with the load cell. Ensure that the load cell is properly mounted and that there are no external forces affecting the measurement.
Yes, the NI 9237 can handle multiple load cells, but you will need to configure each channel in the software. Ensure that the total load does not exceed the specifications of the load cells being used.
