A load cell is a transducer that converts a force into an electrical signal. Load cells are widely used in weighing applications, from industrial scales to laboratory experiments. They come in various types, including:
1. Strain Gauge Load Cells: These are the most common type, using strain gauges to measure deformation. They are known for their accuracy and reliability, making them suitable for a wide range of applications.
2. Hydraulic Load Cells: These use fluid pressure to measure weight. They are often used in heavy-duty applications, such as truck scales and industrial weighing systems.
3. Pneumatic Load Cells: These operate on the principle of air pressure. They are less common but can be useful in specific applications where hydraulic systems are impractical.
4. Capacitive Load Cells: These measure changes in capacitance to determine weight. They are typically used in applications requiring high precision.
Shielding in load cells is essential for minimizing electrical noise and interference, which can lead to inaccurate readings. The shield acts as a barrier, protecting the signal wires from electromagnetic interference (EMI) and radio frequency interference (RFI). Properly wiring the shield ensures that the load cell operates effectively in various environments, especially in industrial settings where electrical noise is prevalent.
Before diving into the wiring process, it's important to familiarize yourself with the components of a load cell:
- Excitation Wires: These wires provide power to the load cell.
- Signal Wires: These carry the output signal from the load cell.
- Shield Wire: This wire protects the signal wires from interference.

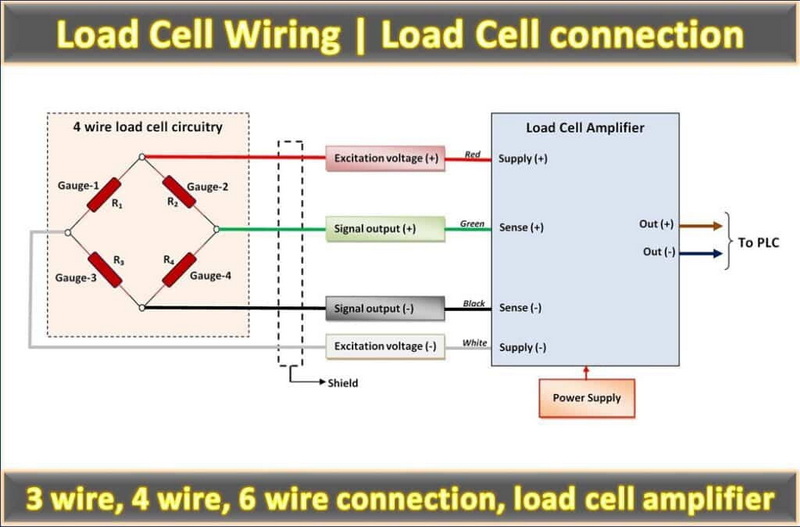

Load cells can be wired in different configurations, including:
- 3-Wire Configuration: Commonly used for simple applications. This configuration is straightforward and often sufficient for basic weighing tasks.
- 4-Wire Configuration: Provides better accuracy by compensating for wire resistance. This setup is ideal for applications where precision is critical.
- 6-Wire Configuration: Offers the highest accuracy and is often used in precision applications. This configuration allows for the most accurate readings by minimizing the effects of lead resistance.
Before starting the wiring process, gather the following tools and materials:
- Load cell
- Shielded cable
- Soldering iron and solder
- Heat shrink tubing
- Wire cutters and strippers
- Multimeter
- Electrical tape
- Connector terminals (if needed)
1. Cut the Cable: Measure and cut the shielded cable to the desired length, ensuring it is long enough to reach from the load cell to the controller or display.
2. Strip the Ends: Use wire strippers to remove about 1 inch of insulation from both ends of the cable. Be careful not to damage the inner wires.
Inside the shielded cable, you will typically find:
- Two excitation wires (often red and black)
- Two signal wires (often green and white)
- A shield wire (usually bare or copper)
1. Connect the Red Wire: Connect the red excitation wire from the load cell to the positive terminal of the power supply or controller.
2. Connect the Black Wire: Connect the black excitation wire to the negative terminal of the power supply or controller.
1. Connect the Green Wire: Connect the green signal wire from the load cell to the positive input of the controller.
2. Connect the White Wire: Connect the white signal wire to the negative input of the controller.
1. Attach the Shield: Connect the shield wire to the ground terminal of the controller. This connection is crucial for effective shielding.
2. Secure the Connection: Use heat shrink tubing or electrical tape to secure the connections and prevent short circuits.
1. Use a Multimeter: Before powering up the system, use a multimeter to check the continuity of the connections. Ensure there are no short circuits between the wires.
2. Power Up: Once you have confirmed that the connections are correct, power up the system and check the output readings.
Even with careful wiring, issues can arise. Here are some common problems and their solutions:
- Solution: Check all connections to ensure they are secure. Verify that the load cell is calibrated correctly. Environmental factors, such as temperature and humidity, can also affect readings, so ensure the load cell is used within its specified range.
- Solution: Use a multimeter to check for continuity in the wiring. Ensure that the power supply is functioning and providing the correct voltage. If the load cell is not receiving power, it will not produce an output signal.
- Solution: Ensure that the shield wire is properly grounded. Check for any sources of electrical interference nearby. Fluctuations can also occur if the load cell is not mounted securely or if there are mechanical vibrations affecting the measurement.
- Solution: Ensure that the load applied does not exceed the load cell's rated capacity. Overloading can damage the load cell and lead to permanent inaccuracies. Always use a load cell that is rated for the maximum expected load.
- Solution: Load cells can be sensitive to temperature changes. If the environment fluctuates significantly, consider using a load cell with temperature compensation or installing it in a climate-controlled area.
To ensure optimal performance and longevity of your load cell, follow these best practices:
1. Use Quality Components: Invest in high-quality cables and connectors to minimize resistance and interference.
2. Keep Wires Short: Minimize the length of the wiring to reduce the potential for signal loss and interference.
3. Avoid Running Wires Parallel to Power Cables: This can introduce noise into the signal. If they must cross, do so at a right angle.
4. Regular Maintenance: Periodically check connections and the condition of the cables to ensure everything is functioning correctly.
5. Calibrate Regularly: Regular calibration of the load cell will help maintain accuracy over time, especially if it is used in varying conditions.
Wiring a shield in a load cell is a critical process that ensures accurate and reliable measurements. By following the steps outlined in this article, you can successfully wire a load cell while minimizing electrical noise and interference. Remember to always double-check your connections and test the system before use.
With the right tools, materials, and knowledge, you can confidently wire load cells for various applications, enhancing the performance of your weighing systems.
Shielding protects the signal wires from electromagnetic and radio frequency interference, ensuring accurate readings.
You can use a multimeter to check for continuity and ensure that all connections are secure before powering up the system.
It is recommended to use shielded cables specifically designed for load cells to minimize interference and ensure accurate measurements.
Check the grounding of the shield wire, ensure secure connections, and look for sources of electrical interference nearby.
It is advisable to calibrate your load cell regularly, especially if it is used in varying conditions or after significant changes in the environment.
