Wiring a load cell is a crucial step in setting up a weighing system, whether for industrial applications, laboratory experiments, or DIY projects. Load cells are sensors that convert a force or weight into an electrical signal, which can then be measured and displayed. This article will guide you through the process of wiring a load cell, including the necessary components, wiring diagrams, and practical tips to ensure accurate measurements.
Before diving into the wiring process, it's essential to understand what a load cell is and how it works. Load cells typically consist of a metal body that deforms slightly under load. This deformation changes the resistance of strain gauges attached to the load cell, producing a measurable electrical signal. There are several types of load cells, including:
- Compression Load Cells: Designed to measure compressive forces.
- Tension Load Cells: Used to measure tensile forces.
- Shear Beam Load Cells: Commonly used in platform scales.
- S-Type Load Cells: Versatile and can measure both tension and compression.
To wire a load cell, you will need the following components:
1. Load Cell: The sensor itself.
2. Amplifier/Signal Conditioning Circuit: Often, load cells output a very low signal that needs amplification. The HX711 is a popular choice for this purpose.
3. Microcontroller or Display Unit: To read and display the output from the load cell.
4. Wires: For making connections.
5. Power Supply: To power the amplifier and microcontroller.
A 4-wire load cell has four wires: two for the excitation voltage and two for the output signal. The wiring is typically as follows:
- Red Wire: Excitation + (V+)
- Black Wire: Excitation - (V-)
- Green Wire: Signal + (S+)
- White Wire: Signal - (S-)

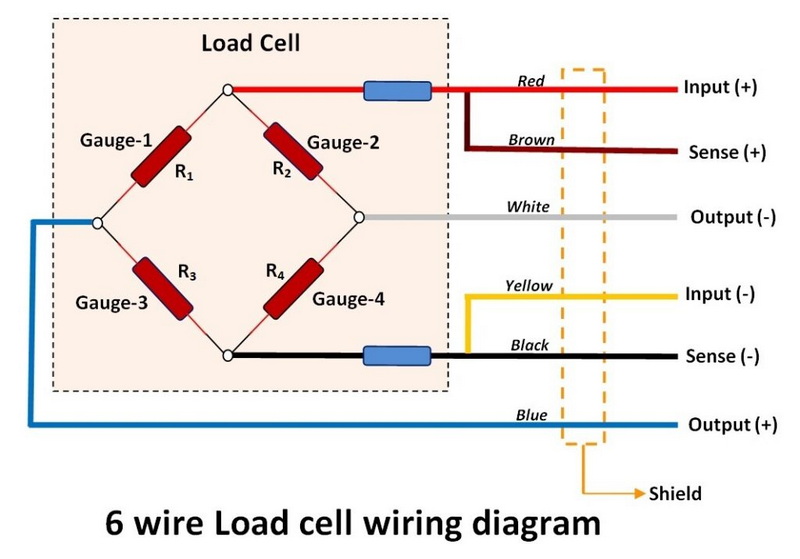

A 6-wire load cell includes two additional wires for better accuracy and temperature compensation. The wiring is as follows:
- Red Wire: Excitation + (V+)
- Black Wire: Excitation - (V-)
- Green Wire: Signal + (S+)
- White Wire: Signal - (S-)
- Yellow Wire: Sense + (SENSE+)
- Blue Wire: Sense - (SENSE-)
Before wiring, ensure that the load cell is clean and free from any debris. Check the specifications of your load cell to confirm the wire colors and functions. It's also a good idea to have a multimeter handy to test connections and ensure everything is functioning correctly.
1. Identify the Wires: Use the wiring diagrams above to identify the wires on your load cell.

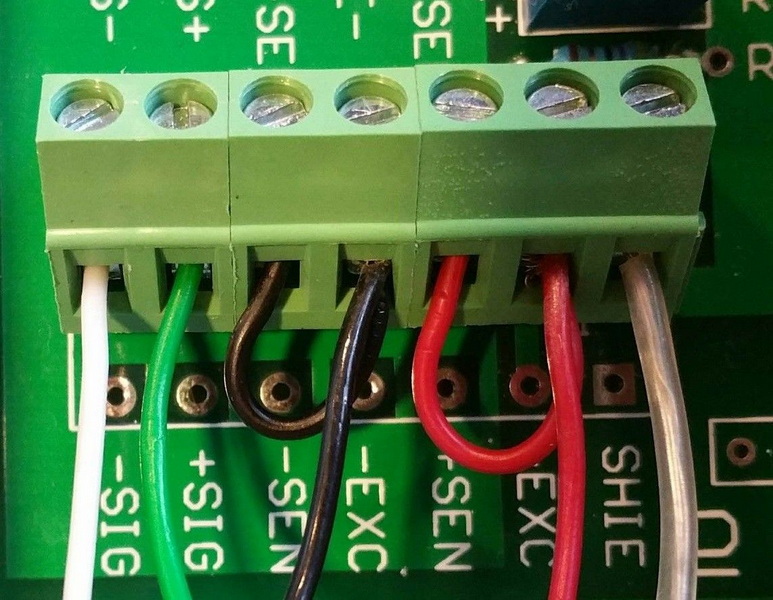

2. Connect the Wires:
- For a 4-wire load cell, connect the red wire to the V+ terminal of the amplifier, the black wire to the V- terminal, the green wire to the S+ terminal, and the white wire to the S- terminal.
- For a 6-wire load cell, connect the additional yellow and blue wires to the SENSE+ and SENSE- terminals, respectively.
1. Power Supply: Connect the power supply to the amplifier according to its specifications. Ensure that the voltage and current ratings match the requirements of the amplifier.
2. Signal Output: Connect the output pins of the amplifier to the input pins of the microcontroller. Typically, the output will be an analog voltage that corresponds to the weight measured by the load cell.
Once everything is connected, you will need to calibrate the load cell. Calibration involves applying known weights to the load cell and adjusting the output readings to match the actual weights. This step is crucial for ensuring accurate measurements. Calibration can be done using the following steps:
1. Zero Calibration: Start by ensuring that the load cell is unloaded. Record the output reading; this will be your zero point.
2. Span Calibration: Apply a known weight to the load cell and record the output. Adjust the calibration settings in your microcontroller or amplifier until the output matches the known weight.
3. Repeat: It's advisable to repeat the calibration process with multiple weights to ensure accuracy across the entire range of the load cell.
- Use Shielded Cables: To minimize electrical noise, use shielded cables for connections, especially in industrial environments. This helps to prevent interference from other electrical devices.
- Check Connections: Ensure all connections are secure to prevent signal loss or interference. Loose connections can lead to erratic readings.
- Avoid Overloading: Do not exceed the load cell's rated capacity, as this can damage the sensor. Always refer to the manufacturer's specifications for maximum load limits.
- Temperature Considerations: Load cells can be affected by temperature changes. If your application involves significant temperature variations, consider using a load cell with temperature compensation.
1. No Output Signal: Check all connections and ensure the power supply is functioning. Use a multimeter to verify voltage levels at various points in the circuit.
2. Inconsistent Readings: This may be due to electrical noise or poor connections. Ensure that the wiring is secure and consider using shielded cables.
3. Calibration Errors: If the readings do not match the known weights, recheck the calibration process and ensure that the load cell is not overloaded. It may also help to recalibrate after making any changes to the setup.
Load cells are widely used in various applications, including:
- Industrial Weighing: Used in scales for weighing products in manufacturing and shipping.
- Medical Equipment: Employed in devices that measure patient weight or force.
- Automotive Testing: Used in crash testing and load testing of vehicle components.
- Research and Development: Utilized in laboratories for experiments requiring precise weight measurements.
Wiring a load cell is a straightforward process that requires attention to detail and a basic understanding of electrical connections. By following the steps outlined in this article, you can successfully wire a load cell for various applications. Remember to calibrate your system for accurate measurements and troubleshoot any issues that arise during setup.
- A 4-wire load cell has four wires for excitation and signal output, while a 6-wire load cell includes two additional wires for temperature compensation, providing more accurate readings.
- Calibration involves applying known weights to the load cell and adjusting the output readings to match the actual weights. This process typically includes zero calibration and span calibration.
- Yes, but ensure that the load cell is rated for outdoor use and is protected from environmental factors such as moisture and extreme temperatures.
- Check all connections for security, ensure that the load cell is not overloaded, and consider using shielded cables to minimize electrical noise.
- You can connect a load cell to an Arduino using an amplifier like the HX711. Connect the load cell to the amplifier, then connect the amplifier's output to the Arduino's analog input pins. Use a library to read and process the data.
