A load cell is a transducer that converts a force or weight into an electrical signal. This signal can then be measured and displayed on a digital readout or used in a control system. Load cells are designed to provide precise measurements, making them invaluable in many applications. They are widely used in various industries, including manufacturing, automotive, aerospace, and healthcare.
Load cells consist of several key components:
These are the primary sensing elements in a load cell. They are thin, flexible devices that change resistance when stretched or compressed. The change in resistance is proportional to the amount of force applied. Strain gauges are typically made from materials like metal foil or wire and are bonded to the elastic element of the load cell.
This is the part of the load cell that deforms under load. It can be made from various materials, including aluminum or stainless steel, and is designed to provide a predictable deformation pattern. The elastic element is crucial for ensuring that the load cell can accurately measure the applied force.

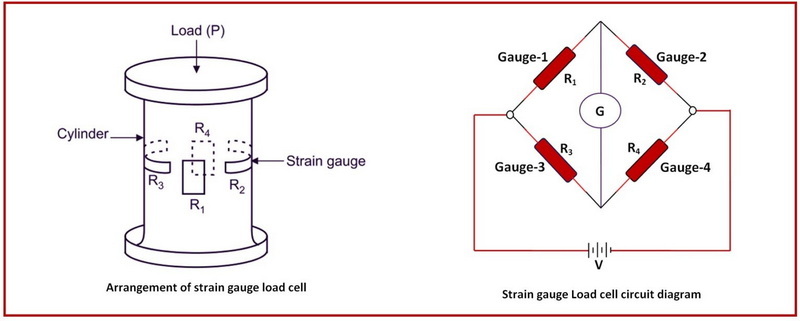

This is an electrical circuit configuration used to measure the resistance changes in the strain gauges. It converts the mechanical deformation into an electrical signal. The Wheatstone bridge consists of four resistors arranged in a diamond shape, with the strain gauges forming two of the resistors. When the load cell is subjected to force, the resistance changes in the strain gauges cause an imbalance in the bridge, resulting in a measurable output voltage.
The load cell is encased in a protective housing that shields it from environmental factors such as moisture, dust, and mechanical damage. The housing is designed to withstand harsh conditions, ensuring the load cell operates reliably in various environments.
The operation of a load cell is based on the principle of strain measurement. When a load is applied to the load cell, the elastic element deforms. This deformation causes the strain gauges to stretch or compress, resulting in a change in their electrical resistance.
The Wheatstone bridge circuit is used to measure this change in resistance. As the load changes, the output voltage of the bridge circuit varies, providing a corresponding electrical signal that can be calibrated to represent weight or force. This process allows for highly accurate measurements, which are essential in many applications.
There are several types of load cells, each suited for different applications:
These load cells are designed to measure compressive forces. They are commonly used in applications such as weighing scales and industrial machinery. Compression load cells are typically robust and can handle heavy loads, making them ideal for industrial environments.
These are used to measure tensile forces. They are often found in applications like hanging scales and material testing. Tension load cells are designed to withstand pulling forces and are essential in applications where weight needs to be measured from above.
These load cells measure force through bending. They are typically used in low-capacity applications, such as small scales. Bending beam load cells are simple in design and are often used in retail environments.
These load cells measure force through shear deformation. They are commonly used in platform scales and industrial weighing systems. Shear beam load cells provide high accuracy and stability, making them suitable for various industrial applications.
These are designed for applications where the load is applied at a single point. They are often used in retail scales and medical scales. Single point load cells are compact and easy to install, making them popular in many commercial applications.
Load cells are used in a wide range of applications across various industries:
Load cells are integral to industrial weighing systems, providing accurate measurements for bulk materials, packaged goods, and more. They are used in conveyor systems, hoppers, and silos to ensure proper weight management. In manufacturing, load cells help monitor production processes and ensure quality control.
In laboratories, load cells are used to test the strength and durability of materials. They can measure the force required to break or deform materials, providing valuable data for engineers and researchers. This information is crucial for developing new materials and ensuring that existing materials meet safety standards.
Load cells are employed in the automotive industry to test components such as brakes, suspensions, and tires. They help ensure that vehicles meet safety and performance standards. Load cells can measure the forces experienced during crash tests, providing critical data for vehicle design and safety improvements.
In the medical field, load cells are used in scales for weighing patients and in devices for measuring force in rehabilitation equipment. They provide accurate measurements that are crucial for patient care. Load cells are also used in prosthetics and orthotics to measure the forces applied to limbs, helping to improve design and functionality.
Load cells play a vital role in the aerospace industry, where they are used to test the structural integrity of aircraft components. They help ensure that materials can withstand the forces experienced during flight. Load cells are also used in load testing of aircraft to ensure safety and compliance with regulations.
Using load cells effectively requires understanding their specifications and proper installation. Here are some key considerations:
Before using a load cell, it must be calibrated to ensure accurate measurements. Calibration involves applying known weights to the load cell and adjusting the output signal to match the expected values. This process should be performed regularly to maintain accuracy. Calibration can be done using certified weights and should follow the manufacturer's guidelines.
Proper installation is crucial for the performance of a load cell. Ensure that the load cell is mounted securely and that the load is applied evenly. Misalignment can lead to inaccurate readings and potential damage to the load cell. It is essential to follow the installation instructions provided by the manufacturer to ensure optimal performance.
Load cells can be affected by environmental factors such as temperature, humidity, and vibration. Choose load cells with appropriate environmental ratings for your application, and consider using protective enclosures if necessary. For outdoor applications, weatherproof load cells may be required to ensure longevity and reliability.
The output signal from a load cell is typically low and may require amplification and filtering. Use signal conditioning equipment to enhance the signal quality and ensure accurate readings. Signal conditioners can help eliminate noise and improve the overall performance of the load cell system.
Regular maintenance is essential for ensuring the longevity and accuracy of load cells. Inspect the load cells for signs of wear or damage, and perform recalibration as needed. Keeping the load cell clean and free from debris can also help maintain its performance.
When using load cells, you may encounter some common issues. Here are a few troubleshooting tips:
If the load cell provides inconsistent readings, check for proper installation and alignment. Ensure that the load is applied evenly and that there are no obstructions. Additionally, verify that the load cell is calibrated correctly.
Drift can occur due to temperature changes or electrical interference. Regular calibration and using shielded cables can help mitigate this issue. If drift persists, consider using a more stable power supply or relocating the load cell away from sources of interference.
Exceeding the load cell's capacity can cause permanent damage. Always ensure that the load cell is rated for the application and avoid applying excessive force. If overloading is a concern, consider using a load cell with a higher capacity or implementing safety measures to prevent overload.
Electrical noise can interfere with the load cell's output signal. Use proper grounding techniques and shielded cables to minimize noise. Additionally, keep the load cell and its wiring away from high-voltage equipment to reduce the risk of interference.
Load cells are vital components in many industries, providing accurate measurements of weight and force. Understanding how they work, their types, applications, and best practices for use can help ensure successful implementation in various projects. By following the guidelines outlined in this article, you can effectively utilize load cells to enhance your operations and achieve precise measurements.
Tension load cells are designed to measure pulling forces, while compression load cells measure pushing forces. Tension load cells are often used in applications like hanging scales, whereas compression load cells are used in weighing scales and industrial machinery.
Load cells should be calibrated regularly, typically every six months to a year, depending on the application and usage. Frequent calibration may be necessary in environments with significant temperature fluctuations or heavy usage.
Yes, load cells can be used in outdoor applications, but it is essential to choose models with appropriate environmental ratings. Weatherproof or waterproof load cells are recommended for outdoor use to protect against moisture and dust.
Several factors can affect the accuracy of load cells, including temperature changes, electrical interference, misalignment, and overloading. Regular calibration and proper installation can help mitigate these issues.
When choosing a load cell, consider factors such as the type of force to be measured (tension or compression), the required capacity, environmental conditions, and the desired accuracy. Consulting with a load cell manufacturer or supplier can also provide valuable insights into selecting the right load cell for your needs.
