Load cells are essential components in various applications, including weighing scales, industrial automation, and force measurement systems. The HX711 is a popular 24-bit analog-to-digital converter (ADC) designed specifically for weighing applications. It interfaces with load cells to convert the analog signal into a digital format that can be processed by microcontrollers like Arduino. One critical aspect of using load cells is the ability to zero them out, ensuring accurate measurements. This article will guide you through the process of zeroing out a load cell with the HX711, including setup, calibration, and practical tips.
A load cell is a transducer that converts a force or weight into an electrical signal. It typically consists of a metal element that deforms under load, causing a change in resistance. This change is measured and converted into a weight reading. Load cells come in various types, including strain gauge, hydraulic, and pneumatic, with strain gauge load cells being the most common in electronic weighing applications.
The HX711 is a precision 24-bit ADC designed for weighing scales and industrial control applications. It features a built-in low-noise amplifier, making it ideal for reading the small signals produced by load cells. The HX711 can interface with one or two load cells, allowing for versatile applications. It communicates with microcontrollers via a two-wire interface, making it easy to integrate into projects.
To get started, you will need the following components:
- Load cell (e.g., 1kg, 5kg, or 10kg capacity)
- HX711 module
- Microcontroller (e.g., Arduino Uno, Nano, or Mega)
- Jumper wires
- Breadboard (optional)
- Power supply (if not using USB)

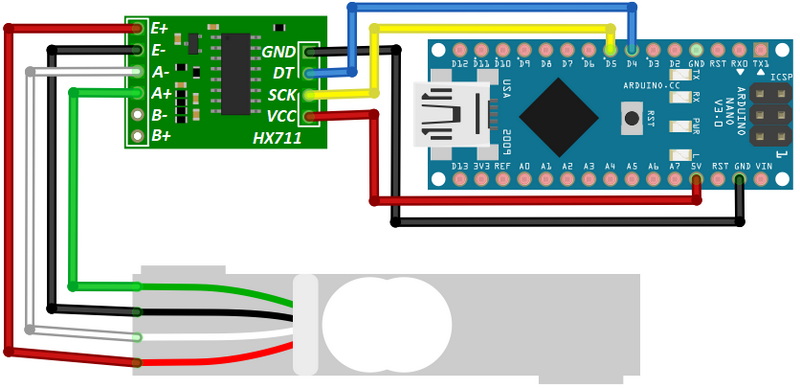

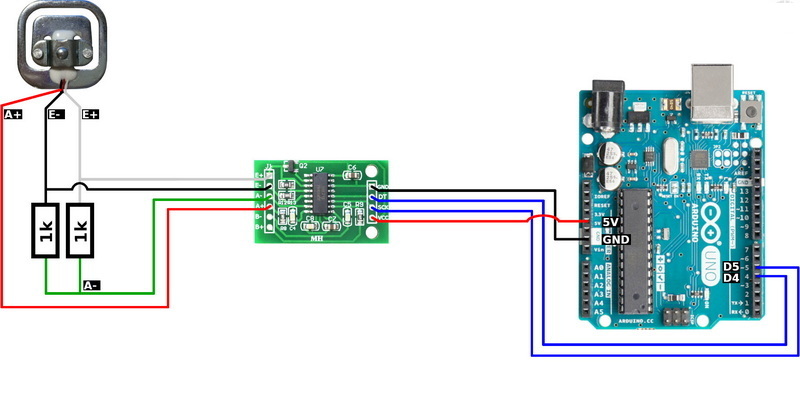

1. Connect the Load Cell to the HX711: The load cell typically has four wires: red (excitation+), black (excitation-), white (signal+), and green (signal-). Connect these wires to the HX711 as follows:
- Red to E+
- Black to E-
- White to A+
- Green to A-
2. Connect the HX711 to the Microcontroller: The HX711 has two output pins (DT and SCK) that need to be connected to the microcontroller. For example:
- DT to Arduino pin 3
- SCK to Arduino pin 2
- Connect VCC to 5V and GND to ground.
To communicate with the HX711, you will need to install the HX711 library for Arduino. This library simplifies the process of reading data from the HX711. You can install it via the Arduino Library Manager:
1. Open the Arduino IDE.
2. Go to Sketch > Include Library > Manage Libraries.
3. Search for "HX711" and install the library by Bogdan Necula.
Before you can zero out the load cell, you need to calibrate it. Calibration involves determining the relationship between the raw readings from the HX711 and the actual weight. Here's how to do it:
1. Place a Known Weight: Start by placing a known weight on the load cell. For example, use a 1 kg weight.
2. Read the Raw Value: Upload the code above and note the raw value displayed in the Serial Monitor.
3. Calculate the Calibration Factor: The calibration factor is calculated by dividing the known weight by the raw value. For example, if the raw value is 5000 for 1 kg, the calibration factor would be 1 kg / 5000 = 0.0002 kg per unit.
Zeroing out the load cell is crucial for accurate measurements. It ensures that any weight on the load cell is measured relative to a known baseline (zero). This is particularly important if the load cell is subjected to varying environmental conditions or if it has been moved.
1. Remove Any Weight: Ensure that there is no weight on the load cell.
2. Call the Tare Function: Use the `tare()` function provided by the HX711 library to zero out the load cell. This function sets the current reading as zero.
After implementing the tare function, test it by following these steps:
1. Upload the Code: Upload the modified code to your Arduino.
2. Open the Serial Monitor: Open the Serial Monitor in the Arduino IDE.
3. Observe the Output: Ensure that the output reads zero when there is no weight on the load cell. If it does not, check your connections and ensure that the load cell is functioning correctly.
1. Stable Environment: Ensure that the load cell is placed on a stable surface to avoid vibrations that can affect readings.
2. Regular Calibration: Regularly calibrate the load cell to maintain accuracy, especially if it is used frequently or in varying conditions.
3. Avoid Overloading: Do not exceed the load cell's rated capacity, as this can damage the sensor and lead to inaccurate readings.
4. Use Shielded Cables: If the load cell is used in a noisy electrical environment, consider using shielded cables to reduce interference.
5. Temperature Considerations: Load cells can be sensitive to temperature changes. If your application involves significant temperature fluctuations, consider using temperature compensation techniques.
While the basic calibration method described earlier is effective for many applications, advanced techniques can improve accuracy, especially in precision applications. Here are a few methods:
Instead of using a single known weight, you can use multiple weights to create a calibration curve. This method helps account for non-linearity in the load cell's response. To perform multi-point calibration:
1. Select Multiple Weights: Choose several known weights (e.g., 0 kg, 1 kg, 2 kg, 3 kg).
2. Record Readings: For each weight, record the raw value from the HX711.
3. Plot the Data: Create a graph with the known weights on the x-axis and the corresponding raw values on the y-axis.
4. Fit a Curve: Use curve fitting techniques to derive a calibration equation that can be implemented in your code.
If your load cell operates in environments with varying temperatures, consider implementing temperature compensation. This involves measuring the temperature and adjusting the calibration factor based on known temperature coefficients for the load cell material.
Load cells are used in a wide range of applications across various industries. Here are some common uses:
1. Weighing Scales: Load cells are the backbone of digital weighing scales used in retail, laboratories, and industrial settings.
2. Industrial Automation: In manufacturing, load cells are used to monitor the weight of materials during production processes.
3. Force Measurement: Load cells are employed in testing applications to measure force, such as tensile testing of materials.
4. Medical Devices: In healthcare, load cells are used in devices like patient scales and medical equipment to ensure accurate weight measurements.
5. Agriculture: Load cells are used in agricultural applications for weighing produce and livestock.
Zeroing out a load cell with the HX711 is a straightforward process that is essential for accurate weight measurements. By following the steps outlined in this article, you can set up your load cell, calibrate it, and ensure that it provides reliable readings. Remember to regularly check and recalibrate your system to maintain accuracy over time.
Zeroing a load cell ensures that any weight measured is relative to a known baseline, which is crucial for accurate readings.
It is recommended to calibrate your load cell regularly, especially if it is used frequently or in varying environmental conditions.
Yes, the HX711 can interface with one or two load cells, allowing for versatile applications.
Check the wiring connections, ensure the load cell is stable, and consider recalibrating the system.
Use multi-point calibration, implement temperature compensation, and ensure a stable environment for the load cell.
