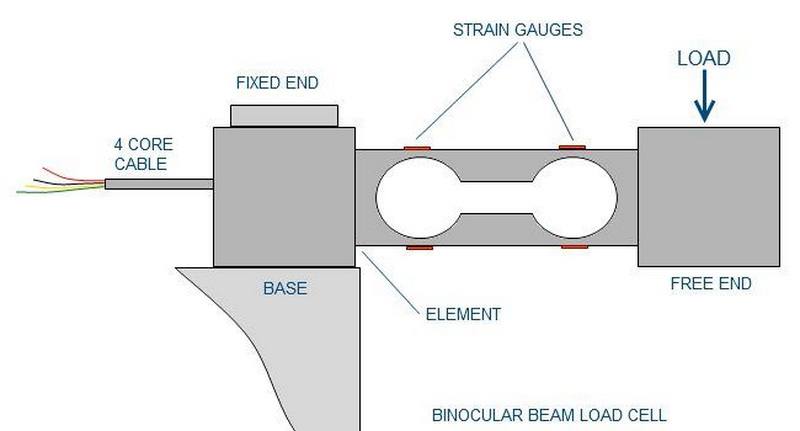

A load cell is a type of transducer that converts a force or weight into an electrical signal. This signal can then be measured and displayed, allowing operators to monitor the weight of materials being filled into containers. Load cells are typically made from materials that can deform under load, such as aluminum or stainless steel, and they often incorporate strain gauges to measure this deformation.
When a load is applied to a load cell, it deforms slightly. This deformation changes the electrical resistance of the strain gauges attached to the load cell. The change in resistance is proportional to the amount of weight applied, allowing the load cell to produce an accurate measurement of the weight. This measurement is then converted into a digital signal that can be read by a controller or display.
There are several types of load cells, each suited for different applications:
1. Compression Load Cells: These load cells measure weight by compressing under load. They are commonly used in applications where the load is applied vertically.
2. Tension Load Cells: These load cells measure weight by stretching under load. They are often used in applications where the load is applied in a pulling motion.
3. Shear Beam Load Cells: These load cells measure weight by bending under load. They are versatile and can be used in various applications, including platform scales and filling machines.
4. Single Point Load Cells: These load cells are designed for use in smaller scales and are often used in bench scales and filling machines.
One of the primary applications of load cells in filling machines is to ensure accurate filling of containers. By continuously measuring the weight of the material being dispensed, load cells can provide real-time feedback to the filling machine's control system. This feedback allows the machine to adjust the flow rate and stop filling once the desired weight is reached.
Overfilling can lead to product waste and increased costs. Load cells help prevent overfilling by providing precise weight measurements. When the load cell detects that the container has reached the specified weight, it sends a signal to the filling machine to stop the flow of material. This not only saves money but also ensures compliance with regulatory standards in industries such as food and pharmaceuticals.
In addition to preventing overfilling, load cells also play a vital role in quality control. By ensuring that each container is filled to the correct weight, manufacturers can maintain consistent product quality. This is particularly important in industries where product weight is critical, such as in the packaging of food items or pharmaceuticals.

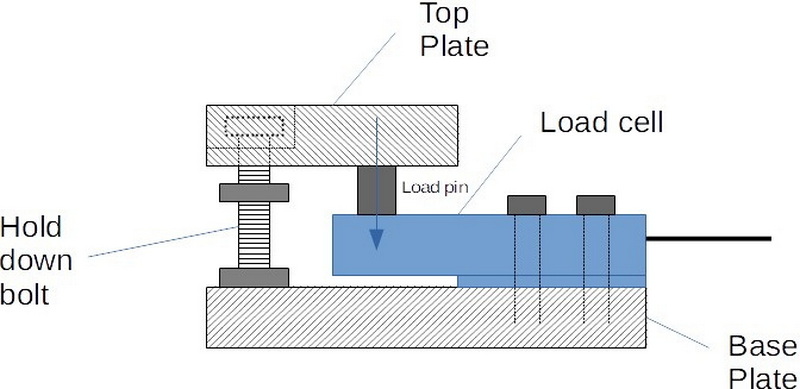

The first step in implementing load cell sensors in a filling machine is selecting the appropriate load cell for the application. Factors to consider include the maximum weight to be measured, the type of material being filled, and the environmental conditions in which the load cell will operate. For example, a stainless steel load cell may be necessary for applications involving corrosive materials.
Once the appropriate load cell has been selected, it must be integrated with the filling machine's control system. This typically involves connecting the load cell to a digital display or controller that can interpret the electrical signals produced by the load cell. The control system should be programmed to stop the filling process when the desired weight is reached.
Calibration is a critical step in ensuring the accuracy of load cell measurements. Load cells should be calibrated regularly to account for any changes in their performance over time. This process involves applying known weights to the load cell and adjusting the control system to ensure that the displayed weight matches the actual weight.
One of the key advantages of using load cell sensors in filling machines is the ability to implement an automatic stop mechanism. When the load cell detects that the container has reached the desired weight, it sends a signal to the control system to stop the filling process. This automatic stop mechanism helps prevent overfilling and ensures that each container is filled accurately.
In some cases, operators may need to manually stop the filling process. This can be achieved by incorporating a manual override switch into the filling machine's control system. This switch allows operators to stop the filling process at any time, providing an additional layer of control.
Safety is a critical consideration in any industrial process. Load cell sensors can be integrated with safety features that stop the filling process in the event of a malfunction. For example, if the load cell detects an unexpected weight change, it can trigger an alarm and stop the filling process to prevent accidents.
By automating the filling process with load cell sensors, manufacturers can increase efficiency and reduce labor costs. Load cells provide real-time feedback that allows filling machines to operate at optimal speeds, minimizing downtime and maximizing productivity.
Accurate filling reduces product waste and ensures compliance with regulatory standards, leading to significant cost savings. By preventing overfilling and maintaining consistent product quality, manufacturers can improve their bottom line.
Load cell sensors help maintain consistent product quality by ensuring that each container is filled to the correct weight. This is particularly important in industries where product weight is critical, such as food and pharmaceuticals.
Integrating load cell sensors with safety features enhances the overall safety of the filling process. Automatic stop mechanisms and manual overrides provide operators with greater control, reducing the risk of accidents.
In the food and beverage industry, load cells are used extensively in bottling and canning operations. For example, a beverage manufacturer implemented load cell sensors in their filling machines to ensure that each bottle was filled to the correct weight. This not only improved product consistency but also reduced waste, leading to significant cost savings.
In the pharmaceutical industry, precise dosing is critical. A pharmaceutical company utilized load cells in their liquid filling machines to ensure that each vial was filled with the exact amount of medication. This application not only improved compliance with regulatory standards but also enhanced patient safety by ensuring accurate dosing.
In the chemical industry, load cells are used to fill containers with hazardous materials. A chemical manufacturer integrated load cell sensors into their filling machines to monitor the weight of the chemicals being dispensed. This application improved safety by preventing overfilling and ensuring that the correct amount of material was used in each batch.
The future of load cell technology lies in smart load cells that can communicate with other devices and systems. These load cells will be equipped with advanced sensors and connectivity options, allowing for real-time monitoring and data analysis. This technology will enable manufacturers to optimize their filling processes further and improve overall efficiency.
As the Internet of Things (IoT) continues to grow, load cells will increasingly be integrated into IoT systems. This integration will allow for remote monitoring and control of filling machines, enabling manufacturers to respond quickly to any issues that arise. IoT-enabled load cells will also provide valuable data for predictive maintenance, helping to reduce downtime and improve productivity.
Advancements in materials and technology will lead to even more accurate and precise load cells. These improvements will be particularly beneficial in industries where weight measurement is critical, such as pharmaceuticals and food production. Enhanced accuracy will help manufacturers maintain compliance with regulatory standards and improve product quality.
Load cell sensors are essential components in modern filling machines, providing accurate weight measurements and enabling automated control of the filling process. By preventing overfilling, ensuring product quality, and enhancing safety, load cells contribute to increased efficiency and cost savings in various industries. As technology continues to advance, the role of load cell sensors in filling machines will only become more significant, paving the way for even greater automation and precision in industrial processes.
The primary function of a load cell in a filling machine is to measure the weight of the material being dispensed. This measurement allows the machine to control the filling process accurately, ensuring that each container is filled to the desired weight.
Load cells prevent overfilling by continuously measuring the weight of the material being dispensed. When the load cell detects that the container has reached the specified weight, it sends a signal to the filling machine to stop the flow of material.
Common types of load cells used in filling machines include compression load cells, tension load cells, shear beam load cells, and single point load cells. Each type is suited for different applications based on the specific requirements of the filling process.
Load cells should be calibrated regularly to ensure accurate measurements. The frequency of calibration depends on the specific application and the conditions in which the load cell operates, but it is generally recommended to calibrate at least once a year.
Safety features that can be integrated with load cell sensors include automatic stop mechanisms, manual override switches, and alarms that trigger in the event of unexpected weight changes. These features enhance the overall safety of the filling process and reduce the risk of accidents.
