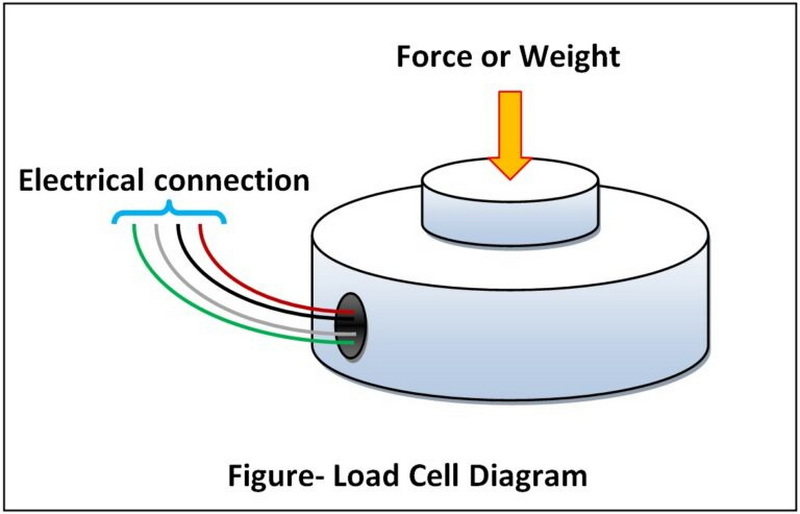

A load cell is a type of transducer that converts a force or weight into an electrical signal. This conversion allows for precise measurements in various applications, from industrial scales to medical devices. Load cells are crucial in ensuring accuracy in weight measurement, making them indispensable in many fields.
Load cells consist of several key components that work together to measure force:
1. Strain Gauge: The strain gauge is the heart of the load cell. It is a sensor that detects deformation. When a load is applied, the strain gauge changes its electrical resistance, which is proportional to the amount of force applied.
2. Elastic Element: This component deforms under load. The deformation is what the strain gauge measures. The elastic element can be made from various materials, including metals and polymers, depending on the application.
3. Transducer: The transducer converts the mechanical deformation into an electrical signal. This signal can then be processed and displayed as a weight measurement.
4. Housing: The housing protects the internal components of the load cell from environmental factors such as moisture, dust, and mechanical damage. It is typically made from durable materials like stainless steel or aluminum.
The operation of a load cell is based on the principles of physics, particularly the relationship between force, deformation, and electrical resistance. Here's a step-by-step explanation of how a load cell works:
When a load is applied to the load cell, the elastic element deforms. This deformation can be in the form of compression, tension, or bending, depending on the type of load cell.
As the elastic element deforms, the strain gauge attached to it also deforms. This deformation causes a change in the electrical resistance of the strain gauge. The amount of change in resistance is directly proportional to the amount of force applied.
The change in resistance is converted into an electrical signal by the transducer. This signal is typically very small and requires amplification for accurate measurement. The output signal can be in the form of voltage, current, or frequency, depending on the design of the load cell.
The amplified signal is then processed by a microcontroller or a digital signal processor (DSP). This processing can include filtering, calibration, and conversion to a readable format, such as weight in kilograms or pounds.
Finally, the processed signal is displayed on a digital readout or transmitted to a computer system for further analysis. This allows users to monitor and record weight measurements accurately.
Load cells come in various types, each designed for specific applications. Here are some of the most common types:
Strain gauge load cells are the most widely used type. They utilize strain gauges to measure deformation and are known for their accuracy and reliability. These load cells can measure both tension and compression forces.
Hydraulic load cells use fluid pressure to measure weight. When a load is applied, the fluid in the cell is compressed, and the pressure change is measured. These load cells are often used in heavy-duty applications, such as weighing large containers or vehicles.
Pneumatic load cells operate similarly to hydraulic load cells but use air pressure instead of fluid. They are less common but can be useful in specific applications where hydraulic systems are impractical.
S-type load cells are designed to measure tension and compression forces. They have a unique shape resembling the letter "S," which allows them to be suspended from a point and measure the force applied to them.
Beam load cells are typically used in industrial scales. They consist of a beam that bends under load, with strain gauges attached to measure the deformation. These load cells are known for their robustness and are often used in harsh environments.
Load cells are used in a wide range of applications across various industries. Here are some notable examples:
Load cells are commonly used in industrial scales for weighing products, materials, and equipment. They provide accurate measurements essential for inventory management and quality control.
In the medical field, load cells are used in devices such as hospital beds and scales. They help monitor patient weight and ensure proper dosage of medications based on weight.
Load cells are used in automotive testing to measure forces during crash tests and performance evaluations. They provide critical data for safety assessments and vehicle design.
In the aerospace industry, load cells are used to measure forces on aircraft components during testing. This data is vital for ensuring the safety and reliability of aircraft.
Load cells are essential in laboratories for various research applications. They help measure forces in experiments, providing accurate data for scientific studies.
Load cells offer several advantages that make them a preferred choice for force and weight measurement:
Load cells provide precise measurements, making them suitable for applications where accuracy is critical.
With various types available, load cells can be used in a wide range of applications, from industrial to medical.
Load cells are designed to withstand harsh environments, ensuring long-term reliability and performance.
Load cells can be easily integrated into existing systems, allowing for seamless upgrades to measurement capabilities.
Load cells provide real-time data, enabling immediate feedback and adjustments in processes.
While load cells are highly effective, there are some challenges and considerations to keep in mind:
Regular calibration is essential to maintain accuracy. Load cells can drift over time, requiring periodic checks and adjustments.
Temperature, humidity, and other environmental factors can affect load cell performance. Proper housing and installation are crucial to mitigate these effects.
Exceeding the load cell's rated capacity can lead to permanent damage. It is essential to select the appropriate load cell for the application.
Electrical noise can interfere with the signal output of load cells. Proper shielding and grounding techniques can help reduce this issue.
As technology continues to advance, load cells are evolving to meet the demands of modern applications. Here are some future trends to watch:
Wireless load cells are becoming increasingly popular, allowing for easier installation and reduced cabling costs. They use battery power and wireless communication to transmit data, making them ideal for remote monitoring applications.
Smart load cells incorporate advanced sensors and processing capabilities, enabling them to provide more than just weight measurements. They can monitor temperature, humidity, and other environmental factors, providing a comprehensive view of the conditions affecting the measurement.
The integration of load cells with the Internet of Things (IoT) is transforming how data is collected and analyzed. Load cells can now communicate with cloud-based systems, allowing for real-time monitoring and data analysis from anywhere in the world.
Advancements in materials science are leading to the development of more robust and lightweight load cells. These new materials can improve the performance and durability of load cells, making them suitable for even more demanding applications.
As industries move towards greater automation, load cells will play a crucial role in automated weighing and measurement systems. This trend will enhance efficiency and accuracy in various processes, from manufacturing to logistics.
Load cells are vital components in modern measurement systems, providing accurate and reliable data across various industries. Understanding how they work, their types, applications, and advantages can help users make informed decisions when selecting load cells for their specific needs. As technology continues to advance, load cells will play an increasingly important role in ensuring precision in weight and force measurement.
The primary function of a load cell is to convert a force or weight into an electrical signal, allowing for accurate measurement in various applications.
Load cells should be calibrated regularly, typically at least once a year, or more frequently if they are used in critical applications or harsh environments.
Yes, many load cells, such as strain gauge load cells and S-type load cells, can measure both tension and compression forces.
Factors such as temperature, humidity, overloading, and electrical noise can affect the accuracy of a load cell. Proper installation and regular calibration can help mitigate these issues.
Common applications of load cells include industrial weighing, medical devices, automotive testing, aerospace testing, and research and development in laboratories.
