Choosing a force sensor manufacturer starts with the measurement task. A sensor for monitoring a press, a load cell for a weighing platform, and a tactile sensor for a robotic fingertip may all respond to mechanical force, but they solve different engineering problems.
For OEMs, equipment builders, and procurement teams choosing a Force Sensor Manufacturer in China, the useful questions go beyond price: Does the manufacturer offer the right sensing technology? Will the sensor fit the assembly? Can the supplier document its performance and support the transition from samples to production?
This guide compares ten selected China-based companies across industrial force measurement, dynamic testing, weighing, and tactile sensing. It also explains how buyers in North America, Europe, and Southeast Asia can evaluate technical fit and prepare a more useful request for quotation.

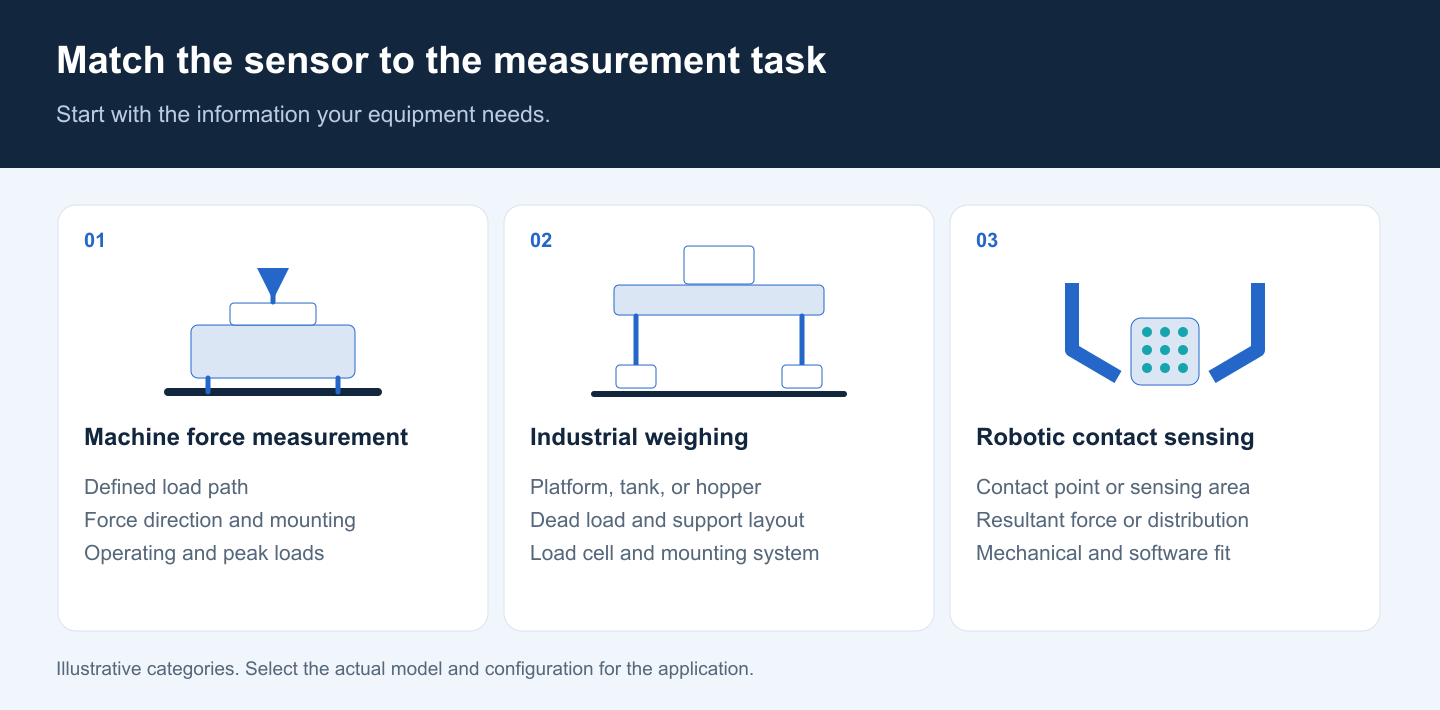

Before comparing manufacturers, define what your equipment needs to measure. For assembly machines, presses, and test fixtures, focus on load direction, mounting space, and measurement performance. For weighing equipment, consider the load-cell structure and support arrangement. For robotic contact sensing, distinguish a sensor measuring forces through a mechanical interface from a tactile surface measuring contact distribution.
Use these requirements to narrow the manufacturer list, then compare the relevant models and available technical documentation.
The selection uses company-published product information to identify businesses with relevant force, load, or contact-sensing products. Rather than treating every supplier as a general-purpose alternative, the guide separates manufacturers by their published specialties.
We considered identifiable company and product information, relevance to a defined measurement task, and the availability of materials that can support further technical evaluation. We have not audited every factory or independently tested the products. Certification, production capacity, export arrangements, and support terms should be confirmed for the actual purchase.
FIBOS Measurement Technology, based in Changzhou, China, develops and manufactures miniature force sensors, tension and compression load cells, spoke-type load cells, weighing sensors, static torque sensors, multi-axis force sensors, and load pins. Custom projects can address mechanical dimensions, measuring ranges, environmental conditions, and signal requirements, subject to engineering review.

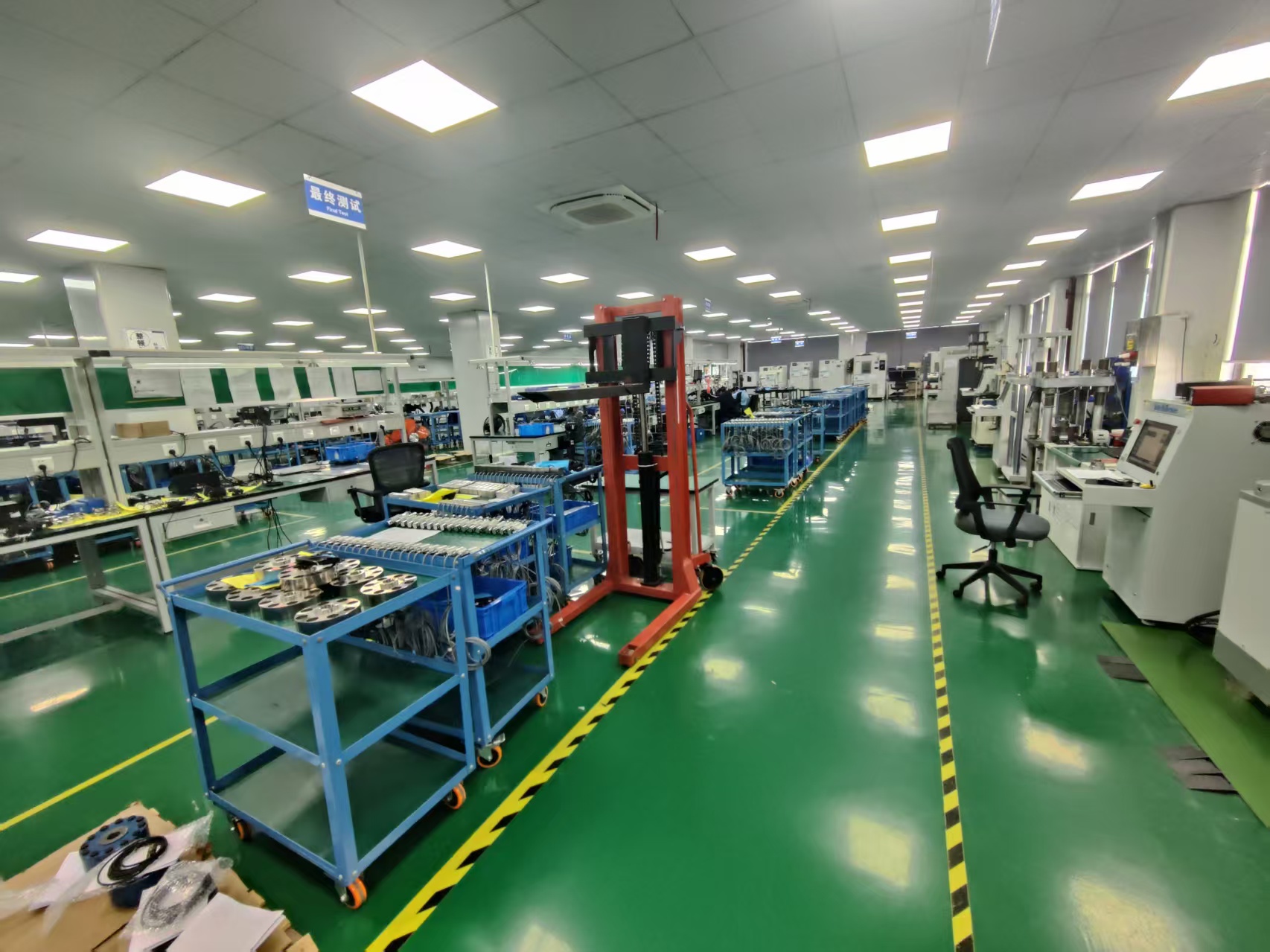

A view of the FIBOS sensor production workshop.
This makes FIBOS relevant to equipment builders working on insertion and extraction testing, press-force measurement, automated assembly, robotic force measurement, and industrial weighing. Selection begins with the load path and installation: a compact compression sensor, a threaded tension/compression design, and a multi-axis device address different requirements.
For a custom inquiry, provide a drawing or installation sketch, the operating and peak loads, required accuracy, working environment, and intended electronics.
Sinocera develops piezoelectric materials, sensors, and dynamic testing instruments. Its force-sensor range includes quartz compression transducers, making it a specialist to investigate for piezoelectric force-measurement projects.
Ask about the complete measurement chain, including conditioning, cabling, mounting, and the duration and frequency content of the measurement. A suitable dynamic force arrangement should not automatically be assumed suitable for a long-duration static measurement.
Yangzhou Kedong publishes a portfolio covering force, acceleration, pressure, and related measurement equipment. Its positioning is relevant to engineering tests involving several physical quantities.
Start with the actual force-sensor model rather than the broader instrumentation catalog. Request its operating principle, load directions, range, mounting details, and compatible electronics. Verify that it measures mechanical force; a fluid-pressure sensor in the same catalog serves a different purpose.
Yangzhou Zhenzhong lists force sensors, modal impact hammers, vibration sensors, and dynamic measurement systems. This combination makes it a candidate for test setups involving excitation forces and structural response.
Clarify whether the project needs a force transducer installed in a load path or an instrumented hammer providing a measured input. Ask for a current product sheet and the compatible data-acquisition arrangement before treating the system as a fit for an industrial production process.
Suzhou Leanstar develops flexible sensing products, including thin-film pressure sensors, sensor arrays, pressure-mapping systems, and tactile solutions. These products address contact sensing on surfaces and within compact assemblies.
For evaluation, specify the sensing area, surface geometry, contact material, and required output. A distributed pressure map provides different information from a rigid load cell measuring the resultant load through a mechanical interface. The installation and calibration approach should reflect that distinction.
Moxian Technology publishes flexible pressure-sensing and electronic-skin applications, including robotic contact surfaces and pressure-distribution measurement. Its products are candidates where the contact location or distribution matters alongside force feedback.
Ask how the sensor is attached, what protective layers are permitted, and how the assembled surface is calibrated. Confirm whether the output represents contact detection, relative pressure, calibrated pressure, or a calculated force. These are different deliverables and should be defined before sampling.
Daimon Robotics offers vision-based tactile sensors for robotic manipulation. Its DM-Tac W2 product information describes contact geometry, deformation, force distribution, and resultant force and moment outputs.
This is a different integration route from a conventional strain-gauge wrist transducer. Buyers should evaluate the sensor package, contact surface, processing requirements, software interface, and calibration conditions against the intended gripper or fingertip task.
Tashan develops tactile sensing and associated processing technology, with published fingertip, gripper, and array products. Its public information includes three-dimensional force perception and other contact-related sensing functions.
Define which outputs the application needs and confirm availability on the proposed configuration. A fingertip perception module should be evaluated for its particular contact task; its performance should not be assumed equivalent to a structural three-axis or six-axis load transducer.
Hope Technologic manufactures MAVIN-branded load cells. Its published range includes single-point, shear-beam, S-type, and other designs used in commercial weighing and industrial process applications.
For a weighing project, compare the support arrangement, capacity, platform or vessel geometry, and electronics. If a model is promoted with an approval, request the applicable certificate and verify its model and capacity coverage rather than extending the claim to the entire range.
Ningbo Benui describes its business as the design and production of weighing load cells and automatic control systems. It is a candidate for weighing-related sourcing inquiries.
Some public website material is visibly longstanding. Request current model documentation, company details, production availability, and commercial terms directly. Historical company information alone is insufficient evidence of a specific product’s present performance or availability.
For a compact force-measurement assembly, begin with the available space and intended loading direction. Provide the loading surface, mounting interface, cable exit, and any preload. A sensor that fits physically may still require changes to the surrounding fixture to measure the intended force.
FIBOS offers miniature force sensors for evaluation in compact OEM projects. Model selection should follow the actual measurement conditions rather than size alone.
Insertion, extraction, and push-pull tests require a defined mechanical connection. Describe whether loading reverses direction and whether the fixture introduces side loads or moments. Request installation guidance alongside the sensor drawing.
For multi-axis force sensors, specify the components to be measured: two or three force directions, combined force and torque, or all six force and moment components. “Multi-axis” does not always mean six-axis. For the proposed model, request axis definitions, channel capacities, cross-axis behavior, and simultaneous-loading limits.
For press monitoring, provide the normal working load, possible peak load, loading position, cycle profile, and available installation height. The sensor range must be evaluated against its actual loading arrangement; the machine’s nameplate capacity alone does not define the sensor requirement.
When selecting load cells for platforms, tanks, or hoppers, describe the dead load, maximum contents, number of supports, and external connections. Compare the complete installation, including mounting hardware and electronics. A conventional weighing design and a force transducer for a test fixture may have different mounting and performance requirements.
Dynamic testing and contact-surface perception require additional distinctions. Piezoelectric measurement requires an appropriate sensor and conditioning chain. Tactile systems may provide distributed contact information rather than a single load-path measurement. Select the architecture according to the information the machine needs, then compare manufacturers within that category.
Ask which proposed products the supplier manufactures and which it sources. For a custom project, clarify responsibility for mechanical design, prototype production, testing, and design revisions. A useful technical discussion should connect the proposed structure to your installation and load requirements.

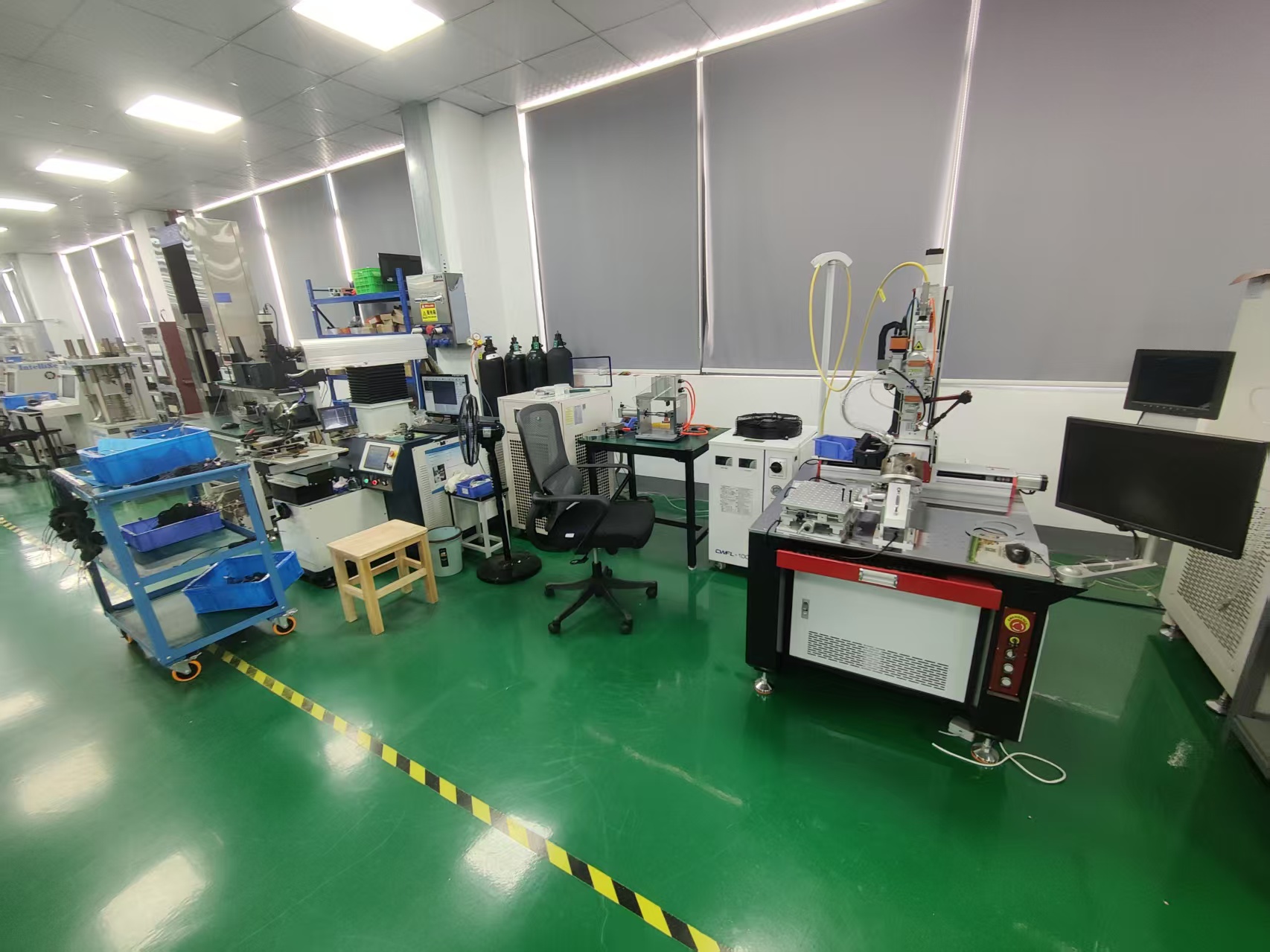

Equipment and workstations in the FIBOS workshop.
Ask what the quoted accuracy includes, how it is expressed, and under which conditions it applies. Compare like-for-like specifications and request calibration information for the selected measurement arrangement.
Calibration documentation should identify the instrument and tested range. If a sensor and readout are calibrated together, establish whether that calibration remains applicable when either component changes. NIST explicitly distinguishes calibration of a transducer/readout system from calibration reported as the transducer’s voltage ratio. Reference: NIST force-transducer calibration.
Review the mounting surface, fasteners, load introduction, and allowable parasitic loads. Nominal capacity is only part of the selection: force transducers may have separate limits for lateral forces, eccentricity, moments, and dynamic loading. Reference: force-transducer operating limits.
Describe temperature, moisture, cleaning chemicals, vibration, and cable exposure. Request evidence for the particular configuration rather than relying on general descriptions such as “industrial grade.”

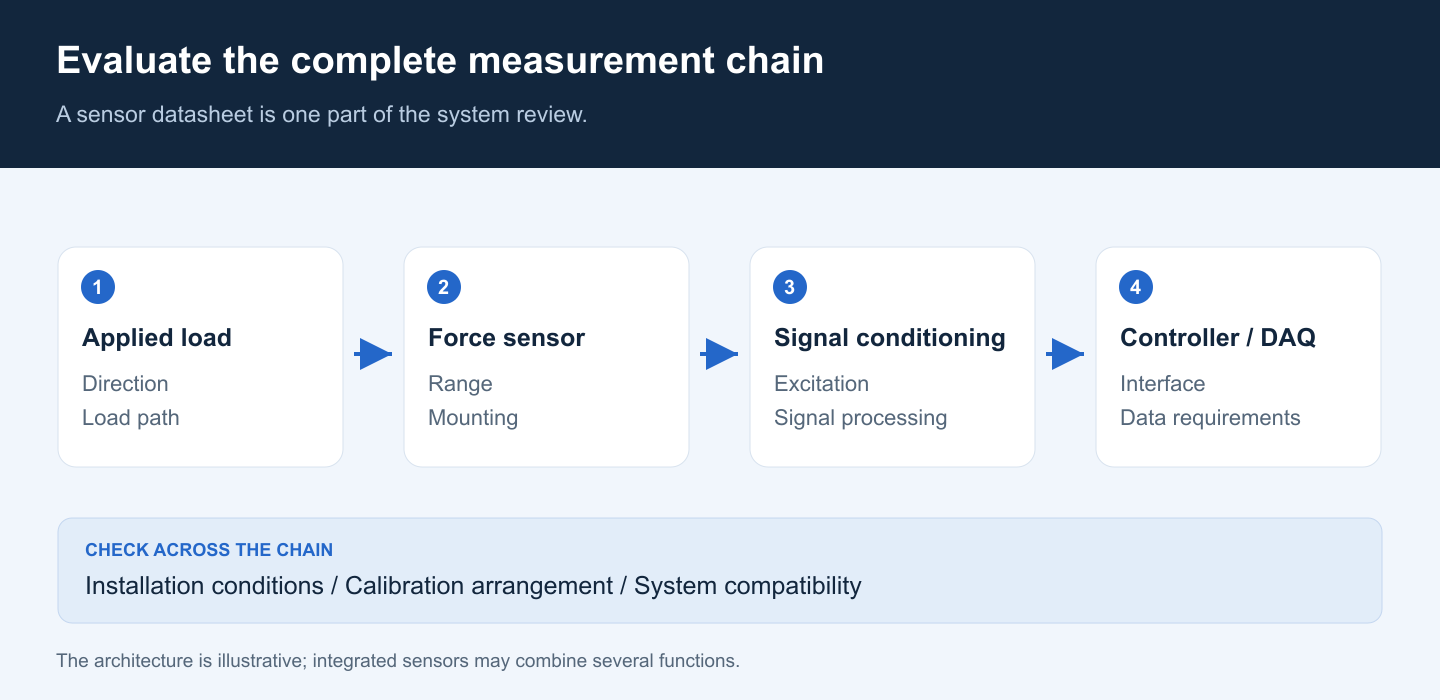

Define the sensor, conditioning electronics, and controller connection together. Confirm excitation, wiring, connector details, output format, and the required data-update behavior. For a digital interface, request the relevant protocol documentation. Establish whether an interface is standard, an external accessory, or a custom option.
Agree on sample acceptance criteria before ordering. Include the installed measurement behavior, mechanical fit, documentation, and output compatibility. For repeat orders, clarify revision control and whether a change in materials, electronics, or calibration procedure requires notification and renewed evaluation.

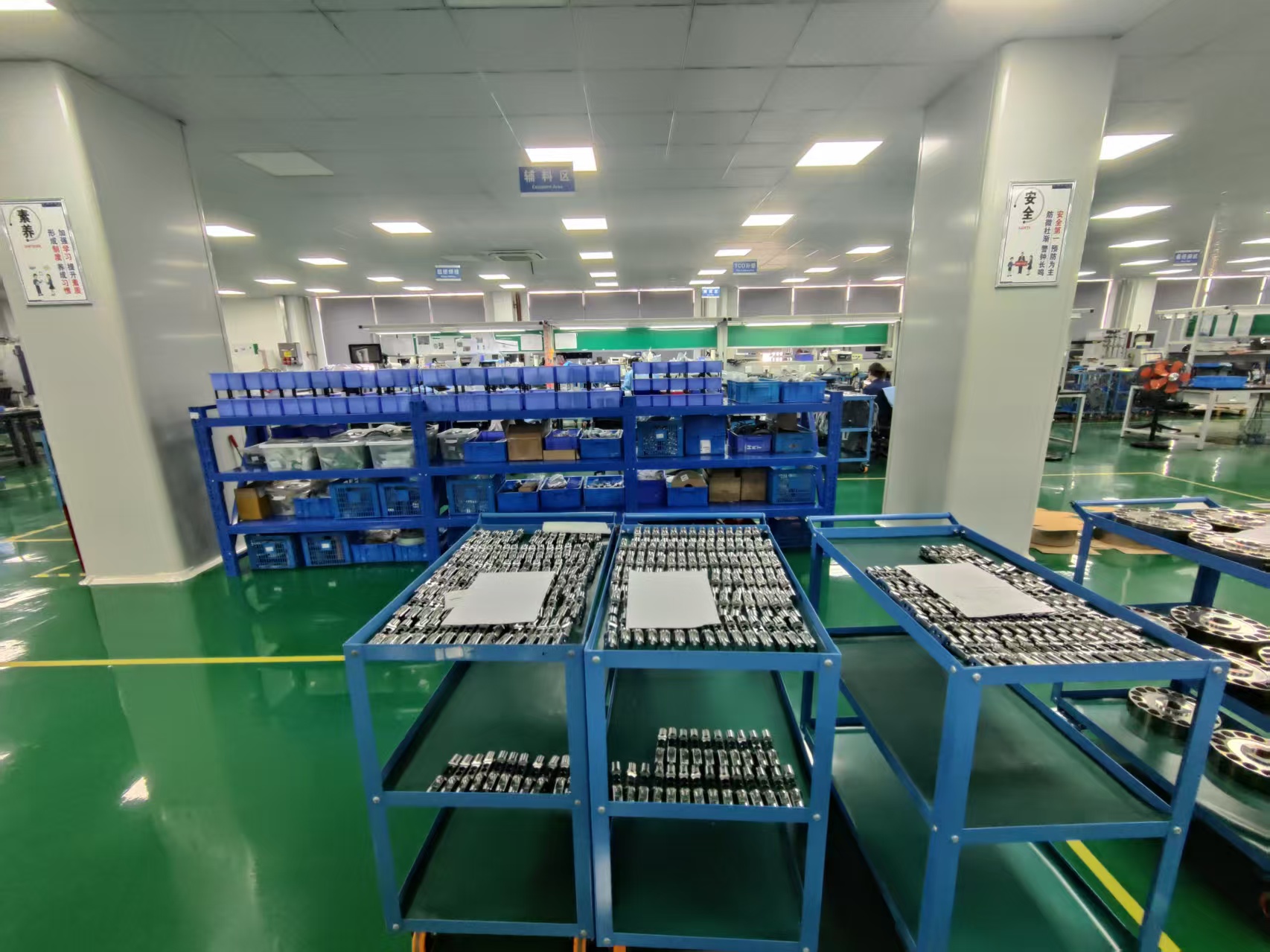

Batches of sensor components and assemblies in the FIBOS workshop.

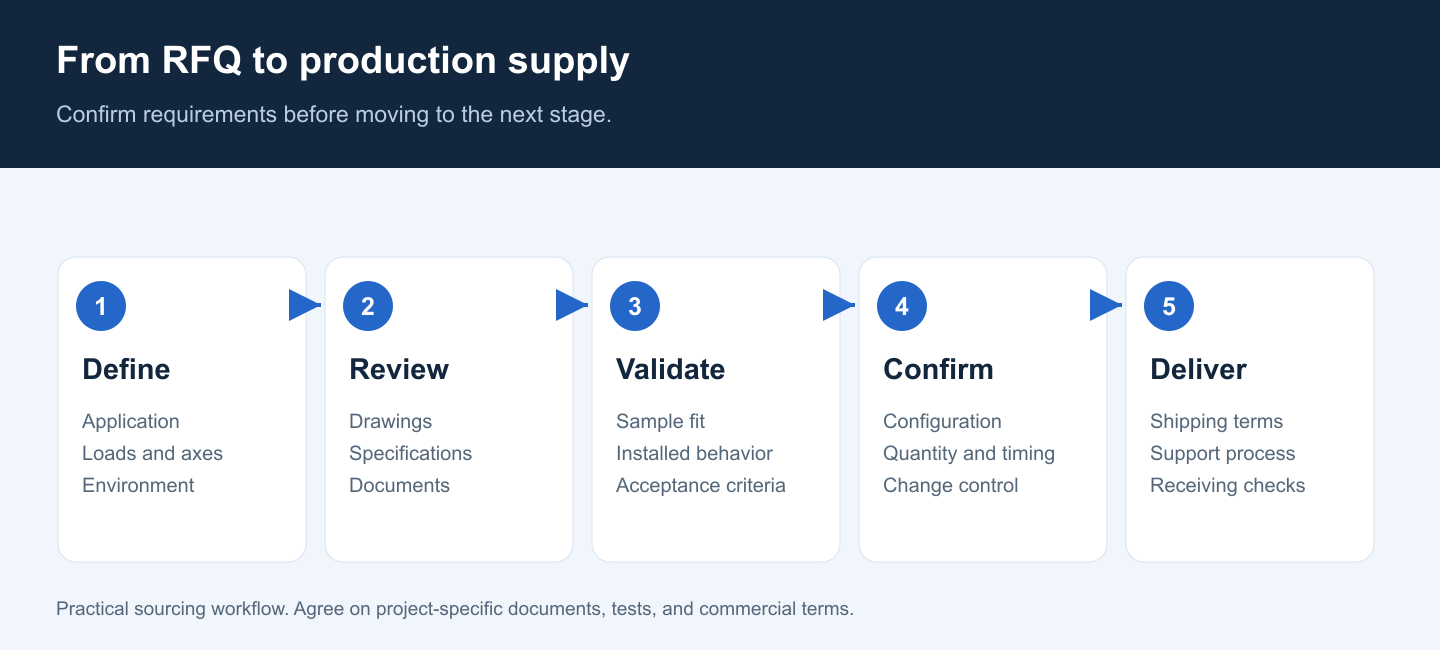

Give the supplier the destination country and intended end use. Request the documents your engineering, quality, and purchasing teams require for that product. Verify the issuing body, holder, product scope, and applicable version of any certificate or declaration provided. A company-level claim should not be treated as approval for every model or application.
Separate stock-product delivery from custom development. Ask what the quotation includes: engineering, prototypes, fixtures, conditioning electronics, calibration documentation, and packaging. Define the point at which the lead time starts and what happens if the first sample requires revision.
Confirm the named delivery location, shipping responsibilities, and included costs. Agree on the process for a damaged shipment, a suspected measurement fault, or a warranty return. Ask what installation support and troubleshooting documents are available, and who will handle technical questions across time zones.
“Force sensor” is a broad term. “Load cell” commonly refers to a transducer that converts an applied load into a measurable output, frequently using strain gauges. Load cells are used for both weighing and force measurement. Select by the required load directions, installation, and performance rather than terminology alone.
Request information about the production and test processes for the proposed product. Discuss a specific drawing or customization requirement, and establish who owns the design and handles testing. Factory evidence and technical documentation should relate to the product you plan to buy.
Some manufacturers offer custom structures, capacities, environmental configurations, or signal arrangements. Feasibility depends on the application and supplier. Submit the installation and measurement requirements to the manufacturer for engineering review before assuming a standard model can be modified.
Start with a current datasheet, dimensioned drawing, wiring or interface information, installation instructions, and the proposed calibration or test documentation. Add application-specific documents required by your quality team. Confirm that all documents refer to the exact quoted configuration.
Include the application, measuring directions, operating and peak loads, required accuracy, installation drawing, environment, output requirements, quantity, destination, and target schedule. State any unresolved requirements so the supplier can identify what needs further engineering discussion.
