Load cell accuracy refers to the degree to which a load cell's output corresponds to the actual weight or force applied. It is typically expressed as a percentage of the load cell's full-scale capacity. For example, a load cell with a capacity of 1000 kg and an accuracy of ±0.5% would have an error margin of ±5 kg. This means that the load cell could read anywhere from 995 kg to 1005 kg when a true weight of 1000 kg is applied.
Several factors can influence the accuracy of load cells, including:
1. Temperature: Load cells are sensitive to temperature changes. Variations can cause expansion or contraction of materials, affecting the readings. Most load cells are designed to operate within a specific temperature range, and exceeding this range can lead to inaccuracies.
2. Hysteresis: This refers to the difference in output when a load is applied and then removed. A load cell may not return to its original output when the load is removed, leading to discrepancies in measurements.
3. Linearity: This is the ability of a load cell to produce a consistent output across its entire range. Non-linearity can result in errors, especially when measuring loads that are near the limits of the load cell's capacity.
4. Repeatability: This is the load cell's ability to produce the same output when the same load is applied multiple times. High repeatability is essential for accurate measurements.
5. Installation: Proper installation is crucial for load cell accuracy. Misalignment, improper mounting, or inadequate support can lead to measurement errors.
6. Environmental Conditions: Factors such as humidity, vibration, and electromagnetic interference can also affect load cell performance. Ensuring a stable environment is essential for maintaining accuracy.

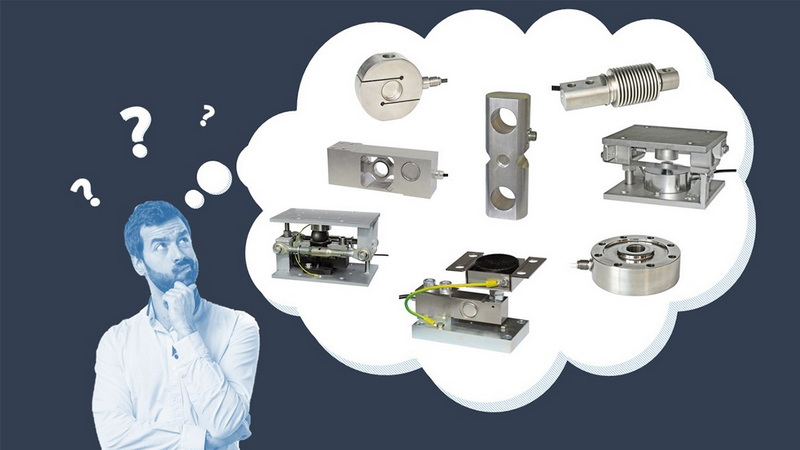

Load cells come in various types, each suited for different applications and accuracy requirements. Here are some common types:
1. Strain Gauge Load Cells: These are the most widely used load cells. They operate on the principle of strain gauges, which change resistance when stretched or compressed. Strain gauge load cells offer high accuracy and are suitable for a wide range of applications.
2. Hydraulic Load Cells: These load cells use hydraulic fluid to measure force. They are often used in heavy-duty applications, such as weighing large vehicles or containers. While they can be very accurate, they are typically less precise than strain gauge load cells.
3. Pneumatic Load Cells: Similar to hydraulic load cells, pneumatic load cells use air pressure to measure force. They are often used in applications where electrical components may be hazardous.
4. Bending Beam Load Cells: These load cells are designed to measure force through bending. They are commonly used in industrial scales and offer good accuracy for moderate loads.
5. Single Point Load Cells: These load cells are ideal for applications where space is limited. They are often used in platform scales and can provide high accuracy in compact designs.
To achieve optimal accuracy from load cells, consider the following best practices:
1. Calibration: Regular calibration is essential for maintaining load cell accuracy. Calibration should be performed using certified weights and under controlled conditions to ensure reliable results.
2. Temperature Control: Keep load cells within their specified temperature range. If the application involves significant temperature fluctuations, consider using temperature compensation techniques.
3. Proper Installation: Follow manufacturer guidelines for installation. Ensure that load cells are aligned correctly and securely mounted to prevent movement or misalignment.
4. Environmental Protection: Protect load cells from environmental factors such as moisture, dust, and vibration. Use protective enclosures or covers when necessary.
5. Routine Maintenance: Regularly inspect load cells for signs of wear or damage. Address any issues promptly to prevent inaccuracies.
To better understand load cell performance, consider the following graphs and images that illustrate key concepts:
1. Calibration Curve: A graph showing the relationship between the applied load and the output signal of a load cell. This curve helps visualize linearity and hysteresis.
2. Temperature Effects: An illustration depicting how temperature variations can affect load cell readings.
3. Installation Diagram: A diagram showing the correct installation of a load cell, highlighting alignment and support.
Load cells are used in a wide range of applications across various industries. Here are some notable examples:
1. Industrial Weighing: Load cells are commonly used in industrial scales for weighing products, materials, and equipment. They provide accurate measurements essential for inventory management and quality control.
2. Automotive Testing: In the automotive industry, load cells are used to test the weight and performance of vehicles. They help ensure that vehicles meet safety and performance standards.
3. Medical Equipment: Load cells are integral to medical devices, such as patient scales and infusion pumps. Accurate weight measurements are crucial for patient care and medication administration.
4. Aerospace: In aerospace applications, load cells are used to measure forces during testing and to monitor structural integrity. They play a vital role in ensuring the safety and reliability of aircraft.
5. Food Industry: Load cells are used in food processing and packaging to ensure accurate measurements of ingredients and final products. This helps maintain quality and compliance with regulations.
In conclusion, the accuracy of load cells is a critical factor in ensuring reliable measurements across various applications. By understanding the factors that influence accuracy, selecting the appropriate type of load cell, and following best practices for installation and maintenance, users can achieve optimal performance. Regular calibration and environmental control are essential for maintaining accuracy over time.
Load cells typically have an accuracy range of ±0.1% to ±0.5% of full scale, depending on the type and application.
Load cells should be calibrated at least once a year, or more frequently if they are used in critical applications or subjected to harsh conditions.
Yes, temperature variations can significantly impact load cell accuracy. It is essential to keep load cells within their specified temperature range.
Signs of a failing load cell include erratic readings, failure to return to zero, and discrepancies between expected and actual measurements.
To improve accuracy, ensure proper installation, regular calibration, and protection from environmental factors. Additionally, consider using load cells with higher accuracy specifications.
