Introduction to Load Cells

Load cells are the unsung heroes of modern weight measurement technology. These ingenious devices have revolutionized how we measure force and weight across various industries, from manufacturing and logistics to healthcare and aerospace. But what exactly are load cells, and how do they work their magic in providing precise weight measurements?

Understanding Load Cell Technology

At its core, a load cell is an electromechanical sensor designed to convert force or weight into an electrical signal. This conversion is the key to their versatility and accuracy. Load cells rely on the principle that when a force is applied to a material, it causes a slight deformation. This deformation, though often imperceptible to the human eye, can be measured with extreme precision using various techniques.

The most common type of load cell uses strain gauges. These are thin metallic foils or semiconductor devices that change their electrical resistance when stretched or compressed. When a force is applied to the load cell, the strain gauges deform, altering their resistance. This change in resistance is proportional to the applied force, allowing for accurate weight measurement.

Load CellS

Types of Load Cells

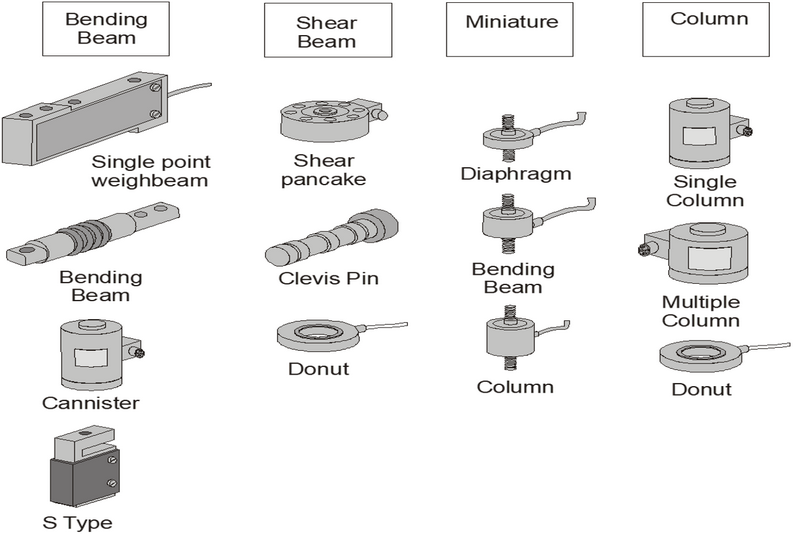

Load cells come in various shapes and sizes, each designed for specific applications and environments. Some of the most common types include:

1. Beam Load Cells: These are simple yet effective, often used in platform scales and industrial weighing.

2. S-Type Load Cells: Named for their S-shaped design, these are versatile and can measure both tension and compression forces.

3. Canister Load Cells: Ideal for high-capacity weighing in harsh environments.

4. Button Load Cells: Compact and designed for limited space applications.

5. Hydraulic Load Cells: Use fluid pressure to measure force, excellent for outdoor and rugged environments.

Each type of load cell has its strengths, making them suitable for different scenarios. For instance, beam load cells are excellent for general-purpose weighing, while hydraulic load cells excel in environments where electronic sensors might be at risk.

How Load Cells Revolutionize Weight Measurement

The impact of load cells on weight measurement cannot be overstated. They have brought about several revolutionary changes:

1. Unprecedented Accuracy

Load cells offer a level of accuracy that was previously unattainable. Modern load cells can measure weights with precision down to fractions of a gram, even in industrial scales capable of weighing tons. This accuracy is crucial in industries where even slight variations can have significant consequences, such as in pharmaceutical manufacturing or precious metal trading.

2. Real-Time Monitoring

Unlike traditional mechanical scales, load cells provide instant, continuous measurements. This capability allows for real-time monitoring of weight changes, which is invaluable in process control applications. For example, in food production, load cells can ensure that each package contains exactly the right amount of product, reducing waste and ensuring consistency.

3. Integration with Digital Systems

The electrical output of load cells makes them easily integrable with digital systems and data logging equipment. This integration facilitates automated record-keeping, data analysis, and process optimization. In logistics and inventory management, this means more efficient tracking and forecasting of stock levels.

4. Versatility Across Industries

Load cells have found applications in an incredibly wide range of industries. From weighing vehicles on highways to measuring the thrust of rocket engines, from ensuring the correct dosage in medical infusion pumps to monitoring the structural integrity of buildings, load cells are ubiquitous in modern technology.

5. Enhanced Safety in Critical Applications

In safety-critical applications, such as crane operations or aircraft weight and balance systems, load cells provide reliable and accurate measurements that help prevent accidents and ensure operational safety. Their ability to withstand harsh conditions while maintaining accuracy makes them indispensable in these scenarios.

Load CellS_1

The Inner Workings of a Load Cell

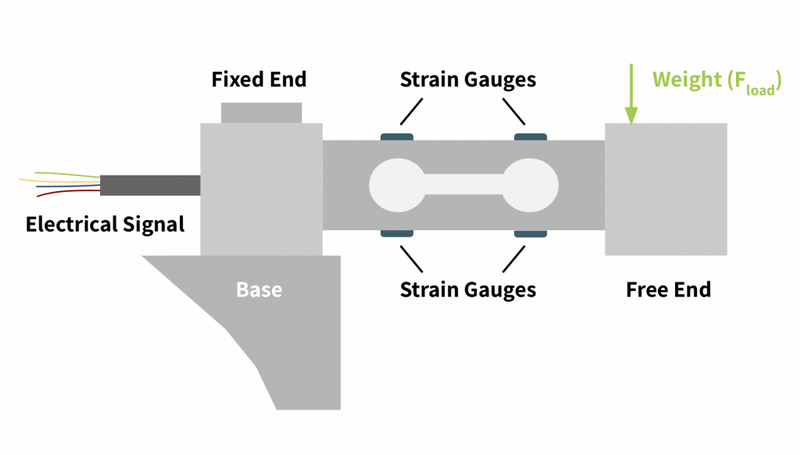

To truly appreciate how load cells revolutionize weight measurement, it's essential to understand their inner workings. Let's delve deeper into the mechanics of a typical strain gauge load cell:

1. The Sensing Element: At the heart of the load cell is the sensing element, usually a piece of high-strength metal carefully designed to flex in a predictable manner when force is applied.

2. Strain Gauges: Attached to the sensing element are strain gauges. These are typically arranged in a Wheatstone bridge configuration, which allows for precise measurement of small changes in resistance.

3. Electrical Output: As force is applied, the strain gauges deform, changing their resistance. This change alters the balance of the Wheatstone bridge, producing a small voltage output.

4. Signal Conditioning: The voltage output is typically very small, often in the range of millivolts. Therefore, it needs to be amplified and conditioned before it can be used.

5. Calibration: Each load cell is carefully calibrated to ensure that its electrical output accurately corresponds to specific weight or force values.

Applications Across Industries

The versatility of load cells has led to their adoption in numerous industries:

Manufacturing and Quality Control

In manufacturing, load cells are used for precise material dispensing, ensuring that products meet exact specifications. They're also crucial in quality control processes, where products are weighed to verify consistency and adherence to standards.

Transportation and Logistics

Truck scales, baggage weighing systems at airports, and shipping container weight verification all rely on load cells. These applications help ensure safety, compliance with regulations, and efficient logistics planning.

Healthcare and Medical Devices

Load cells play a vital role in medical scales, from neonatal care to bariatric applications. They're also used in rehabilitation equipment and force plates for gait analysis, contributing to better patient care and research.

Aerospace and Defense

In these high-stakes industries, load cells are used for structural testing, thrust measurement in engines, and weight and balance systems in aircraft. Their accuracy and reliability are crucial for safety and performance.

Agriculture and Food Processing

From weighing livestock to ensuring precise ingredient measurements in food production, load cells have significantly improved efficiency and consistency in agriculture and food processing industries.

Load CellS

The Future of Load Cell Technology

As technology continues to advance, so do load cells. Some exciting developments include:

1. Wireless Load Cells: Eliminating the need for complex wiring, especially in large-scale or mobile applications.

2. Smart Load Cells: Incorporating advanced diagnostics and self-calibration features for improved reliability and reduced maintenance.

3. Miniaturization: Developing smaller, more sensitive load cells for use in compact devices and wearable technology.

4. Integration with IoT: Connecting load cells to the Internet of Things for enhanced data collection and analysis in industrial settings.

5. Advanced Materials: Exploring new materials to create load cells with even greater accuracy, durability, and temperature stability.

Conclusion

Load cells have undoubtedly revolutionized weight measurement across countless applications. Their ability to provide accurate, real-time data has improved efficiency, safety, and quality control in industries ranging from manufacturing to healthcare. As technology continues to evolve, load cells will likely play an even more significant role in our increasingly data-driven world, continuing to push the boundaries of what's possible in force and weight measurement.

Load CellS_3

Frequently Asked Questions

Q1: What is the main advantage of using load cells over traditional mechanical scales?

A1: The main advantage of load cells is their ability to provide highly accurate, real-time digital measurements that can be easily integrated with other electronic systems. They offer greater precision, faster readings, and the capability for continuous monitoring, which traditional mechanical scales cannot match.

Q2: How do environmental factors affect load cell performance?

A2: Environmental factors such as temperature, humidity, and vibration can affect load cell performance. Temperature changes can cause thermal expansion or contraction of the load cell material, affecting accuracy. Humidity can impact the electrical components, while vibration can introduce noise in the measurements. High-quality load cells are designed to compensate for these factors to maintain accuracy.

Q3: What is the typical lifespan of a load cell?

A3: The lifespan of a load cell can vary greatly depending on its quality, usage, and environmental conditions. With proper use and maintenance, a high-quality load cell can last 10 years or more. However, factors such as overloading, shock loading, or exposure to harsh environments can significantly reduce this lifespan.

Q4: Can load cells measure both tension and compression forces?

A4: Yes, certain types of load cells, such as S-type load cells, are designed to measure both tension and compression forces. However, not all load cells have this capability. The specific design of the load cell determines whether it can measure one or both types of forces.

Q5: How are load cells calibrated, and how often should this be done?

A5: Load cells are typically calibrated by applying known weights and adjusting the output to ensure accuracy across the cell's range. The frequency of calibration depends on factors such as usage, environmental conditions, and industry regulations. In general, it's recommended to calibrate load cells at least annually, but some applications may require more frequent calibration to maintain accuracy and compliance with standards.
