Force transducer load cells represent a cornerstone technology in modern industrial applications, serving as essential components for precise force and weight measurement. These sophisticated devices have revolutionized the way industries monitor, control, and optimize their processes. A force transducer load cell is fundamentally a sensor that converts mechanical force into measurable electrical signals, enabling accurate and reliable force measurements across various applications.
Force transducers operate on the principle of converting mechanical force into electrical signals through strain gauge technology. When force is applied to a load cell, it causes microscopic deformation in the sensor's material, which is detected by strain gauges. These gauges are arranged in a specific pattern, typically in a Wheatstone bridge configuration, to maximize sensitivity and accuracy.
Types of force transducers include:

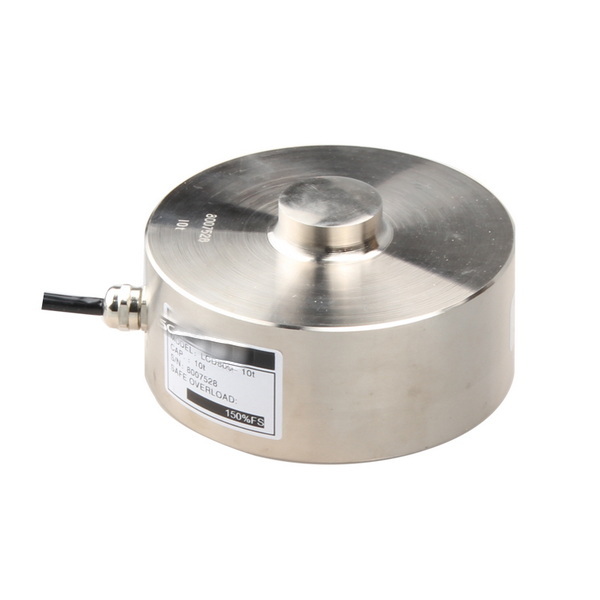

- Compression load cells
- Tension load cells
- Shear beam load cells
- S-type load cells
- Button load cells
Force transducer load cells offer exceptional accuracy in measurement, typically achieving precision levels of 0.03% to 0.25% of full scale. This high level of accuracy is crucial for:
- Quality control processes
- Research and development
- Manufacturing operations
- Material testing
- Safety monitoring systems
The versatility of force transducer load cells is demonstrated through their wide range of applications:
- Industrial weighing systems
- Material testing equipment
- Process control systems
- Aerospace and automotive testing
- Medical equipment
- Research laboratories
Force transducer load cells are designed for long-term reliability and stability:
- Robust construction for industrial environments
- Temperature compensation features
- Resistance to environmental factors
- Long operational lifespan
- Minimal maintenance requirements
In industrial weighing applications, force transducer load cells are essential for:
- Tank and hopper weighing
- Vehicle weighing systems
- Conveyor belt scales
- Platform scales
- Crane scales
Quality control applications benefit from force transducer load cells through:
- Product weight verification
- Assembly force monitoring
- Material strength testing
- Component durability testing
- Packaging integrity verification
Safety applications include:
- Structural health monitoring
- Cable tension monitoring
- Lift and crane safety systems
- Aircraft component testing
- Bridge and building monitoring
Proper calibration is crucial for maintaining accuracy:
- Regular calibration schedules
- Environmental compensation
- Temperature effect minimization
- Drift correction
- Documentation and certification
Force transducer load cells have become indispensable in modern industrial applications, offering unparalleled benefits in terms of accuracy, reliability, and versatility. Their ability to provide precise measurements while maintaining long-term stability makes them essential components in various industrial processes. As technology continues to advance, these devices will play an increasingly important role in ensuring quality, safety, and efficiency across industries.
Most industrial force transducer load cells offer accuracy ranges between 0.03% and 0.25% of full scale, depending on the application and quality of the sensor. High-precision applications may require even tighter tolerances.
Calibration frequency depends on usage and application requirements, but typically:
- Heavy industrial use: Every 3-6 months
- Moderate use: Every 6-12 months
- Light use: Annually
- Critical applications may require more frequent calibration
Key factors include:
- Temperature variations
- Humidity levels
- Mechanical vibration
- Electrical interference
- Physical damage or wear
- Installation alignment
Yes, specially designed force transducer load cells are available for hazardous environments, featuring:
- Explosion-proof housings
- Hermetic sealing
- Chemical-resistant materials
- Intrinsically safe designs
- Special certifications for hazardous areas
With proper maintenance and usage, force transducer load cells can last:
- Industrial applications: 5-10 years
- Laboratory use: 10-15 years
- Factors affecting lifespan include:
- Environmental conditions
- Usage intensity
- Maintenance quality
- Installation quality
