In the world of industrial and commercial weighing applications, load cells play a crucial role in ensuring accurate measurements. Among the various types of load cells available, the planar beam load cell stands out due to its unique design and functionality. This article delves into the key benefits of using a planar beam load cell, exploring its features, applications, and advantages in various settings.

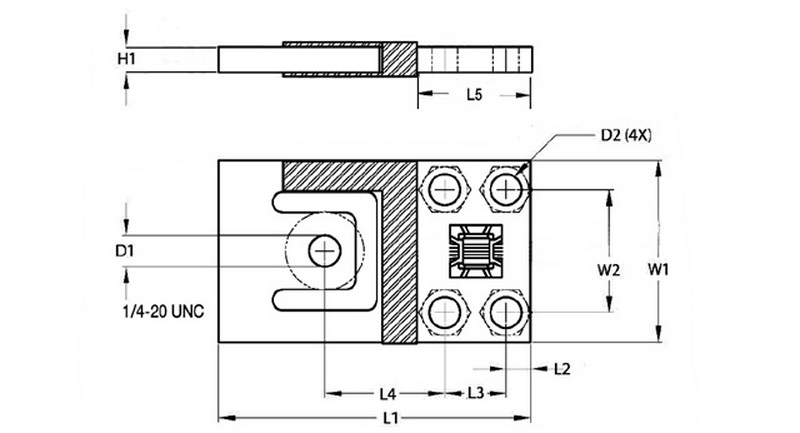

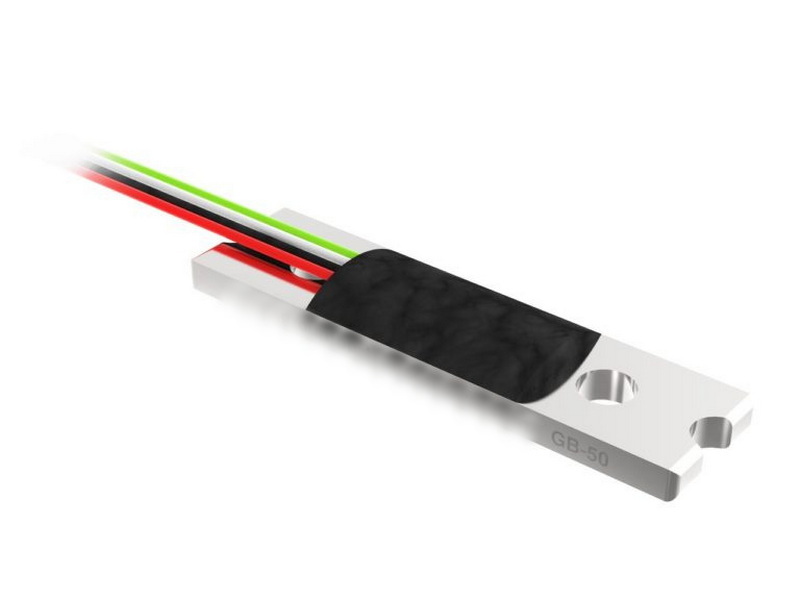

A planar beam load cell is a type of load cell characterized by its flat, beam-like structure. This design allows for a low profile, making it ideal for applications where space is limited. The working principle of a planar beam load cell is based on the strain gauge technology, where the deformation of the beam under load is measured to determine the weight.
Compared to other types of load cells, such as single point and shear beam load cells, planar beam load cells offer distinct advantages. Their low profile design not only saves space but also enhances stability and accuracy in measurements.
One of the most significant advantages of planar beam load cells is their low profile design. This feature is particularly beneficial in environments where height restrictions are a concern. For instance, in medical applications, where scales must fit under hospital beds or in tight spaces, a low profile load cell can be easily integrated without compromising functionality.
The compact nature of planar beam load cells also allows for easier installation and maintenance. Technicians can access and replace these load cells without the need for extensive modifications to existing equipment.
Precision is paramount in weighing applications, and planar beam load cells excel in this area. The design of these load cells minimizes errors caused by external factors, such as vibrations or temperature fluctuations. This high level of accuracy is essential in industries where even the slightest deviation can lead to significant financial losses or safety hazards.
For example, in the pharmaceutical industry, accurate measurements are critical for ensuring the correct dosage of medications. Planar beam load cells provide the reliability needed to maintain strict compliance with industry standards.
Planar beam load cells are incredibly versatile and can be used in a wide range of applications. Their ability to handle various load capacities makes them suitable for both light and heavy-duty weighing tasks.
In the medical field, planar beam load cells are commonly used in scales for weighing patients, ensuring that healthcare providers have accurate data for treatment decisions. In retail, these load cells are integrated into point-of-sale systems, providing accurate weight measurements for products sold by weight.
In industrial settings, planar beam load cells are utilized in conveyor systems, packaging machines, and other equipment where precise weight measurements are essential for quality control and operational efficiency.
Installing a planar beam load cell requires careful attention to detail to ensure optimal performance. Here's a step-by-step guide:
1. Preparation: Before installation, ensure that the area is clean and free from debris. Gather all necessary tools and equipment.
2. Mounting: Securely mount the load cell to a stable surface. Use appropriate fasteners to prevent movement during operation.
3. Wiring: Connect the load cell to the weighing system. Follow the manufacturer's wiring diagram to ensure correct connections.
4. Calibration: After installation, calibrate the load cell to ensure accurate measurements. This process involves applying known weights and adjusting the system to match the readings.
Calibration is a critical step in the installation process. It ensures that the load cell provides accurate readings, which is essential for maintaining quality control in various applications. Regular calibration checks should be performed to account for any changes in the environment or equipment that may affect performance.
Planar beam load cells are utilized in a variety of applications across different industries. Here are some common uses:
In healthcare settings, accurate weight measurements are vital for patient care. Planar beam load cells are used in medical scales to provide precise readings, ensuring that healthcare professionals can make informed decisions regarding treatment and medication dosages.
In retail environments, planar beam load cells are integrated into point-of-sale systems for weighing products sold by weight. Their accuracy and reliability help retailers maintain customer trust and comply with legal requirements for fair trading.
In industrial applications, planar beam load cells are employed in conveyor systems, packaging machines, and other equipment where precise weight measurements are essential. Their ability to handle various load capacities makes them suitable for both light and heavy-duty tasks.
In conclusion, planar beam load cells offer numerous benefits that make them an excellent choice for various weighing applications. Their low profile design, high precision, and versatility make them suitable for use in medical, retail, and industrial settings. By understanding the advantages of planar beam load cells, businesses can make informed decisions about their weighing systems, ultimately leading to improved accuracy and efficiency.
Planar beam load cells have a flat design that allows for low-profile installations, while shear beam load cells are typically bulkier and designed to handle higher loads. Planar beam load cells are often used in applications where space is limited.
Planar beam load cells should be calibrated regularly, typically every six months to a year, depending on the application and usage. Frequent calibration checks are essential to ensure ongoing accuracy.
While planar beam load cells can be used outdoors, it is essential to ensure they are protected from environmental factors such as moisture and extreme temperatures. Using weatherproof enclosures can help maintain their performance.
Planar beam load cells come in various load capacities, ranging from a few grams to several tons. The specific capacity needed will depend on the application and the weight being measured.
Yes, planar beam load cells are relatively easy to install, especially when following the manufacturer's guidelines. Proper mounting and wiring are crucial for optimal performance, and calibration should be performed after installation.
