In the realm of measurement technology, load cells play a pivotal role in ensuring accuracy and reliability across various industries. Among the different types of load cells, the full bridge load cell stands out due to its unique configuration and exceptional performance. This article delves into the intricacies of full bridge load cells, exploring their benefits, applications, and the technology that underpins their functionality.

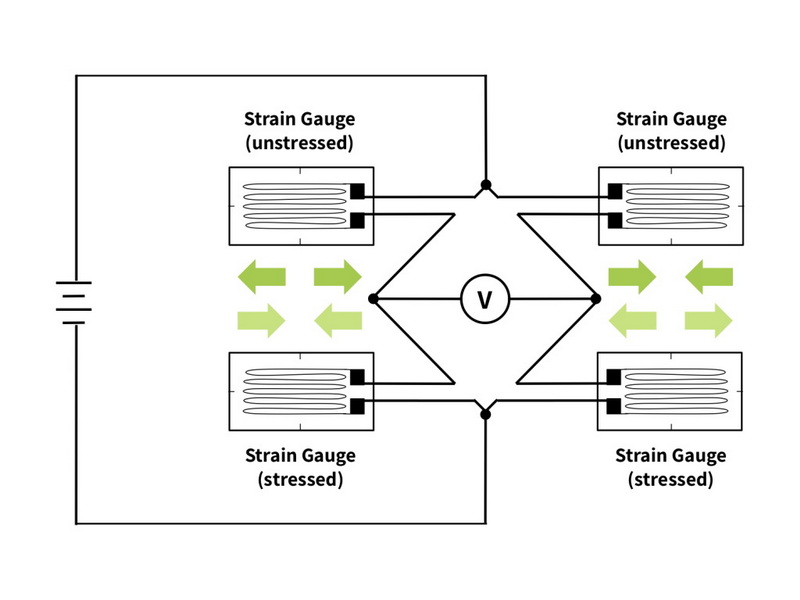

A full bridge load cell consists of four strain gauges arranged in a Wheatstone bridge configuration. This setup allows for the measurement of force or weight with high precision. When a load is applied, the strain gauges experience deformation, leading to a change in electrical resistance. This change is then converted into an electrical signal that corresponds to the applied load.
The full bridge configuration is advantageous compared to half bridge and quarter bridge load cells. In a half bridge load cell, only two strain gauges are used, which can lead to lower sensitivity and accuracy. Quarter bridge load cells utilize a single strain gauge, making them less effective for precise measurements. The full bridge load cell, with its four gauges, provides a balanced and more sensitive measurement system, making it ideal for various industrial applications.
One of the primary advantages of full bridge load cells is their high accuracy and sensitivity. The arrangement of four strain gauges allows for better compensation of temperature variations and mechanical stresses, resulting in more reliable measurements. This accuracy is crucial in industries where precision is paramount, such as aerospace and automotive manufacturing.
Temperature fluctuations can significantly affect the performance of load cells. Full bridge load cells are designed to minimize the impact of temperature changes on measurement accuracy. The symmetrical arrangement of the strain gauges helps to balance out temperature-induced errors, ensuring that the load cell maintains its accuracy across a wide range of operating conditions.
Full bridge load cells are incredibly versatile and can be used in various applications across multiple industries. They are commonly employed in:
- Automotive Testing: Measuring forces during crash tests and component testing.
- Aerospace: Monitoring loads in aircraft structures and components.
- Manufacturing: Weighing materials and products on production lines.
- Medical Devices: Ensuring accurate measurements in scales and diagnostic equipment.
The adaptability of full bridge load cells makes them a preferred choice for engineers and manufacturers seeking reliable measurement solutions.
Calibration is a critical process for ensuring the accuracy of load cells. For full bridge load cells, calibration involves applying known weights and adjusting the output signal to match the expected values. This process typically includes the following steps:
1. Preparation: Ensure the load cell is properly installed and connected to the measurement system.
2. Zeroing: Remove any load and set the output signal to zero.
3. Applying Weights: Gradually apply known weights and record the output signal for each weight.
4. Adjusting Output: Use the recorded data to adjust the output signal, ensuring it aligns with the known weights.
Regular calibration is essential to maintain the accuracy of full bridge load cells, especially in critical applications where precision is non-negotiable.
Proper installation and maintenance of full bridge load cells are vital for optimal performance. Here are some best practices:
- Installation: Ensure that the load cell is mounted securely and aligned correctly to avoid misalignment errors. Use appropriate mounting hardware to prevent movement during operation.
- Environmental Considerations: Protect the load cell from environmental factors such as moisture, dust, and extreme temperatures. Enclosures or protective covers can help extend the lifespan of the load cell.
- Regular Inspections: Conduct routine inspections to check for signs of wear or damage. Look for any changes in performance that may indicate the need for recalibration or replacement.
By following these guidelines, users can ensure that their full bridge load cells operate effectively and provide accurate measurements over time.
As technology continues to evolve, so does the design and functionality of load cells. Some emerging trends include:
- Digital Load Cells: The integration of digital technology allows for enhanced signal processing and communication capabilities. Digital load cells can provide real-time data and diagnostics, improving overall system performance.
- Wireless Load Cells: Wireless technology is becoming increasingly popular, allowing for easier installation and reduced cabling costs. Wireless load cells can transmit data to remote monitoring systems, enhancing flexibility in various applications.
- Smart Load Cells: The development of smart load cells equipped with sensors and IoT capabilities enables predictive maintenance and advanced analytics. These innovations can help industries optimize their operations and reduce downtime.
The future of load cell technology looks promising, with advancements that will further enhance accuracy, reliability, and ease of use.
Full bridge load cells are an essential component in the field of measurement technology, offering unparalleled accuracy, temperature compensation, and versatility across various applications. Their unique configuration and advanced features make them a preferred choice for industries that demand precision and reliability. As technology continues to advance, full bridge load cells will likely evolve, incorporating new innovations that enhance their performance and usability.
Full bridge load cells use four strain gauges for measurement, providing higher accuracy and sensitivity, while half bridge load cells use only two, resulting in lower performance.
Load cells should be calibrated regularly, typically every six months to a year, or more frequently if used in critical applications where precision is essential.
Yes, full bridge load cells can be designed to withstand harsh environments by using protective enclosures and materials that resist moisture, dust, and extreme temperatures.
Full bridge load cells are widely used in automotive, aerospace, manufacturing, and medical industries, among others, for their accuracy and reliability in measuring force and weight.
When selecting a load cell, consider factors such as the required accuracy, load capacity, environmental conditions, and the specific application to ensure optimal performance.
