In the realm of industrial applications, precision and reliability are paramount. Load cells play a crucial role in ensuring accurate measurements of weight and force, which are essential for various processes. Among the different types of load cells available, the S-Beam load cell stands out due to its unique design and versatility. This article delves into the key benefits of using S-Beam load cells in industrial applications, exploring their functionality, advantages, and practical uses.

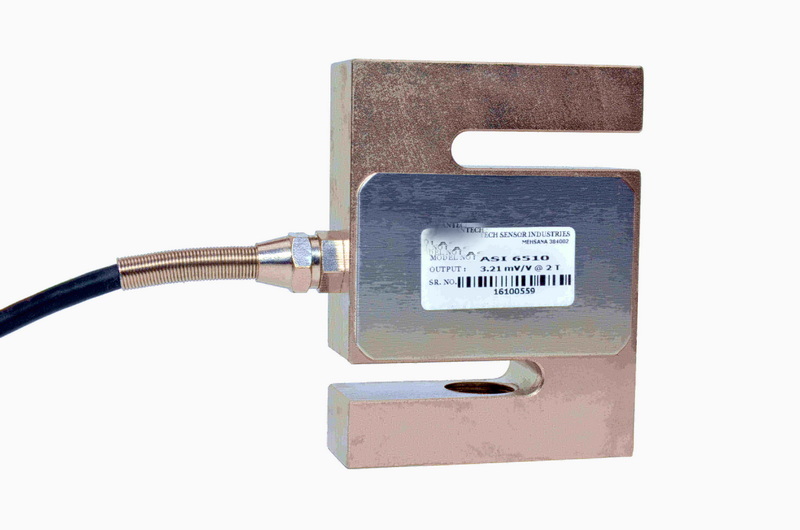

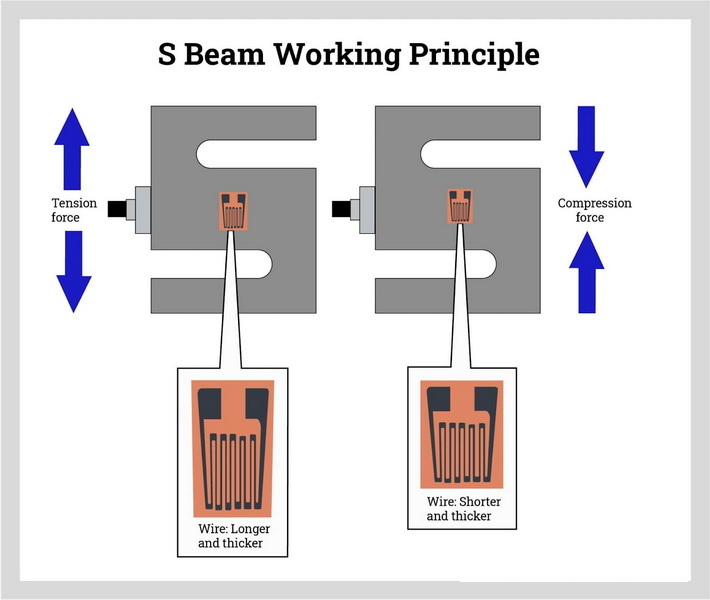

S-Beam load cells, also known as S-type load cells, are designed to measure both tension and compression forces. Their distinctive S-shaped design allows them to provide accurate readings in a compact form factor. The working principle of an S-Beam load cell is based on the strain gauge technology, where the deformation of the load cell under applied force generates an electrical signal proportional to the weight being measured.
The S-Beam load cell is often compared to other types of load cells, such as shear beam and compression load cells. While shear beam load cells are typically used for platform scales, and compression load cells are ideal for measuring static loads, S-Beam load cells offer the flexibility to handle both tension and compression, making them suitable for a wider range of applications.
One of the primary advantages of S-Beam load cells is their high accuracy. These load cells are designed to provide precise measurements, which is critical in applications where even the slightest deviation can lead to significant errors. The use of high-quality materials and advanced manufacturing techniques ensures that S-Beam load cells maintain their accuracy over time, making them a reliable choice for industries that require consistent performance.
S-Beam load cells are incredibly versatile, making them suitable for a wide range of industrial applications. They can be used in various settings, including manufacturing, logistics, and medical fields. For instance, in manufacturing, S-Beam load cells can be employed to monitor the weight of raw materials, ensuring that production processes are efficient and cost-effective. In logistics, they can be used to weigh packages accurately, facilitating better inventory management.
The compact design of S-Beam load cells is another significant benefit. Their small size allows for easy installation in tight spaces, making them ideal for applications where space is limited. This feature is particularly advantageous in automated systems, where load cells need to be integrated seamlessly into existing machinery without requiring extensive modifications.
S-Beam load cells are utilized in various applications, showcasing their adaptability and effectiveness. Here are some common uses:
S-Beam load cells excel in measuring both tension and compression forces. This dual capability makes them ideal for applications such as weighing suspended loads, where the load cell is subjected to tension, and for measuring the weight of items placed directly on the load cell, where compression is involved.
In industries such as food and beverage, chemicals, and pharmaceuticals, S-Beam load cells are often used for tank weighing. By placing the load cell under a storage tank, operators can accurately monitor the weight of the contents, ensuring that inventory levels are maintained and preventing overfilling or underfilling.
S-Beam load cells are commonly used in applications involving suspended loads, such as cranes and hoists. By integrating S-Beam load cells into these systems, operators can monitor the weight of the load being lifted, ensuring safety and preventing overload situations.
Installing S-Beam load cells requires careful attention to detail to ensure accurate measurements. Here's a step-by-step guide:
1. Select the Appropriate Load Cell: Choose an S-Beam load cell that meets the required specifications for your application, including capacity and accuracy.
2. Prepare the Installation Site: Ensure that the installation area is clean and free from debris. The surface should be level to prevent any misalignment.
3. Mount the Load Cell: Secure the load cell in place using appropriate mounting hardware. Ensure that it is aligned correctly to avoid any lateral forces that could affect accuracy.
4. Connect the Wiring: Follow the manufacturer's instructions to connect the load cell to the signal conditioning equipment. Proper wiring is crucial for accurate signal transmission.
5. Calibrate the Load Cell: Calibration is essential to ensure that the load cell provides accurate readings. This process involves applying known weights to the load cell and adjusting the output signal accordingly.
Calibration is a critical step in the installation process. It ensures that the load cell provides accurate measurements by comparing its output to known standards. Regular calibration is necessary to maintain accuracy over time, especially in environments where the load cell may be subjected to varying conditions.
To ensure the longevity and reliability of S-Beam load cells, regular maintenance is essential. Here are some tips:
- Regular Inspections: Periodically inspect the load cell for any signs of wear or damage. Look for cracks, corrosion, or loose connections that could affect performance.
- Keep It Clean: Ensure that the load cell is kept clean and free from contaminants. Dirt and debris can interfere with the load cell's operation and lead to inaccurate readings.
- Avoid Overloading: Always adhere to the specified load capacity of the S-Beam load cell. Overloading can cause permanent damage and affect accuracy.
Despite their reliability, S-Beam load cells may encounter issues from time to time. Here are some common problems and troubleshooting tips:
- Inconsistent Readings: If the load cell provides inconsistent readings, check for loose connections or misalignment. Ensure that the load cell is properly mounted and calibrated.
- No Output Signal: If there is no output signal, verify the wiring connections and ensure that the load cell is powered correctly.
- Drift in Measurements: If measurements drift over time, recalibrate the load cell and check for any environmental factors that may be affecting its performance.
S-Beam load cells offer numerous benefits that make them an excellent choice for various industrial applications. Their high accuracy, versatility, and compact design enable them to perform effectively in diverse settings, from manufacturing to logistics. By understanding their functionality and proper installation and maintenance practices, industries can leverage the advantages of S-Beam load cells to enhance their operations.
As technology continues to evolve, the role of load cells in industrial applications will only become more significant. Embracing advancements in load cell technology will ensure that industries remain competitive and efficient in their processes.
S-Beam load cells can measure both tension and compression, making them more versatile than other types, such as shear beam or compression load cells, which are typically limited to one type of measurement.
When selecting an S-Beam load cell, consider factors such as the required load capacity, accuracy, environmental conditions, and installation space to ensure optimal performance.
S-Beam load cells should be calibrated regularly, typically every six months to a year, or more frequently if they are used in critical applications or subjected to harsh conditions.
Yes, S-Beam load cells can be used outdoors, but it is essential to choose models that are weatherproof or have protective coatings to prevent damage from environmental factors.
Common applications include tank weighing, suspended load measurements, and use in manufacturing processes where accurate weight measurements are critical.
