Load cells are essential components in various measurement systems, widely used in industries such as manufacturing, automotive, and aerospace. They convert force or weight into an electrical signal, allowing for precise measurements. Proper wiring and connection of load cells are crucial for ensuring accurate readings and optimal performance. This article will explore the key steps involved in load cell wiring, the types of load cells available, and common mistakes to avoid during installation.
Load cells come in various types, each designed for specific applications. The most common types include:
- Strain Gauge Load Cells: These are the most widely used load cells, utilizing strain gauges to measure deformation under load. They are known for their accuracy and reliability.
- Hydraulic Load Cells: These load cells use hydraulic fluid to measure weight. They are often used in heavy-duty applications, such as weighing trucks and containers.
- Pneumatic Load Cells: Utilizing air pressure, pneumatic load cells are suitable for applications requiring high sensitivity and low weight.
- Single Point Load Cells: Ideal for small scales, these load cells can measure loads applied at a single point, making them perfect for platform scales.
- Multi-Point Load Cells: These are used in applications where loads are distributed across multiple points, such as in large tanks or silos.
Understanding the type of load cell you are working with is essential for proper wiring and connection.
When wiring a load cell, several essential components must be considered:
- Excitation Wires: These wires provide power to the load cell. They are typically color-coded, with red and black being the most common colors.
- Signal Wires: These wires carry the output signal from the load cell to the measurement device. They are usually green and white.
- Shielding: Proper shielding is crucial to protect the signal wires from electromagnetic interference, which can affect accuracy.
- Connectors: Depending on the application, various connectors may be used to connect the load cell to the measurement system.
Understanding these components will help ensure a successful wiring process.
Wiring a load cell correctly is vital for accurate measurements. Here's a step-by-step guide to help you through the process:
1. Gather Necessary Tools and Materials: Before starting, ensure you have all the necessary tools, including wire strippers, soldering iron, connectors, and a multimeter.

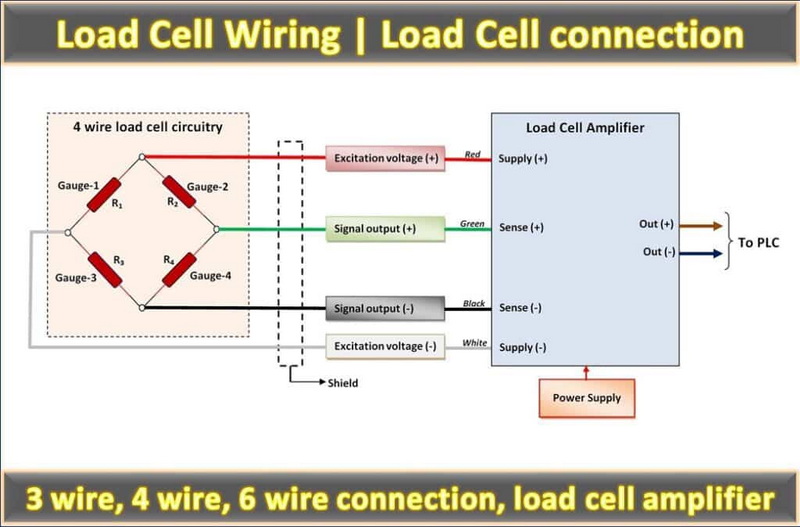

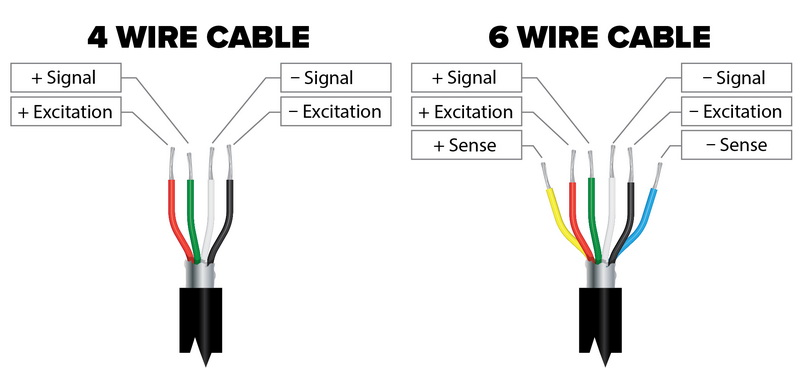

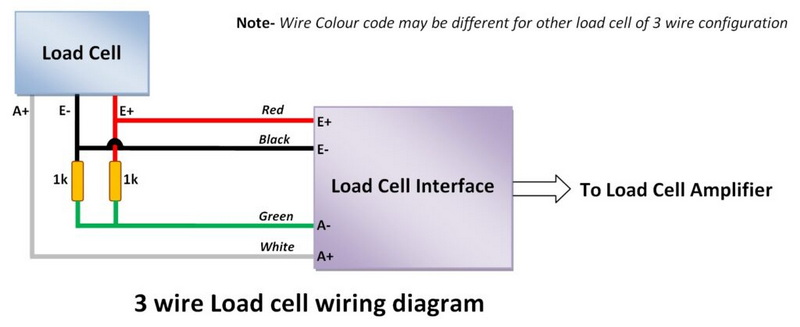

2. Identify the Load Cell Wires: Most load cells come with four or six wires. For a four-wire load cell, you will typically find two excitation wires (red and black) and two signal wires (green and white). For a six-wire load cell, there will be additional sense wires.
3. Prepare the Wires: Strip the ends of the wires to expose the copper. Be careful not to damage the wire strands.
4. Connect the Wires:
- For a four-wire load cell, connect the red wire to the positive excitation terminal of the amplifier and the black wire to the negative excitation terminal.
- Connect the green wire to the positive signal terminal and the white wire to the negative signal terminal.

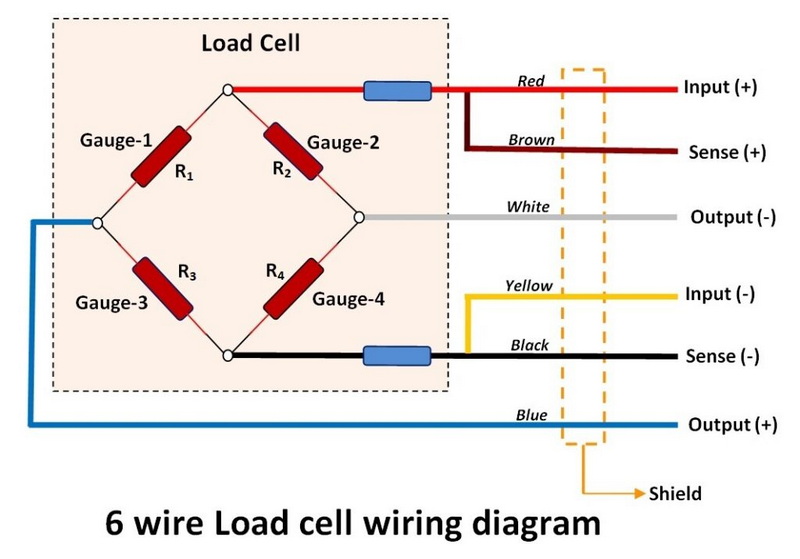

- For a six-wire load cell, connect the sense wires (usually yellow and blue) to the corresponding sense terminals on the amplifier.
5. Secure the Connections: Use solder or connectors to secure the connections. Ensure that there are no loose wires, as this can lead to inaccurate readings.
6. Test the Connections: Before finalizing the installation, use a multimeter to test the connections. Check for continuity and ensure that the resistance values are within the expected range.
7. Calibrate the Load Cell: After wiring, calibrate the load cell to ensure accurate measurements. Follow the manufacturer's instructions for calibration procedures.
8. Install the Load Cell: Once calibrated, install the load cell in its designated location, ensuring it is properly aligned and secured.
Even experienced technicians can make mistakes when wiring load cells. Here are some common errors to avoid:
- Incorrect Wire Connections: Double-check that each wire is connected to the correct terminal. Misconnections can lead to inaccurate readings or damage to the load cell.
- Neglecting Shielding: Failing to properly shield the signal wires can result in interference, affecting the accuracy of measurements.
- Using Incompatible Components: Ensure that the load cell and amplifier are compatible. Using mismatched components can lead to performance issues.
- Not Testing Connections: Always test the connections before finalizing the installation. This step can save time and prevent future problems.
- Skipping Calibration: Calibration is essential for accurate measurements. Never skip this step after installation.
Testing and calibration are critical steps in ensuring the accuracy of load cells. Here's how to perform these tasks:
1. Initial Testing: After wiring, perform an initial test using a multimeter to check for continuity and resistance values. Ensure that the readings match the specifications provided by the manufacturer.
2. Load Testing: Apply known weights to the load cell and record the output signal. Compare the output with the expected values to determine accuracy.
3. Calibration Procedure: Follow the manufacturer's calibration procedure, which typically involves adjusting the output signal to match known weights. This process may require specialized equipment, such as a calibration weight set.
4. Re-testing: After calibration, re-test the load cell with known weights to ensure that it provides accurate readings.
5. Documentation: Keep a record of the calibration results and any adjustments made. This documentation is essential for quality control and future reference.
Despite careful installation, issues may arise with load cell wiring. Here are some common problems and solutions:
- No Output Signal: If the load cell is not providing an output signal, check all connections for continuity. Ensure that the excitation voltage is present.
- Inconsistent Readings: Fluctuating readings may indicate interference or poor connections. Check the shielding and ensure that all connections are secure.
- Overloading: If the load cell is overloaded, it may provide inaccurate readings or become damaged. Ensure that the load cell is rated for the expected load.
- Temperature Effects: Load cells can be affected by temperature changes. If readings vary with temperature, consider using temperature compensation techniques.
- Mechanical Issues: Ensure that the load cell is properly mounted and aligned. Mechanical misalignment can lead to inaccurate measurements.
Proper wiring and connection of load cells are essential for accurate measurements in various applications. By understanding the types of load cells, essential components, and following a step-by-step wiring guide, you can ensure optimal performance. Avoiding common mistakes and performing thorough testing and calibration will further enhance the reliability of your load cell system.
In summary, take the time to understand the wiring process, test your connections, and calibrate your load cells to achieve the best results.
A 4-wire load cell has two excitation wires and two signal wires, while a 6-wire load cell includes additional sense wires for improved accuracy. The sense wires help compensate for any resistance in the excitation wires, leading to more precise measurements.
To determine if your load cell is properly calibrated, apply known weights and compare the output signal to the expected values. If the readings match, the load cell is calibrated correctly.
Essential tools for load cell wiring include wire strippers, a soldering iron, connectors, and a multimeter for testing connections.
No, it is crucial to use an amplifier that is compatible with your specific load cell type. Mismatched components can lead to performance issues and inaccurate readings.
If your load cell readings are inconsistent, check for loose connections, ensure proper shielding, and verify that the load cell is not overloaded. Additionally, consider environmental factors such as temperature that may affect readings.
