A load cell is a transducer that converts a force into an electrical signal. This signal can then be measured and displayed as weight. Load cells are widely used in scales, industrial weighing systems, and various applications where precise weight measurement is necessary. The technology behind load cells has evolved significantly, leading to the development of various types, including strain gauge load cells, hydraulic load cells, and pneumatic load cells.
1. Strain Gauge Load Cells: These are the most common type of load cells. They use strain gauges to measure the deformation of a material when a load is applied. The change in resistance of the strain gauge is proportional to the force applied, allowing for accurate weight measurement.
2. Hydraulic Load Cells: These load cells use hydraulic fluid to measure weight. When a load is applied, the fluid pressure changes, which can be measured to determine the weight. Hydraulic load cells are often used in heavy-duty applications.
3. Pneumatic Load Cells: Similar to hydraulic load cells, pneumatic load cells use air pressure to measure weight. They are less common but can be useful in specific applications where hydraulic systems are not suitable.

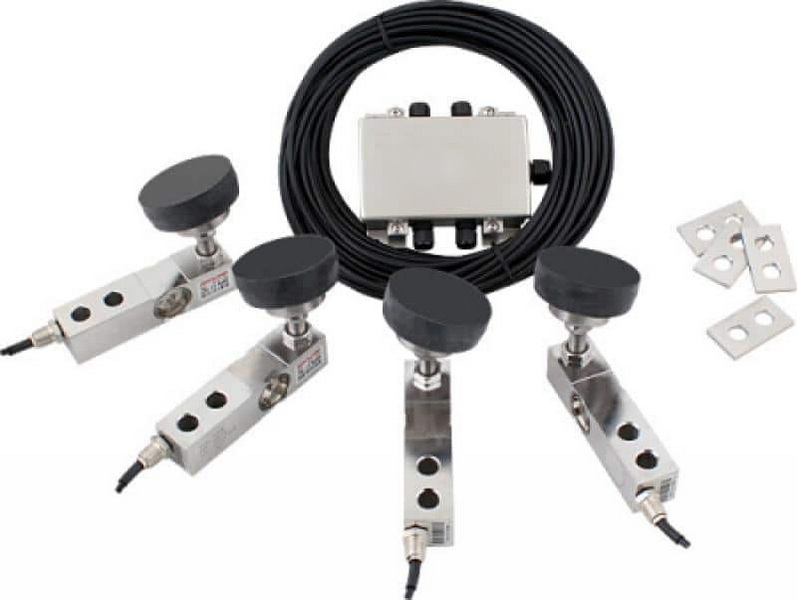

Load cell kits typically include several essential components that work together to provide accurate weight measurements. Here are the primary components found in most load cell kits:
The load cell is the heart of the weighing system. It is responsible for converting the applied force into an electrical signal. Load cells come in various shapes and sizes, depending on the application. They can be single-point load cells, which are ideal for platform scales, or multi-point load cells, which are used in applications requiring higher accuracy.
The junction box is a critical component that connects multiple load cells in a system. It serves as a central point for wiring and signal processing. The junction box combines the signals from the load cells and sends them to the weighing indicator. It also helps in balancing the load cells to ensure accurate measurements.
Mounting hardware includes brackets, feet, and other components necessary for securely attaching load cells to structures. Proper mounting is crucial for accurate measurements, as any movement or misalignment can lead to errors. The mounting hardware must be robust enough to withstand the forces applied during operation.
Cables are used to connect the load cells to the junction box and the weighing indicator. The quality of the cables is essential for maintaining signal integrity. Shielded cables are often used to reduce interference from external sources, ensuring that the signals transmitted are accurate and reliable.
The weighing indicator is the device that displays the weight measurement. It receives the electrical signal from the junction box and converts it into a readable format. Weighing indicators can vary in complexity, from simple digital displays to advanced systems with data logging and connectivity features.
A power supply is necessary to provide the required voltage to the load cells and the weighing indicator. Depending on the system, this could be a simple battery or a more complex power supply unit. Ensuring a stable power supply is crucial for the accurate operation of the weighing system.
Calibration weights are used to ensure the accuracy of the load cell system. Regular calibration is essential to maintain precision, especially in industrial applications where even small errors can lead to significant issues. Calibration weights are standardized weights that allow for easy adjustment of the system.

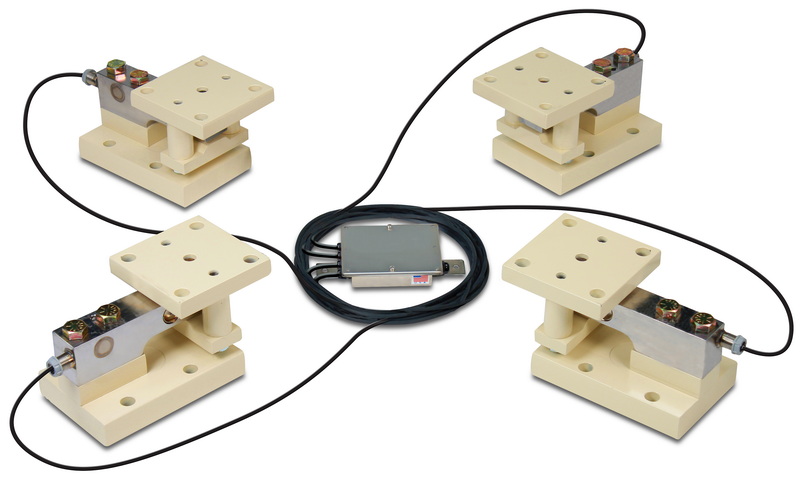

The components of a load cell kit work in harmony to provide accurate weight measurements. When a load is applied to the load cell, it deforms slightly, causing a change in resistance in the strain gauges. This change is converted into an electrical signal, which is sent to the junction box. The junction box processes the signals from all connected load cells and sends a combined signal to the weighing indicator. The indicator then displays the weight measurement, allowing users to monitor and record data as needed.
Proper installation and setup of load cell kits are crucial for achieving accurate measurements. Here are some key steps to consider during installation:
1. Select the Right Load Cells: Choose load cells that are appropriate for the application, considering factors such as capacity, accuracy, and environmental conditions.
2. Mounting: Ensure that the load cells are mounted securely and aligned correctly. Use the appropriate mounting hardware to prevent movement during operation.
3. Wiring: Connect the load cells to the junction box using high-quality cables. Ensure that the connections are secure and that the cables are shielded to reduce interference.
4. Calibration: After installation, calibrate the system using standardized calibration weights. This step is essential for ensuring accuracy.
5. Testing: Conduct tests to verify that the system is functioning correctly. Check for any discrepancies in measurements and make adjustments as necessary.
Load cell kits are used in a wide range of applications, including:
- Industrial Weighing: Used in manufacturing and production lines to monitor material usage and ensure quality control.
- Logistics and Shipping: Essential for weighing packages and containers to ensure compliance with shipping regulations.
- Laboratory Research: Used in scientific research to measure forces and weights accurately.
- Food Industry: Critical for portion control and ensuring compliance with health regulations.
- Automotive Testing: Load cells are used in crash testing and vehicle weight measurement to ensure safety and compliance with regulations.
Load cell kits offer several advantages that make them a preferred choice in various applications:
1. Accuracy: Load cells provide precise measurements, which are crucial for quality control and compliance in many industries.
2. Durability: Many load cells are designed to withstand harsh environments, making them suitable for industrial applications.
3. Versatility: Load cell kits can be used in a wide range of applications, from small laboratory scales to large industrial weighing systems.
4. Ease of Use: Once installed and calibrated, load cell systems are straightforward to operate, allowing for quick and efficient weight measurements.
5. Cost-Effectiveness: While the initial investment may be significant, the long-term savings from improved accuracy and reduced waste can outweigh the costs.
Load cell kits are vital components in various industries, providing accurate weight measurements essential for operational efficiency and compliance. Understanding the components of load cell kits, including load cells, junction boxes, mounting hardware, cables, weighing indicators, power supplies, and calibration weights, is crucial for anyone involved in weighing systems. Proper installation, calibration, and maintenance of these components ensure that the weighing systems function accurately and reliably.
