A load cell is a transducer that converts a force into an electrical signal. The most common type of load cell is the strain gauge load cell, which uses the principle of strain gauges to measure deformation. When a load is applied, the strain gauge deforms, changing its electrical resistance. This change is measured and converted into a weight reading.

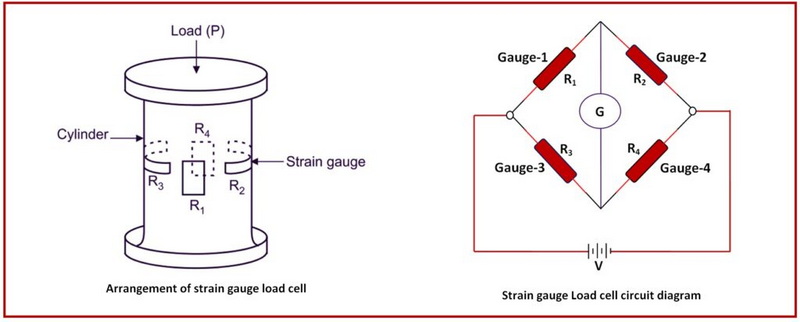

Load cells operate based on the principle of converting mechanical energy (force) into electrical energy. When a load is applied to the load cell, it deforms slightly. This deformation changes the resistance of the strain gauges attached to the load cell. The change in resistance is proportional to the amount of force applied, allowing for accurate weight measurements.

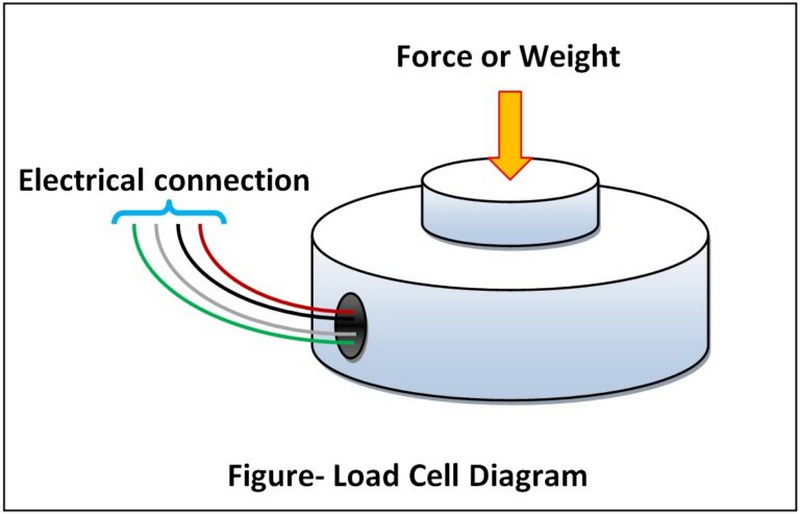

Load cells typically have four wires: two for the excitation voltage and two for the output signal. The connections can be summarized as follows:
1. Excitation Wires: These wires provide the necessary voltage to the load cell. They are usually connected to a power supply or a signal conditioner.
2. Signal Wires: These wires carry the output signal from the load cell to a display or data acquisition system.

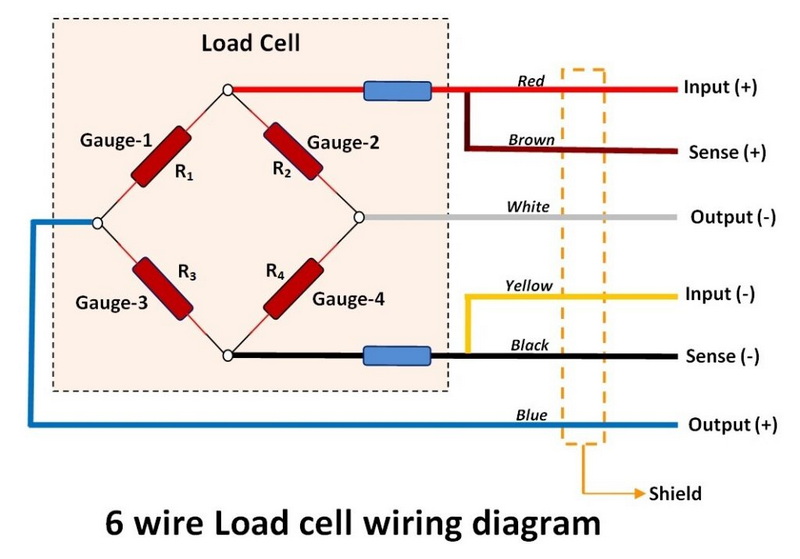

The wiring configuration of a load cell can vary depending on the type and manufacturer. However, the most common configurations are:
- Quarter Bridge: This configuration uses one strain gauge and is suitable for small-scale applications.
- Half Bridge: This configuration uses two strain gauges and is often used for larger loads.
- Full Bridge: This configuration uses four strain gauges and provides the most accurate measurements, making it ideal for industrial applications.

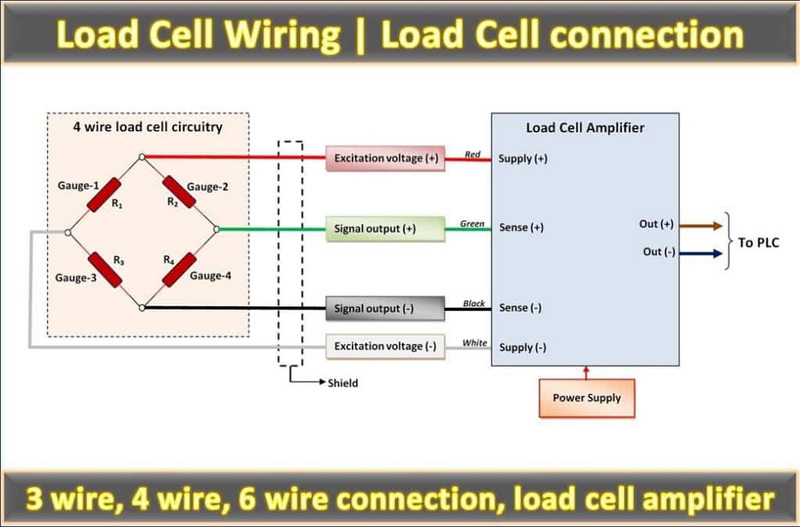

A signal conditioner is an essential component in the load cell system. It amplifies the small electrical signal generated by the load cell and converts it into a more usable form. The connection to a signal conditioner typically involves:
1. Power Supply Connection: The excitation wires from the load cell are connected to the power supply terminals of the signal conditioner.
2. Signal Output Connection: The output wires from the load cell are connected to the input terminals of the signal conditioner.
Once the signal has been conditioned, it can be sent to a display or data acquisition system for monitoring and analysis. This connection usually involves:
1. Output from Signal Conditioner: The conditioned signal is sent to the display unit or data logger.
2. Calibration: The system may require calibration to ensure accurate readings.
These are the most common type of load cells, utilizing strain gauges to measure deformation. They are widely used in industrial applications due to their accuracy and reliability. Strain gauge load cells can be found in various forms, including single-point, bending beam, and shear beam configurations, each suited for different applications.
Hydraulic load cells use fluid pressure to measure weight. They are often used in heavy-duty applications, such as weighing trucks and large containers. The hydraulic principle allows for high capacity and durability, making them ideal for environments where electronic load cells might fail due to harsh conditions.
Pneumatic load cells operate on the principle of air pressure. They are less common but are used in specific applications where electrical connections are impractical. These load cells are often found in environments where electrical sparks could pose a risk, such as in explosive atmospheres.
S-type load cells are designed for tension and compression applications. They are versatile and can be used in various settings, from laboratory scales to industrial weighing systems. Their design allows for easy integration into existing systems, making them a popular choice for many engineers.
Load cells are used in a wide range of applications, including:
- Industrial Weighing: Used in manufacturing and production lines to ensure accurate weight measurements. Load cells help maintain quality control by ensuring that products meet specified weight requirements.
- Medical Equipment: Employed in hospital beds and scales for patient monitoring. Load cells in medical devices ensure that patients are weighed accurately, which is crucial for medication dosing and health assessments.
- Aerospace: Used in testing and measuring forces in aircraft components. Load cells help engineers test the structural integrity of aircraft parts under various loads.
- Automotive: Utilized in crash testing and vehicle weight measurement. Load cells provide critical data that helps improve vehicle safety and performance.
Before installing a load cell, it is essential to:
1. Select the Right Load Cell: Choose a load cell that meets the specific requirements of your application. Consider factors such as load capacity, environmental conditions, and the type of measurement required.
2. Prepare the Mounting Surface: Ensure that the surface where the load cell will be mounted is clean and level. Proper mounting is crucial for accurate measurements.
1. Secure the Load Cell: Use appropriate mounting hardware to secure the load cell in place. Ensure that the load cell is aligned correctly to avoid measurement errors.
2. Connect the Wires: Follow the wiring configuration to connect the load cell to the signal conditioner and power supply. Double-check all connections to ensure they are secure.
After installation, the load cell must be calibrated to ensure accurate measurements. This process involves:
1. Applying Known Weights: Place known weights on the load cell and record the output. This step helps establish a baseline for the load cell's performance.
2. Adjusting the System: Adjust the signal conditioner settings to match the known weights. Calibration ensures that the load cell provides accurate readings under various conditions.
1. Inaccurate Readings: This can be caused by improper calibration or electrical noise. Regular maintenance and calibration can help mitigate this issue.
2. Signal Loss: Check all connections to ensure they are secure and free from damage. Loose or damaged wires can lead to signal loss and inaccurate measurements.
3. Drift in Readings: This may indicate a need for recalibration or a faulty load cell. Environmental factors such as temperature changes can also affect readings.
- Regular Calibration: Schedule regular calibration to maintain accuracy. This practice is essential for applications requiring high precision.
- Check Connections: Regularly inspect electrical connections for wear and tear. Replace any damaged components promptly to avoid system failures.
- Use Shielded Cables: To reduce electrical noise, use shielded cables for connections. This can significantly improve the reliability of the signal transmitted from the load cell.
Load cells are vital components in various industries, providing accurate weight measurements through electrical connections. Understanding how to connect load cells electrically is crucial for ensuring their proper functioning. By following the guidelines outlined in this article, you can effectively install and maintain load cells in your applications.
A load cell measures weight or force and converts it into an electrical signal.
Consider factors such as load capacity, accuracy, and environmental conditions.
Strain gauge load cells measure deformation, while hydraulic load cells use fluid pressure to measure weight.
Load cells should be calibrated regularly, typically every six months to a year, depending on usage.
Load cells are used in industrial weighing, medical equipment, aerospace testing, and automotive applications.
