Setting up a testing machine is a critical step in ensuring accurate and reliable results in material testing. Whether you are conducting tensile tests, compression tests, or other mechanical tests, the proper setup of your testing machine is essential. This guide will walk you through the key components, setup procedures, and best practices for configuring a testing machine effectively.

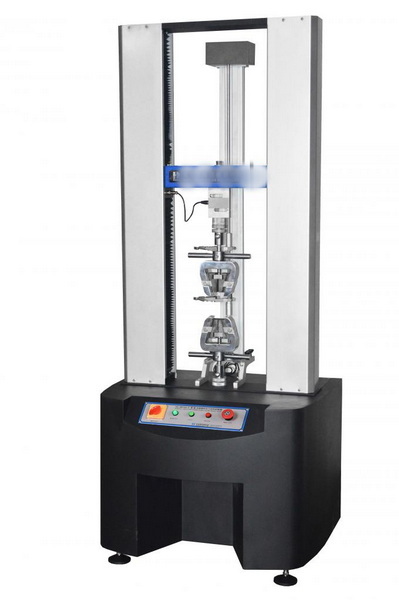

Before diving into the setup process, it's important to understand the main components of a testing machine:
1. Load Cell: The load cell is the heart of the testing machine, responsible for measuring the force applied to the specimen. It converts mechanical force into an electrical signal.
2. Crosshead: The crosshead is the moving part of the testing machine that applies the load to the specimen. It can move up or down, depending on whether the test is tensile or compressive.
3. Grips and Fixtures: These are used to hold the specimen securely in place during testing. The choice of grips depends on the type of material being tested.
4. Control System: This includes the software and hardware used to control the testing machine, monitor the test, and record data.
5. Data Acquisition System: This system collects and processes data from the load cell and other sensors during the test.
6. Specimen: The material sample being tested, which can vary in size, shape, and material type.
- Clean the Area: Ensure that the testing area is clean and free of any obstructions. This helps prevent accidents and ensures accurate measurements.
- Check Power Supply: Make sure the testing machine is connected to a stable power supply and that all safety protocols are in place.
- Mount the Load Cell: Securely attach the load cell to the testing machine according to the manufacturer's instructions. Ensure that it is aligned properly to avoid measurement errors.
- Connect Wiring: Connect the load cell to the data acquisition system, ensuring that all connections are secure and correctly configured.
- Position the Crosshead: Adjust the crosshead to the appropriate starting position for the test. This may vary depending on the type of test being conducted.
- Check Movement: Test the movement of the crosshead to ensure it operates smoothly and without obstruction.
- Select Appropriate Grips: Choose grips that are suitable for the material and type of test. For example, use wedge grips for metals and pneumatic grips for softer materials.
- Secure the Specimen: Place the specimen in the grips and ensure it is held securely. Check for any misalignment that could affect the test results.
- Load Testing Software: Install and configure the testing software on your computer. This software will control the testing machine and record data.
- Set Test Parameters: Input the necessary parameters for the test, including load rate, displacement rate, and any specific test protocols.
- Calibrate the Load Cell: Before starting the test, calibrate the load cell to ensure accurate measurements. Follow the manufacturer's calibration procedure, which may involve applying known weights and adjusting the system accordingly.
- Verify Calibration: After calibration, verify that the load cell is functioning correctly by conducting a preliminary test with a known load.
- Perform a Test Run: Conduct a test run with a sample specimen to ensure that the machine is set up correctly and that all components are functioning as expected.
- Monitor Data: During the test run, monitor the data being collected to check for any anomalies or issues.
- Begin Testing: Once everything is set up and verified, start the actual test. Monitor the test closely to ensure that the machine operates smoothly and that data is being recorded accurately.
- Stop the Test: After reaching the desired load or when the specimen fails, stop the test and record the final data.
1. Regular Maintenance: Perform regular maintenance on the testing machine to ensure it remains in good working condition. This includes checking for wear and tear on components and recalibrating as needed.
2. Training: Ensure that all operators are trained in the proper use of the testing machine and understand the importance of setup procedures.
3. Documentation: Keep detailed records of all tests conducted, including setup parameters, calibration data, and test results. This documentation is essential for quality control and future reference.
4. Safety Protocols: Always follow safety protocols when operating testing machines. This includes wearing appropriate personal protective equipment (PPE) and ensuring that the testing area is secure.
5. Environmental Control: Maintain a controlled environment for testing, as temperature and humidity can affect material properties and test results.
Proper specimen preparation is crucial for obtaining reliable test results. This includes cutting the material to the correct dimensions, ensuring smooth edges, and removing any surface imperfections that could affect the test outcome. Specimens should be prepared according to standardized guidelines, such as ASTM or ISO standards, to ensure consistency and comparability of results.
The testing environment can significantly impact the performance of materials. Factors such as temperature, humidity, and even atmospheric pressure can alter the mechanical properties of the specimen. It is advisable to conduct tests in a controlled environment where these factors can be monitored and regulated. For instance, some materials may require testing at specific temperatures to simulate real-world conditions.
After conducting the test, the data collected must be analyzed to draw meaningful conclusions. This involves generating stress-strain curves and calculating key material properties such as yield strength, ultimate tensile strength, and elongation at break. Advanced testing software can assist in this analysis, providing graphical representations and statistical evaluations of the data.
During the setup and testing process, various issues may arise. Common problems include misalignment of the specimen, incorrect load cell calibration, and software malfunctions. It is essential to have a troubleshooting guide on hand and to train operators to recognize and address these issues promptly. Regular maintenance checks can also help prevent many of these problems from occurring.
Setting up a testing machine requires careful attention to detail and adherence to best practices. By following the steps outlined in this guide, you can ensure that your testing machine is configured correctly, leading to accurate and reliable test results. Proper setup not only enhances the quality of your data but also contributes to the overall safety and efficiency of the testing process.
A testing machine is used to evaluate the mechanical properties of materials by applying controlled loads and measuring their response.
Testing machines should be calibrated regularly, typically every six months or after significant use, to ensure accurate measurements.
Common tests include tensile tests, compression tests, flexural tests, and shear tests, among others.
Using the correct grips ensures that the specimen is held securely and that the load is applied evenly, which is crucial for obtaining accurate test results.
Operators should wear appropriate PPE, ensure the testing area is clear of obstructions, and follow all manufacturer safety guidelines.
