Load cells are essential components in various industries, providing accurate measurements of force or weight. One common specification you might encounter is "output 2mV/V." This article will delve into what this means, how load cells work, their applications, and much more.

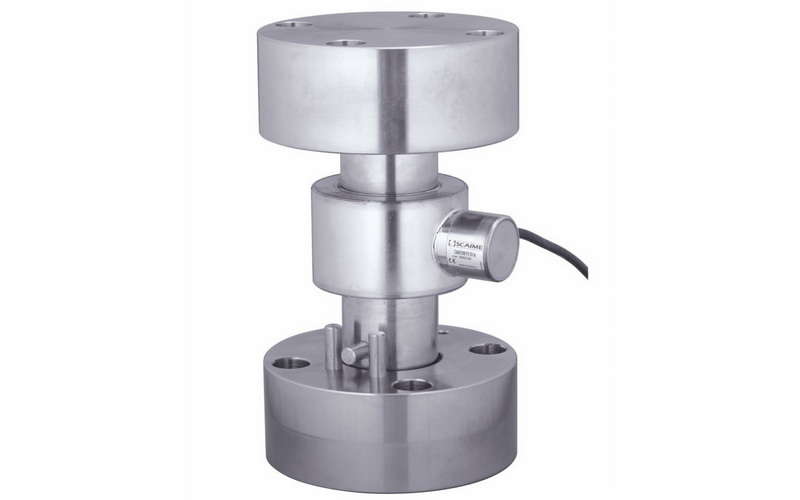

A load cell is a transducer that converts a force into an electrical signal. The most common type of load cell is the strain gauge load cell, which uses the principle of strain gauges to measure the deformation of a material under load. When a load is applied, the strain gauge deforms, changing its electrical resistance. This change is then converted into a voltage signal, which can be measured and interpreted.
1. Strain Gauge Load Cells: The most widely used type, known for their accuracy and reliability.
2. Hydraulic Load Cells: Use fluid pressure to measure weight, suitable for heavy loads.
3. Pneumatic Load Cells: Utilize air pressure, often used in applications requiring high speed and low weight.
4. Capacitive Load Cells: Measure changes in capacitance caused by load changes, typically used in specialized applications.

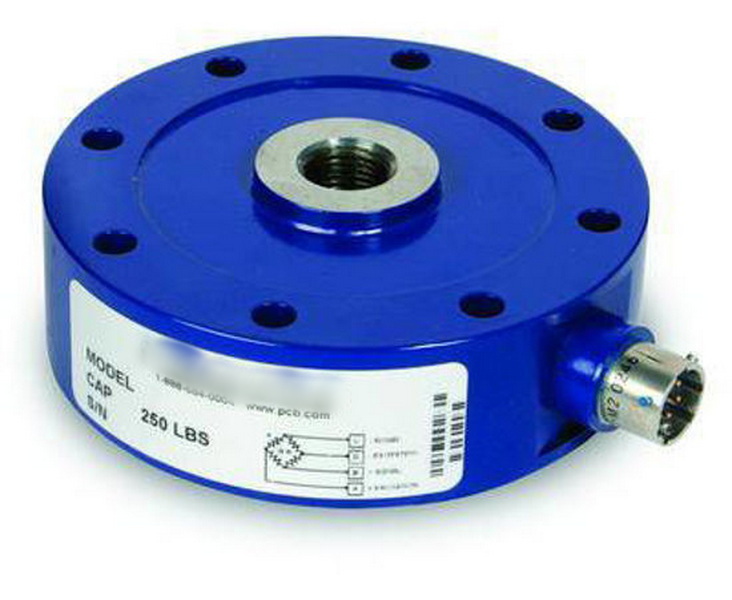

The specification "2mV/V" refers to the output signal of the load cell relative to the excitation voltage applied to it. Here’s a breakdown:
◆ mV: Millivolts, a unit of voltage.
◆ V: Volts, the unit of excitation voltage.
When a load cell has an output of 2mV/V, it means that for every volt of excitation applied, the load cell will produce an output of 2 millivolts at full load. For example, if the excitation voltage is 10V, the maximum output at full load would be:
Output=2 mV/V×10 V=20 mVOutput=2mV/V×10V=20mV
This output is linear, meaning that if you apply half the load, you will get half the output voltage.
The output specification is crucial for several reasons:
◆ Calibration: Knowing the output allows for accurate calibration of measuring instruments.
◆ Signal Processing: Understanding the output helps in designing the signal processing circuitry to amplify and convert the signal into usable data.
◆ Compatibility: Ensures that the load cell can be integrated with existing systems that have specific input requirements.
Load cells are used in a variety of applications across different industries:
1. Industrial Weighing: Used in scales for weighing products in manufacturing and shipping.
2. Automotive Testing: Measure forces in crash tests and component testing.
3. Aerospace: Used in load testing of aircraft components.
4. Medical Devices: Weighing patients and measuring forces in medical equipment.
5. Construction: Monitoring loads on structures and equipment.
In industrial settings, load cells are integral to weighing systems. For instance, in a production line, load cells can be used to ensure that products meet weight specifications. If a product is underweight, it can be automatically rejected, ensuring quality control. Similarly, in shipping, load cells help in determining the weight of packages, which is crucial for calculating shipping costs.
Calibration is a critical process for ensuring the accuracy of load cells. It involves comparing the output of the load cell against a known standard. This process can be performed using weights of known mass. The load cell is subjected to these weights, and the output is recorded. Any discrepancies can be adjusted through calibration settings in the measuring instrument.
Load cells operate based on the principle of converting mechanical force into an electrical signal. The most common type, the strain gauge load cell, consists of a metal element that deforms when a load is applied. Strain gauges are bonded to this element. As the element deforms, the strain gauges also deform, changing their electrical resistance. This change in resistance is measured and converted into a voltage signal.
The raw output from a load cell is typically very small, often in the millivolt range. Therefore, signal conditioning is necessary to amplify this signal for further processing. Signal conditioning can include amplification, filtering, and analog-to-digital conversion. This ensures that the output is suitable for display or further analysis.
Several factors can influence the performance of load cells:
◆ Temperature: Load cells can be sensitive to temperature changes, which can affect their accuracy. It is essential to use load cells rated for the expected temperature range of the application.
◆ Mechanical Stress: Overloading a load cell can cause permanent deformation, leading to inaccurate readings. It is crucial to select a load cell with an appropriate capacity for the application.
◆ Electrical Noise: Load cells can be affected by electrical noise from nearby equipment. Proper shielding and grounding techniques can help mitigate this issue.
Load cells offer several advantages that make them a preferred choice for measuring weight and force:
◆ High Accuracy: Load cells provide precise measurements, which are essential for quality control in manufacturing and other applications.
◆ Durability: Many load cells are designed to withstand harsh environments, making them suitable for industrial applications.
◆ Versatility: Load cells can be used in various applications, from simple weighing scales to complex force measurement systems.

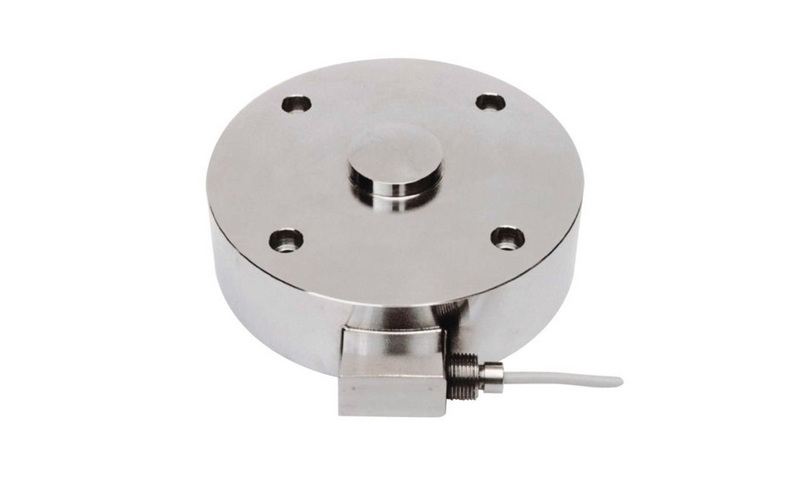

Load cells come in various configurations to suit different applications:
◆ S-Type Load Cells: These are versatile and can be used in tension and compression applications.

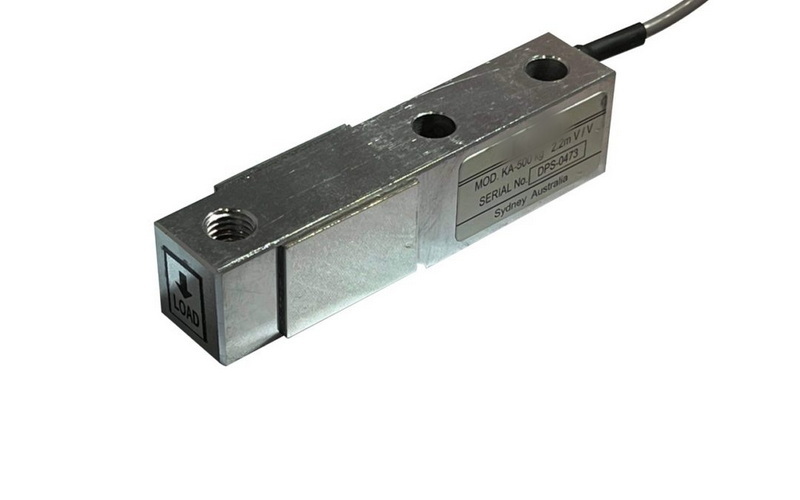

◆ Shear Beam Load Cells: Commonly used in platform scales, they provide high accuracy and stability.
◆ Bending Beam Load Cells: Often used in low-capacity applications, such as small scales.
As technology advances, load cells are becoming more sophisticated. Some trends to watch include:
◆ Wireless Load Cells: These eliminate the need for cables, making installation easier and reducing wear and tear.
◆ Smart Load Cells: Equipped with sensors and communication capabilities, these load cells can provide real-time data and diagnostics.
◆ Integration with IoT: Load cells are increasingly being integrated into Internet of Things (IoT) systems, allowing for remote monitoring and data analysis.
Understanding the output specification of load cells, such as 2mV/V, is essential for their effective application in various fields. Load cells play a critical role in ensuring accurate measurements, which are vital for quality control, safety, and efficiency in many industries.
The maximum output would be 20mV.
Calibration involves applying known weights and adjusting the output readings to match the expected values.
Temperature, mechanical stress, and electrical noise can all impact accuracy.
Yes, but ensure they are rated for environmental conditions such as moisture and temperature extremes.
A load cell specifically measures weight or load, while a force sensor can measure various types of forces, including tension and compression.
