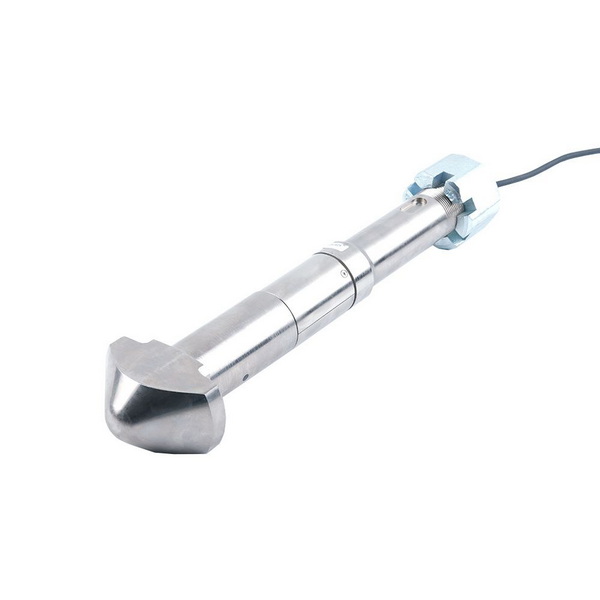

A load cell is a transducer that converts a force into an electrical signal. It is commonly used in scales and weighing systems to measure weight or force. Load cells come in various types, including strain gauge, hydraulic, and pneumatic load cells, each with its unique operating principles.
Load cells operate based on the principle of strain gauges. When a load is applied, the strain gauge deforms, causing a change in its electrical resistance. This change is measured and converted into a weight reading. The accuracy of this measurement is crucial for many applications, from industrial weighing to medical devices.
Overloading occurs when a load cell is subjected to a force that exceeds its rated capacity. Each load cell has a specific maximum load it can handle, and exceeding this limit can lead to various issues, including permanent damage.
1. Improper Sizing: Using a load cell that is not rated for the expected load can lead to overloading.
2. Unexpected Loads: Sudden impacts or dynamic loads, such as dropping heavy objects onto a scale, can exceed the load cell's capacity.
3. Calibration Errors: Incorrect calibration can result in misreading the actual load, leading to overload situations.
When a load cell is overloaded, it can suffer mechanical damage. This damage may manifest as:
- Deformation: The load cell may bend or warp, affecting its ability to measure accurately.
- Cracking: Excessive force can lead to cracks in the load cell material, compromising its structural integrity.
- Fatigue: Repeated overloading can cause fatigue in the load cell material, leading to eventual failure.
Overloading can also cause electrical damage to the load cell. This includes:
- Short Circuits: Excessive force can cause internal components to shift, leading to short circuits.
- Signal Drift: Overloading can result in changes to the electrical characteristics of the load cell, causing signal drift and inaccurate readings.

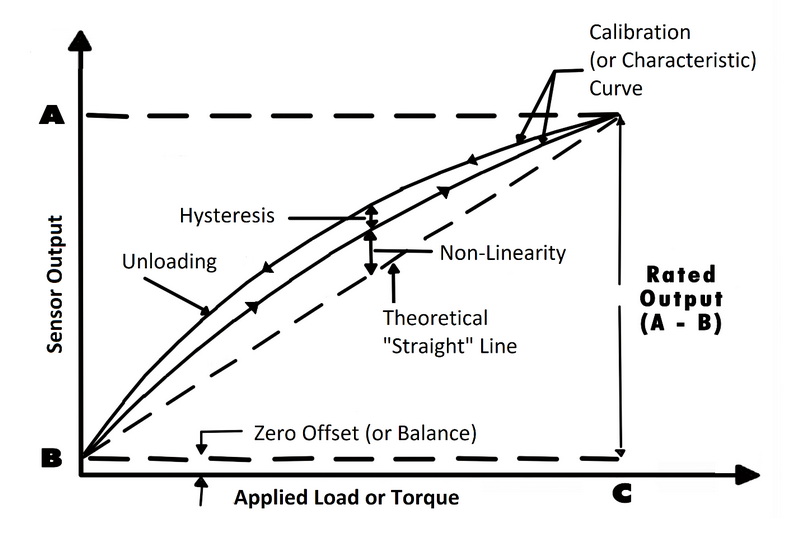

Overloading can affect the calibration of a load cell. When a load cell is overloaded, it may require recalibration to restore accurate measurements. This process can be time-consuming and may lead to downtime in operations.
Overloading poses significant safety risks, especially in industrial settings. A malfunctioning load cell can lead to:
- Accidents: Inaccurate weight measurements can result in unsafe lifting operations, leading to accidents and injuries.
- Equipment Damage: Overloaded equipment can fail, causing damage to machinery and potential hazards to personnel.
One of the most effective ways to prevent overloading is to ensure that the load cell is appropriately sized for the application. This involves:
- Calculating Expected Loads: Assessing the maximum load that will be applied to the load cell during operation.
- Choosing the Right Load Cell: Selecting a load cell with a capacity that exceeds the expected maximum load.
Many load cells come with built-in overload protection features. These can include:
- Mechanical Stops: Physical barriers that prevent the load cell from being subjected to excessive force.
- Electronic Overload Protection: Systems that monitor the load and provide alerts or shut down operations if overload conditions are detected.
Regular maintenance and calibration are essential for ensuring load cell integrity. This includes:
- Routine Inspections: Checking for signs of wear, damage, or misalignment.
- Calibration Checks: Regularly verifying the accuracy of the load cell to ensure it operates within its specified limits.
Maintaining load cell integrity is crucial for several reasons:
1. Accuracy: Accurate measurements are vital for quality control in manufacturing processes, ensuring that products meet specifications.
2. Safety: In industries such as construction and logistics, accurate weight measurements are essential for safe operations. Overloading can lead to catastrophic failures.
3. Cost Efficiency: Preventing damage to load cells through proper maintenance and overload protection can save organizations significant costs associated with repairs and downtime.
Overloading can have severe consequences for load cell integrity, leading to mechanical and electrical damage, calibration issues, and safety risks. By understanding the causes and effects of overloading, as well as implementing preventive measures, organizations can protect their load cells and ensure accurate and safe operations.
Signs of a damaged load cell include erratic readings, physical deformation, and failure to return to zero after unloading.
Prevent overloading by properly sizing the load cell, implementing overload protection, and conducting regular maintenance.
If a load cell is overloaded, immediately remove the excess load and inspect the cell for damage. Recalibrate if necessary.
Yes, repeated overloading can significantly reduce the lifespan of a load cell due to mechanical fatigue and damage.
Depending on the extent of the damage, some load cells can be repaired, but often it is more cost-effective to replace them.
