In the realm of electronic measurement and weighing systems, the 4 load cell bridge configuration stands out as a highly effective method for achieving accurate and reliable weight measurements. This setup utilizes four load cells arranged in a specific manner to form a Wheatstone bridge, which is a fundamental circuit used to measure electrical resistance. This article will delve into the intricacies of the 4 load cell bridge, exploring its design, functionality, applications, and advantages.
A load cell is a transducer that converts a force or weight into an electrical signal. It is a crucial component in various applications, including industrial scales, medical devices, and automotive testing. Load cells operate on the principle of strain gauges, which change their electrical resistance when subjected to deformation.
There are several types of load cells, including:
1. Strain Gauge Load Cells: The most common type, which uses strain gauges to measure deformation.
2. Hydraulic Load Cells: These use fluid pressure to measure weight.
3. Pneumatic Load Cells: These operate on air pressure and are often used in environments where electrical devices may pose a risk.
The Wheatstone bridge is a circuit used to measure unknown electrical resistances by balancing two legs of a bridge circuit. In the context of load cells, the Wheatstone bridge configuration allows for precise measurement of the load cell's output signal, which is proportional to the weight applied.
The Wheatstone bridge consists of four resistors arranged in a diamond shape. When a load is applied to the load cells, the resistance changes, causing an imbalance in the bridge. This imbalance generates a voltage output that can be measured and converted into a weight reading.
In a 4 load cell bridge configuration, four load cells are placed at the corners of a platform or scale. Each load cell measures the force applied to it, and their outputs are combined to provide a single, accurate weight measurement. This setup is particularly beneficial for large or unevenly distributed loads, as it helps to minimize errors caused by shifting weights.

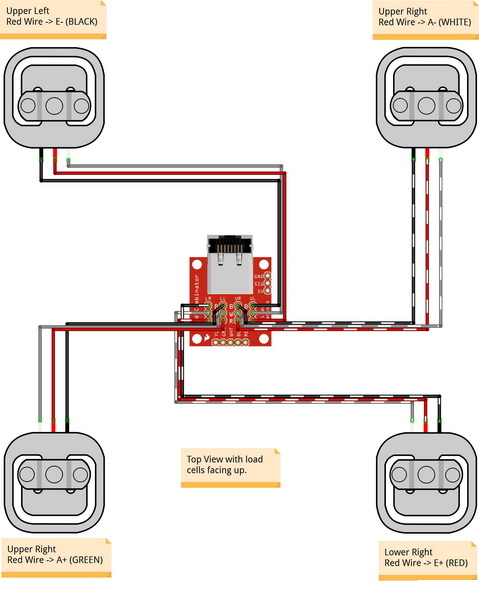

Wiring a 4 load cell bridge involves connecting each load cell to a data acquisition system or an amplifier, such as the HX711. The connections typically include:
- Excitation Voltage (Vcc): Power supply for the load cells.
- Signal Output (Vout): The voltage output that corresponds to the weight measured.
- Ground (Gnd): Common ground for the circuit.
Calibration is a critical step in ensuring the accuracy of the load cell bridge. This process involves applying known weights to the scale and adjusting the output readings to match the actual weights. Regular calibration is essential to maintain precision, especially in industrial applications.
1. Increased Accuracy: By using four load cells, the system can average out any discrepancies caused by uneven loading or environmental factors.
2. Enhanced Stability: The configuration provides better stability and reduces the risk of tipping or swaying, making it ideal for dynamic environments.
3. Versatility: This setup can be used in various applications, from industrial scales to laboratory experiments.
4. Ease of Integration: The 4 load cell bridge can be easily integrated with digital displays and data logging systems for real-time monitoring.
In industrial settings, 4 load cell bridges are commonly used in platform scales, truck scales, and batching systems. These applications require high accuracy and reliability, making the 4 load cell configuration ideal. The ability to measure large weights accurately is crucial in industries such as manufacturing, logistics, and food processing.
Load cells are also used in medical devices, such as patient weighing scales and force measurement systems in rehabilitation equipment. The precision of a 4 load cell bridge ensures accurate readings, which are crucial for patient care. For instance, in hospitals, accurate weight measurements can influence medication dosages and treatment plans.
In research laboratories, 4 load cell bridges are employed in experiments that require precise force measurements, such as material testing and biomechanical studies. Researchers can analyze the mechanical properties of materials or study human biomechanics with high accuracy, leading to advancements in various fields.
While the 4 load cell bridge offers numerous advantages, there are challenges to consider:
1. Cost: The initial setup cost can be higher than single load cell systems due to the need for multiple load cells and additional wiring.
2. Complexity: The wiring and calibration process can be more complex, requiring skilled personnel for installation and maintenance.
3. Environmental Factors: Load cells can be sensitive to temperature changes and humidity, which may affect their performance. Proper housing and environmental controls are necessary to mitigate these effects.
As technology advances, the future of load cell systems, including the 4 load cell bridge, looks promising. Innovations in materials science and electronics are leading to the development of more sensitive and durable load cells. Additionally, the integration of IoT (Internet of Things) technology allows for remote monitoring and data analysis, enhancing the functionality of load cell systems.
Smart load cells equipped with wireless communication capabilities can transmit data in real-time to cloud-based systems. This feature enables users to monitor weight measurements remotely, facilitating better decision-making and operational efficiency.
The trend towards miniaturization in electronics is also impacting load cell technology. Smaller load cells can be integrated into compact devices, expanding their applications in consumer electronics, automotive systems, and portable medical devices.
The 4 load cell bridge is a powerful tool in the field of measurement and weighing. Its ability to provide accurate and reliable weight readings makes it indispensable in various applications, from industrial scales to medical devices. Understanding its design, functionality, and advantages can help users make informed decisions when implementing load cell technology in their systems.
The main advantage is increased accuracy and stability in weight measurements, especially for unevenly distributed loads.
Calibration involves applying known weights to the scale and adjusting the output readings to match the actual weights.
Strain gauge load cells are the most commonly used type due to their accuracy and reliability.
Yes, but it is essential to protect the load cells from environmental factors such as moisture and extreme temperatures.
It is commonly used in platform scales, truck scales, and batching systems where high accuracy is required.
