A load cell is a crucial component in various industrial and commercial applications, primarily used for measuring force or weight. Among the different types of load cells, a 500 N load cell is designed to measure loads up to 500 Newtons. This article will delve into the workings of a 500 N load cell, its applications, and its significance in modern technology.

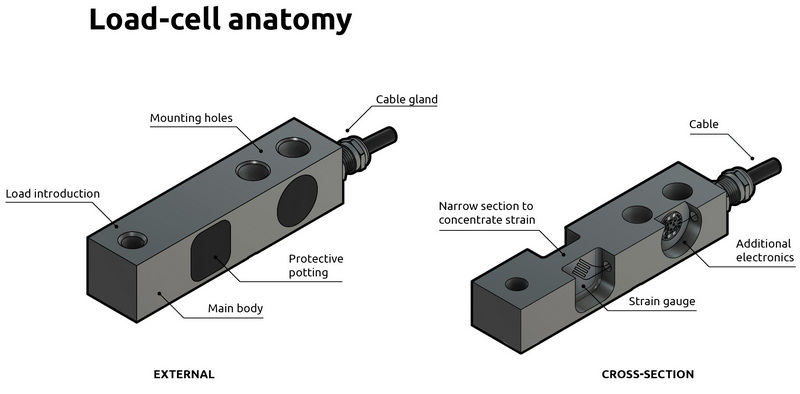

A load cell is an electro-mechanical device that converts a force into an electrical signal. The most common type of load cell is the strain gauge load cell, which operates on the principle of strain gauges that change resistance when a force is applied. This change in resistance is then converted into a measurable electrical signal, allowing for accurate weight or force measurement.

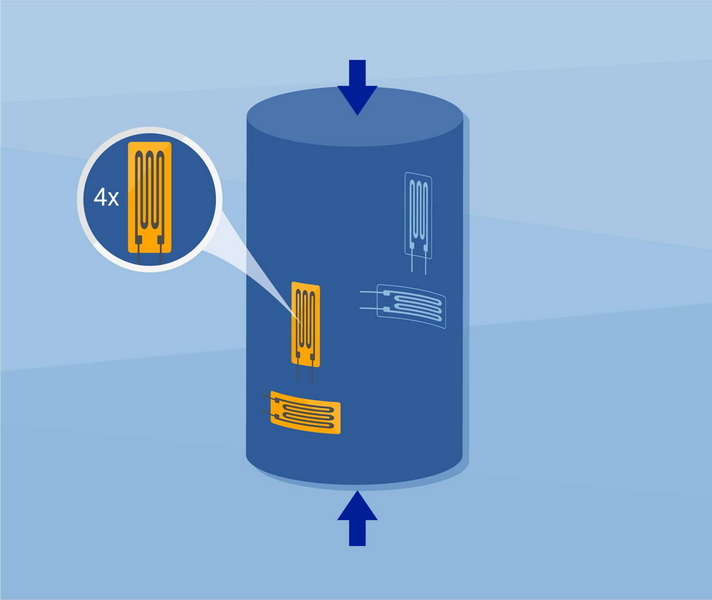

These load cells measure the force applied to them in a compressive manner. They are often used in weighing scales and industrial applications.
Designed to measure pulling forces, these load cells are used in applications where the load is suspended from the sensor.

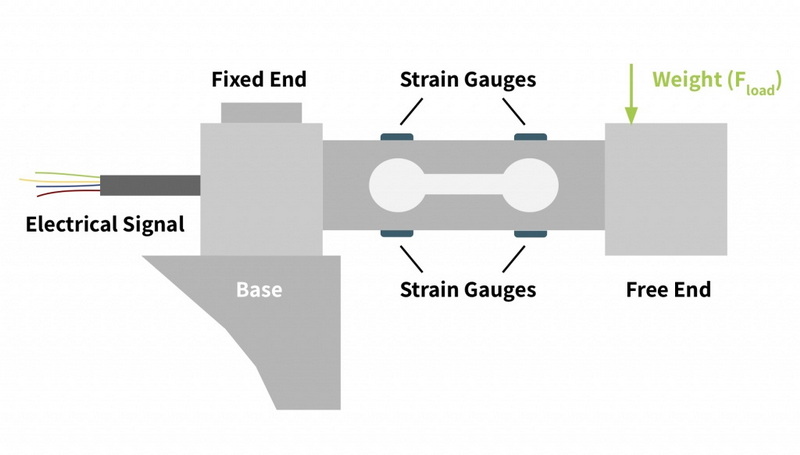

Commonly used in scales, these load cells measure the bending of a beam under load.
These are versatile and can measure both tension and compression forces.
A 500 N load cell operates on the same principles as other load cells but is specifically calibrated to measure forces up to 500 Newtons. When a load is applied, the load cell deforms slightly, and this deformation is detected by the strain gauges attached to it. The strain gauges are arranged in a Wheatstone bridge configuration, which allows for precise measurement of the resistance change.
When a force is applied to the load cell, it causes a deformation in the sensing element.
The strain gauges bonded to the sensing element experience a change in resistance proportional to the amount of deformation.
The small electrical signal generated by the strain gauges is amplified and conditioned to make it suitable for measurement.
The conditioned signal is then converted into a readable format, typically in volts or millivolts, which can be displayed on a digital readout or processed by a computer.
500 N load cells are widely used in various applications, including:
◆ Industrial Weighing: Used in scales for weighing products in manufacturing and packaging.
◆ Material Testing: Employed in laboratories to test the strength and durability of materials.
◆ Automotive Testing: Used in crash tests and other automotive applications to measure forces.
◆ Medical Devices: Incorporated in medical equipment for precise weight measurements.
Load cells provide precise measurements, which are essential in applications where accuracy is critical.
Designed to withstand harsh environments, load cells are built to last and maintain performance over time.
A 500 N load cell can be used in various applications, making it a flexible solution for many industries.
Load cells can be easily integrated into existing systems, allowing for seamless upgrades to measurement capabilities.
In summary, a 500 N load cell is an essential tool for measuring force and weight in various applications. Its ability to provide accurate and reliable measurements makes it invaluable in industries ranging from manufacturing to healthcare. Understanding how a load cell works and its applications can help businesses optimize their operations and improve product quality.
A 500 N load cell can measure loads up to 500 Newtons, which is approximately 112 pounds.
Calibration involves applying known weights to the load cell and adjusting the output signal to match the expected values. This process ensures accuracy in measurements.
Yes, depending on the design, some 500 N load cells can measure both tension and compression forces.
Load cells are widely used in industries such as manufacturing, automotive, healthcare, and research laboratories.
Consider factors such as load capacity, accuracy, environmental conditions, and the type of force measurement required when selecting a load cell.
This article provides a comprehensive overview of 500 N load cells, their functionality, and their applications, ensuring that readers gain a thorough understanding of this essential technology.
