A load cell is a transducer that converts a force into an electrical signal. This signal can then be measured and displayed, allowing for precise weight measurements. Load cells are widely used in scales, industrial applications, and various scientific measurements.

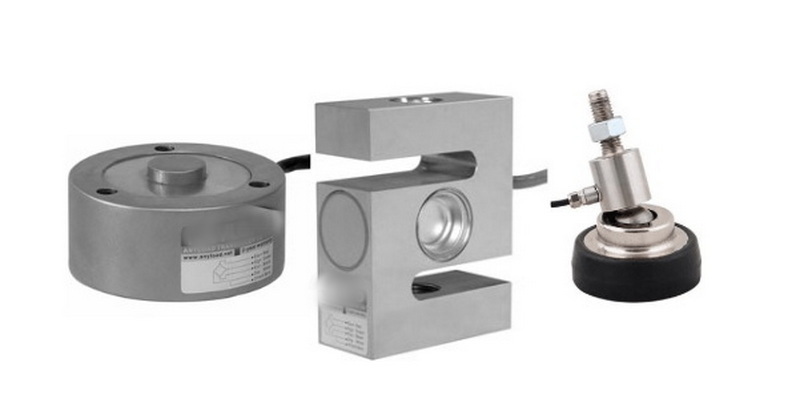

Load cells can be categorized based on their design and application. The most common types include:
- Strain Gauge Load Cells: These are the most prevalent type, utilizing strain gauges to measure deformation under load.
- Hydraulic Load Cells: These use fluid pressure to measure weight and are often used in heavy-duty applications.
- Pneumatic Load Cells: These operate on air pressure and are suitable for specific industrial applications.
Load cells are classified based on their accuracy and application, primarily following the guidelines set by the International Organization of Legal Metrology (OIML). The classifications range from Class A (highest accuracy) to Class D (lowest accuracy). Class 1 load cells fall under the OIML Class C category, which is designed for applications requiring moderate precision.
1. Accuracy: Class 1 load cells offer a high level of accuracy, typically within ±0.1% of the full scale. This makes them suitable for applications where precise measurements are critical.
2. Capacity: These load cells can handle a wide range of capacities, from small scales to larger industrial applications, depending on the specific design and manufacturer.
3. Temperature Stability: Class 1 load cells are designed to maintain accuracy across a specified temperature range, ensuring reliable performance in varying environmental conditions.
4. Material and Construction: Typically made from high-quality materials such as stainless steel or aluminum, Class 1 load cells are built to withstand harsh conditions and provide long-lasting performance.
Class 1 load cells are utilized in various industries due to their accuracy and reliability. Some common applications include:
Class 1 load cells are frequently used in commercial and industrial weighing scales, including:
- Retail Scales: Used in grocery stores and markets for weighing products.
- Industrial Scales: Employed in warehouses and manufacturing for inventory management.
In the medical field, Class 1 load cells are used in devices such as:
- Patient Scales: For accurate weight measurement in hospitals and clinics.
- Laboratory Equipment: Used in various analytical instruments requiring precise weight measurements.
The food industry relies on Class 1 load cells for:
- Portion Control: Ensuring accurate measurements for packaging and serving.
- Quality Control: Monitoring weight consistency in food production.
In aerospace and automotive industries, Class 1 load cells are used for:
- Load Testing: Evaluating the strength and durability of components.
- Dynamic Weighing: Measuring forces during testing procedures.
Class 1 load cells are also employed in construction and civil engineering for:
- Structural Monitoring: Measuring loads on bridges and buildings to ensure safety and integrity.
- Material Testing: Assessing the strength of construction materials under various loads.
Class 1 load cells offer several advantages that make them a preferred choice in many applications:
With an accuracy of ±0.1%, Class 1 load cells provide reliable measurements, essential for applications where precision is critical.
These load cells can be used in various settings, from retail to industrial applications, making them highly versatile.
Constructed from robust materials, Class 1 load cells are designed to withstand harsh environments, ensuring longevity and reliability.
Class 1 load cells meet international standards, ensuring that they are suitable for legal and commercial applications.
While offering high precision, Class 1 load cells are often more affordable than higher-class load cells, making them an economical choice for many businesses.
1. Proper Alignment: Ensure that the load cell is aligned correctly to avoid measurement errors.
2. Secure Mounting: Use appropriate mounting techniques to prevent movement during operation.
3. Calibration: Regularly calibrate the load cell to maintain accuracy.
1. Regular Inspections: Check for signs of wear or damage to ensure continued performance.
2. Environmental Considerations: Protect load cells from extreme temperatures and moisture to prolong their lifespan.
3. Calibration Checks: Perform periodic calibration checks to ensure ongoing accuracy.
The field of load cell technology is continually evolving, with advancements aimed at improving accuracy, reliability, and ease of use. Some notable trends include:
Digital load cells offer enhanced accuracy and can provide real-time data transmission, making them ideal for modern applications that require immediate feedback.
Wireless technology is becoming increasingly popular, allowing for easier installation and reducing the need for extensive wiring. This is particularly beneficial in large-scale industrial applications.
Smart load cells integrate sensors and software to provide advanced features such as self-diagnostics, predictive maintenance alerts, and enhanced data analytics capabilities.
As technology advances, load cells are becoming smaller and more compact, allowing for their use in applications where space is limited, such as portable weighing devices and small-scale industrial equipment.
Class 1 load cells play a vital role in various industries, providing accurate and reliable measurements essential for operational efficiency. Their high precision, versatility, and durability make them a preferred choice for applications ranging from retail to aerospace testing. Understanding the characteristics and applications of Class 1 load cells can help businesses make informed decisions when selecting measurement solutions.
Class 1 load cells offer higher accuracy compared to Class 2 load cells, making them suitable for more precise applications.
Yes, but they should be protected from extreme weather conditions to ensure longevity and accuracy.
It is recommended to calibrate them at least once a year or more frequently if used in critical applications.
They are typically made from stainless steel or aluminum, providing durability and resistance to corrosion.
Yes, they can be used in dynamic weighing applications, such as in conveyor systems, where accurate weight measurements are required.
