A four-wire load cell is a crucial component in various industrial and commercial applications, primarily used for measuring weight or force. Unlike other types of load cells, the four-wire configuration offers enhanced accuracy and reliability, making it a preferred choice in many scenarios. This article will explore the workings, applications, advantages, and wiring configurations of four-wire load cells, providing a comprehensive understanding of their significance in modern technology.
A load cell is a transducer that converts a force into an electrical signal. This signal can then be measured and displayed on a digital readout or used in automated systems. Load cells are widely used in scales, industrial weighing systems, and various applications where precise weight measurement is essential.
Load cells come in various configurations, including:
- Strain Gauge Load Cells: The most common type, which uses strain gauges to measure deformation.
- Hydraulic Load Cells: Utilize fluid pressure to measure weight.
- Pneumatic Load Cells: Use air pressure for measurement.
- Four-Wire Load Cells: A specific type of strain gauge load cell that employs four wires for improved accuracy.
A four-wire load cell consists of four wires: two for supplying power (excitation) and two for the output signal. This configuration helps to eliminate errors caused by changes in resistance due to temperature variations or wire length. The two excitation wires provide a stable voltage to the load cell, while the signal wires carry the output signal back to the measuring device.
1. Increased Accuracy: The four-wire setup minimizes the effects of lead resistance, leading to more precise measurements.
2. Temperature Compensation: Changes in temperature have less impact on the output signal, ensuring consistent performance.
3. Longer Cable Lengths: Four-wire load cells can be used effectively over longer distances without significant signal degradation.
4. Versatility: Suitable for various applications, from industrial scales to medical devices.
Four-wire load cells are utilized in numerous fields due to their reliability and accuracy. Here are some common applications:
In manufacturing and production environments, four-wire load cells are used in scales to measure the weight of raw materials, finished products, and packaging. Their accuracy ensures that companies maintain quality control and comply with regulations.
In the medical field, four-wire load cells are employed in devices such as hospital beds and weighing scales for patients. Their precision is critical for monitoring patient weight and ensuring proper dosage of medications based on weight.
Automotive manufacturers use four-wire load cells in crash testing and other performance evaluations. These load cells help measure forces exerted during tests, providing valuable data for safety assessments.
In robotics, four-wire load cells are integrated into systems that require precise force measurement, such as robotic arms used in assembly lines. This allows for better control and accuracy in automated processes.
In the food industry, four-wire load cells are used in packaging and processing equipment to ensure accurate measurements of ingredients and final products, helping maintain quality and consistency.
The wiring of a four-wire load cell typically follows a standard color code:
- Red: Excitation + (V+)
- Black: Excitation - (V-)
- Green: Signal + (S+)
- White: Signal - (S-)
This configuration allows for easy connection to amplifiers or data acquisition systems.
To connect a four-wire load cell to an amplifier, follow these steps:
1. Identify the Wires: Use the color code to identify each wire's function.
2. Connect the Wires: Connect the excitation wires to the power supply and the signal wires to the amplifier.
3. Calibrate the System: After connecting, calibrate the system to ensure accurate readings.
While both four-wire and six-wire load cells are used for similar applications, the six-wire configuration includes additional sense wires that help compensate for changes in resistance more effectively. This makes six-wire load cells more suitable for high-precision applications, but they are also more complex and expensive.

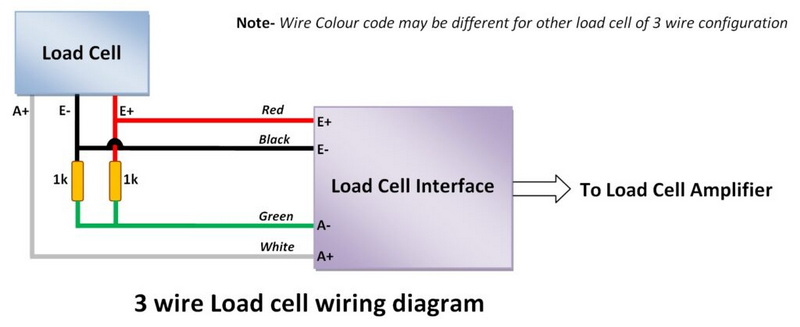

Three-wire load cells are simpler and less expensive but are less accurate than four-wire load cells. The three-wire configuration can be affected by changes in lead resistance, making four-wire load cells a better choice for applications requiring high accuracy.
Calibration is a critical process for ensuring that load cells provide accurate measurements. It involves comparing the output of the load cell against known weights and adjusting the system accordingly. Regular calibration is essential, especially in industries where precision is paramount, such as pharmaceuticals and aerospace.
1. Prepare Calibration Weights: Use certified weights that are traceable to national standards.
2. Zero the Load Cell: Ensure that the load cell reads zero when no weight is applied.
3. Apply Known Weights: Gradually apply known weights and record the output signal.
4. Adjust the System: If the output does not match the expected values, adjust the calibration settings.
5. Document the Calibration: Keep a record of the calibration process for quality assurance.
As technology advances, load cells are becoming more sophisticated. Innovations such as wireless load cells, IoT integration, and enhanced materials are paving the way for more efficient and accurate measurement systems. Wireless load cells eliminate the need for cumbersome wiring, making installation easier and more flexible. IoT-enabled load cells can transmit data in real-time, allowing for better monitoring and control in various applications.
Artificial intelligence (AI) is also making its way into load cell technology. AI algorithms can analyze data from load cells to predict maintenance needs, optimize performance, and enhance accuracy. This integration of AI can lead to smarter manufacturing processes and improved safety in critical applications.
Four-wire load cells play a vital role in various industries by providing accurate and reliable weight measurements. Their unique wiring configuration allows for enhanced performance, making them suitable for a wide range of applications, from industrial weighing systems to medical devices. Understanding how these load cells work and their advantages can help businesses and engineers make informed decisions when selecting measurement solutions.
The main advantage is increased accuracy due to reduced effects of lead resistance and temperature variations.
Yes, but they should be protected from environmental factors such as moisture and extreme temperatures.
Calibration involves applying known weights to the load cell and adjusting the output signal to match the expected values.
Industries such as manufacturing, healthcare, automotive, and food processing commonly use four-wire load cells.
Generally, yes, due to their enhanced accuracy and reliability, but the cost can vary based on the specific application and manufacturer.
