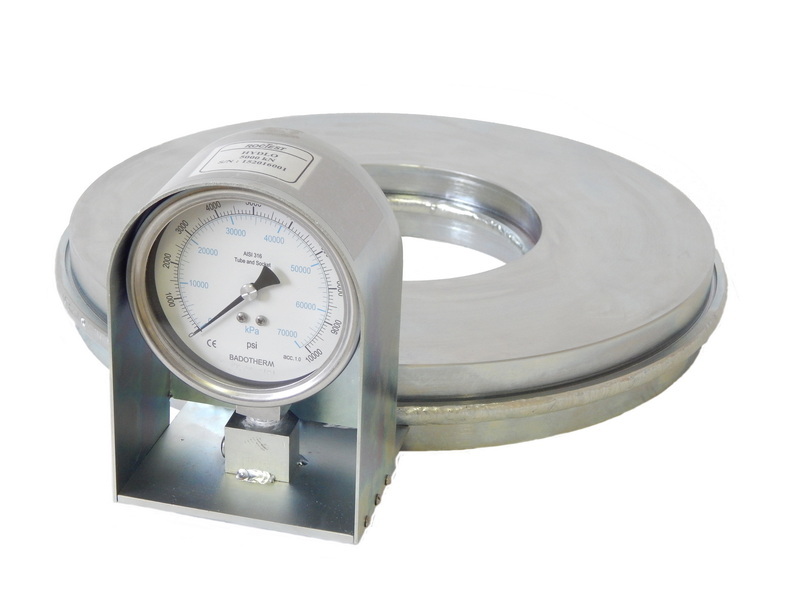

A hydraulic load cell is a type of force transducer that measures weight or force by utilizing hydraulic principles. These devices are essential in various industries, including construction, manufacturing, and automotive, where accurate weight measurement is crucial. This article will explore the working principles, components, advantages, applications, and maintenance of hydraulic load cells, providing a comprehensive understanding of this vital technology.
A load cell is a device that converts a force into an electrical signal. It is commonly used in weighing applications to measure the weight of objects. Load cells can be classified into several types, including strain gauge, pneumatic, and hydraulic load cells. Among these, hydraulic load cells are known for their high accuracy and robustness, making them suitable for heavy-duty applications.

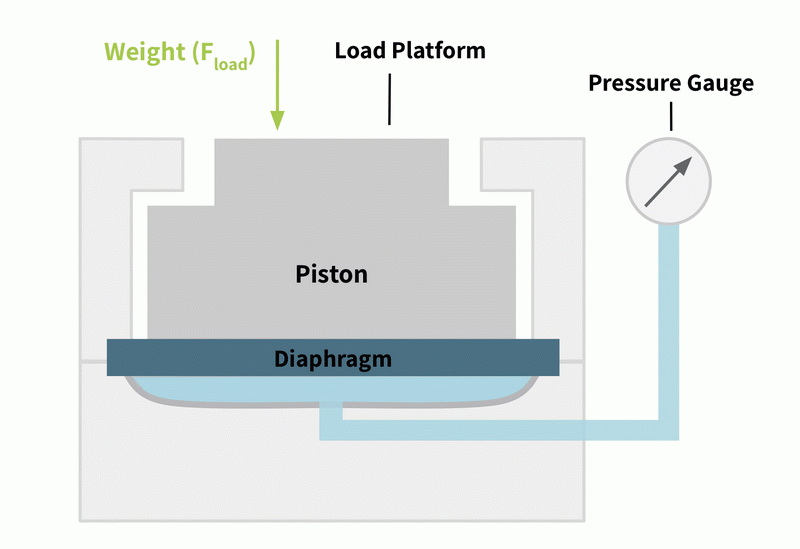

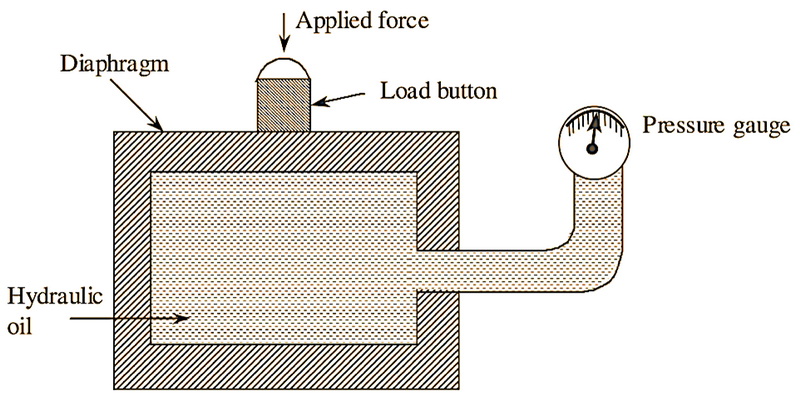

Hydraulic load cells operate based on Pascal's principle, which states that pressure applied to a confined fluid is transmitted undiminished throughout the fluid. When a force is applied to the load cell, it compresses a hydraulic fluid within a sealed chamber. This compression increases the pressure of the fluid, which is then measured by a pressure gauge or transducer.
The relationship between the applied force and the resulting pressure is linear, allowing for accurate weight measurements. The hydraulic load cell is calibrated to ensure that the pressure readings correspond to specific weight values, enabling precise force measurement.

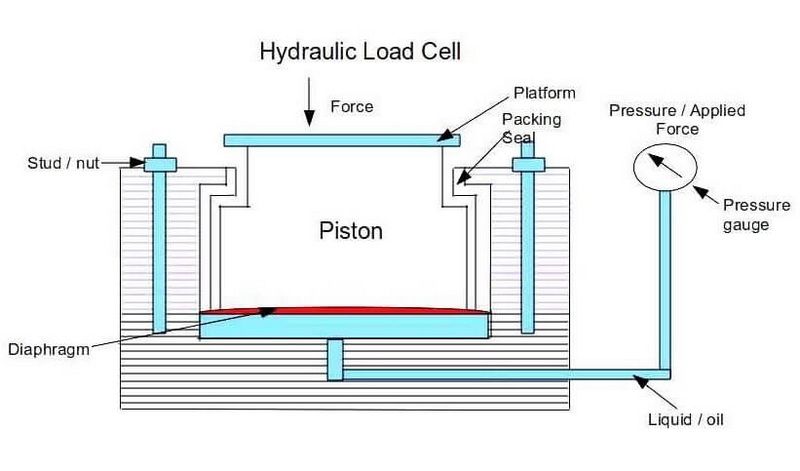

A typical hydraulic load cell consists of several key components:
1. Load Piston: This is the part of the load cell that directly experiences the applied force. It is often connected to the structure or equipment whose load needs to be measured.
2. Fluid-Filled Chamber: The load piston is situated within a sealed chamber filled with hydraulic fluid. This fluid transmits the pressure generated by the applied force.
3. Pressure Transducer: This component converts the hydraulic pressure into an electrical signal, which can be read and processed by a display or control system.
4. Seals and Diaphragms: These components ensure that the hydraulic fluid remains contained within the chamber, preventing leaks and maintaining pressure integrity.
5. Mounting Base: The load cell is typically mounted on a stable base to ensure accurate measurements and prevent movement during operation.
Hydraulic load cells offer several advantages over other types of load cells:
1. High Accuracy: Hydraulic load cells are known for their exceptional accuracy, making them ideal for applications that require precise weight measurements.
2. Robustness: These load cells are designed to withstand harsh environmental conditions, including extreme temperatures, humidity, and mechanical stress.
3. Wide Measurement Range: Hydraulic load cells can measure a wide range of forces, from small weights to several tons, making them versatile for various applications.
4. Low Maintenance: Compared to other load cell types, hydraulic load cells require less frequent maintenance, as they do not have electronic components that can fail.
5. Cost-Effectiveness: In applications where heavy-duty performance is required, hydraulic load cells can be more cost-effective than electronic load cells.
Hydraulic load cells are used in a variety of applications across different industries:
1. Construction: In construction, hydraulic load cells are used to weigh heavy materials, such as concrete and steel, ensuring that structures are built to specifications. They are also used in cranes and hoists to monitor the load being lifted, preventing overload situations.
2. Manufacturing: These load cells are employed in manufacturing processes to monitor the weight of raw materials and finished products, ensuring quality control. They help in maintaining consistency in production by providing accurate weight measurements during the manufacturing process.
3. Automotive: In the automotive industry, hydraulic load cells are used for testing the strength and durability of components, as well as for weighing vehicles during production. They are essential in crash testing and load testing of various automotive parts.
4. Aerospace: Hydraulic load cells play a critical role in the aerospace industry, where they are used to weigh aircraft and test components under various load conditions. They ensure that aircraft meet safety regulations and performance standards.
5. Shipping and Logistics: In shipping and logistics, hydraulic load cells are used to weigh cargo containers and ensure compliance with weight regulations. They help in optimizing load distribution and preventing overloading of transport vehicles.
To ensure the longevity and accuracy of hydraulic load cells, regular maintenance is essential. Here are some maintenance tips:
1. Regular Calibration: Hydraulic load cells should be calibrated periodically to maintain accuracy. Calibration involves comparing the load cell's readings with known weights and adjusting as necessary.
2. Fluid Checks: The hydraulic fluid should be checked regularly for contamination or leaks. If the fluid is dirty or low, it should be replaced to ensure accurate measurements.
3. Inspect Seals and Diaphragms: The seals and diaphragms should be inspected for wear and tear. Any damaged components should be replaced to prevent leaks and maintain pressure integrity.
4. Clean the Load Cell: The exterior of the load cell should be kept clean to prevent dirt and debris from affecting its performance. Use a soft cloth and mild detergent for cleaning.
5. Monitor Performance: Regularly monitor the performance of the load cell to identify any discrepancies in measurements. If inconsistencies are detected, further investigation may be necessary.
Hydraulic load cells are vital instruments in various industries, providing accurate and reliable measurements of weight and force. Their robust design, high accuracy, and low maintenance requirements make them an excellent choice for heavy-duty applications. Understanding the working principles, components, advantages, and maintenance of hydraulic load cells is essential for anyone involved in industries that rely on precise weight measurement.
The main advantage of hydraulic load cells is their high accuracy and robustness, making them suitable for heavy-duty applications.
Hydraulic load cells work by converting an applied force into hydraulic pressure, which is then measured and converted into an electrical signal.
Hydraulic load cells are commonly used in construction, manufacturing, automotive, aerospace, and shipping industries.
Hydraulic load cells should be calibrated periodically, depending on usage and environmental conditions, to maintain accuracy.
Maintenance includes regular calibration, fluid checks, inspecting seals and diaphragms, cleaning, and monitoring performance.
