A load cell is a critical force measurement device that converts mechanical force into measurable electrical signals. These sophisticated sensors are fundamental to modern industrial processes, scientific research, and everyday applications where precise weight or force measurements are essential.
A load cell is an electro-mechanical sensor designed to measure force or weight by converting mechanical deformation into electrical signals. These devices are the backbone of modern weighing systems and force measurement applications, ranging from simple bathroom scales to complex industrial processes.

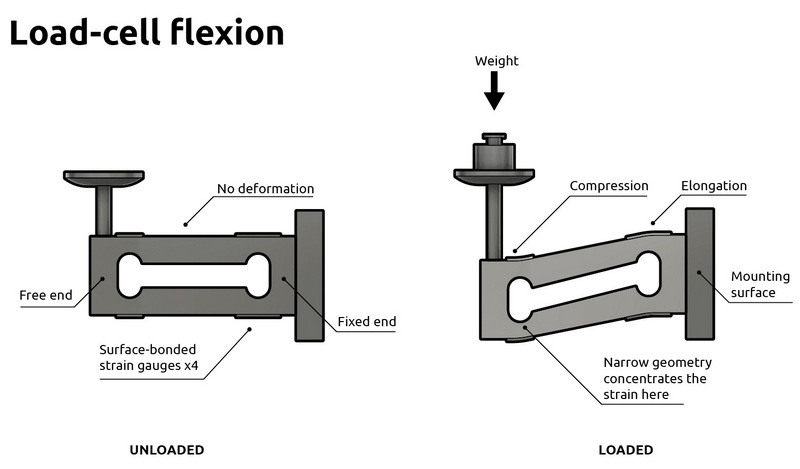

The fundamental working principle of a load cell involves strain gauges - small resistive elements that change their electrical resistance when subjected to mechanical stress. When a force is applied to the load cell, it causes minute deformations in the material, which are detected by these strain gauges.

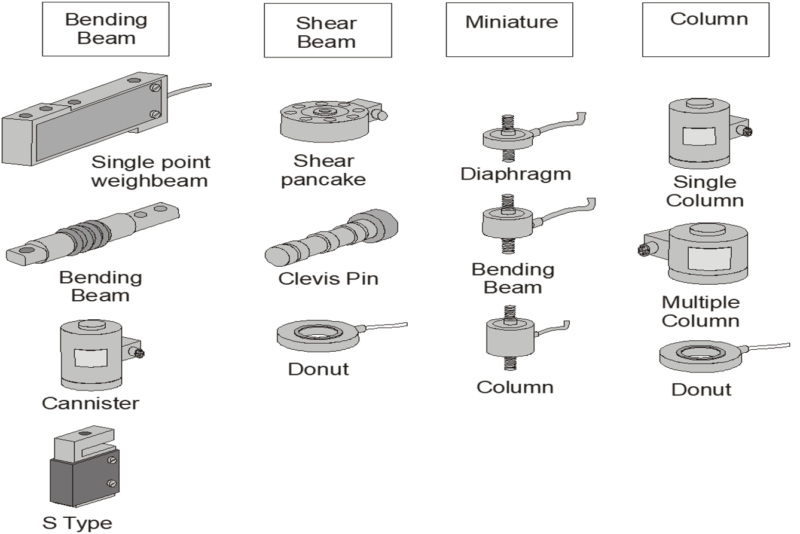

The most common type, featuring electrical resistance strain gauges that detect mechanical stress. These are widely used in industrial and commercial applications due to their accuracy and reliability.
These cells use fluid pressure to measure force, making them ideal for hazardous environments where electrical systems might pose risks.
Operating on air pressure principles, these are suitable for clean room environments and applications requiring intrinsically safe operations.
- Manufacturing process control
- Quality assurance testing
- Material handling systems
- Industrial scales and weighing
- Automated production lines
- Retail scales
- Shipping and logistics
- Food processing
- Laboratory equipment
- Medical devices
- Aerospace testing
- Civil engineering structures
- Automotive testing
- Research and development
- Marine applications
- Required capacity and accuracy
- Environmental conditions
- Physical space constraints
- Budget considerations
- Regulatory requirements
- Proper mounting and alignment
- Environmental protection
- Calibration procedures
- Regular maintenance
- Safety considerations
Regular maintenance and calibration are crucial for ensuring accurate measurements. This includes:
- Periodic accuracy checks
- Environmental protection
- Cleaning and inspection
- Professional calibration services
- Documentation and certification
The load cell industry continues to evolve with:
- Digital load cell technology
- Wireless connectivity
- IoT integration
- Enhanced durability
- Improved accuracy
A: Modern load cells typically offer accuracy ratings between 0.03% to 1% of full scale, depending on the type and quality of the cell. High-precision load cells can achieve even better accuracy levels under controlled conditions.
A: With proper maintenance and usage, quality load cells can last 5-10 years or more. However, this depends heavily on environmental conditions, usage patterns, and maintenance practices.
A: While minor issues can sometimes be repaired, it's generally recommended to replace damaged load cells as repairs may affect accuracy and reliability.
A: Common causes include overloading, shock loading, moisture damage, chemical exposure, and improper installation or maintenance.
A: Calibration frequency depends on usage and requirements but is typically recommended annually. Some applications may require more frequent calibration based on regulatory requirements or critical accuracy needs.
This comprehensive guide provides a thorough understanding of load cells, their applications, and important considerations for their use in various industries. As technology continues to advance, load cells remain an essential component in modern force measurement applications.
